About KnowSystem: Knowledge Base System
KnowSystem is a universal knowledge management tool that might be configured to any business goal and any set of Odoo apps: helpdesk, marketing, IT, HR, project management, and so on and so on. Typical use cases are:
Helpdesk - once faced a challenge, its solution might be recorded in KnowSystem for repeated usage by co-workers and for self-service by clients
Sales and CRM - salesperson helper to find information about products, offers, frequently asked customer questions
Project management - to keep and easily retrieve knowledge of existing solutions, tools, hints, and experiments
HR - to prepare instructions, guidelines, learning tours and training, and any codified knowledge of routine in your company
Marketing - to organize Odoo online library of product use cases, expert knowledge, and well-structured documentation
Legal issues - systematize your policies, contract, and approval management, keep the full classifier of trademarks, licenses Informational technologies - share easy-reached manuals and configuration guidelines.
The app provides:
Single-view KMS navigation
Wiki-like revisions
Applied in any functional area

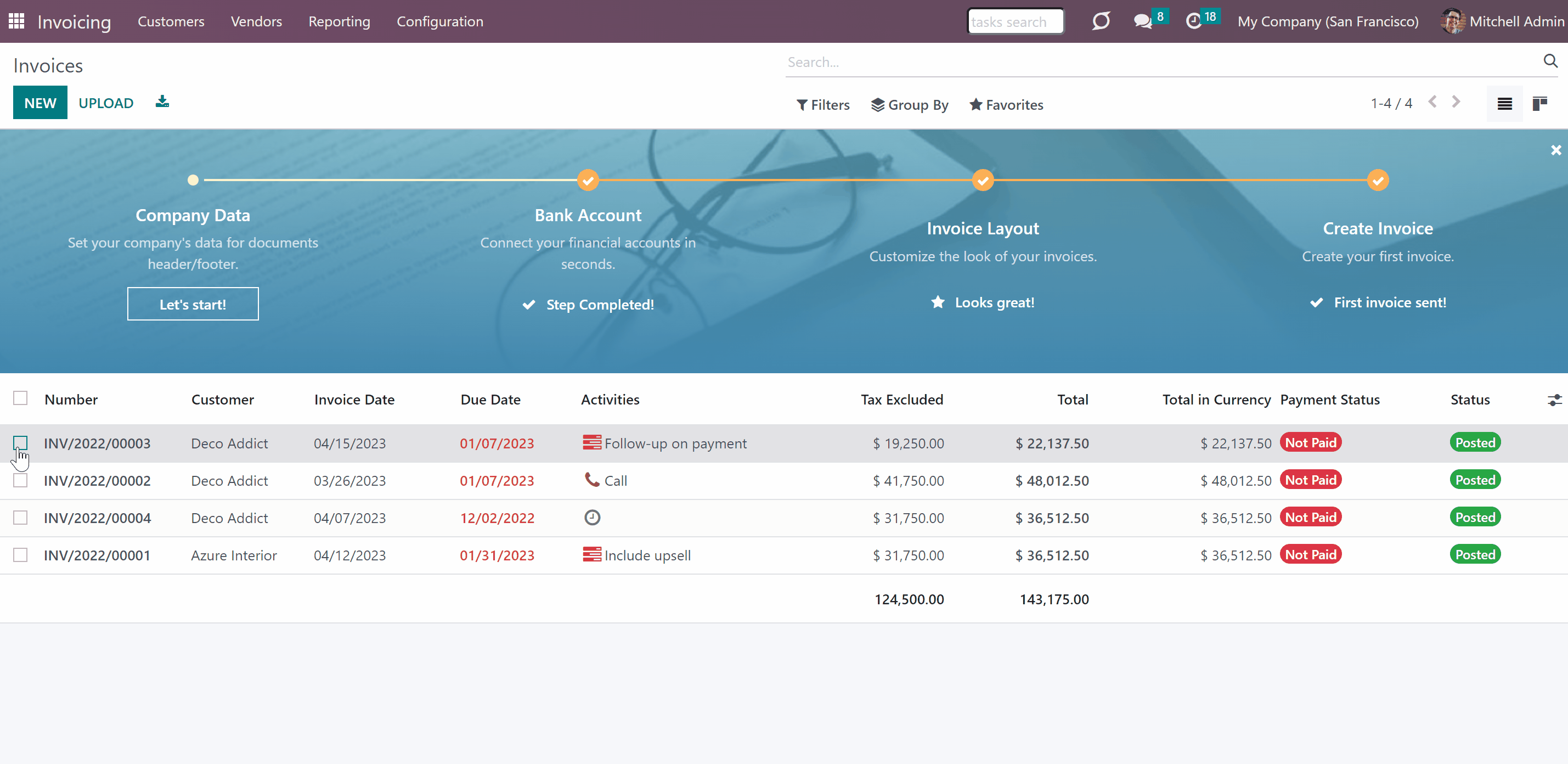

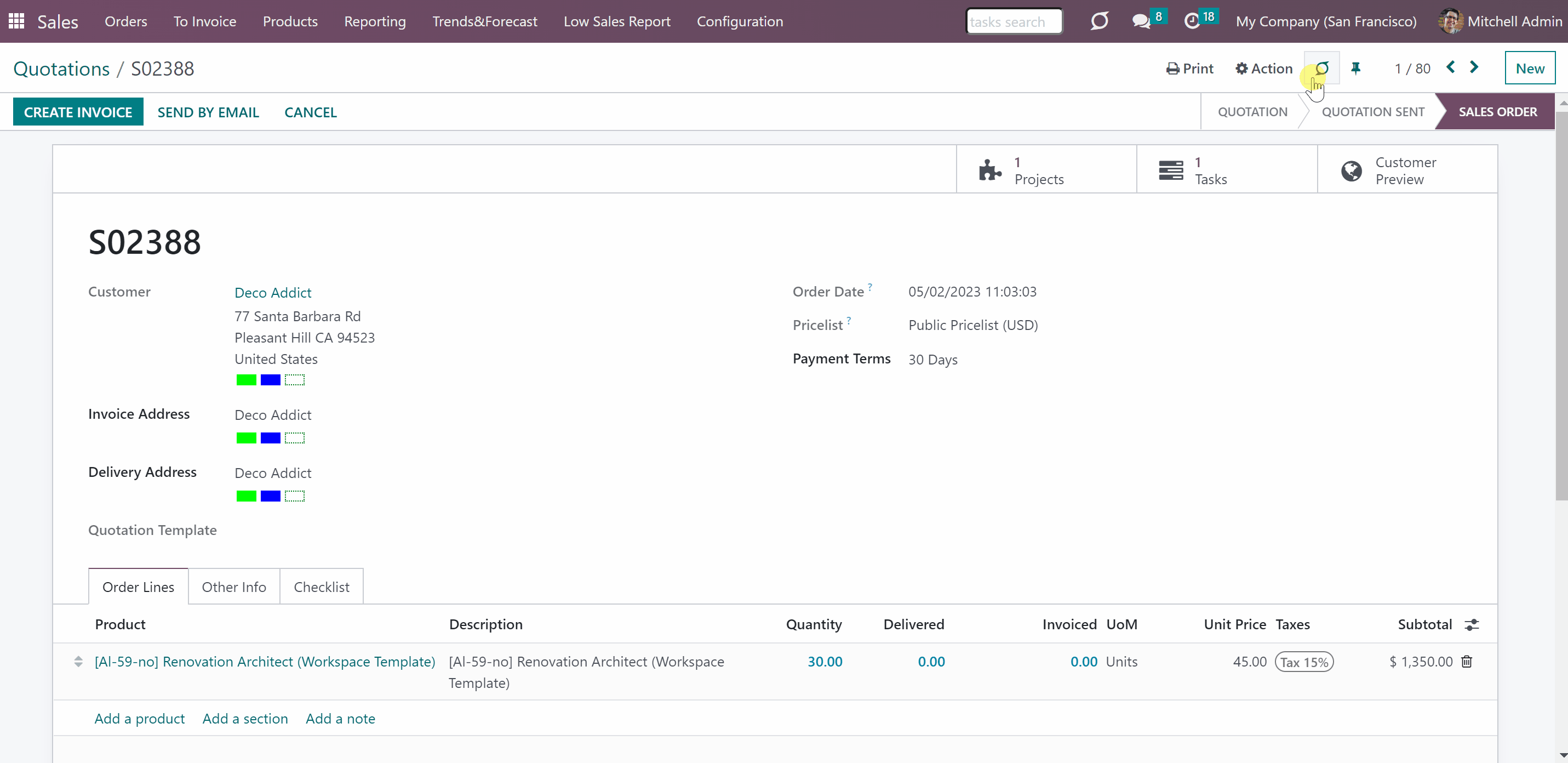

Reference of articles in messages
View statistics
Documentation builder, Website and portal, Custom fields, E-commerce, and multilanguage support
Concepts and terms
Here you can find all terms and add-ons icons that were used throughout all documentation.
Article - a piece of text, that contains some sort of knowledge, has a title and preview text.
Article template - a ready sample of an article, that you can edit to create a new one preserving formatting.

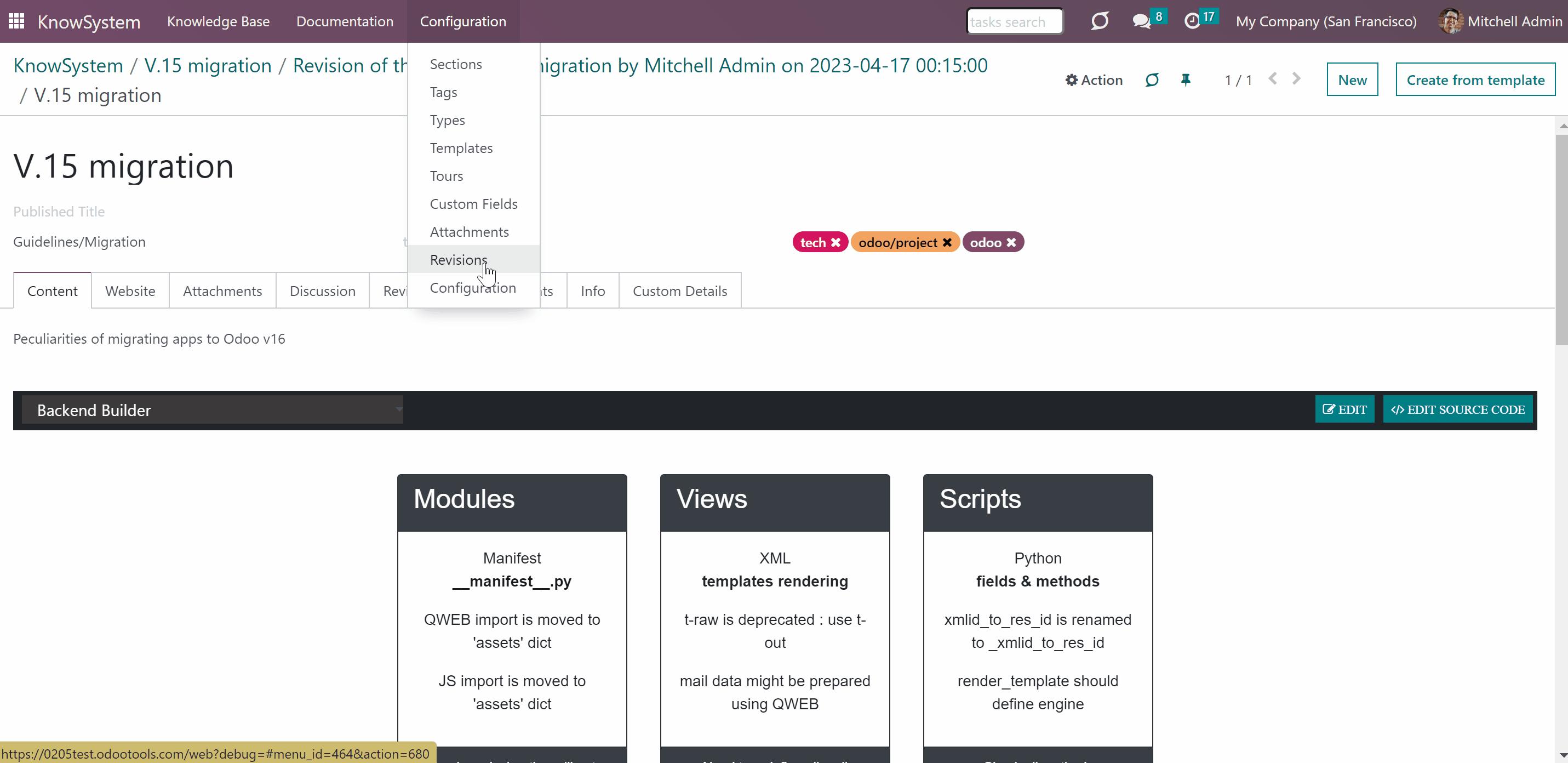

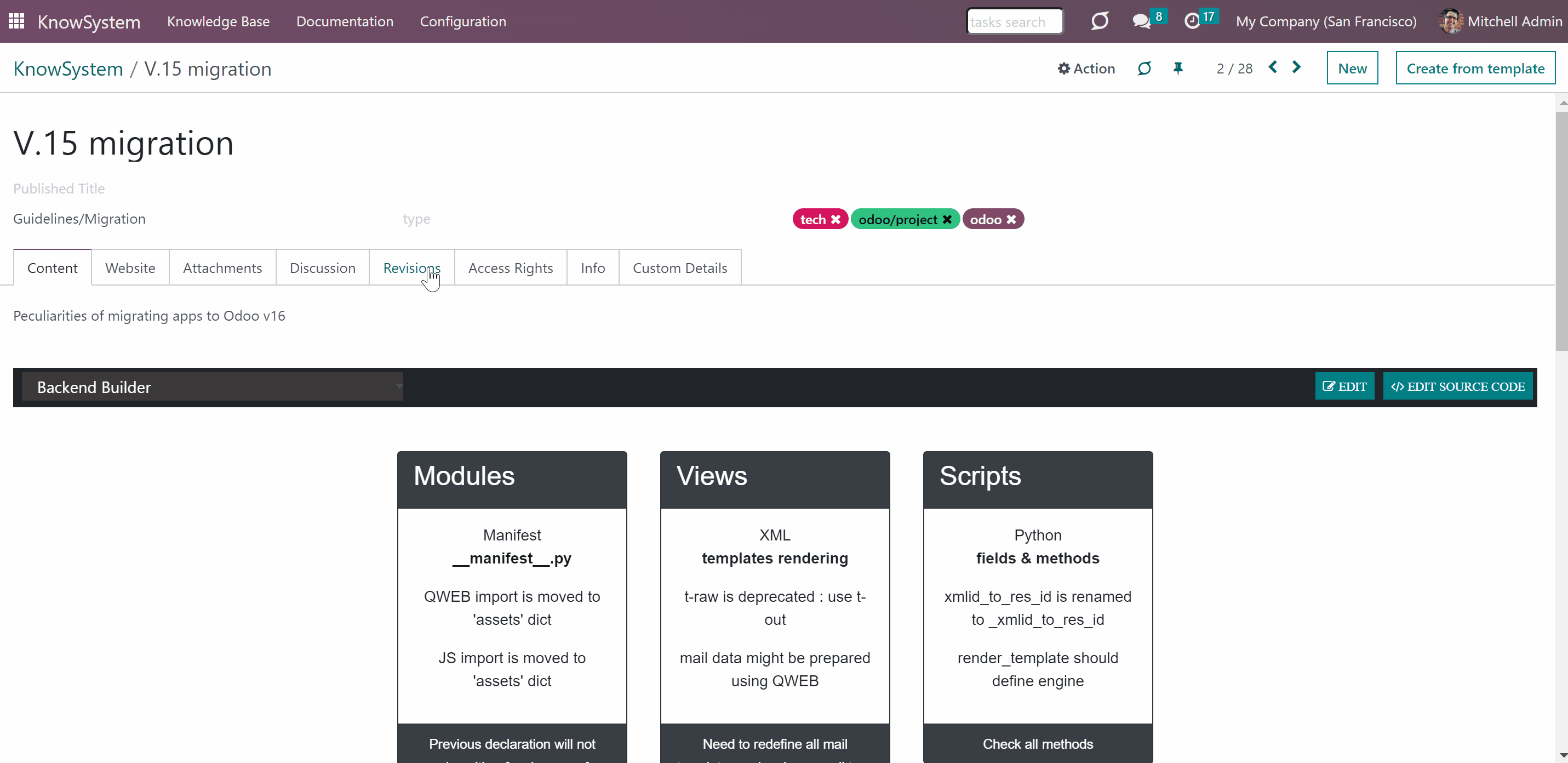

Article revision - a version of an article, kept in history and can be restored.
KnowSystem section - articles' storage, that provides an opportunity to give access to user groups for all contained articles. Supports hierarchy and therefore can have a parent section and subsections.
KnowSystem tag - is a mark on an article, that helps to navigate and give access to articles to particular portal users.
Learning tour - a set of articles united by a common topic, with the learning purpose.

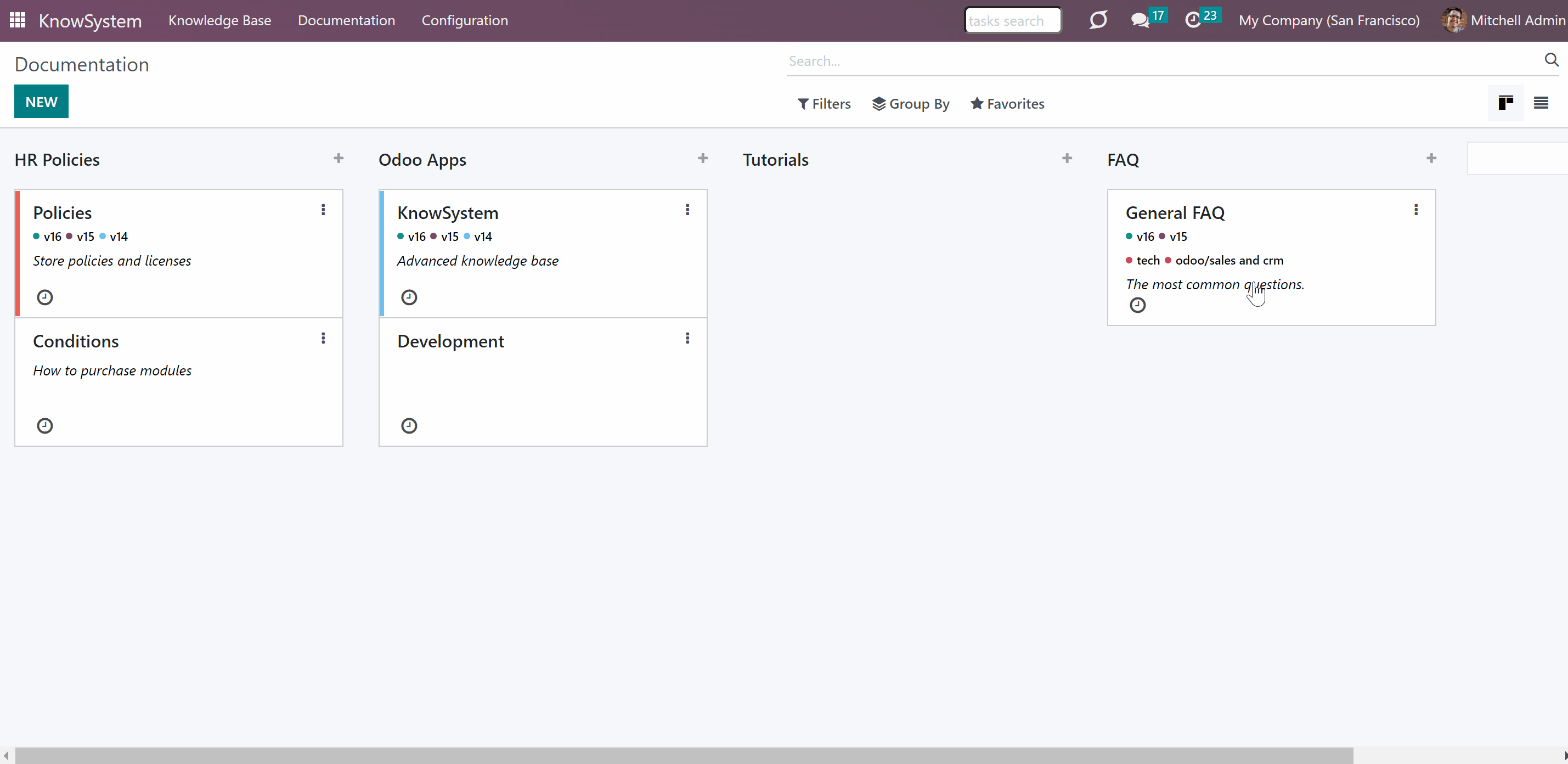

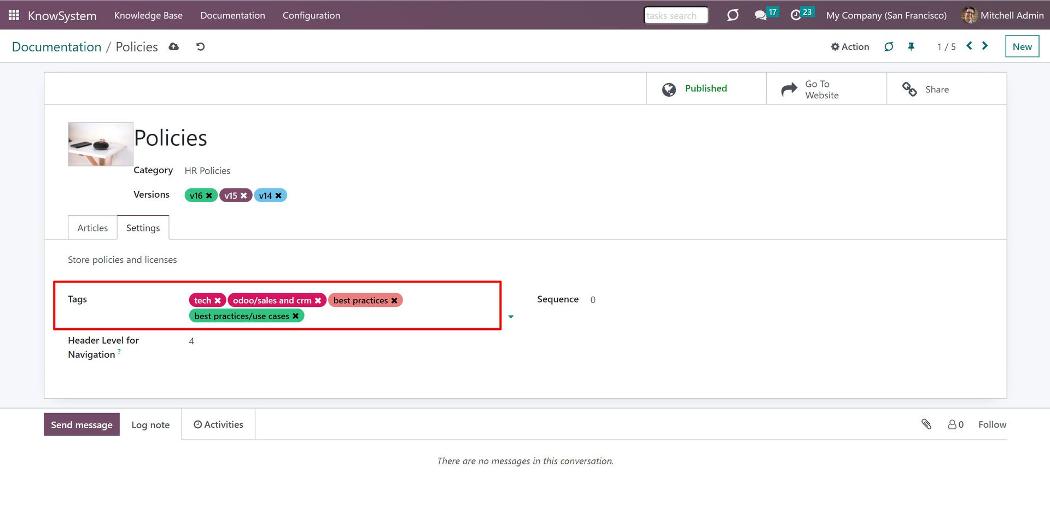

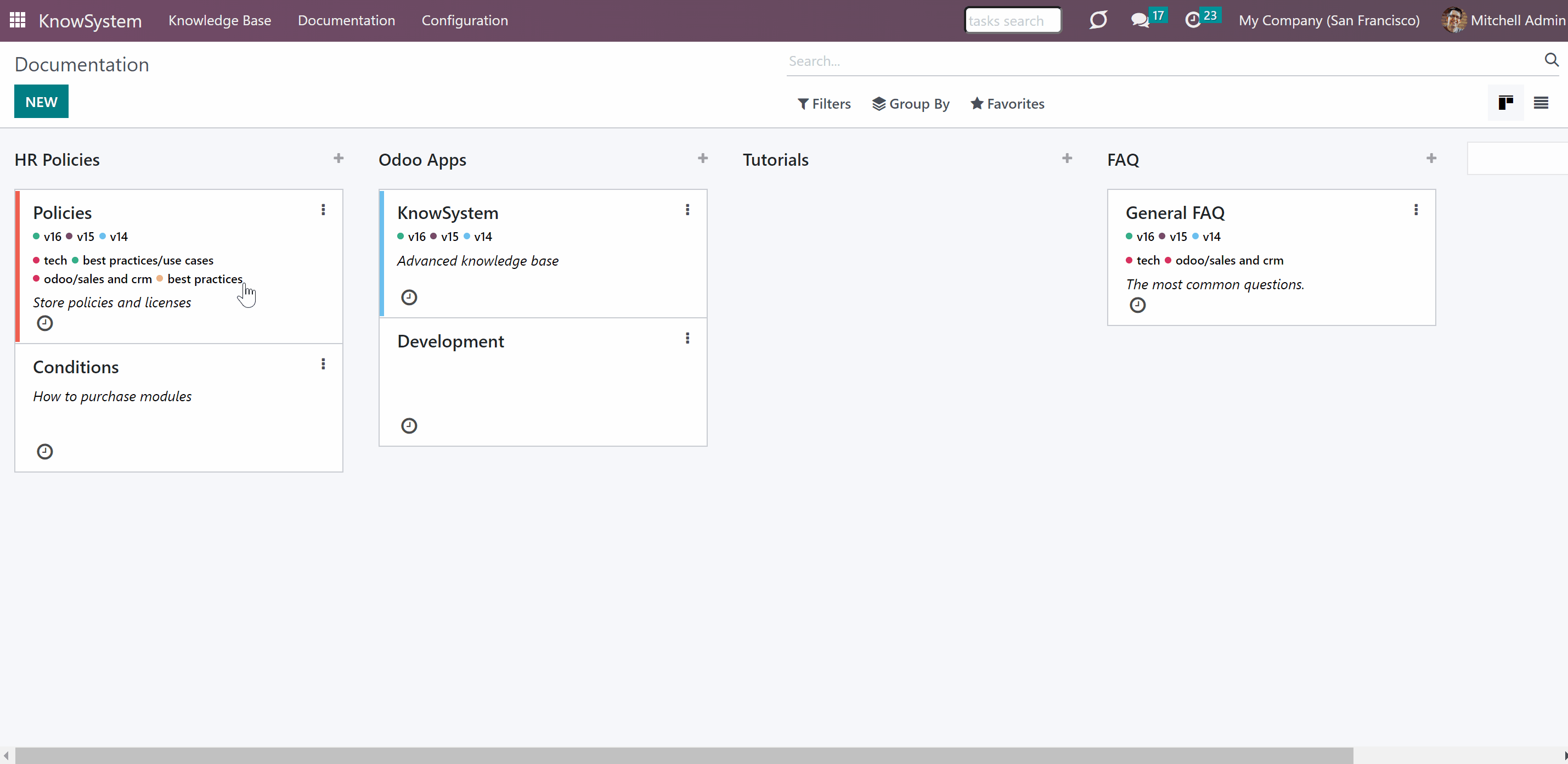

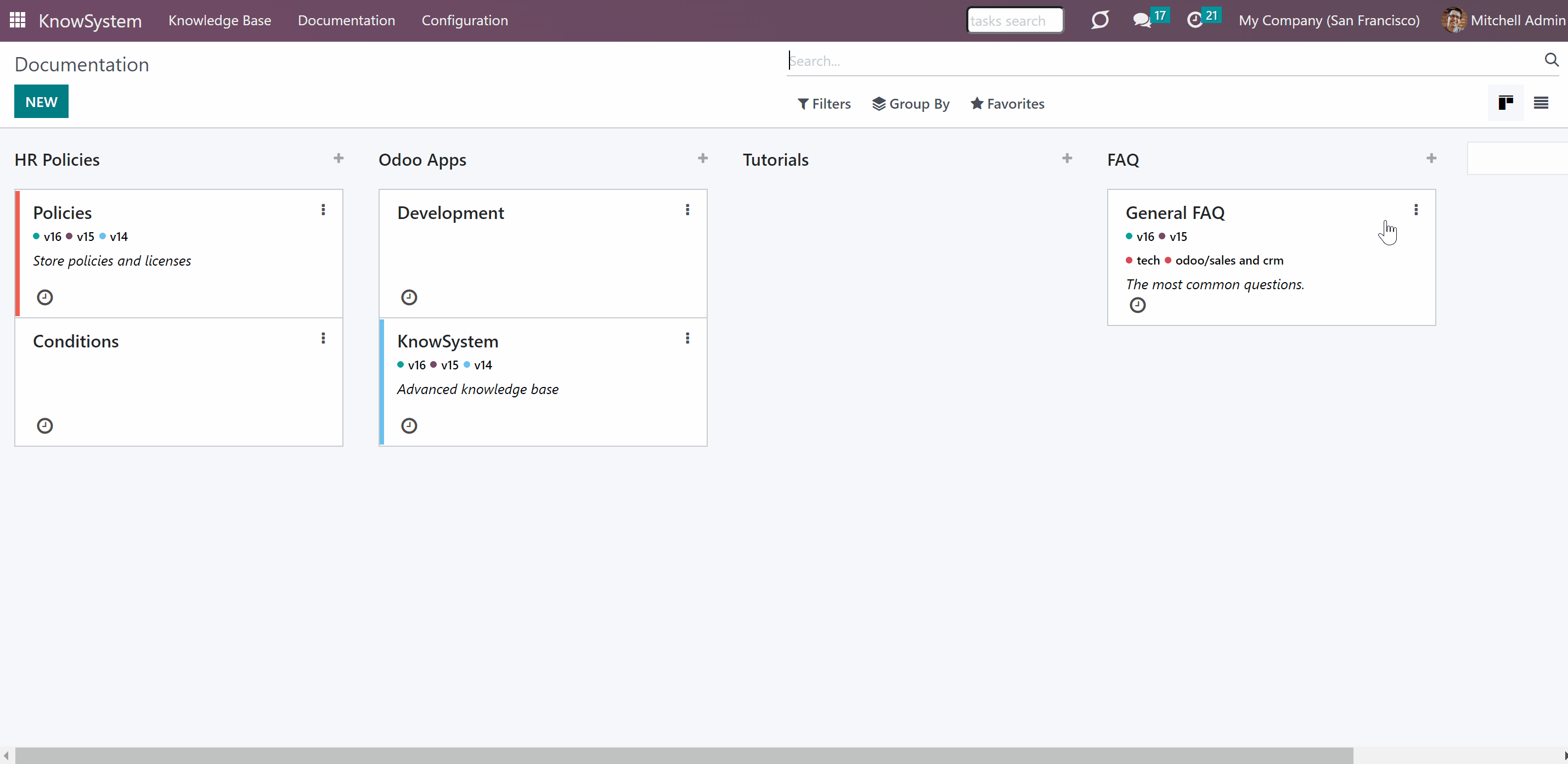

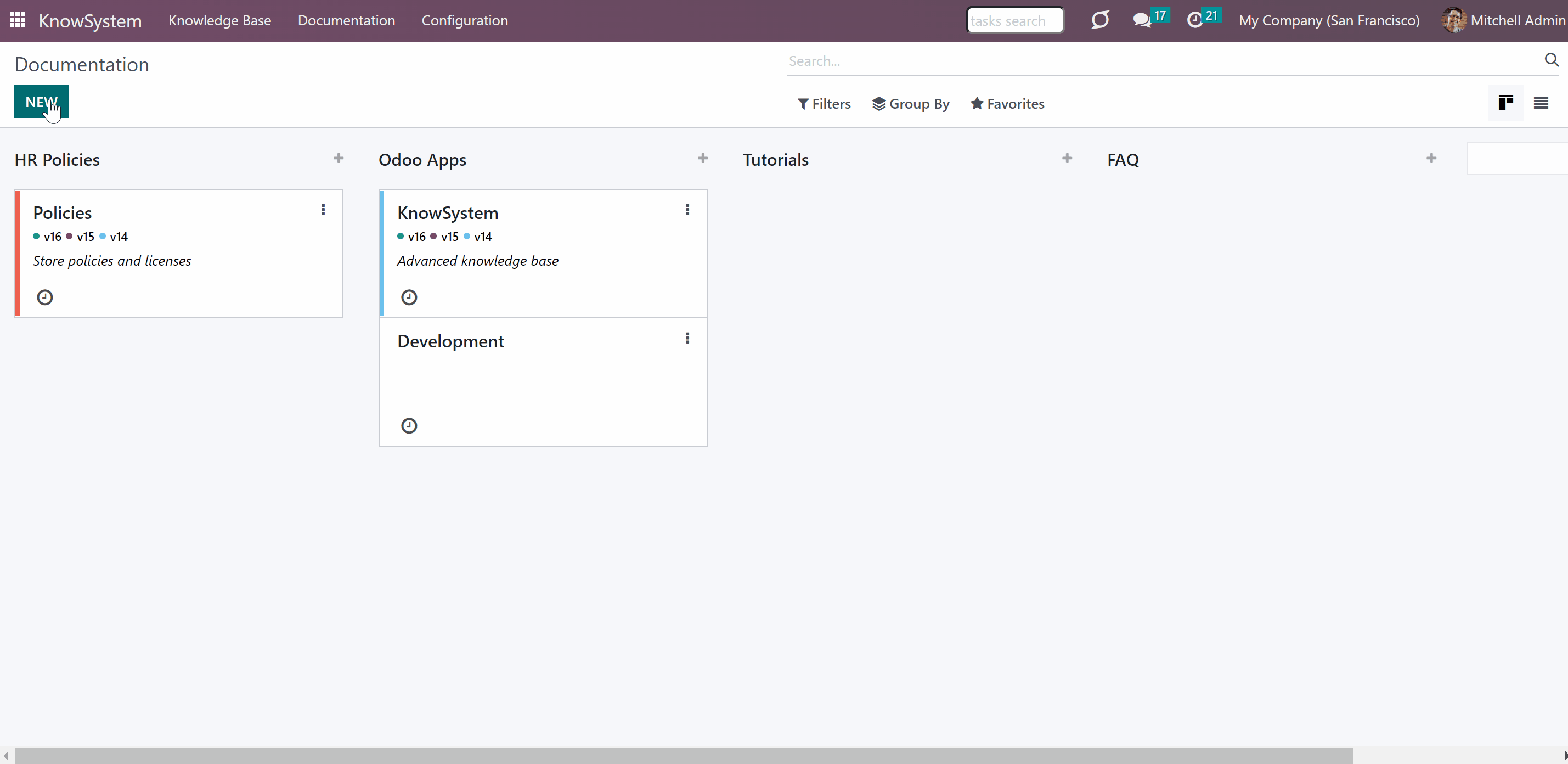

Documentation category - a combination of documentation sections, that are similar in a way, for a structured layout.
Documentation section - a set of articles, referring to the same topic and giving a full perspective of it.

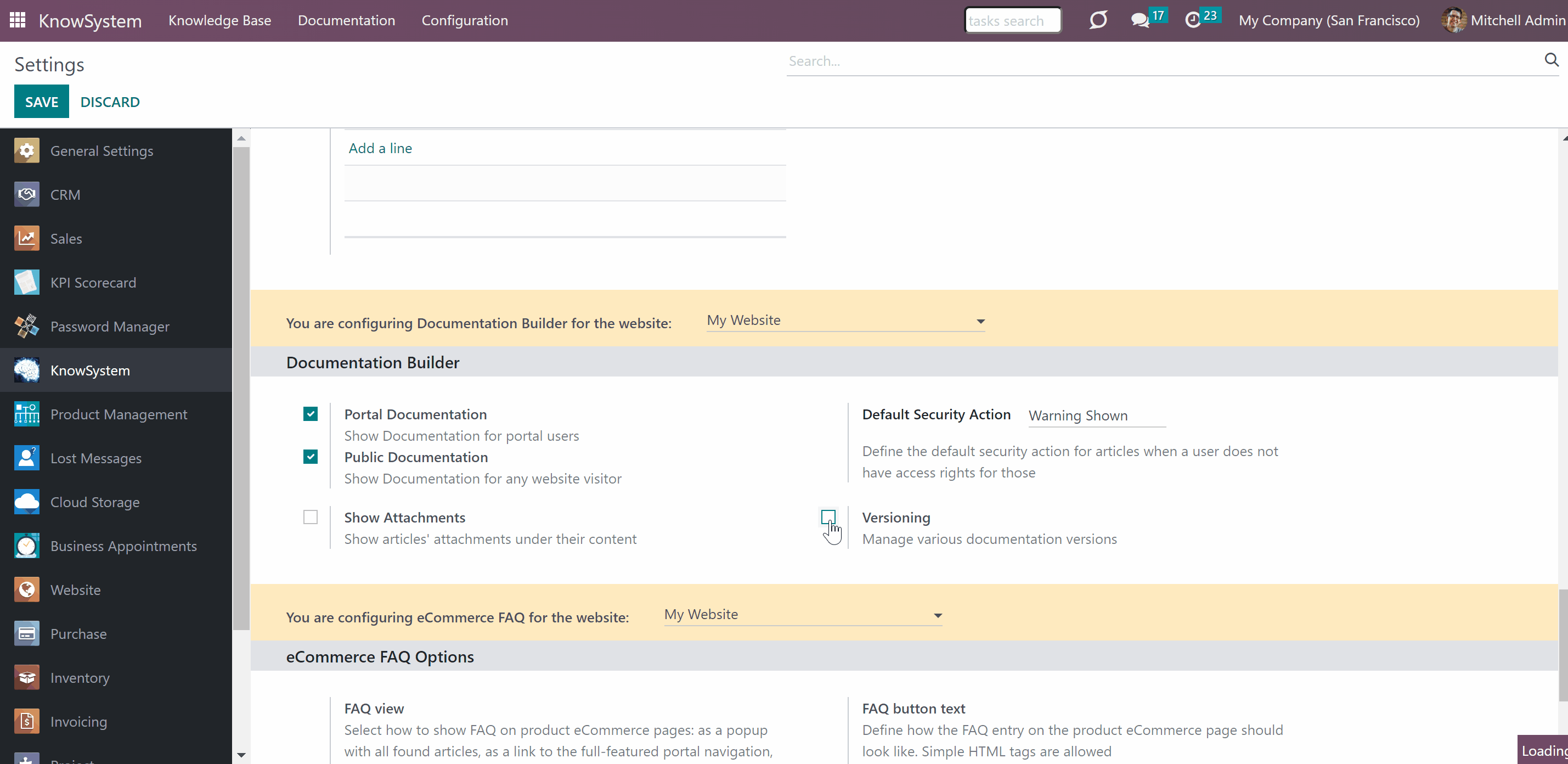

Documentation version - a product version, that documentation describes.

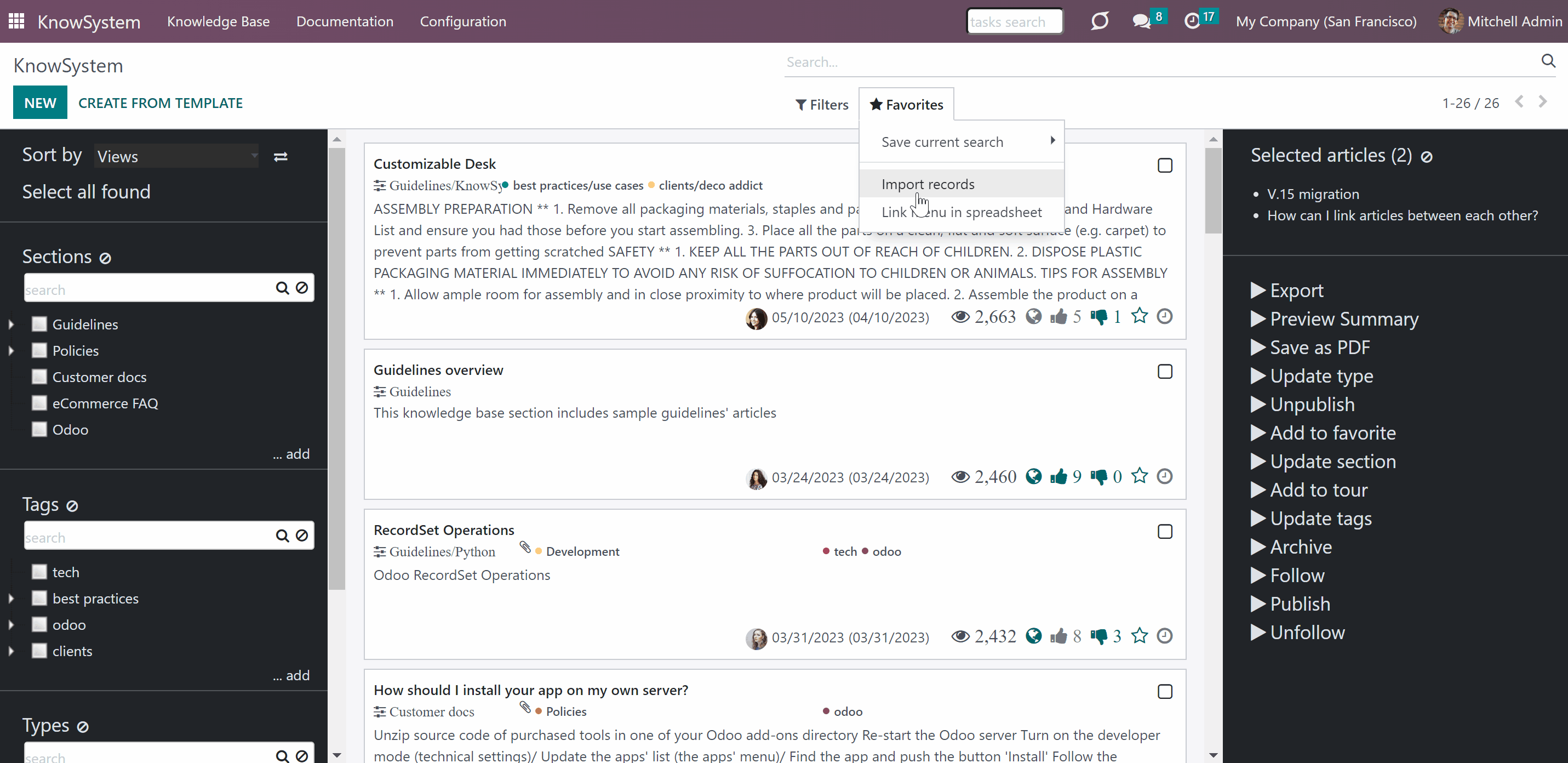

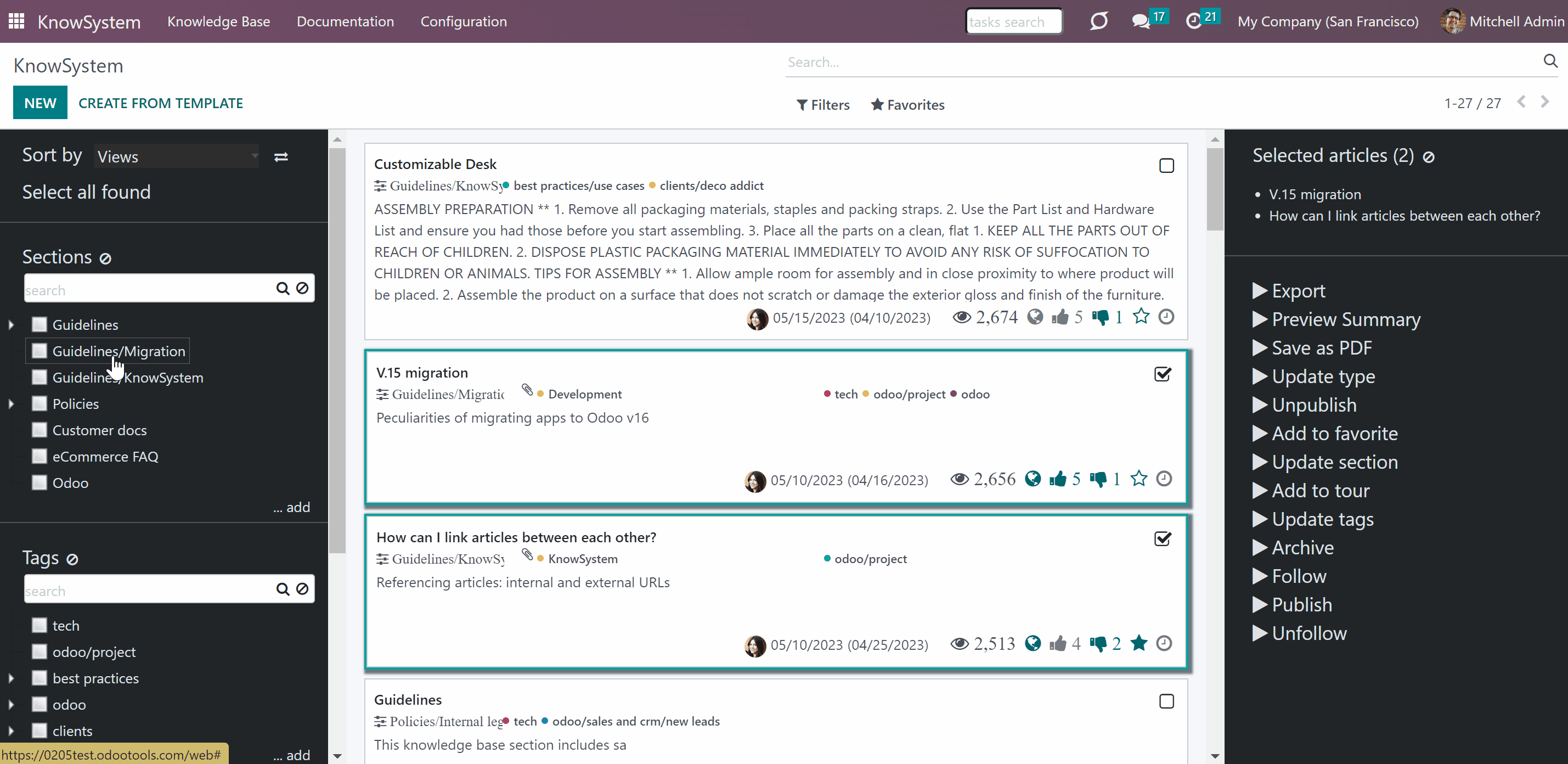

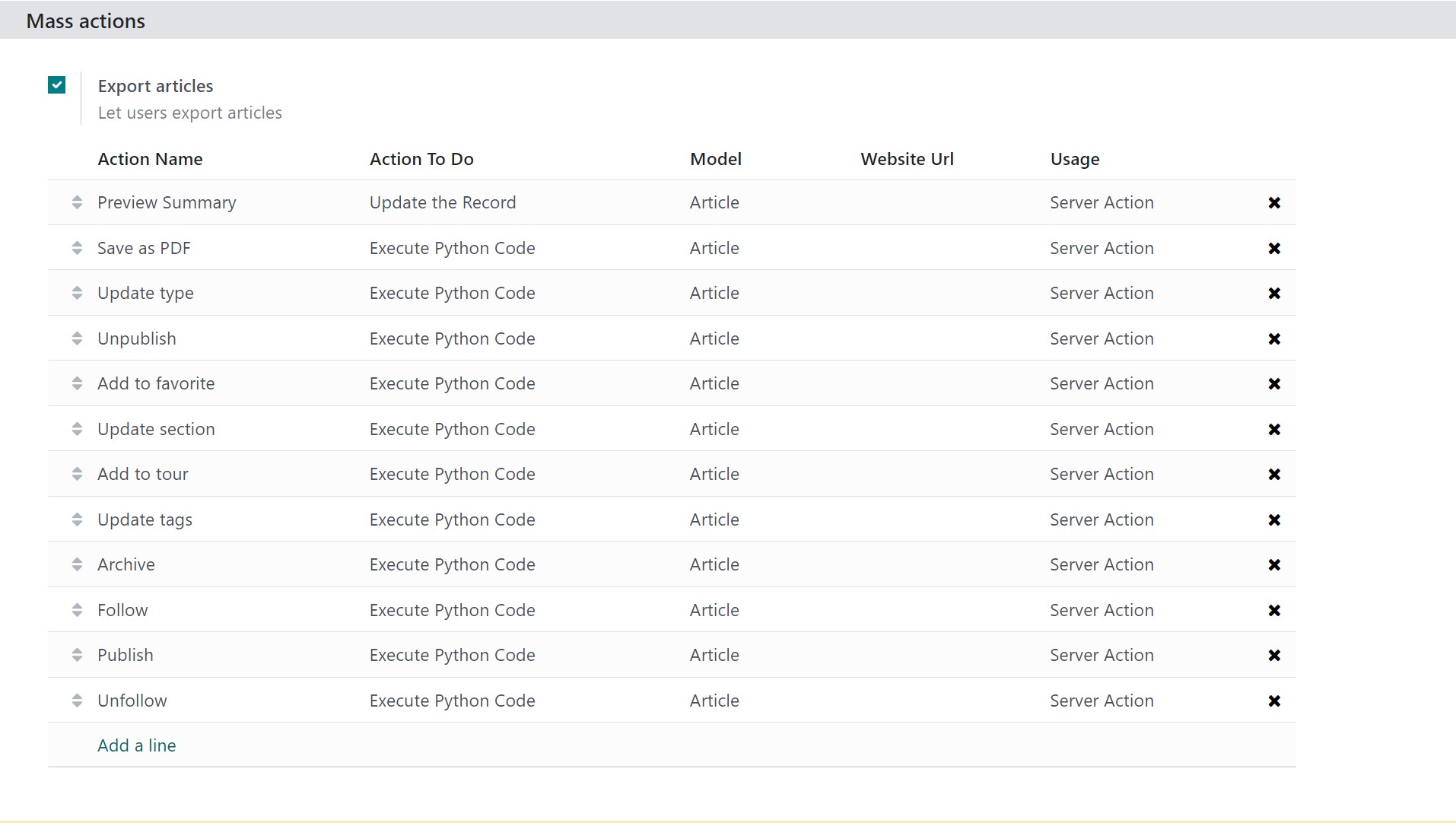

Mass action - an action that can be applied to several articles at once.
Article type () - an organizing KMS instrument.
Article custom field - an extra field, that you can add to an article, that may contain different types of information of your choice.
Article attachment - a document that is assigned to an article.
Backend editor - an editor that supports simple templates and basic editing options to make it possible to update an email or a message body with an article's text.
Website editor - an editor, with various advanced templates, perfect for displaying on a website.
HTML editor - a standard Odoo editor that supports standard styles and built-in commands.
Text editor - an editor that allows the creation of texts without styles.
Code editor - an HTML editor, for advanced users, who prefer to write code. An article, written in any editor (except for the Text editor), can be seen and edited in the code editor.
Internal user - employee.
Portal user - partner.
Public user - website visitor.
Single View Interface & Article interaction for internal users - the functional interface that internal users see, from which you can add and edit sections, tags, types (), tours, and apply mass actions to one or several articles at once.

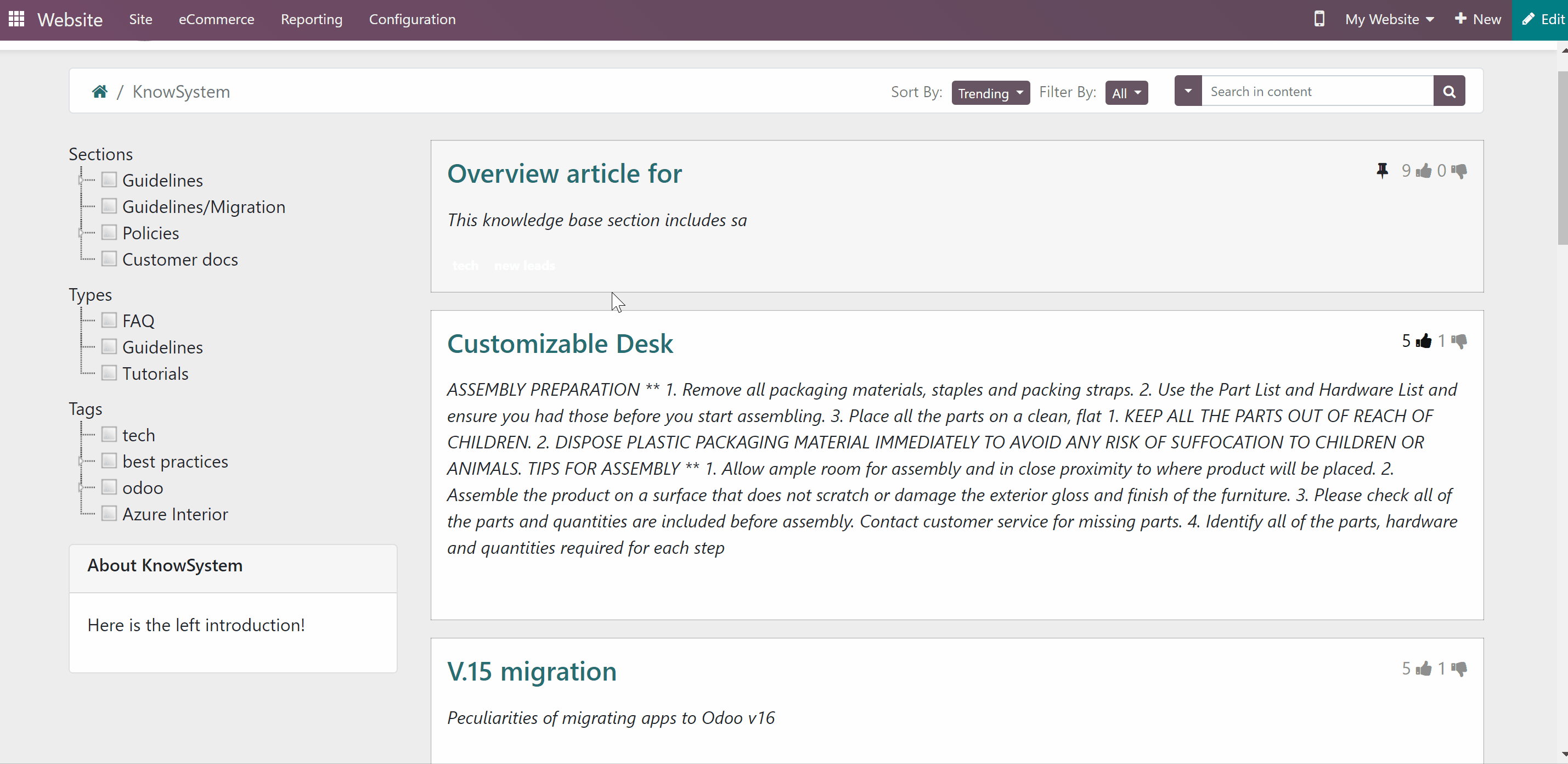

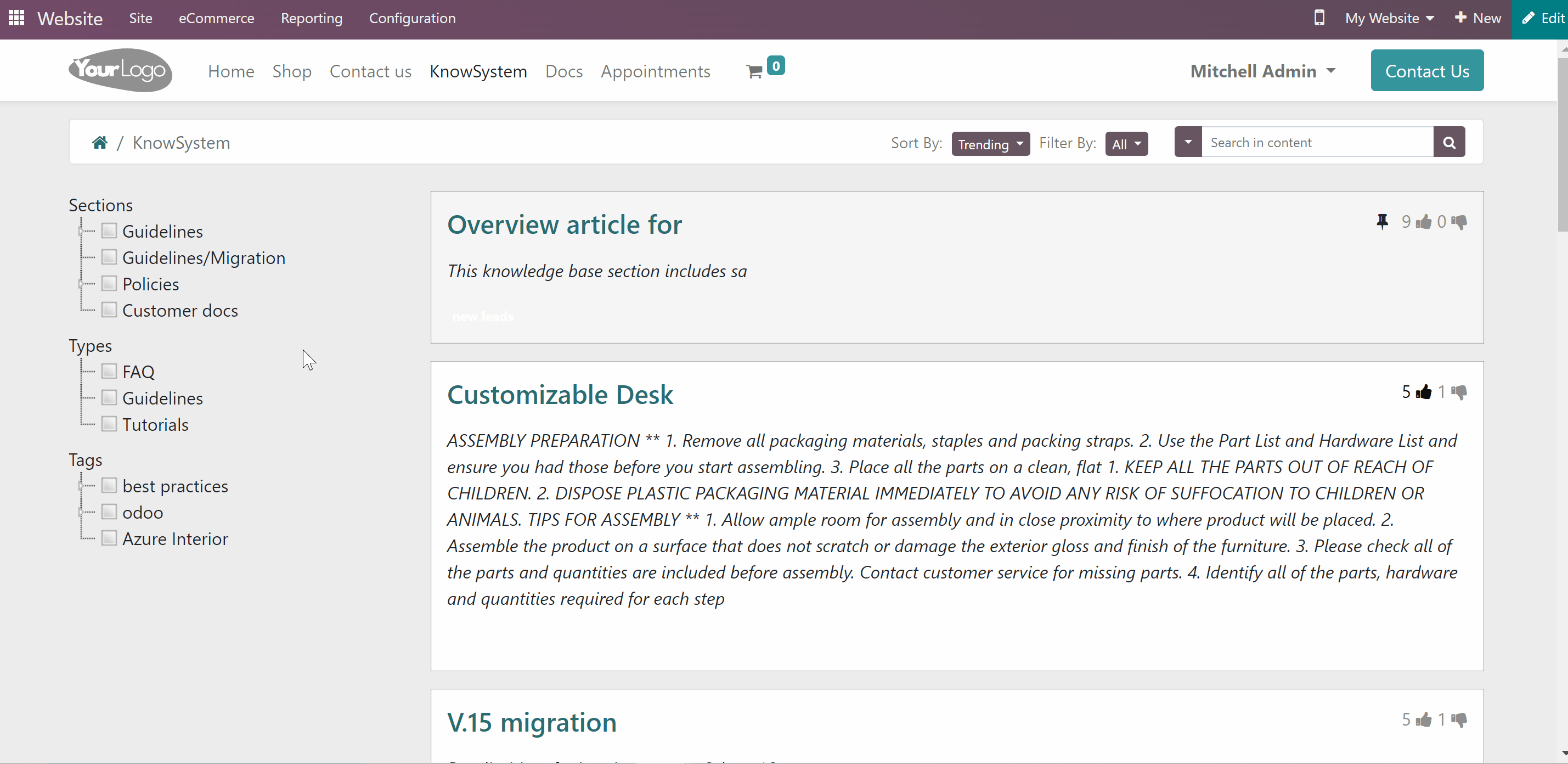

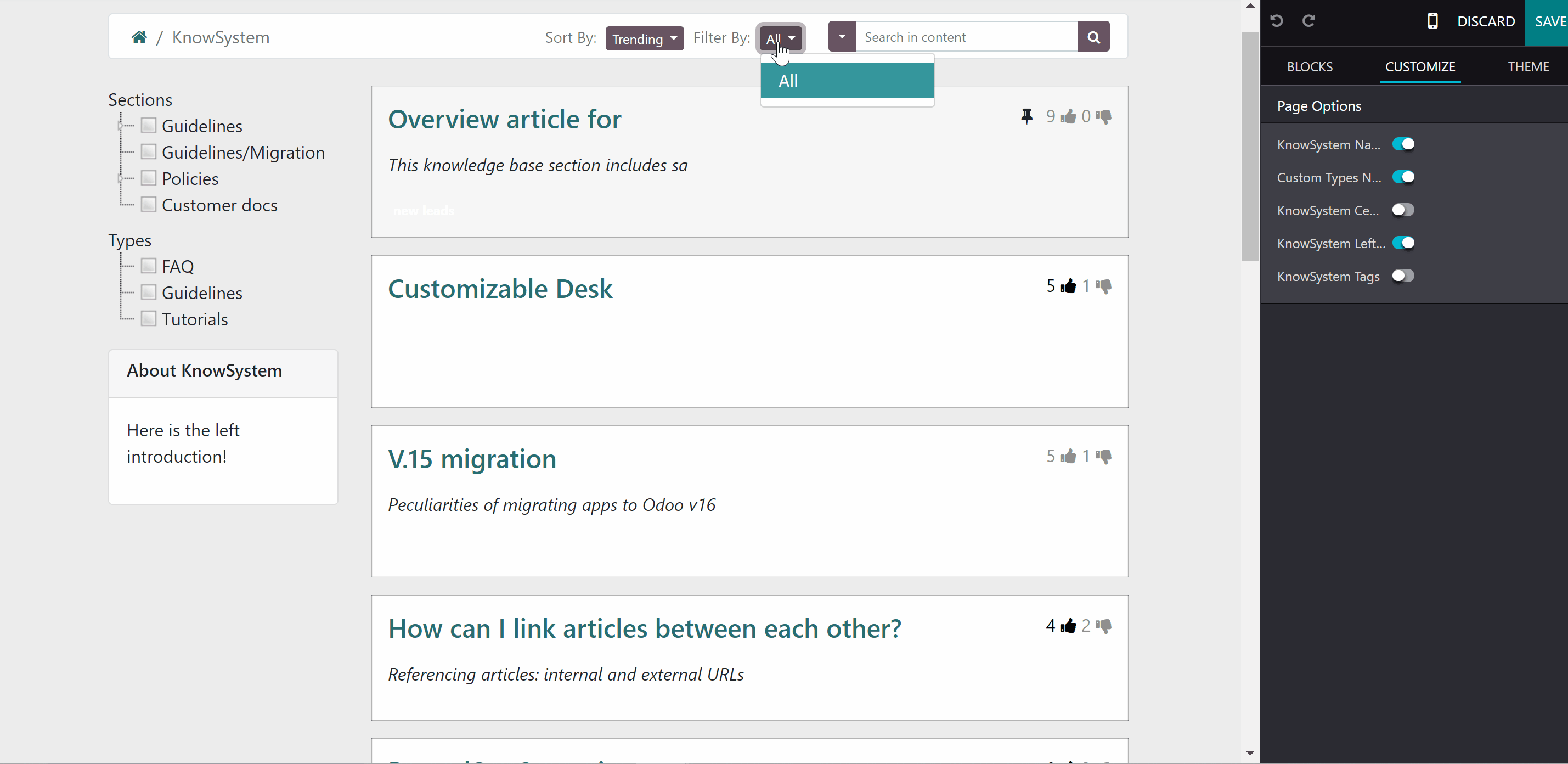

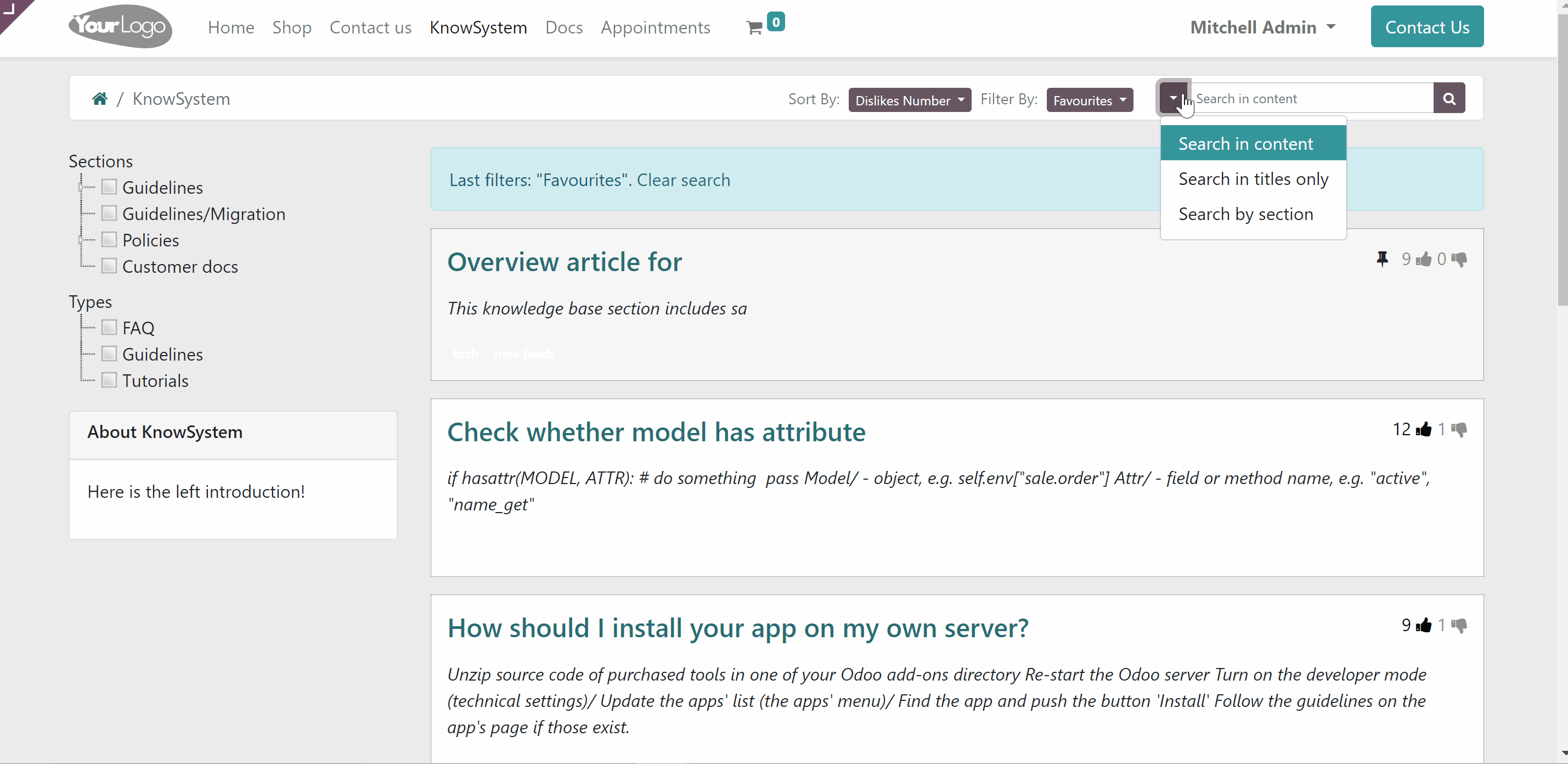

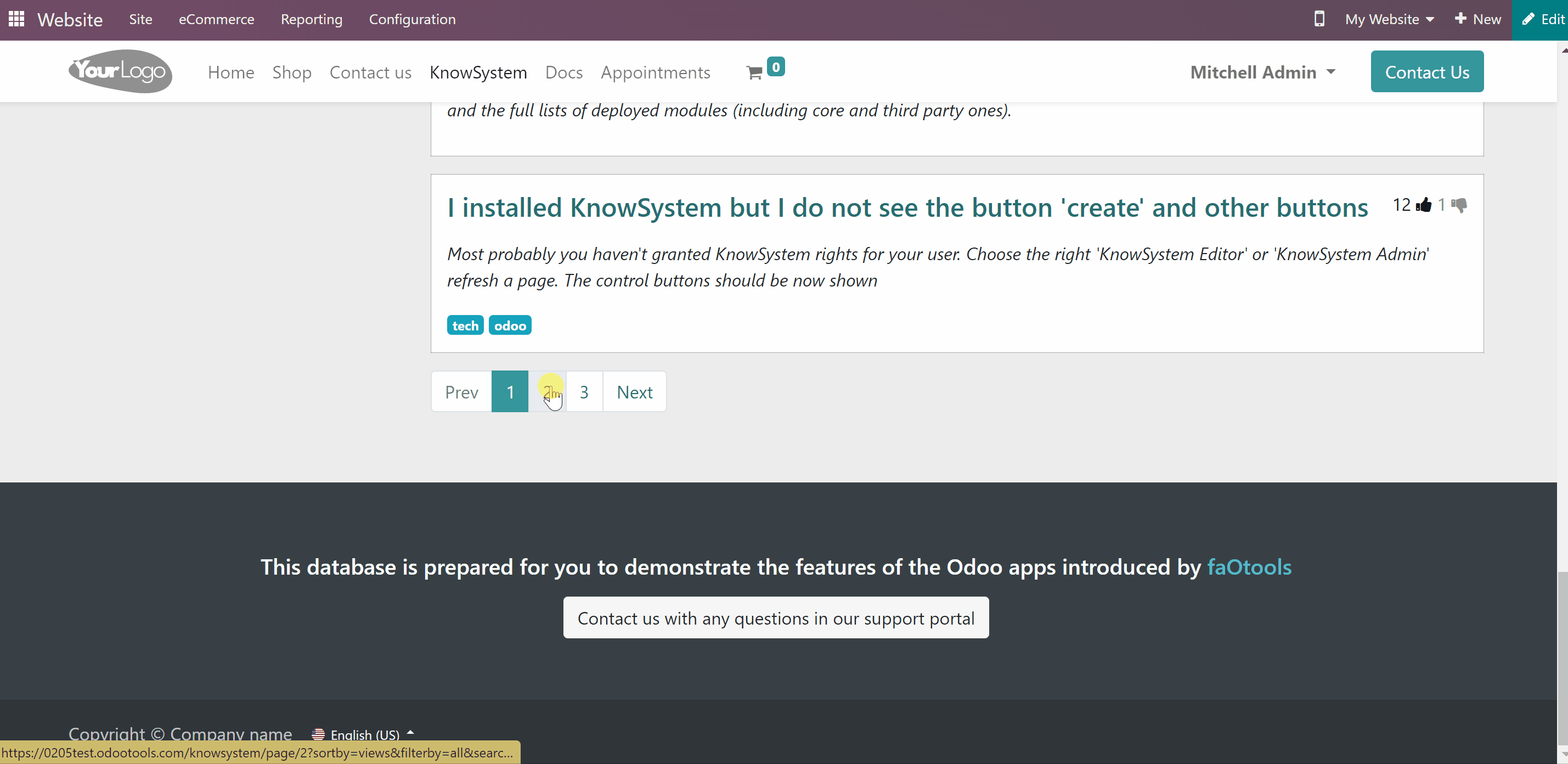

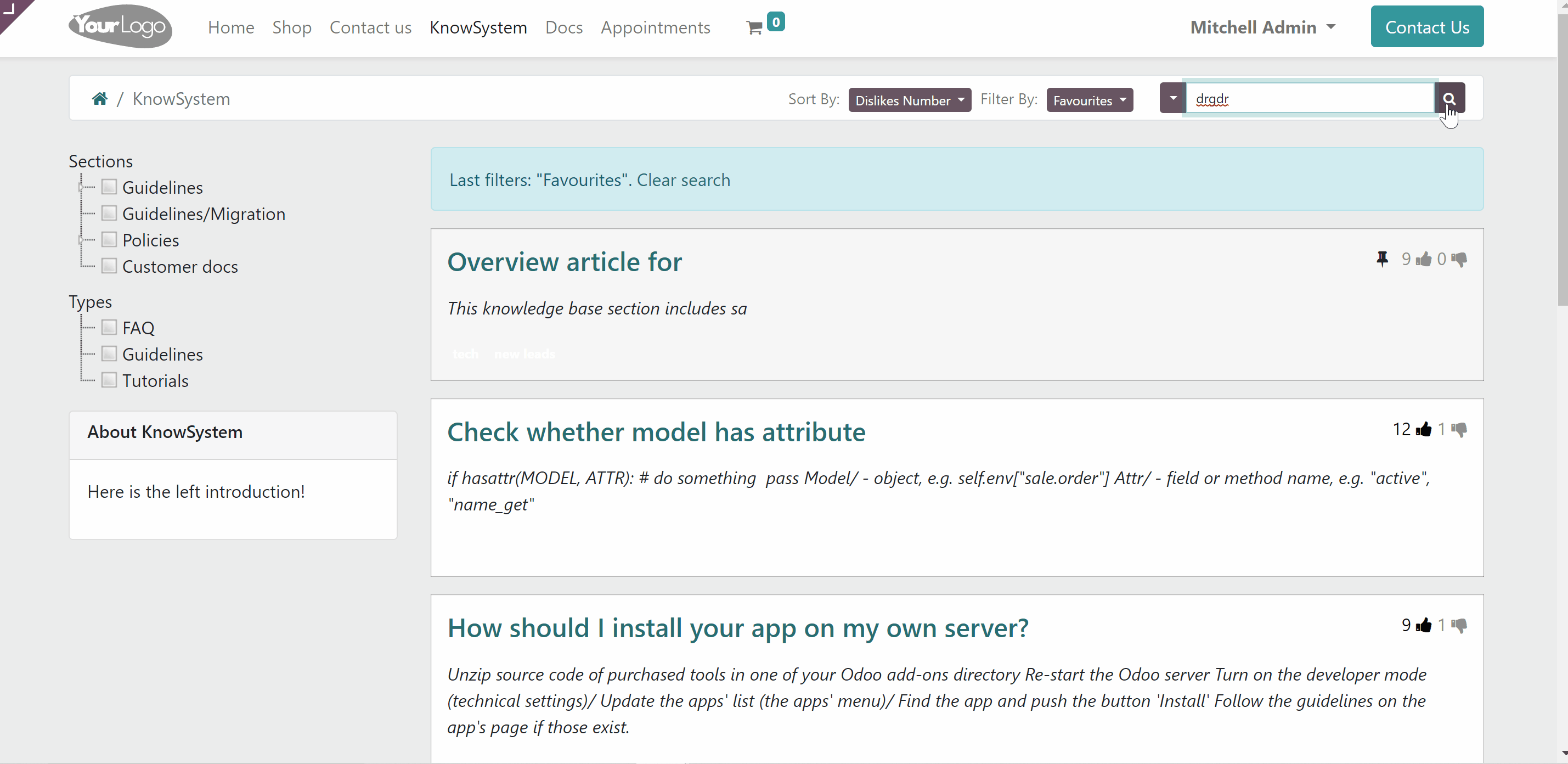

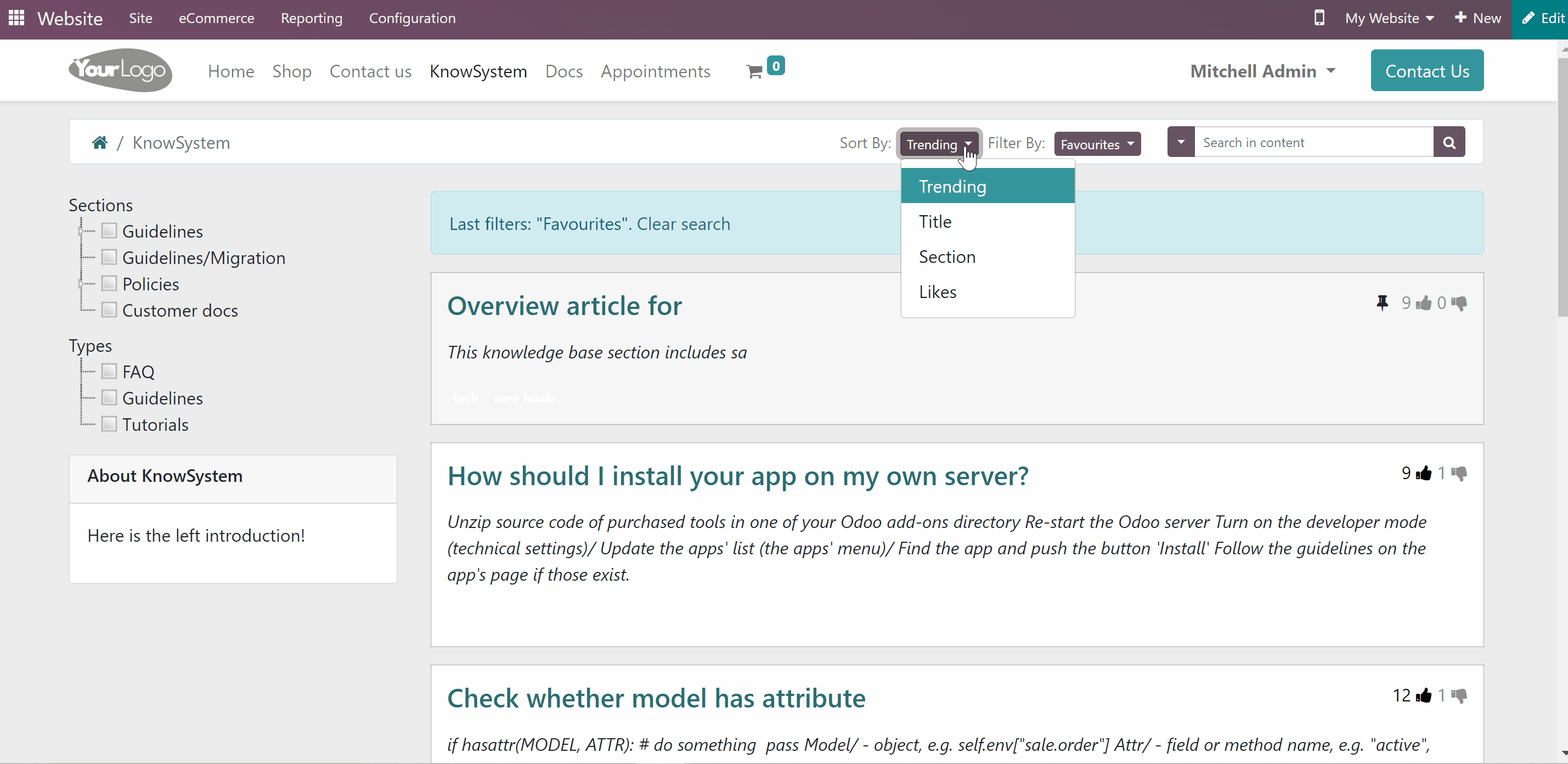

KMS (Knowledge Base System) navigation for portal/public users () - the interface on a website, that portal and public users see, can look differently for different portal users based on the articles, sections, tags, and types that they have access to.

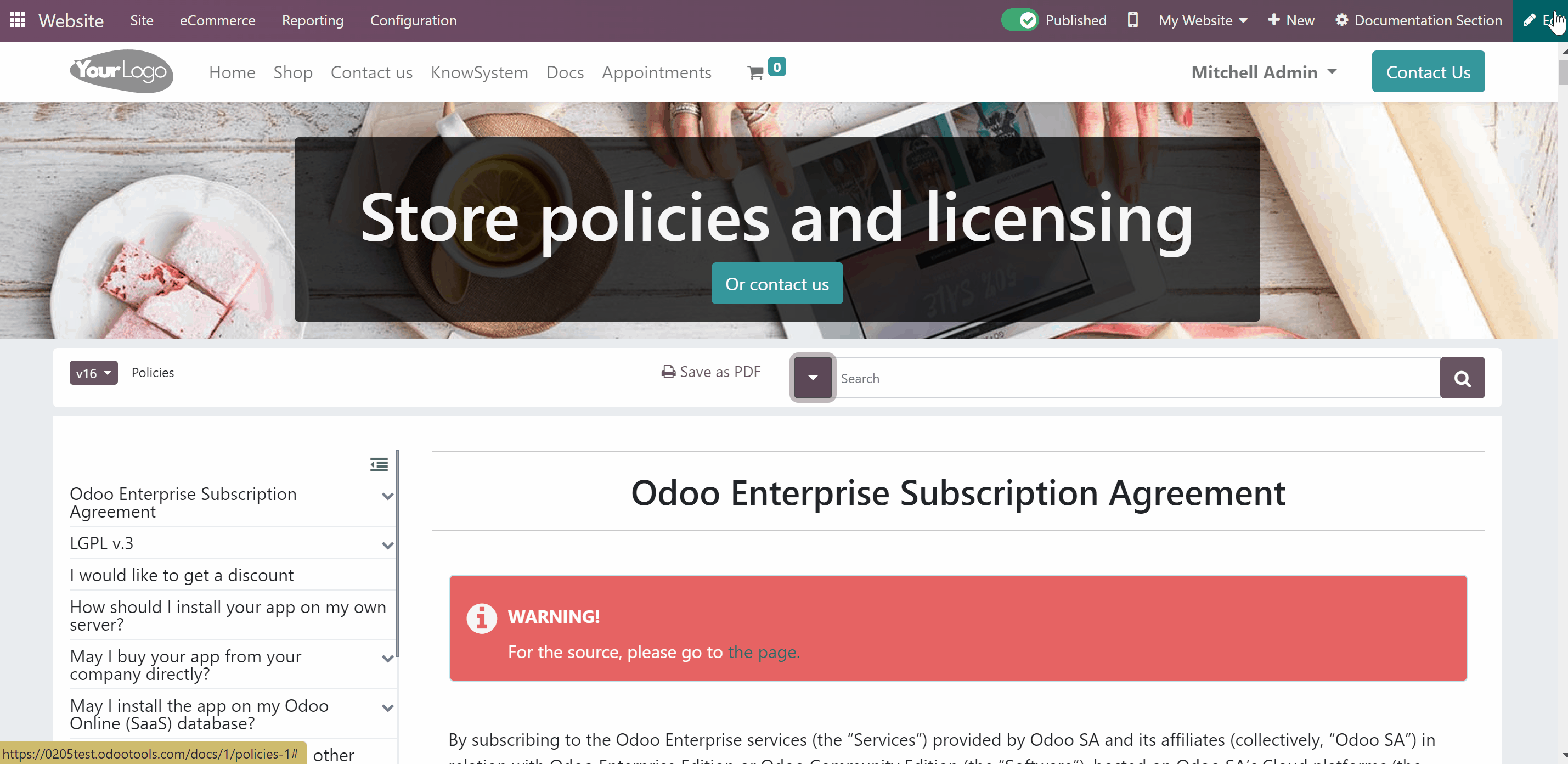

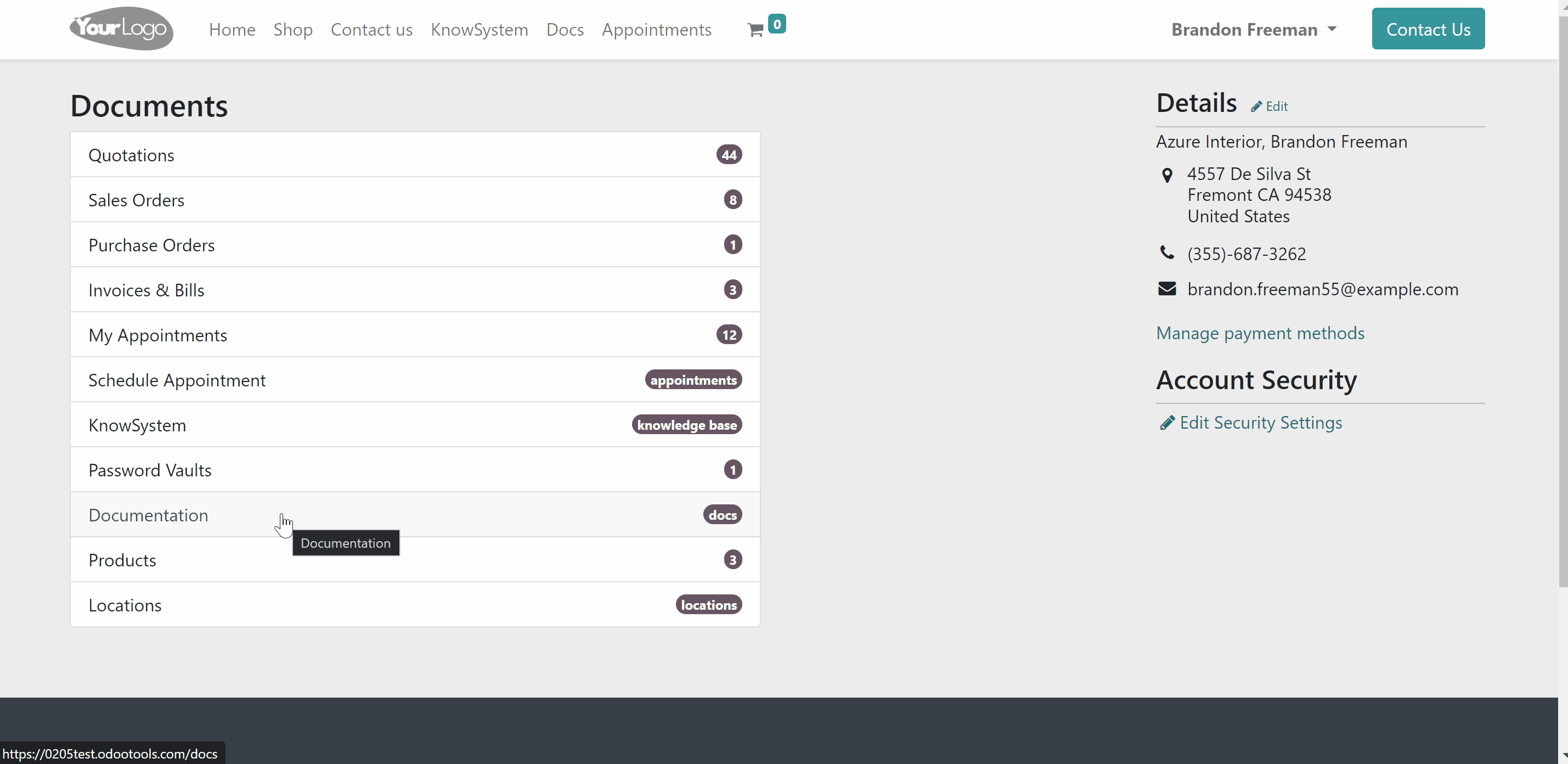

Documentation categories & documentation navigation for all users () - the documentation interface, that you see on a website, can look different for various users. If a person doesn't have rights to one or several articles of the documentation you can choose: not to show this article, show a warning that there is an article that you don't have access to or neglect access rights, and show the article anyway.

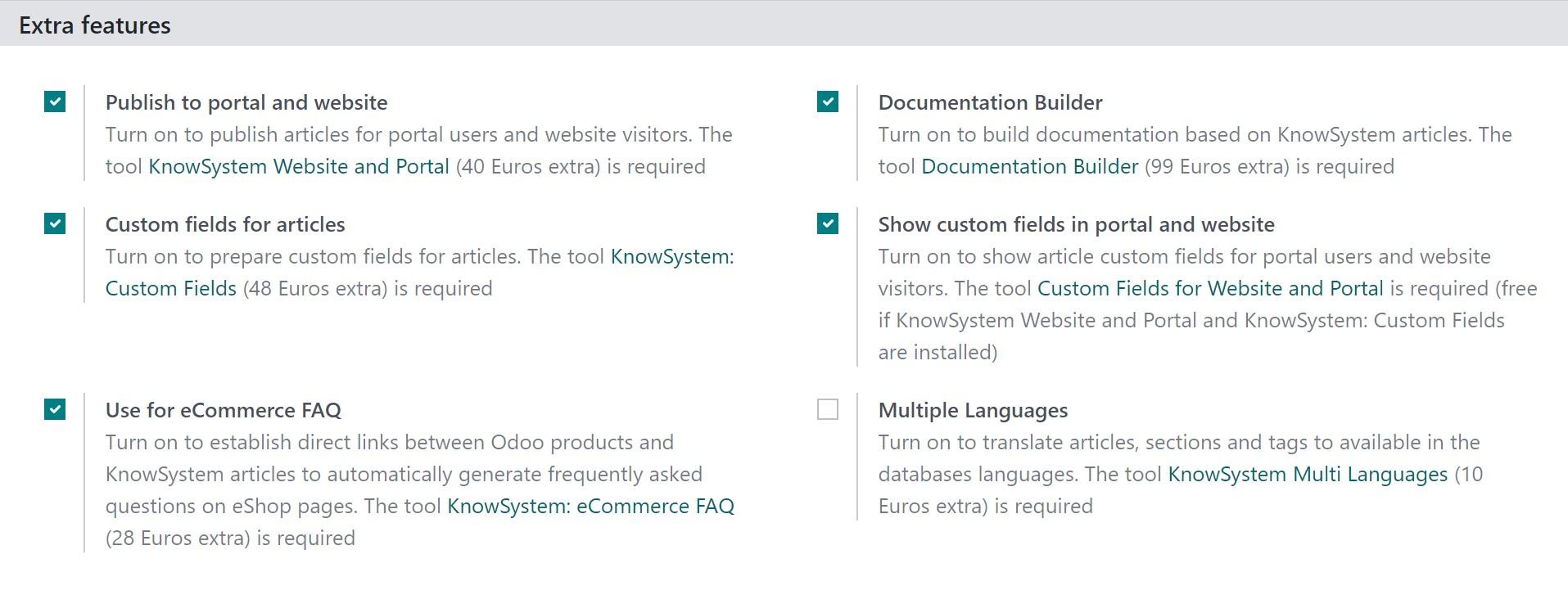

Add-ons signs
Features introduced by add-ons are marked with these signs.

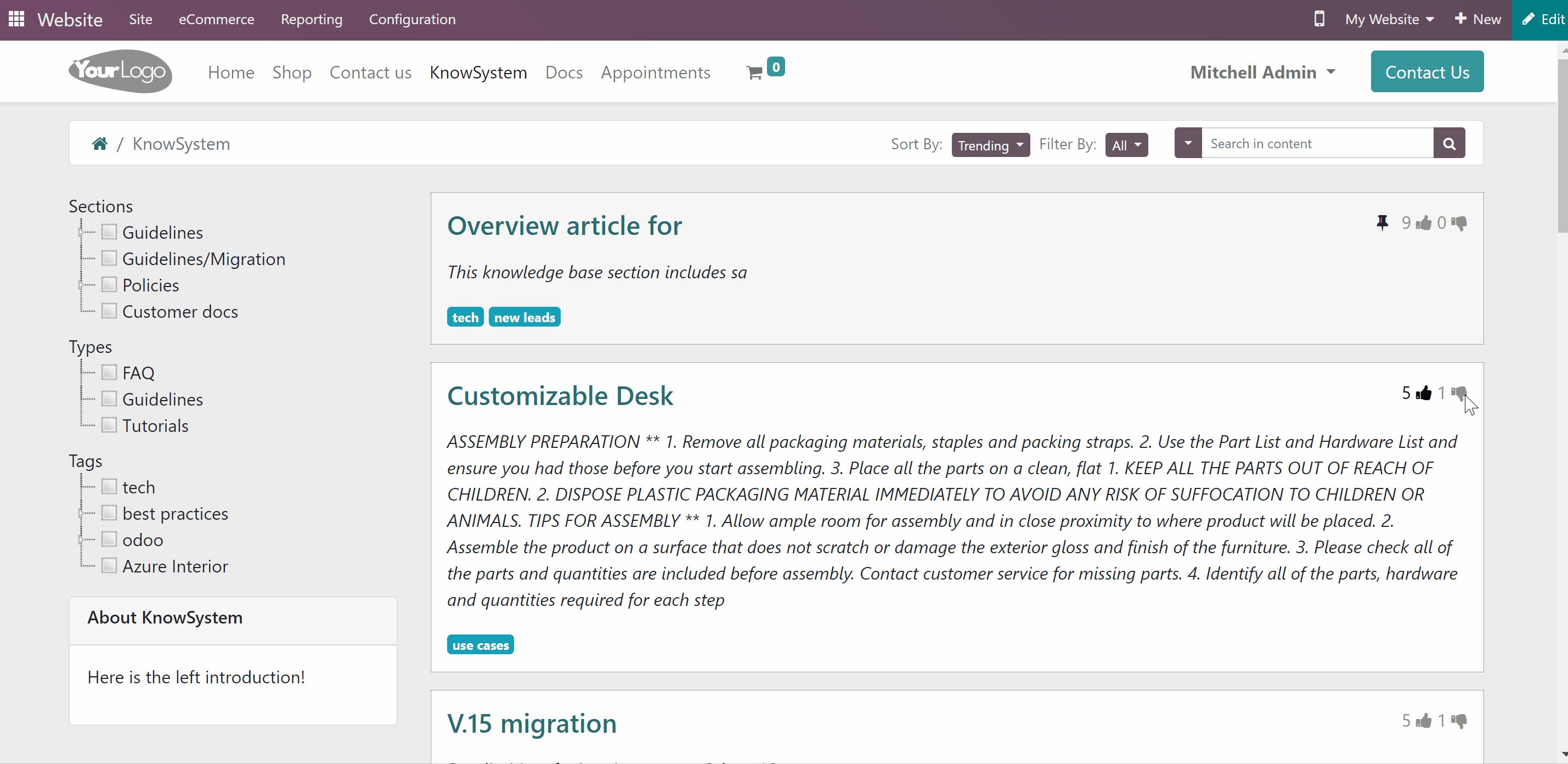

KnowSystem: Website and Portal

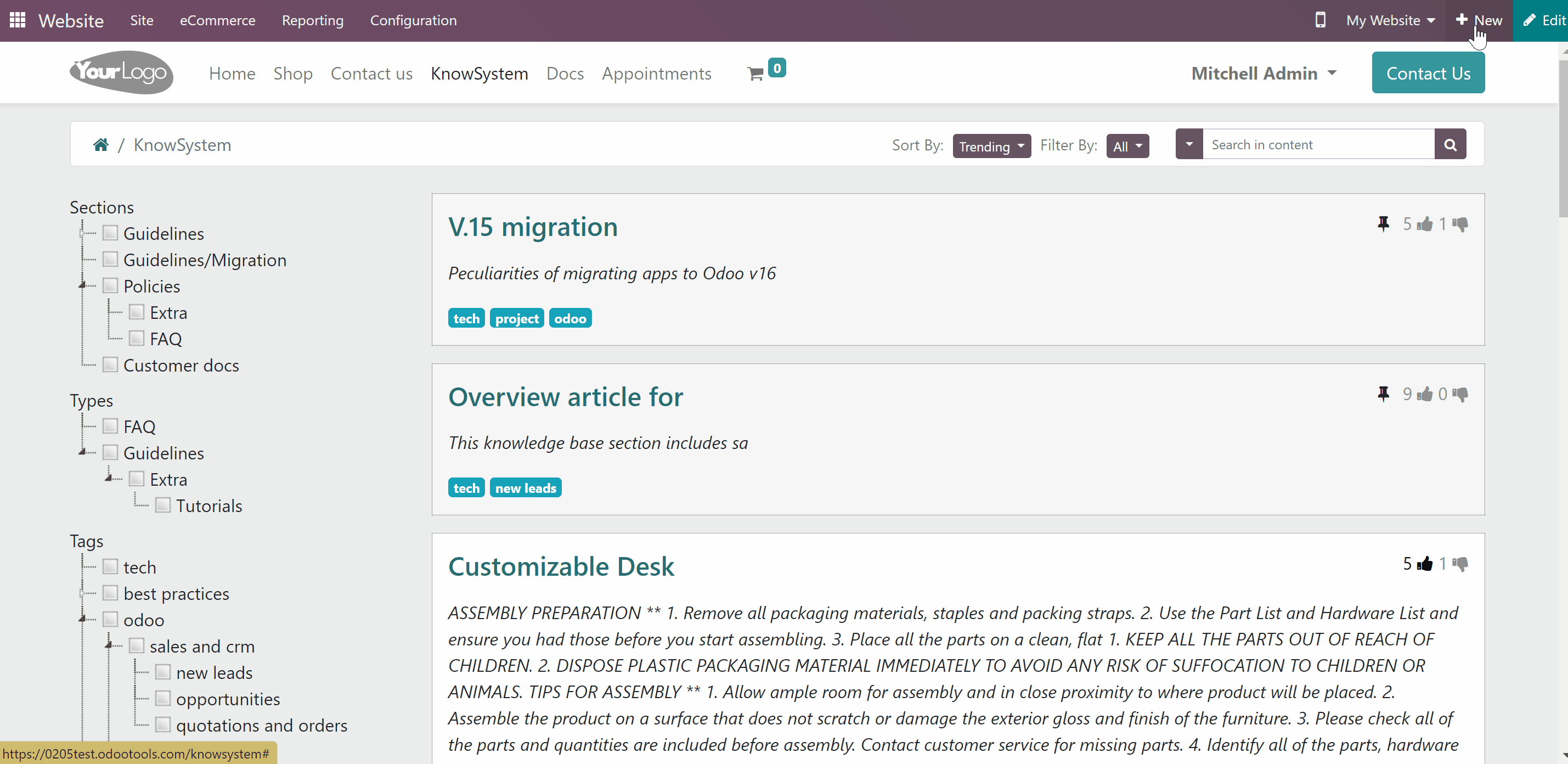

The module lets you publish articles on the website, share them with portal users, and use the website builder to update articles.

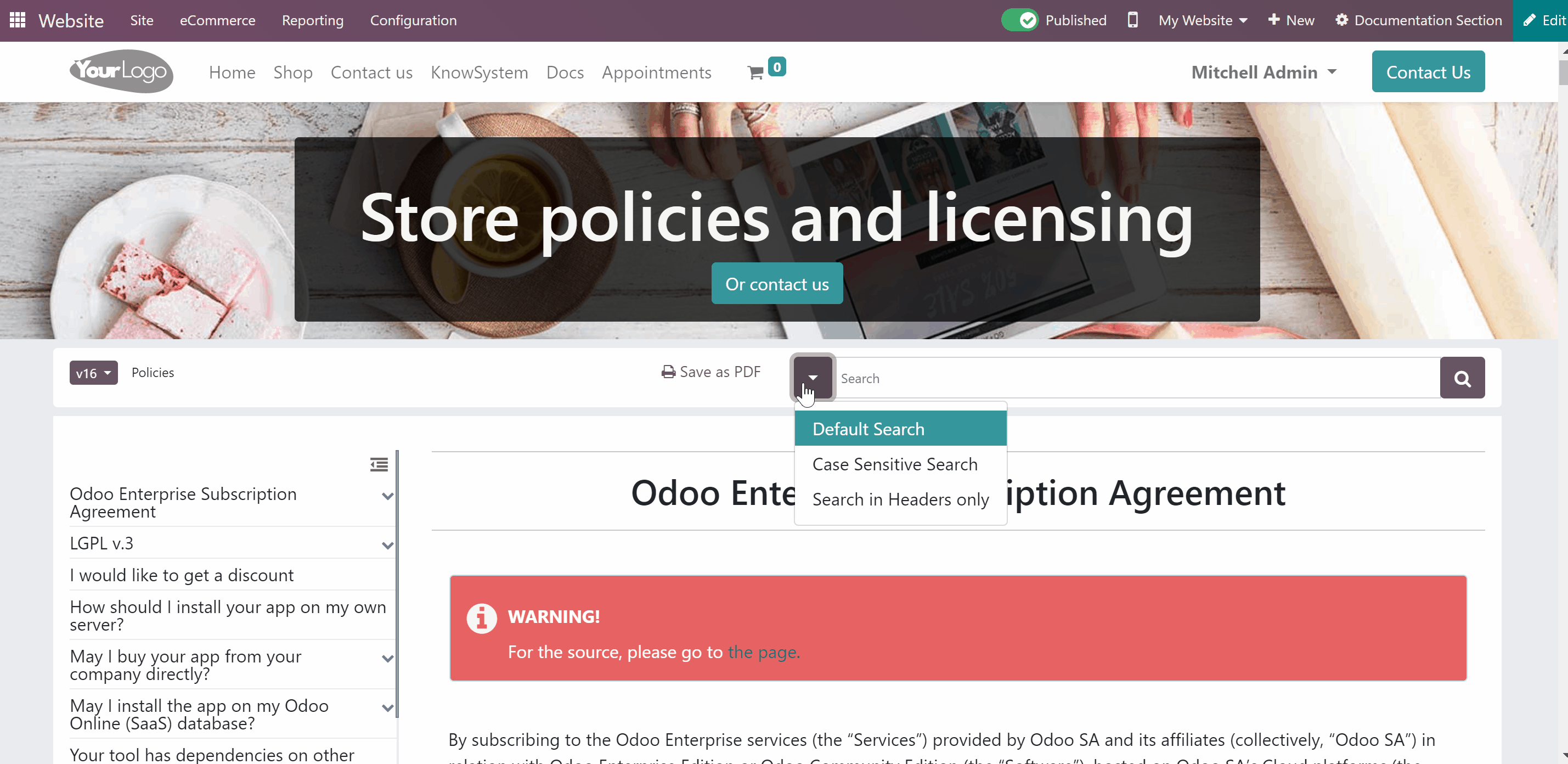

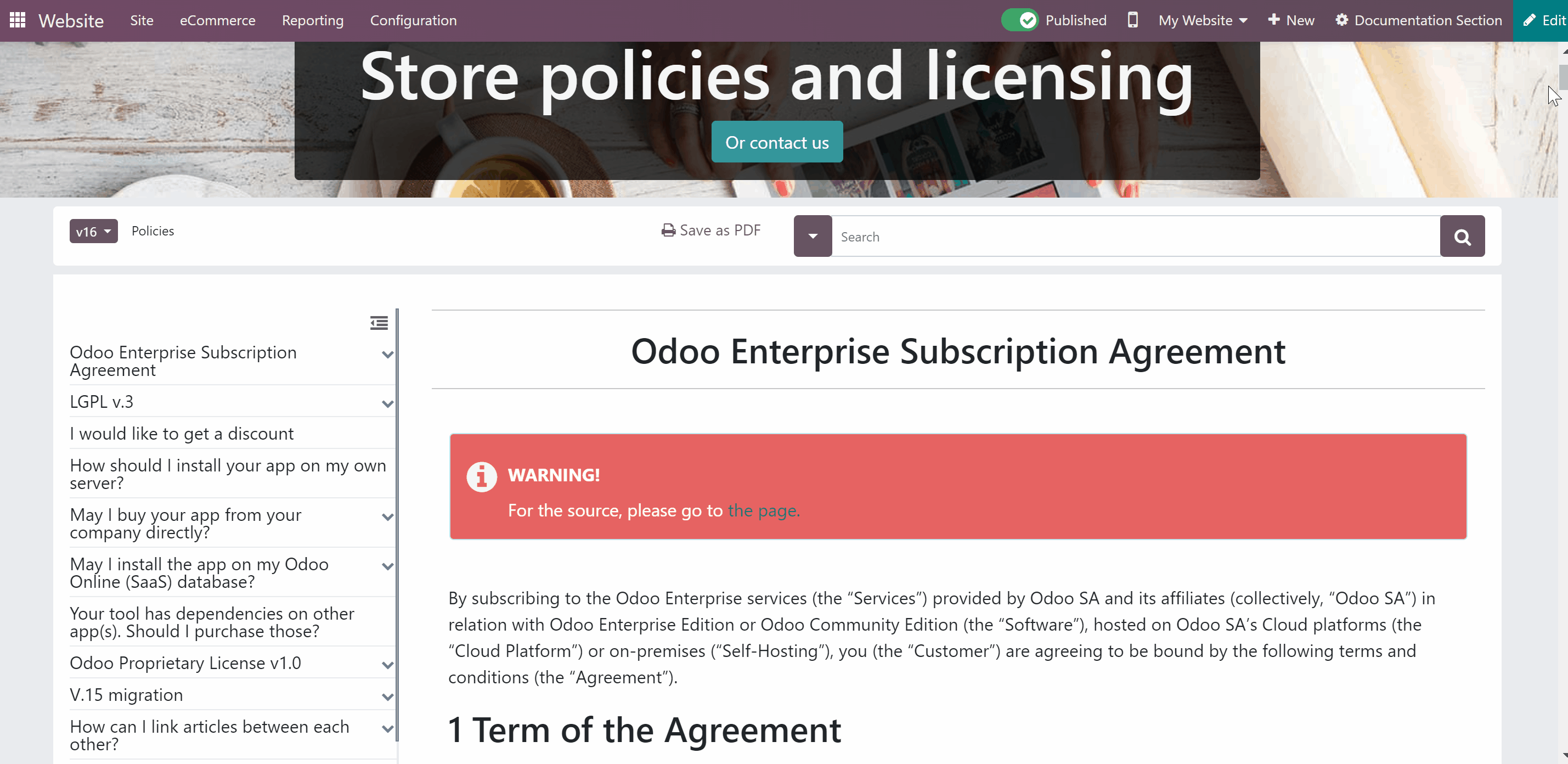

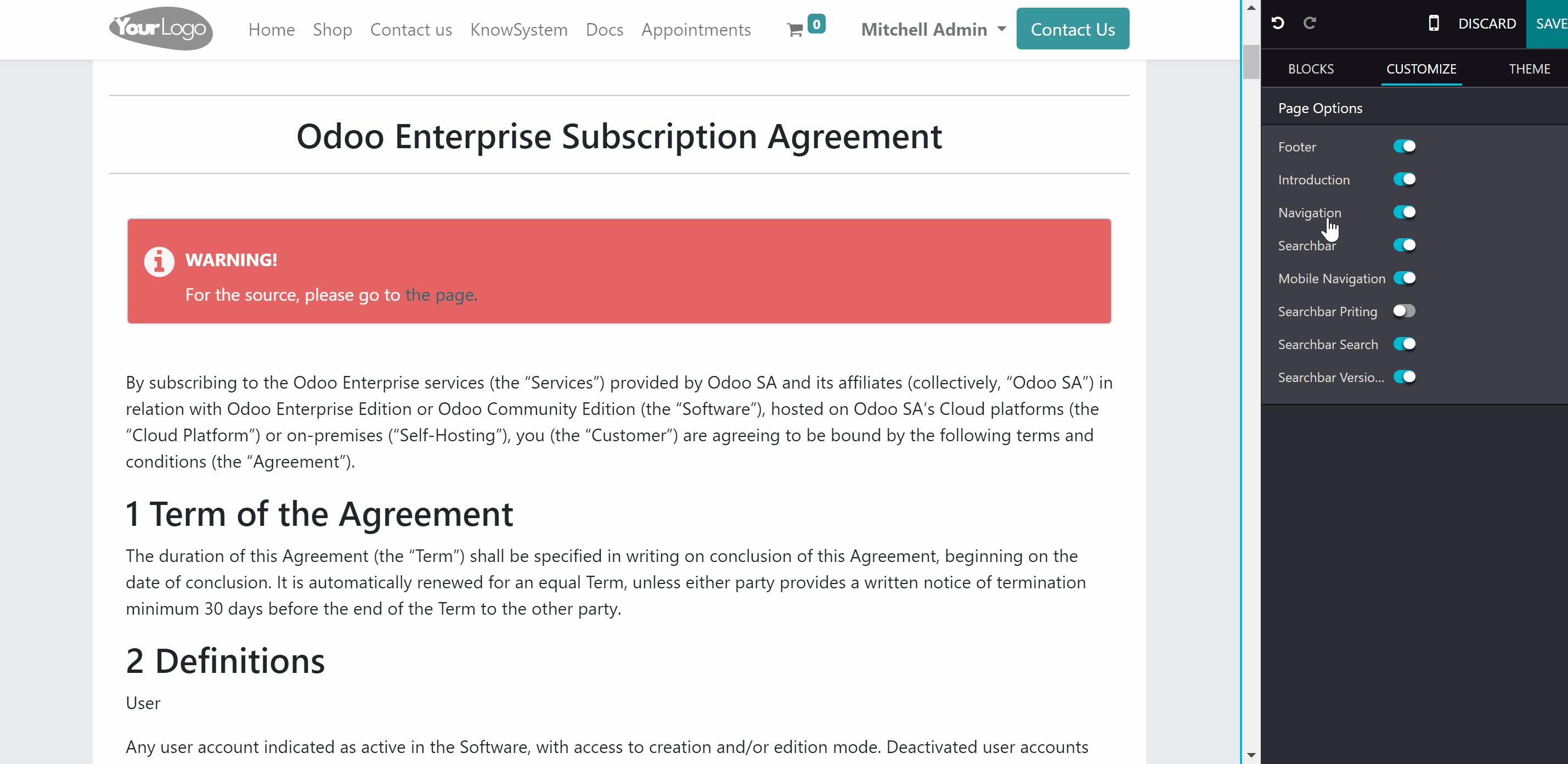

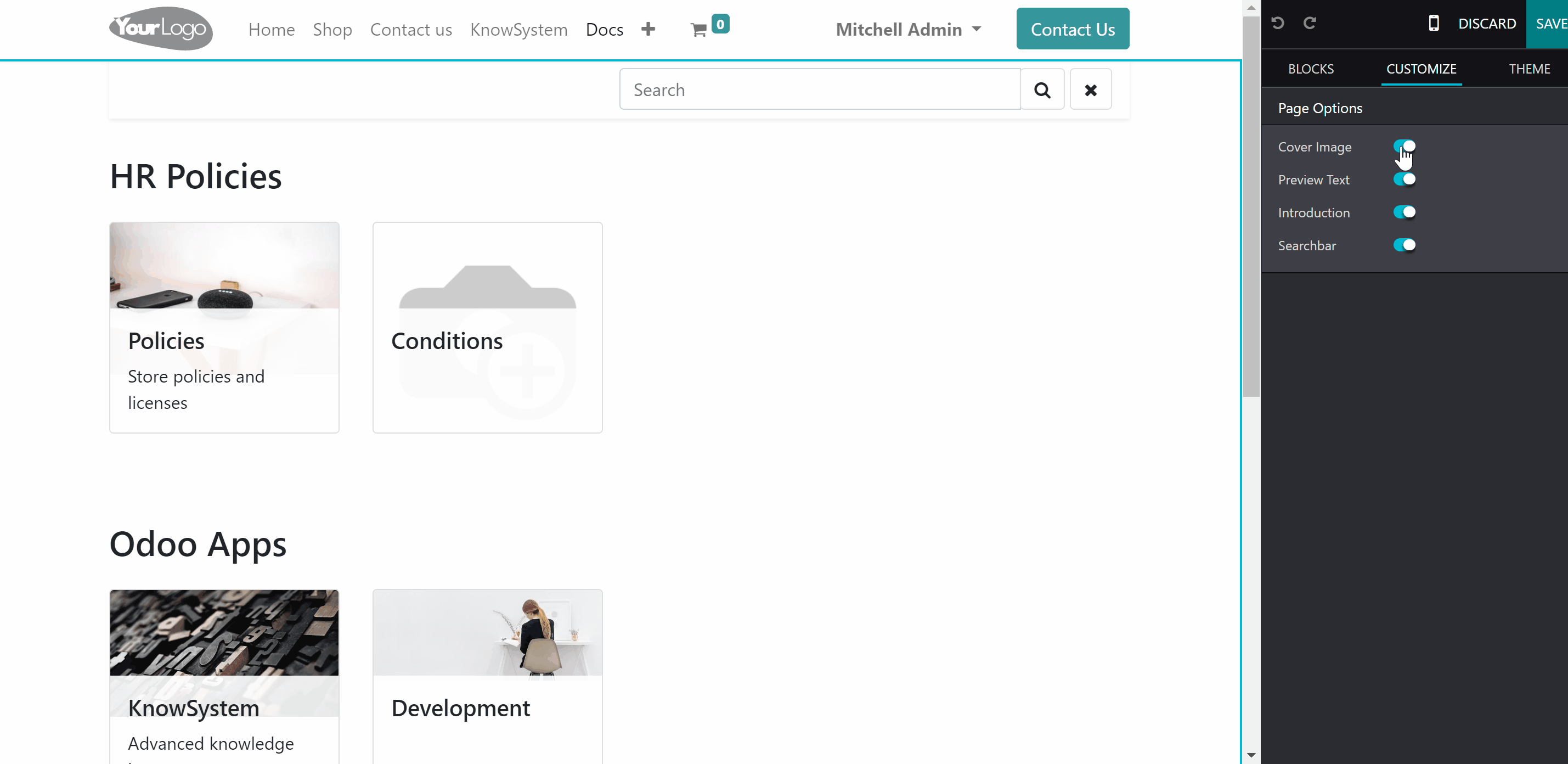

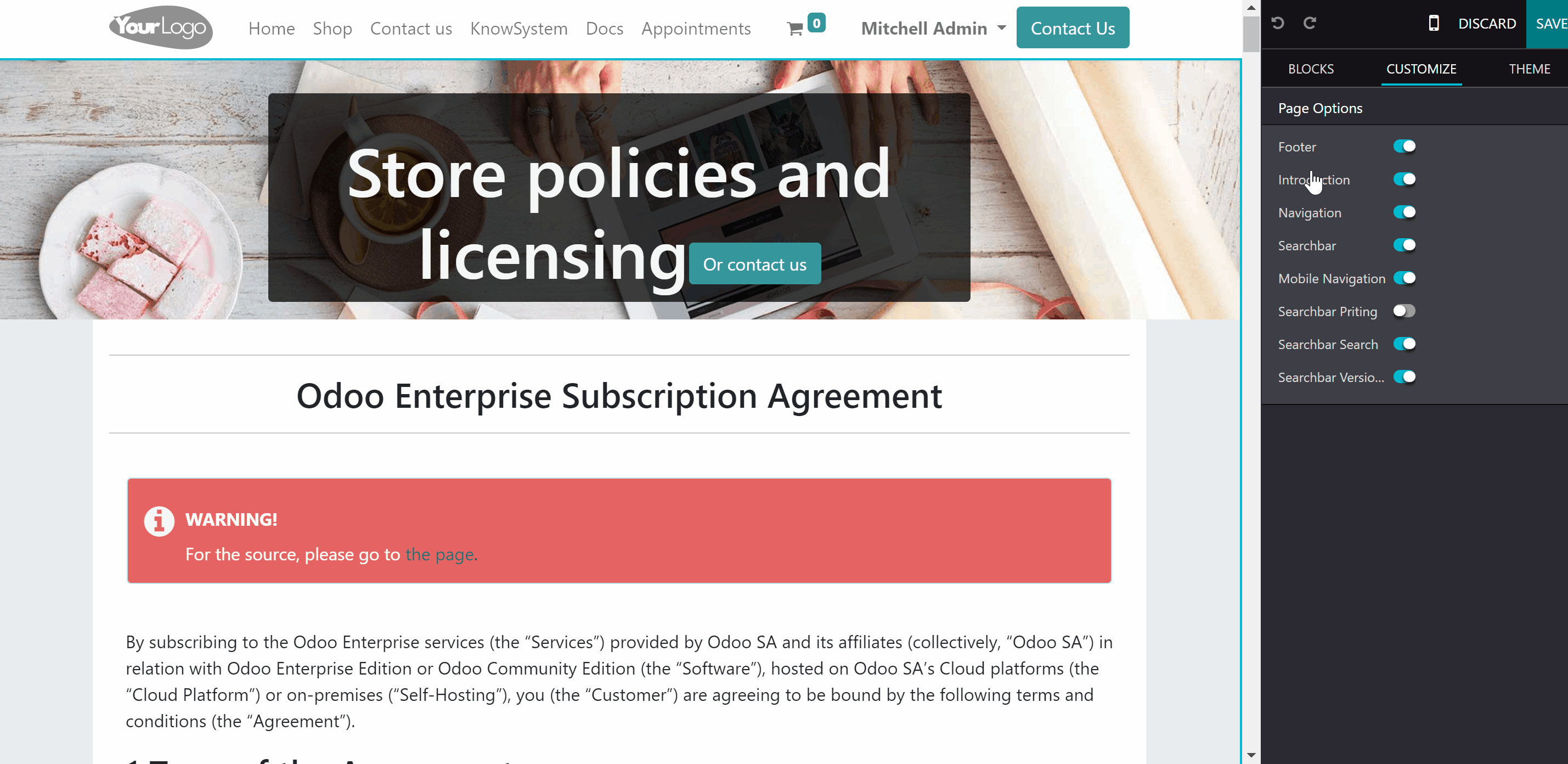

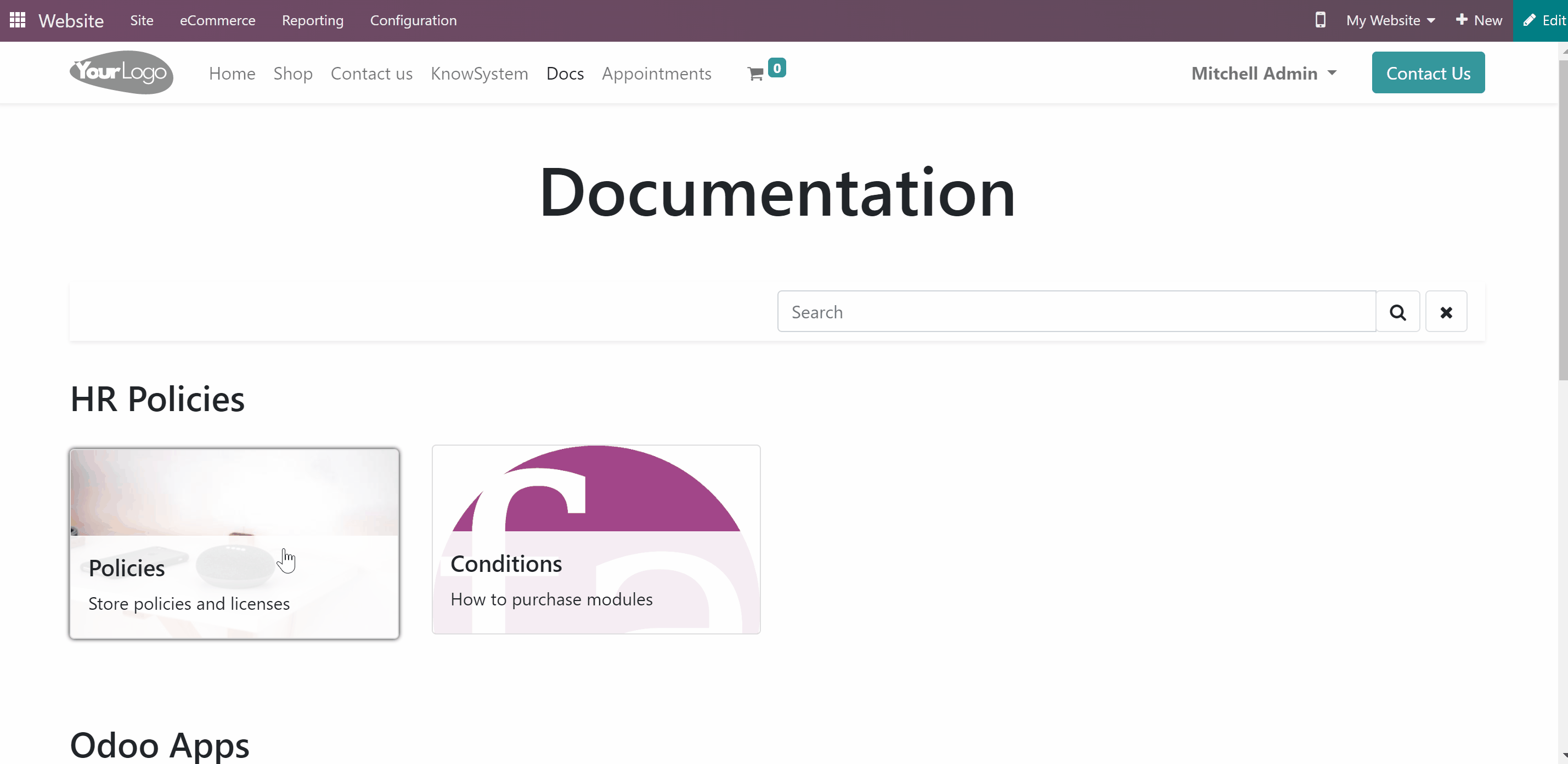

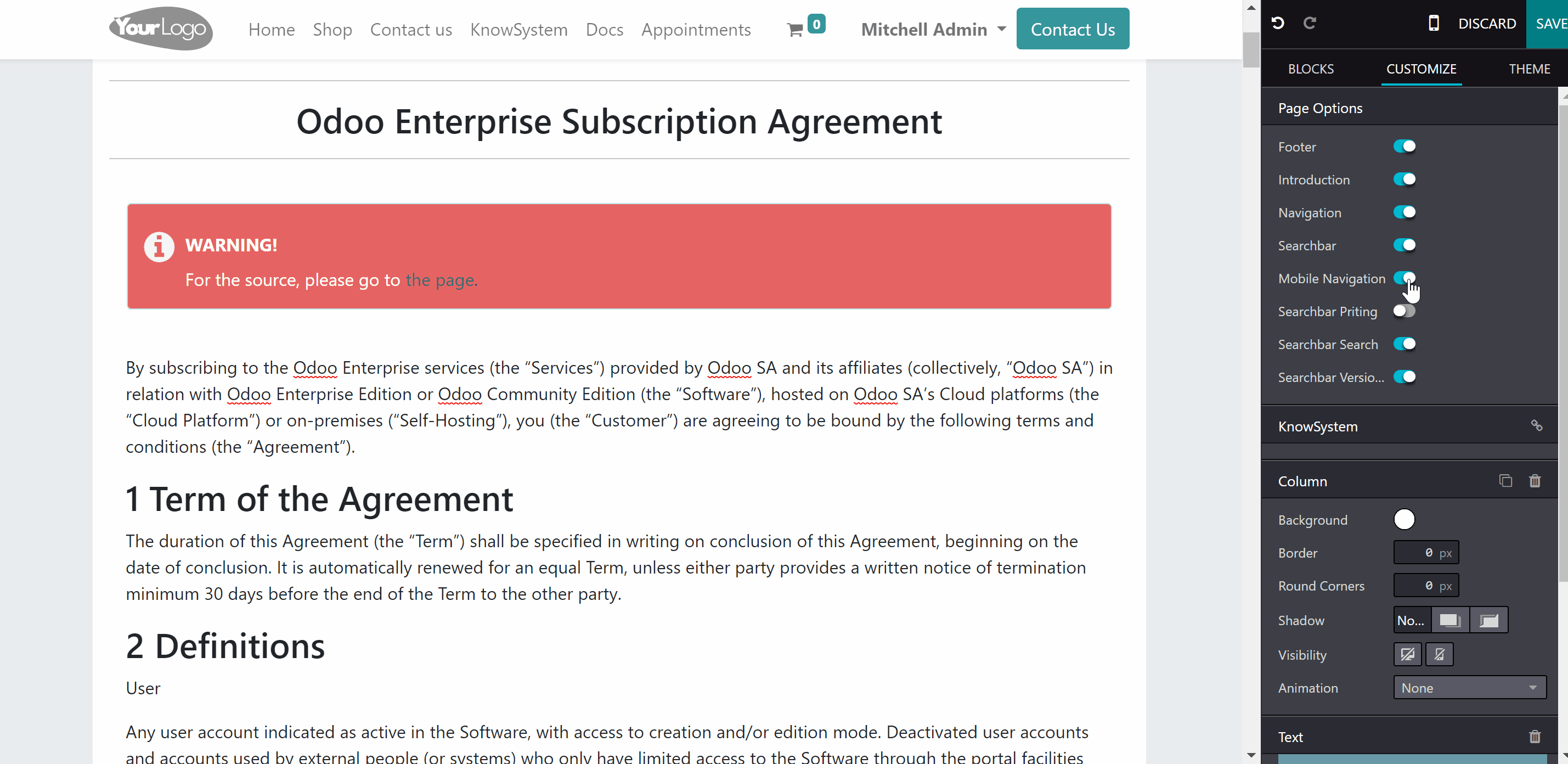

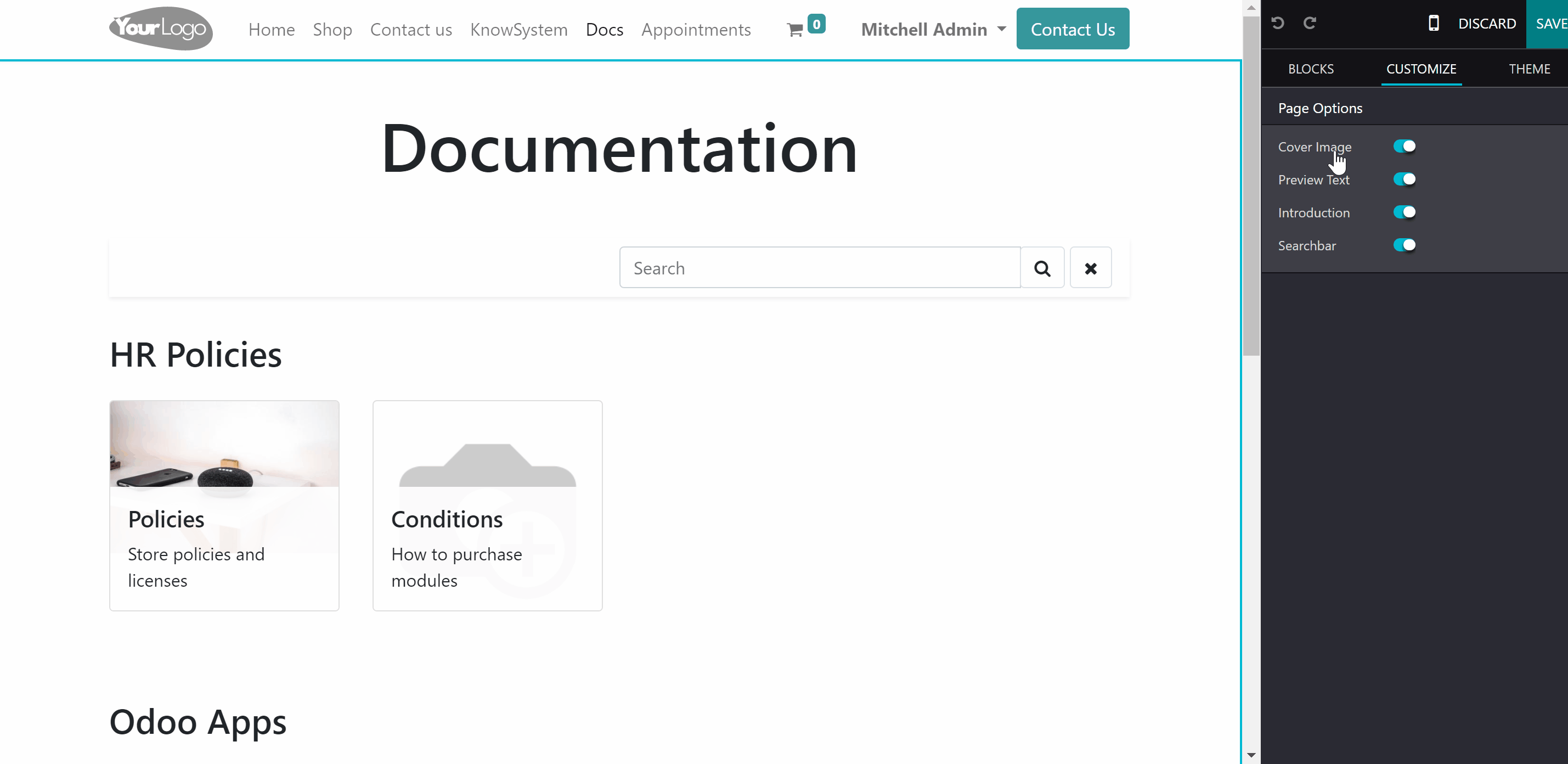

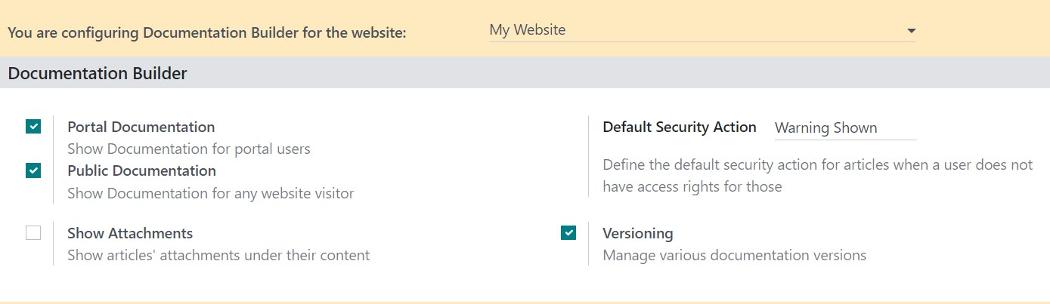

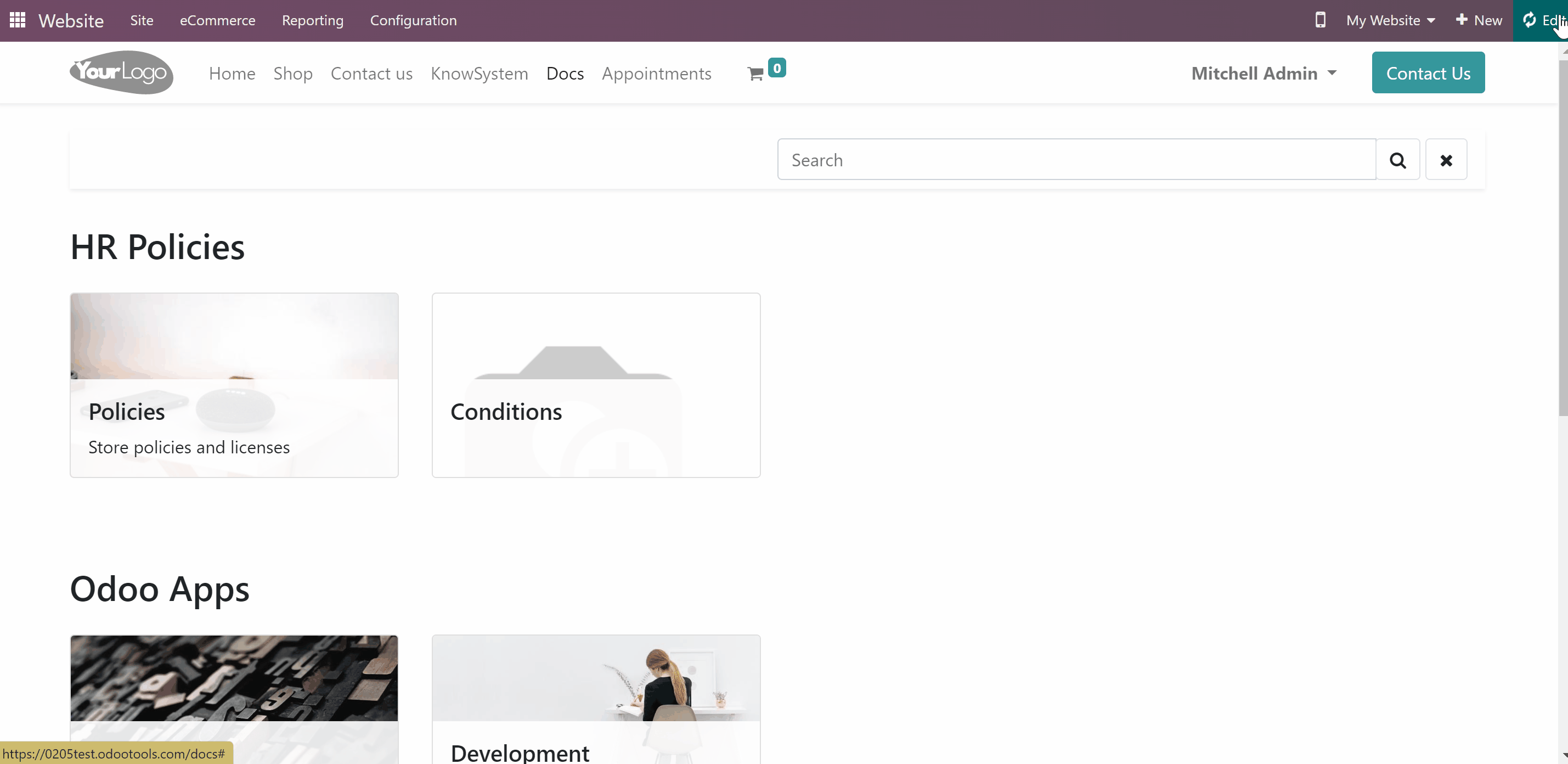

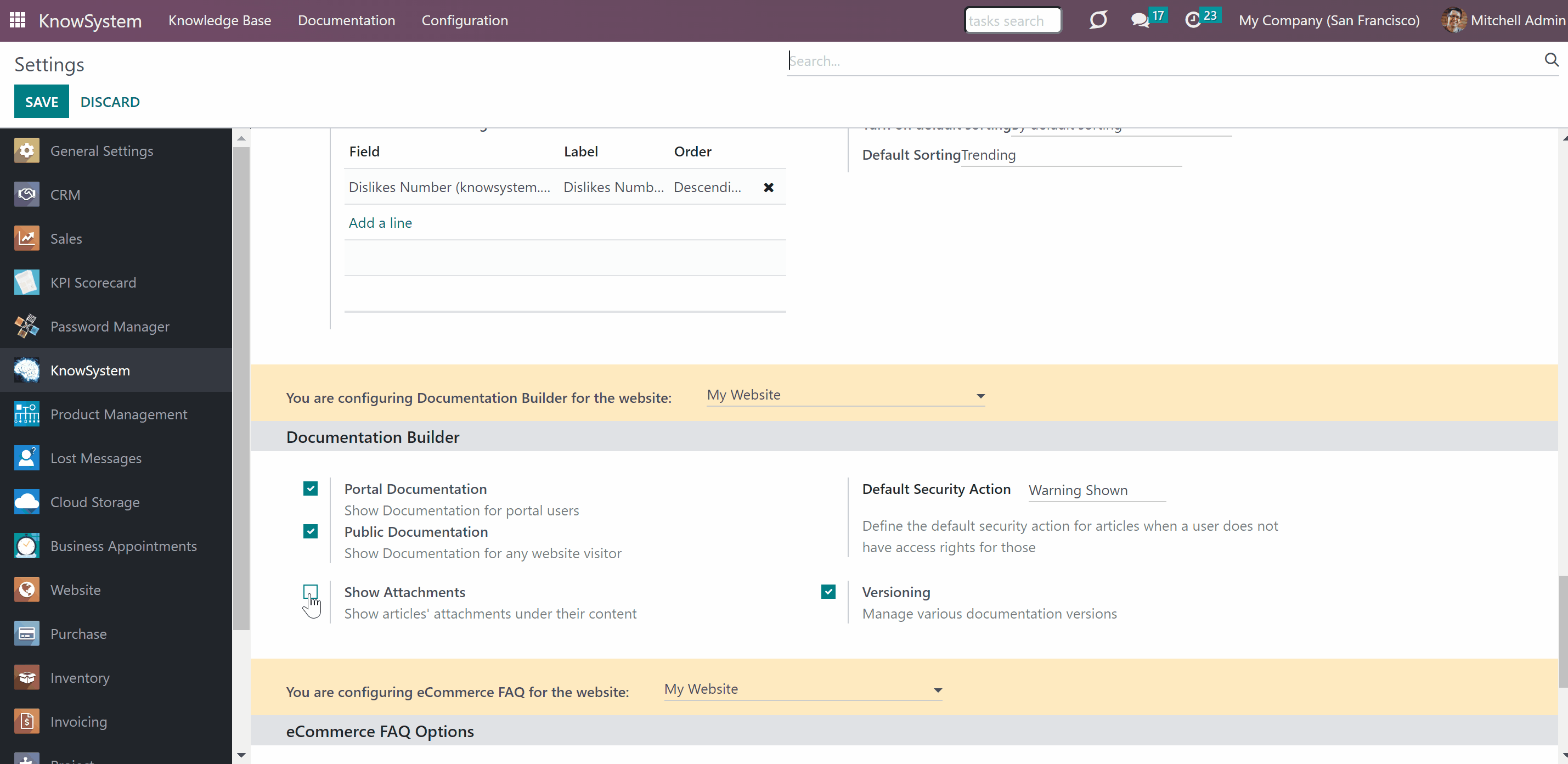

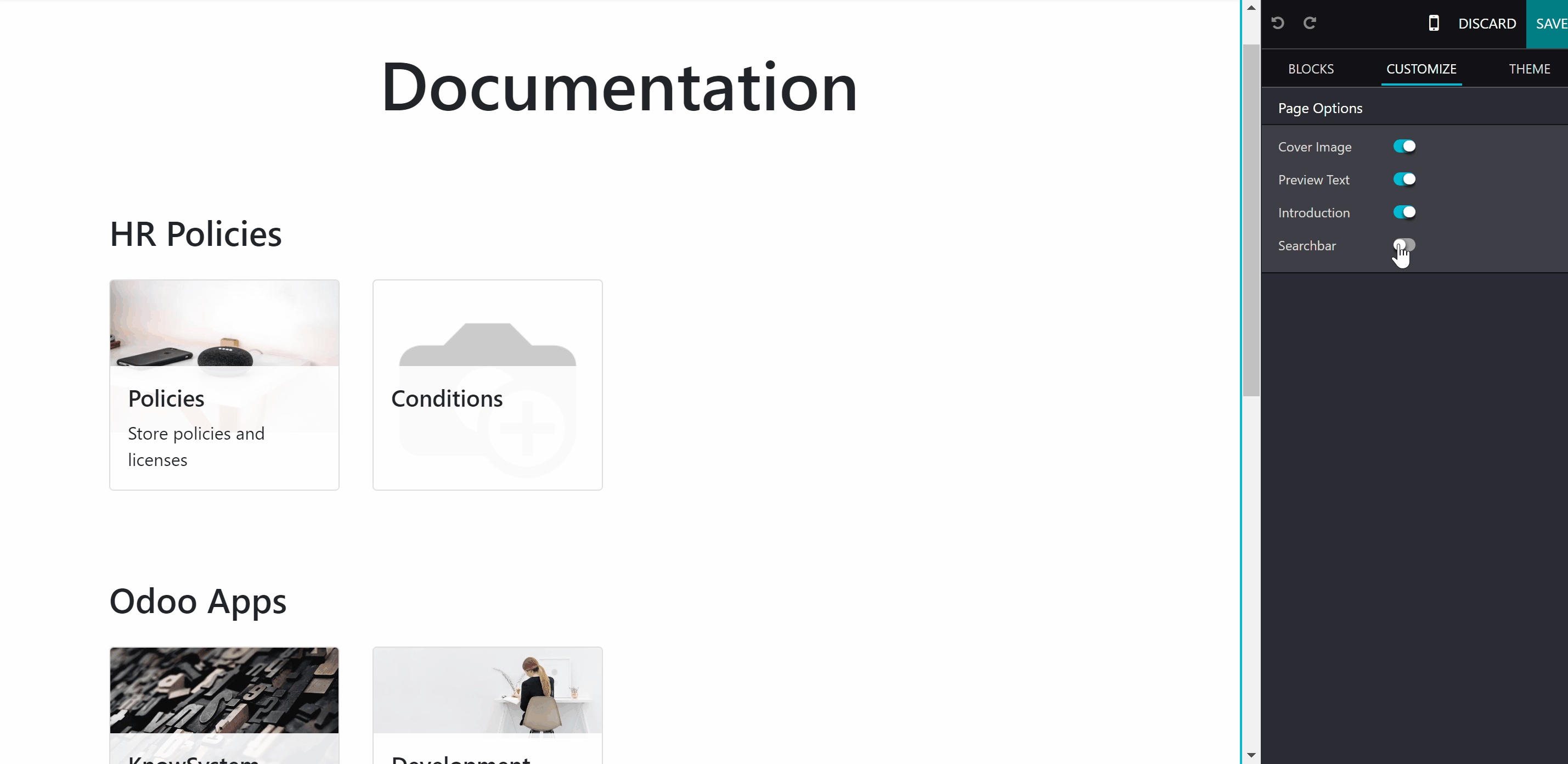

Odoo Documentation Builder
The module lets you design website documentation pages based on knowledge base articles.
KnowSystem: Custom Fields
The module lets you add and show custom fields for articles (backend).
KnowSystem: Custom Fields for Website and Portal
The module shows custom fields on the website and portal pages (frontend). Free, but requires KnowSystem: Custom Fields.

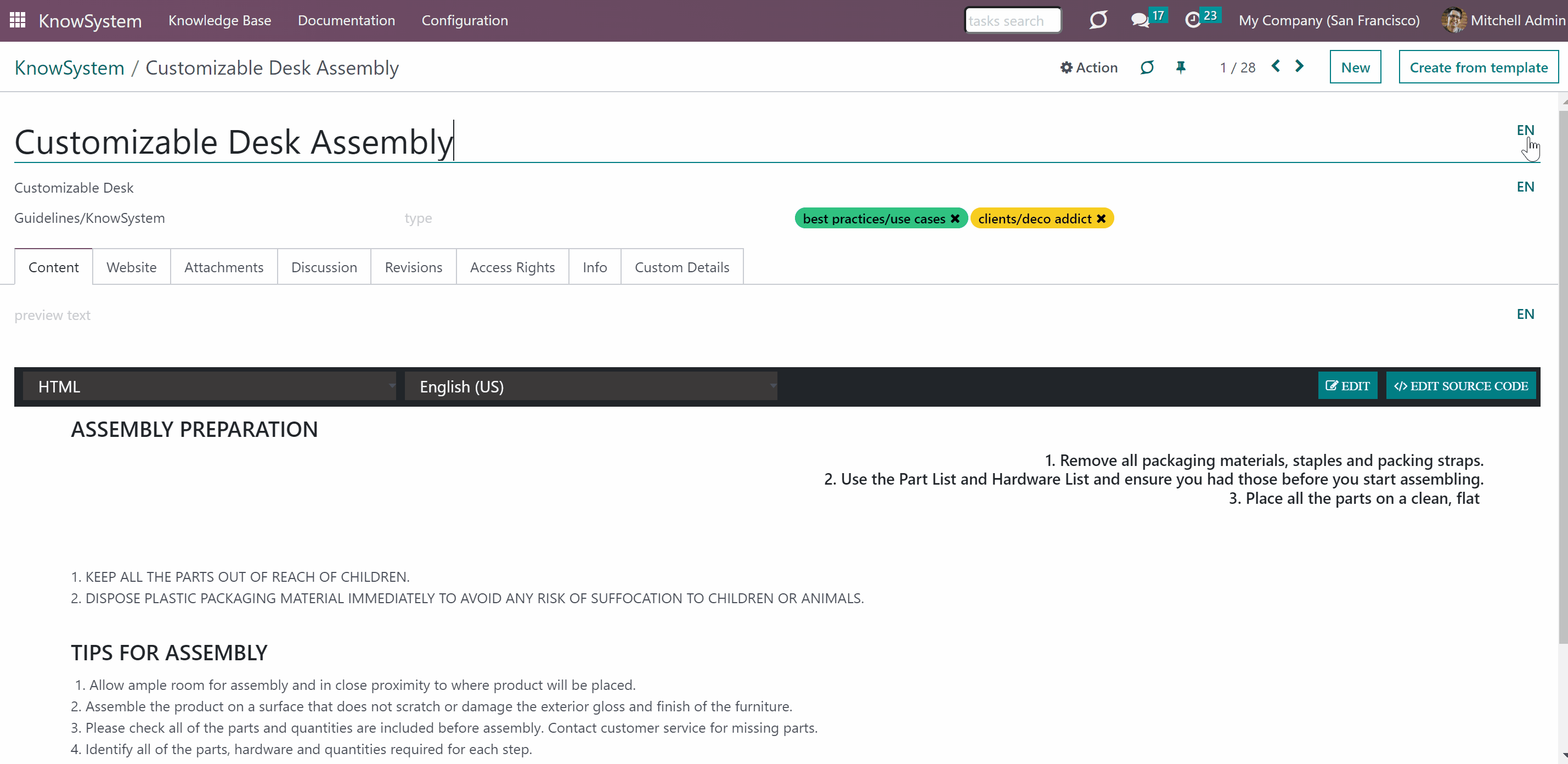

KnowSystem: Multi-Language
The module lets you translate articles, sections, and tags to install in Odoo languages.

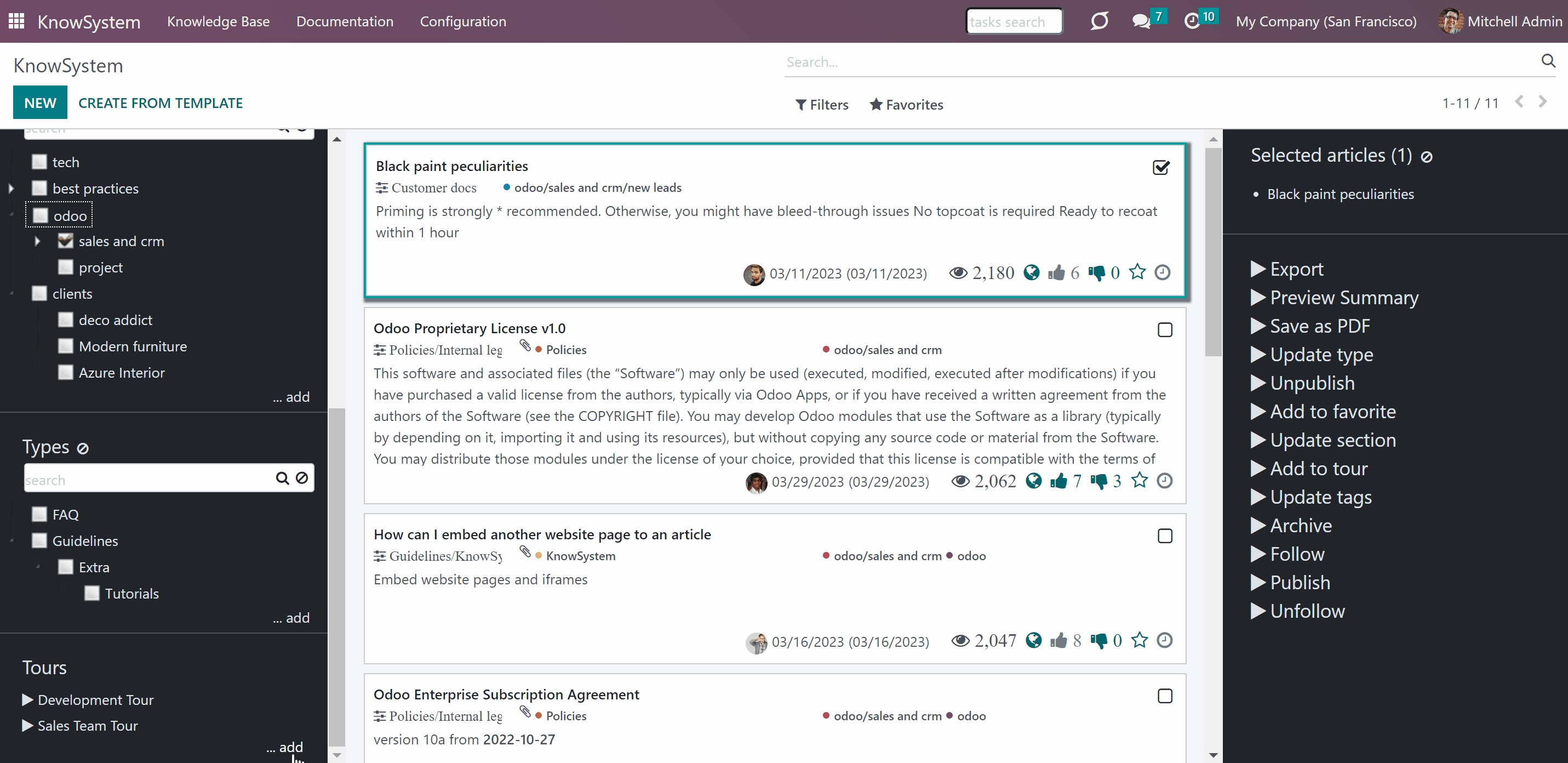

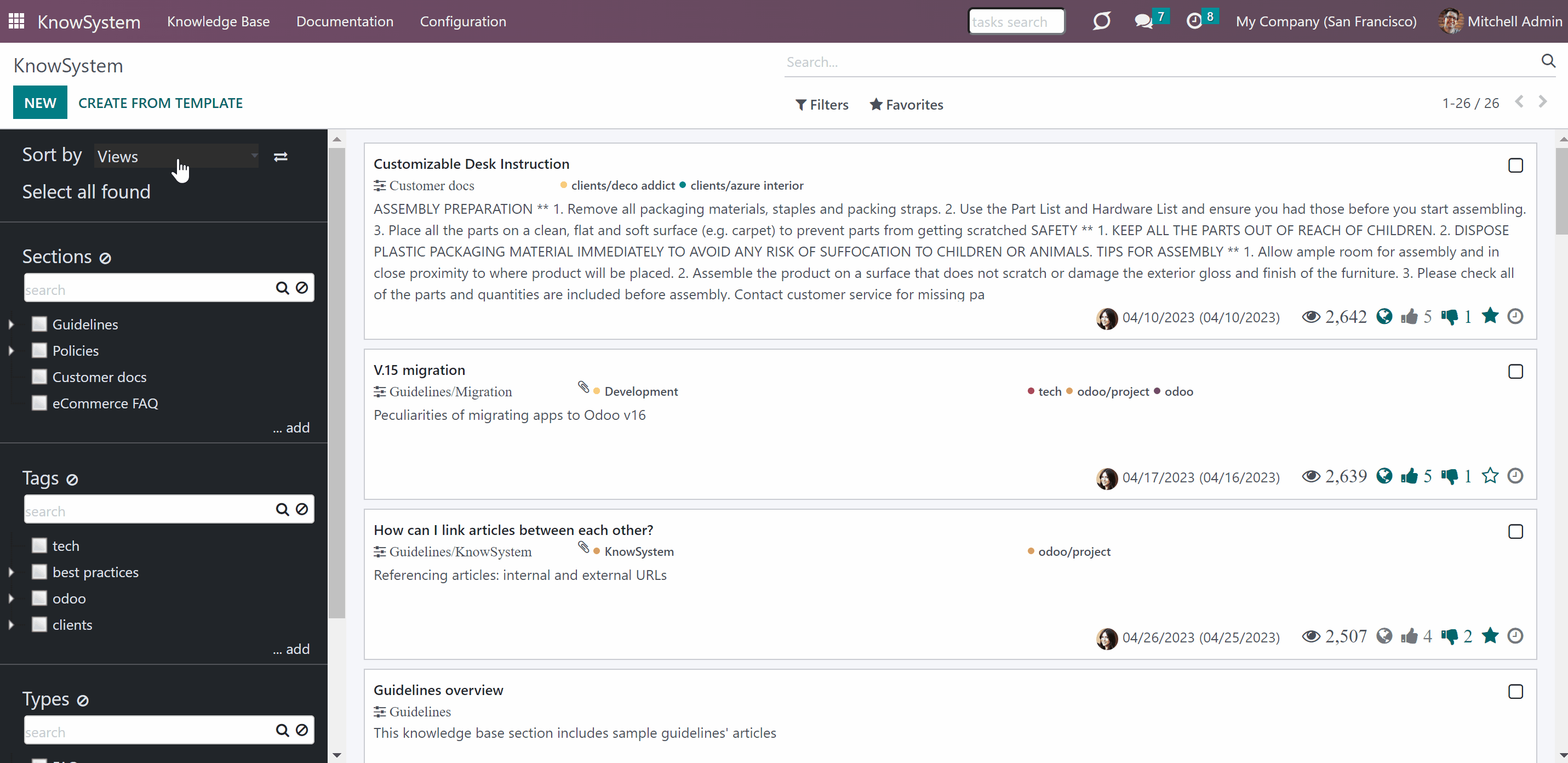

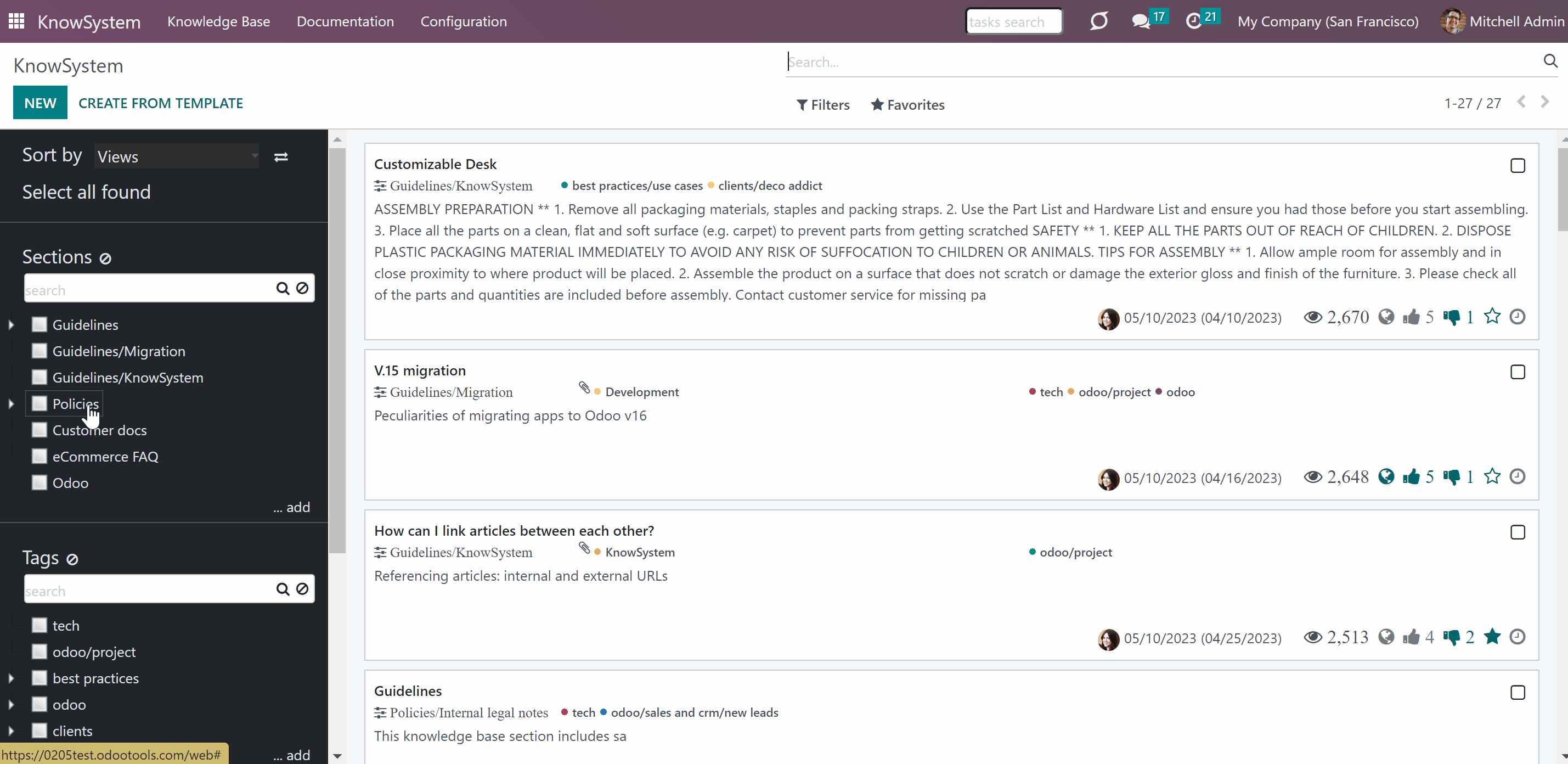

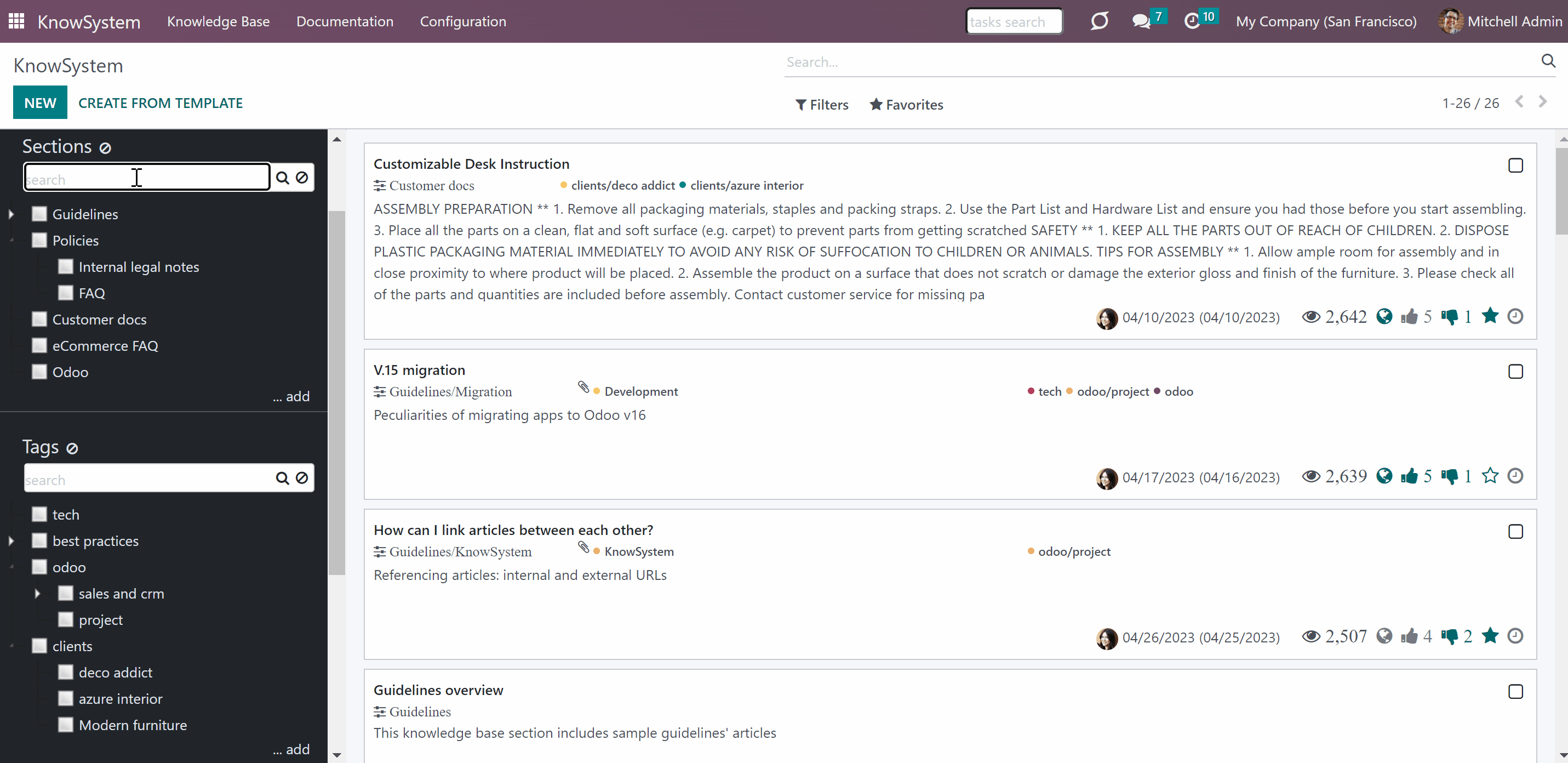

Single-view knowledge navigation
Managing KnowSystem sections
KnowSystem section is a supreme KMS object, an articles' storage, which is used for convenient navigation over articles and managing access to internal user groups. Each article should have a single linked section. Sections serve to fulfill the following tasks:
1. To unite articles (you can add only one section to an article)
2. To restrict rights to articles (see. Access rights)
3. To navigate through articles and find them quickly, by putting a tick for the required section

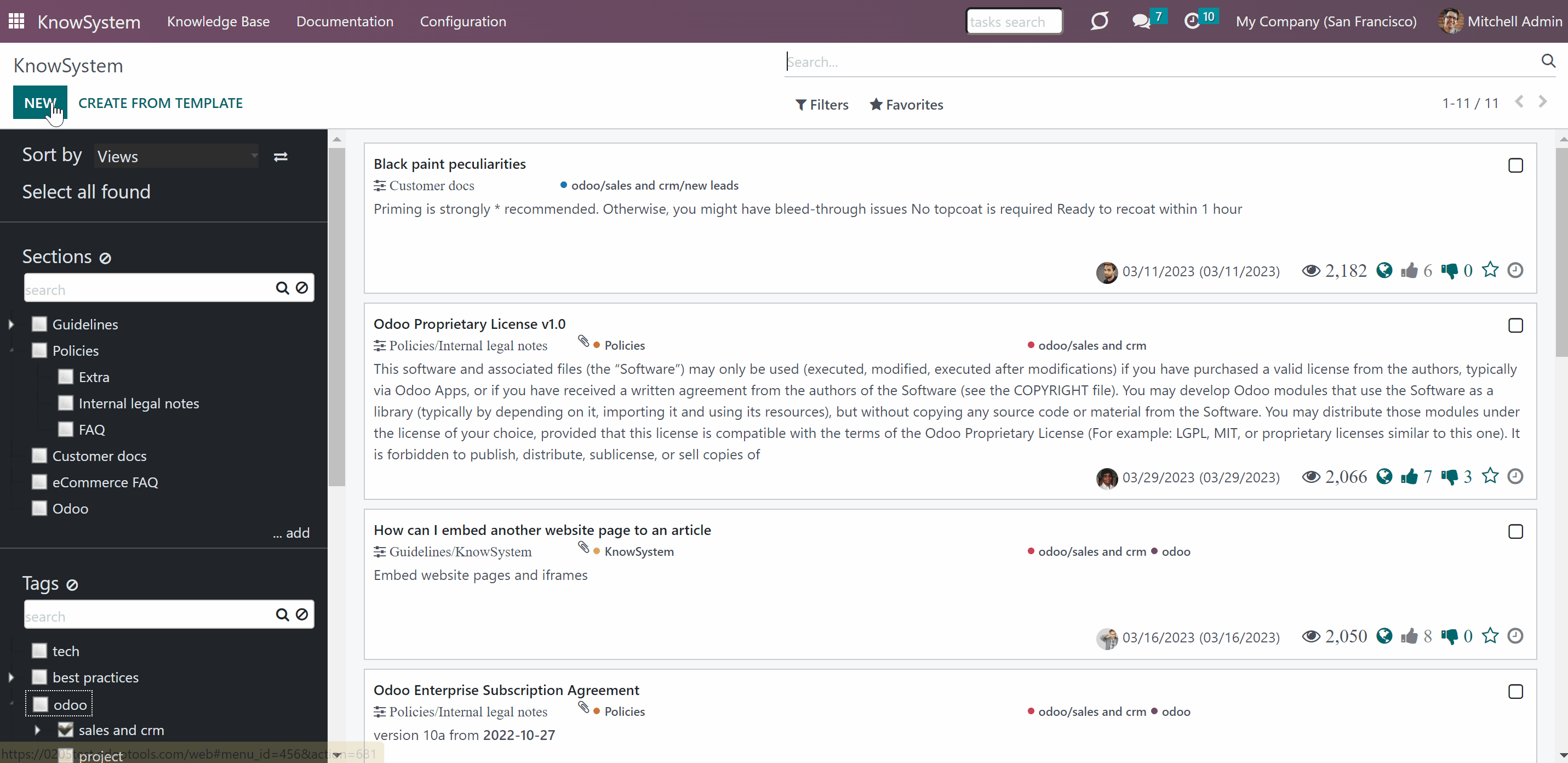

Sections have a hierarchy. You can set a parent section and some subsections while editing or creating a section. You can also change the hierarchy by Drag&Drop. If a user group has access to the parent section, it would have access to all included sections (see. Access rights). It is also possible to print all available articles by a section (see KnowSystem in use).
If you have a lot of sections and sub-sections, then you may find it difficult to navigate through them and select the ones you need quickly. Thus, for extra convenience, the special search bar above the sections list was introduced. Just start typing the word and click 'Enter' or the search button and the matching results will be shown and marked red. Click the button 'Reset' on the right side of the search bar to empty the search.

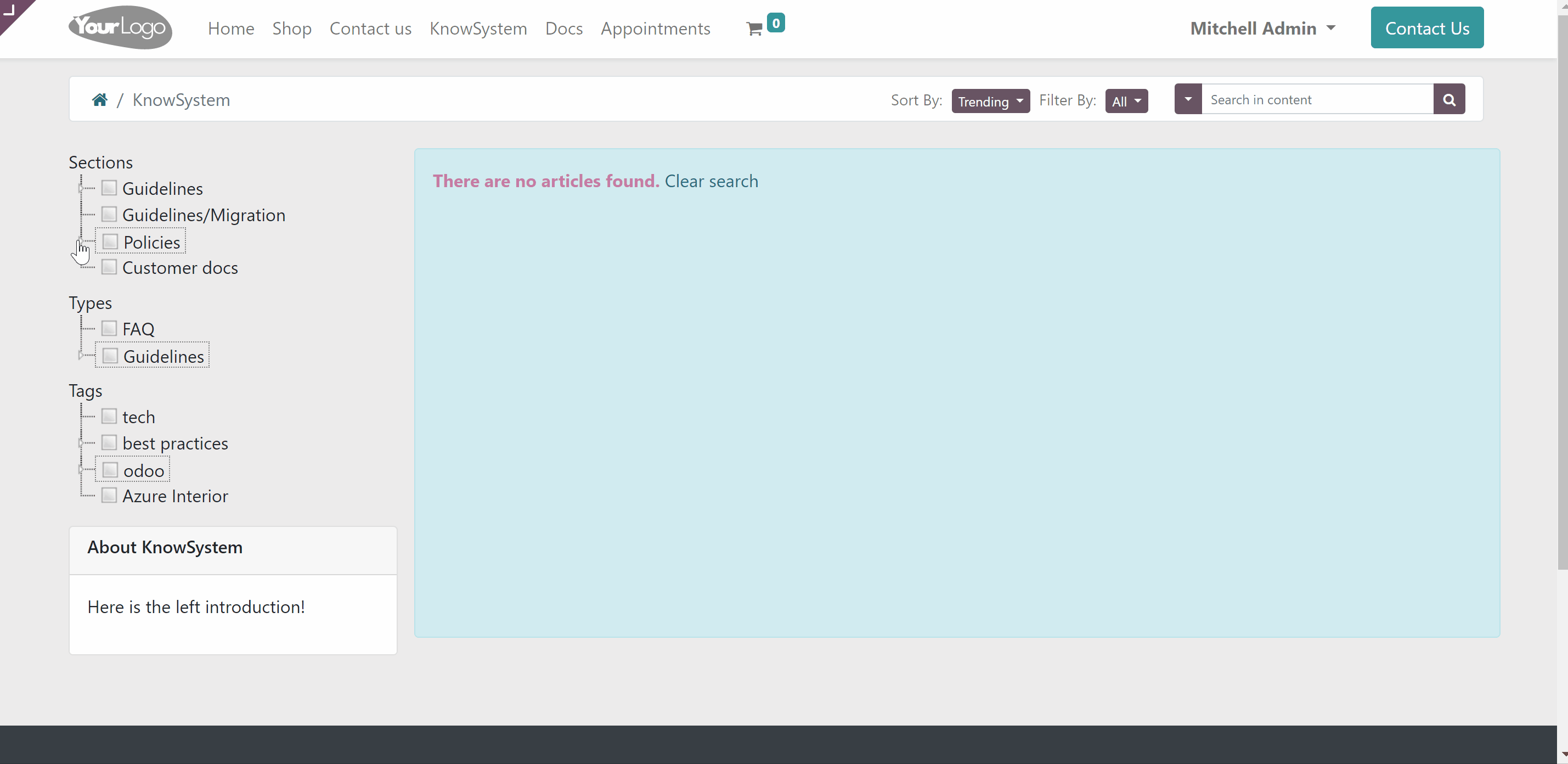

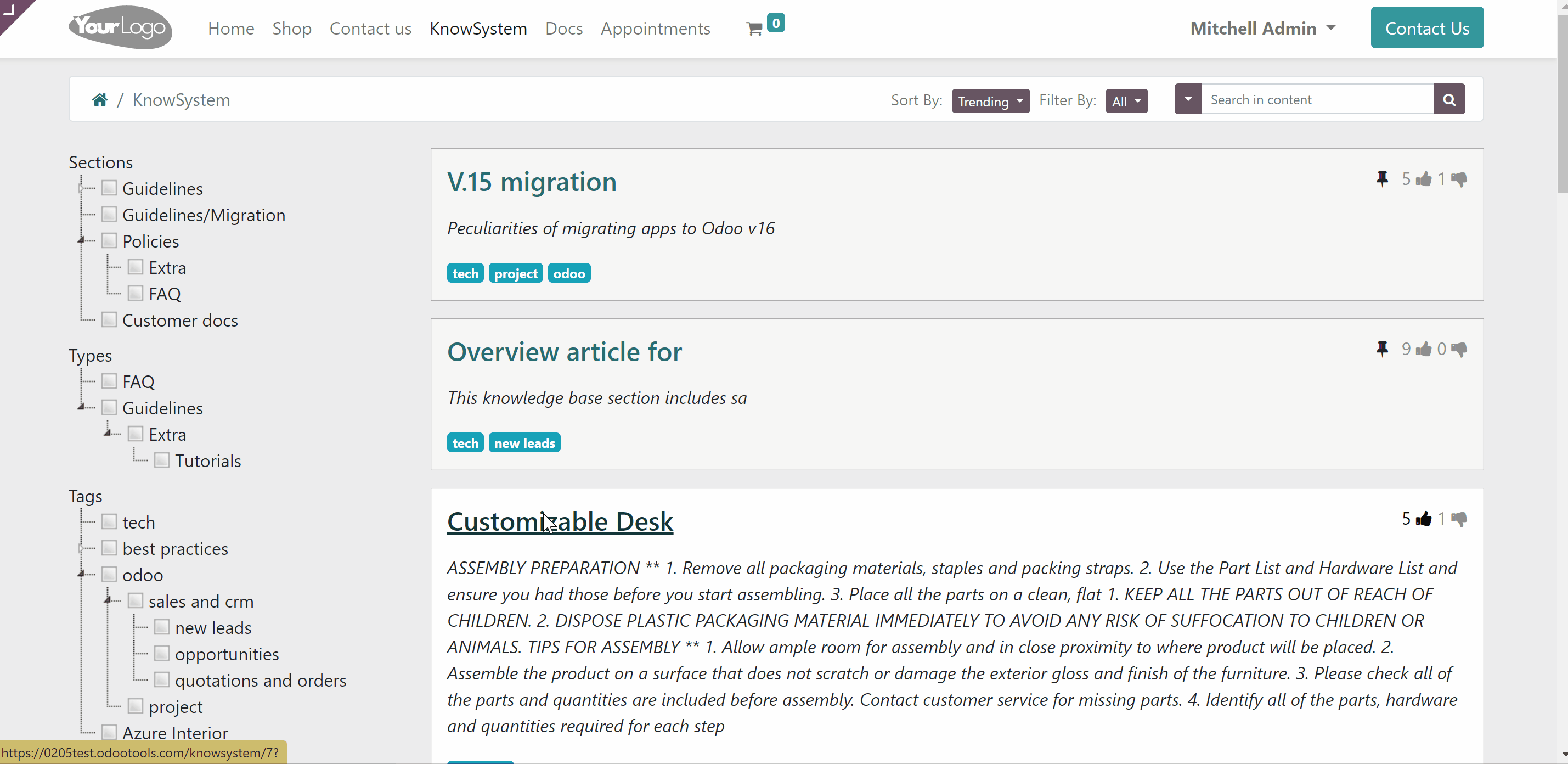

If a child section is selected (both in the backend and on the website ()), its parents will be hierarchically highlighted by the border of dots around the name of the element. Such selection is shown only if the section itself is not selected. Thus, it is always clear that some choice has been made somewhere (even if the structure itself is closed).

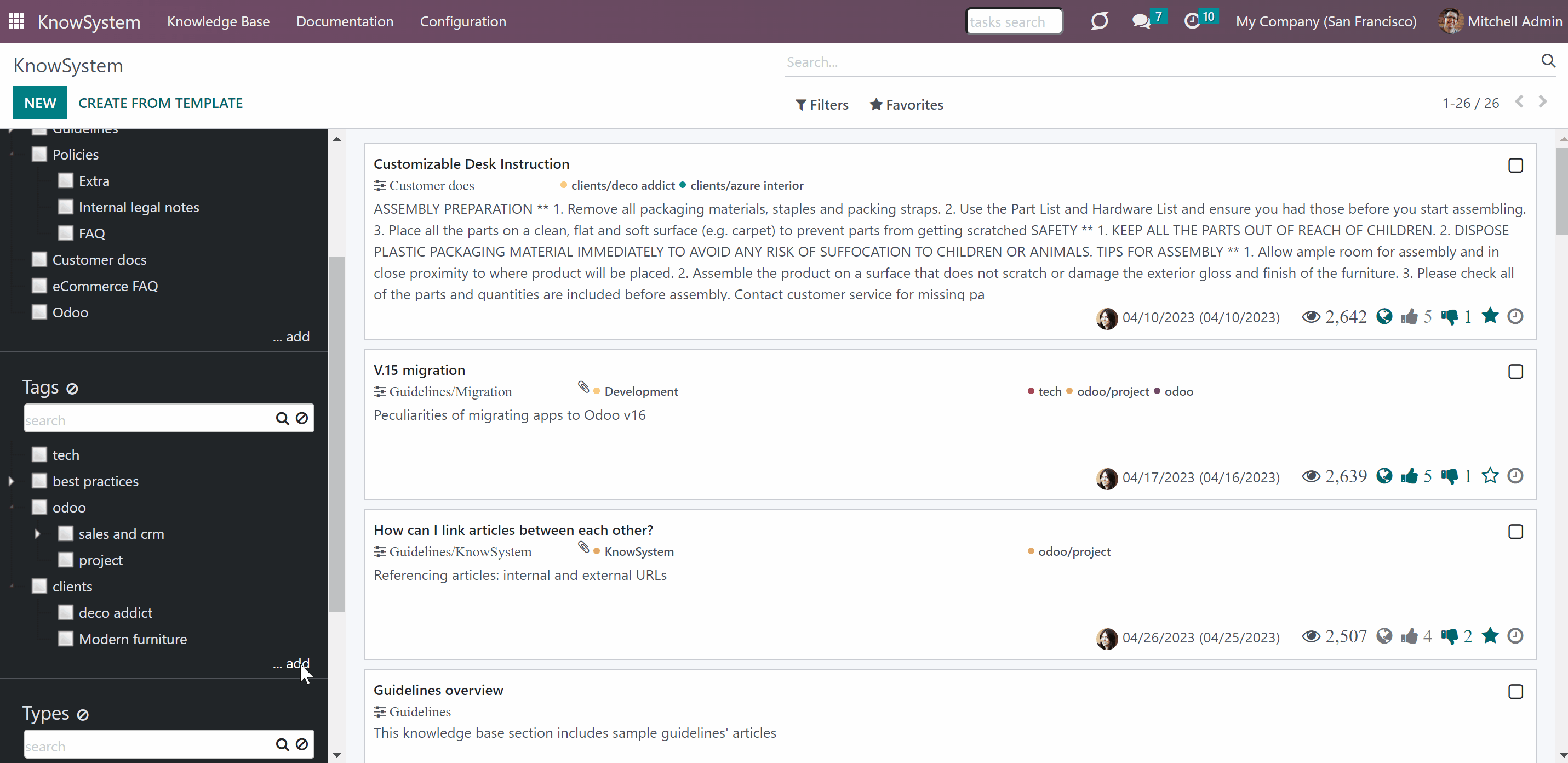

You can create and edit sections right from the single view interface and from the separate menu Configuration > Sections.

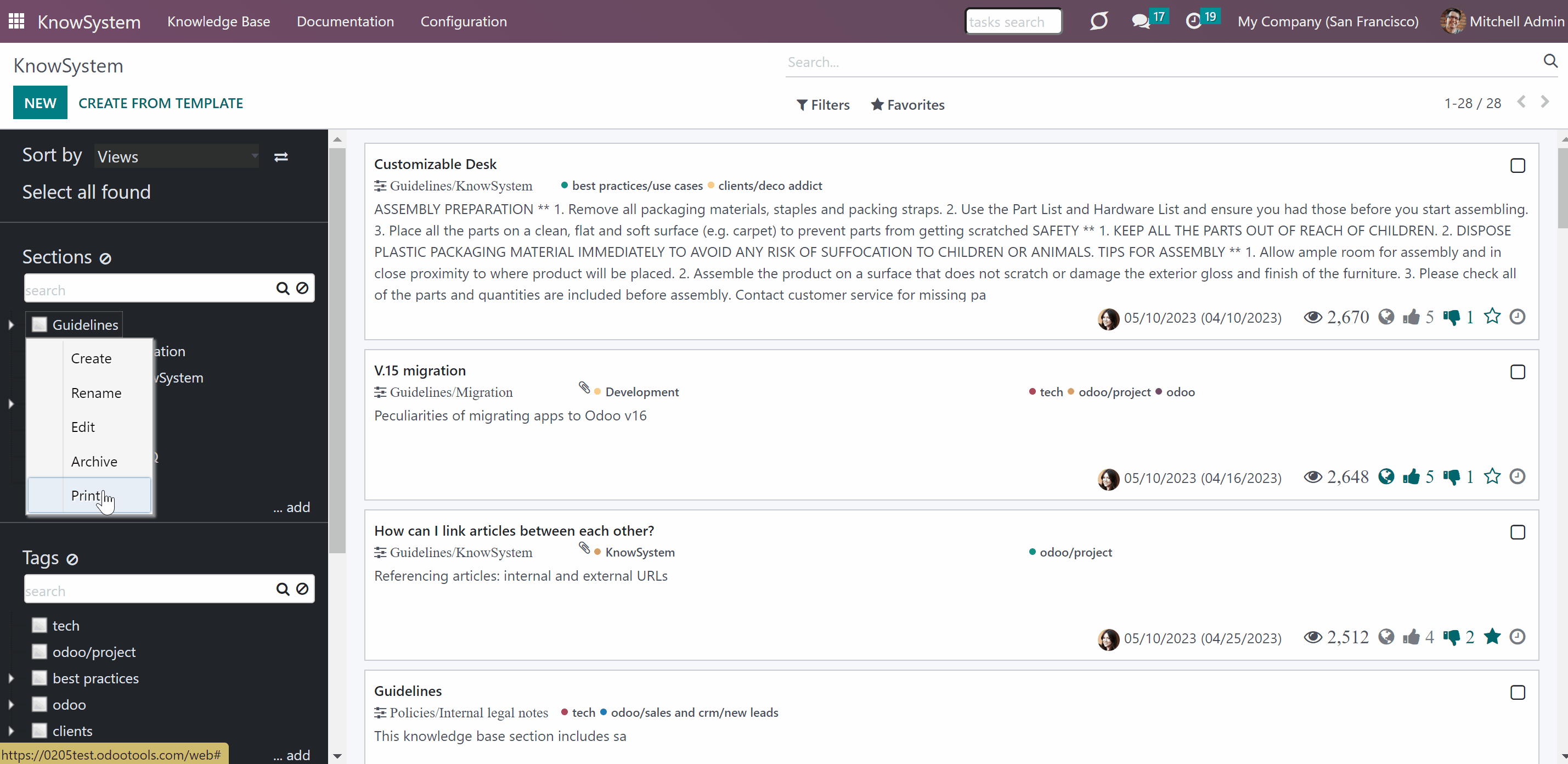

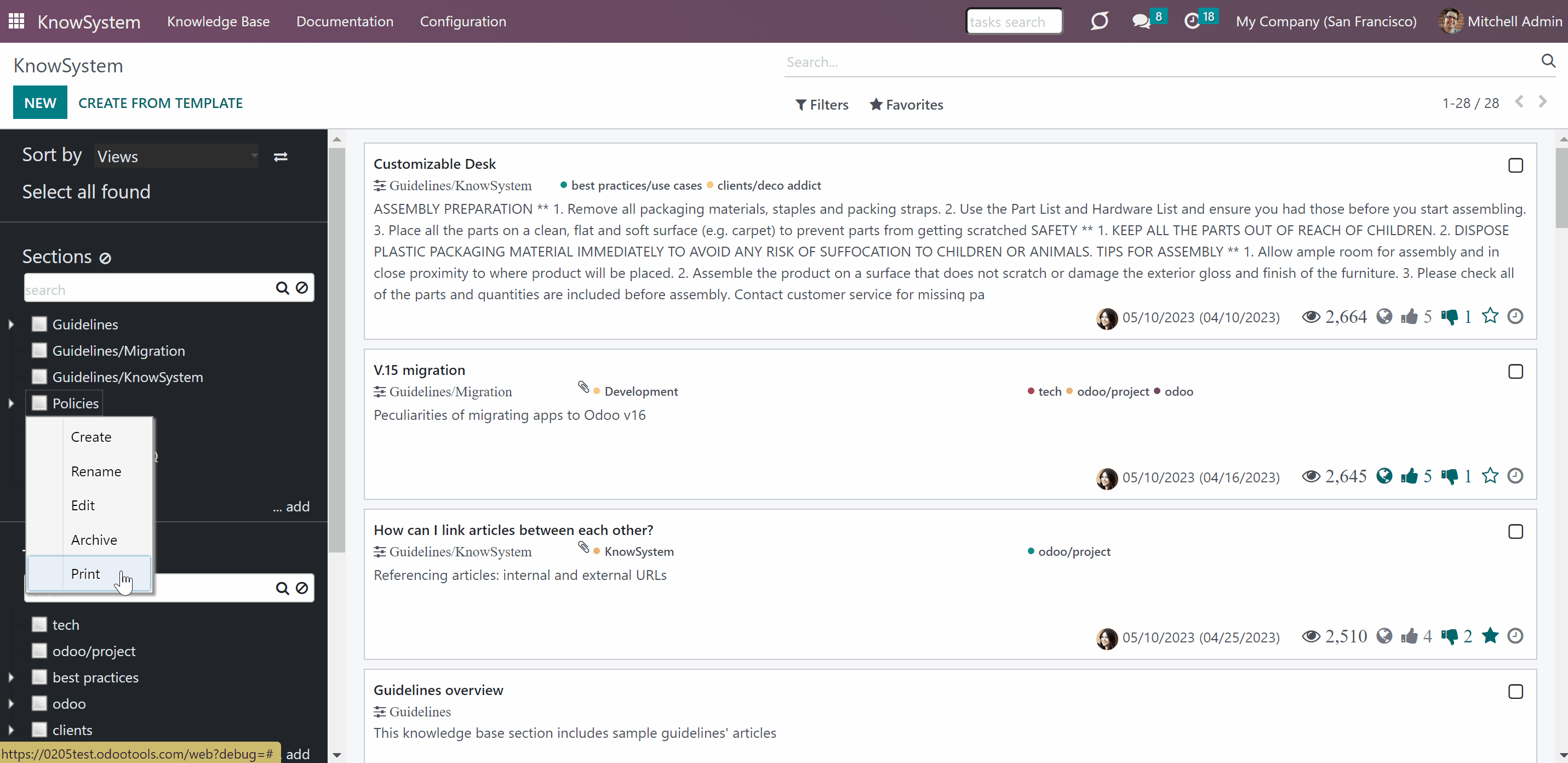

To add a new section through the single-view interface just click '...add' and write the title. Right-click on a section to see all available actions:
1. Create (click to start creating a new section)
2. Rename (click to change the section's name)
3. Edit (click to edit a section)
4. Print (click to print all articles in a section and its subsections if any)
5. Archive (click to archive a section, its articles will remain active)
How to edit sections:
1. In the KnowSystem menu right click on a section, then choose 'Edit', or go to Configurations > Sections, choose the section, and click 'Edit'.
2. Set the hierarchy by choosing the parent and sub-sections
3. Click the tab 'Restrict access' to set the groups of people that will be able to see the section and articles in it. Access to the parent section allows reading all articles in it and in its' sub-sections (see. Access rights)
4. In the tab 'Website and Portal' (), tick the option 'Show on Website' and choose the website, where the section should be published. This way public and portal users will be able to see and select the section on the left side from the articles list
5. Optionally, choose the website () to show your section on, if you don't choose any and you have a tick 'Show tag on Website', it will be shown on all your sites
6. Optionally, add the description to the section
7. Click 'Save&Close'.

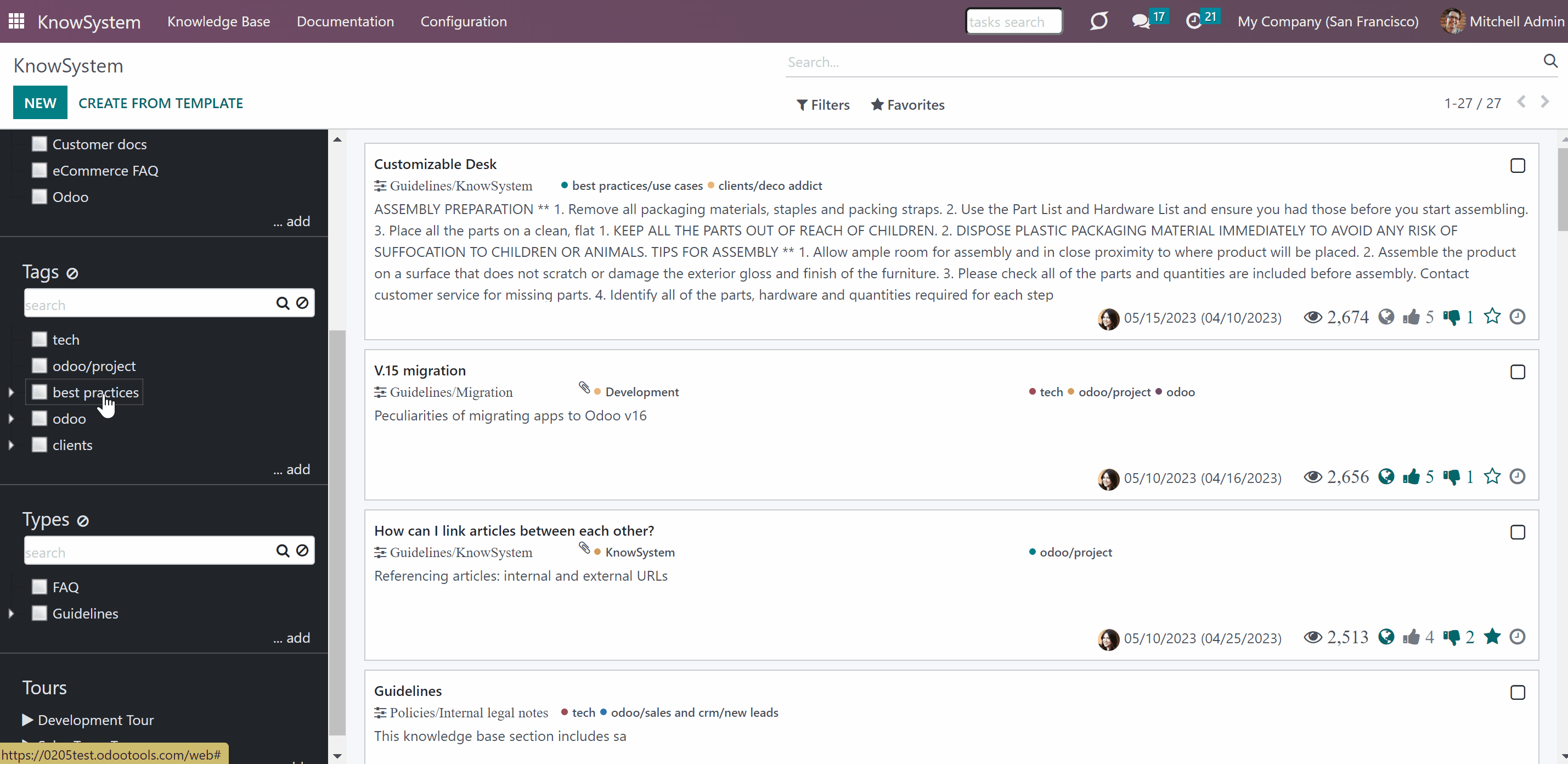

Managing tags
KnowSystem tag is a critical KMS tool. A tag is a colorful mark on an article, that attracts attention. One article can have multiple tags. Tags serve for:
1. Quick search and easy navigation
2. Attaching tags to partners, to give access to articles with a certain tag (see. Access rights)
3. Creating a clear, understandable knowledge base
4. Filter articles, for quick access all over Odoo

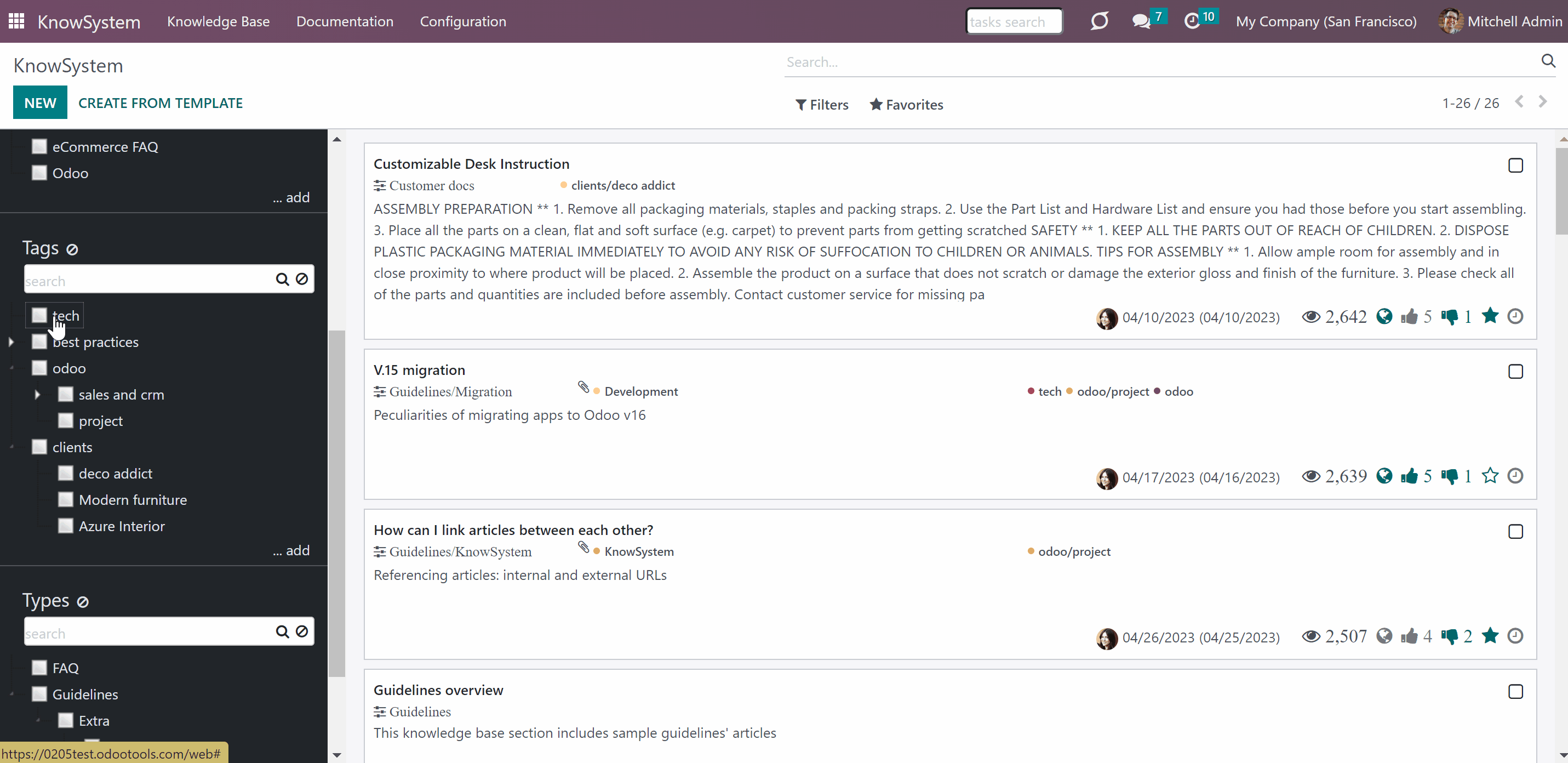

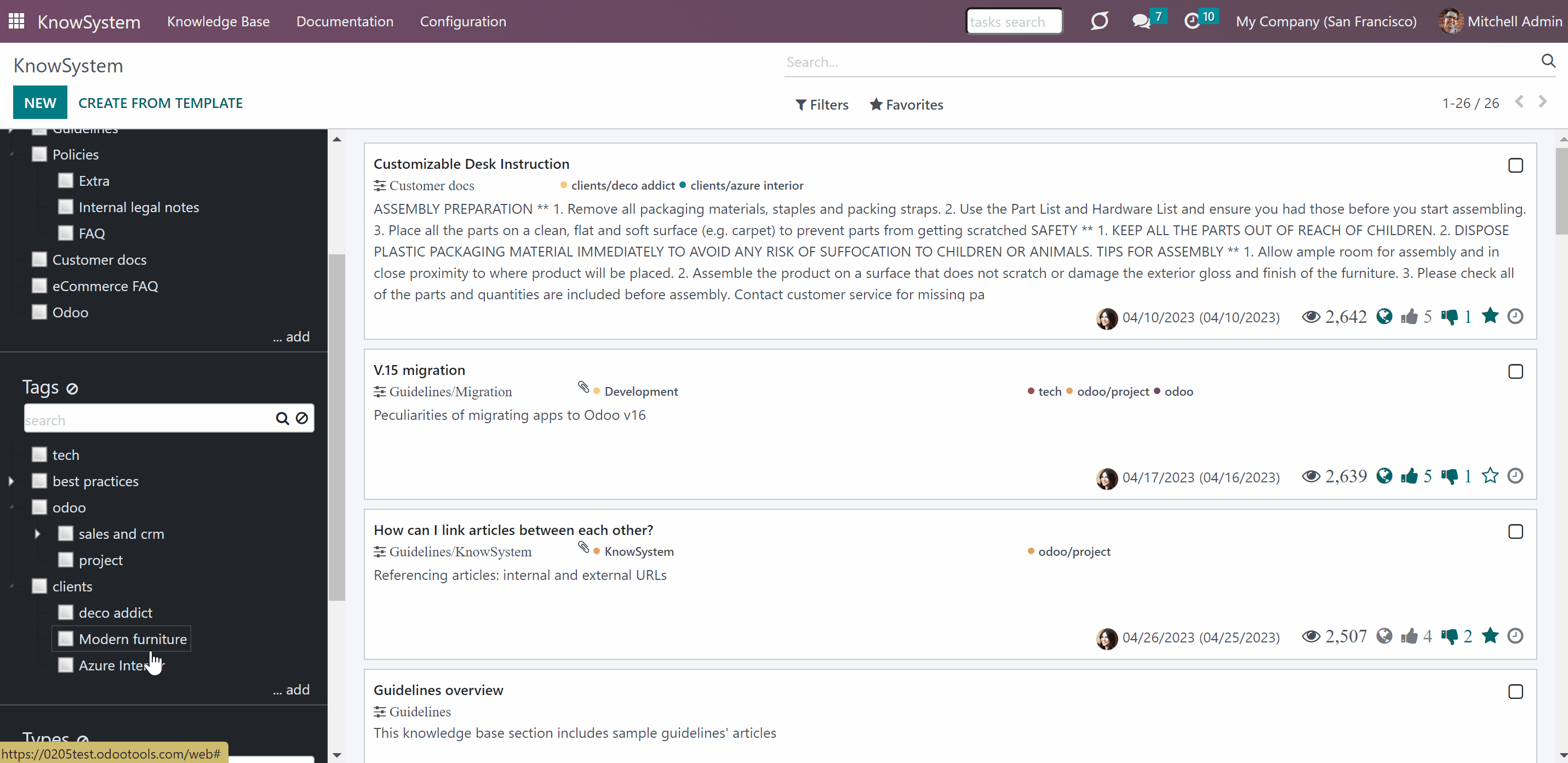

Tags also have a hierarchy. If you'll put a tick for the parent tag, you will see the articles from all tags that it includes. You can also print all available articles by tag.
If you have a lot of tags and sub-tags, then you may find it difficult to navigate through them and select the ones you need quickly. Thus, for extra convenience, the special search bar above the tags list was introduced. Just start typing the word and click 'Enter' or the search button and the matching results will be shown and marked red. Click the button 'Reset' on the right side of the search bar to empty the search.
If a child tag is selected (both in backend and on the website ()), its parents will be hierarchically highlighted by the border of dots around the name of the element. Such selection is shown only if the tag itself is not selected. Thus, it is always clear that some choice has been made somewhere (even if the structure itself is closed).

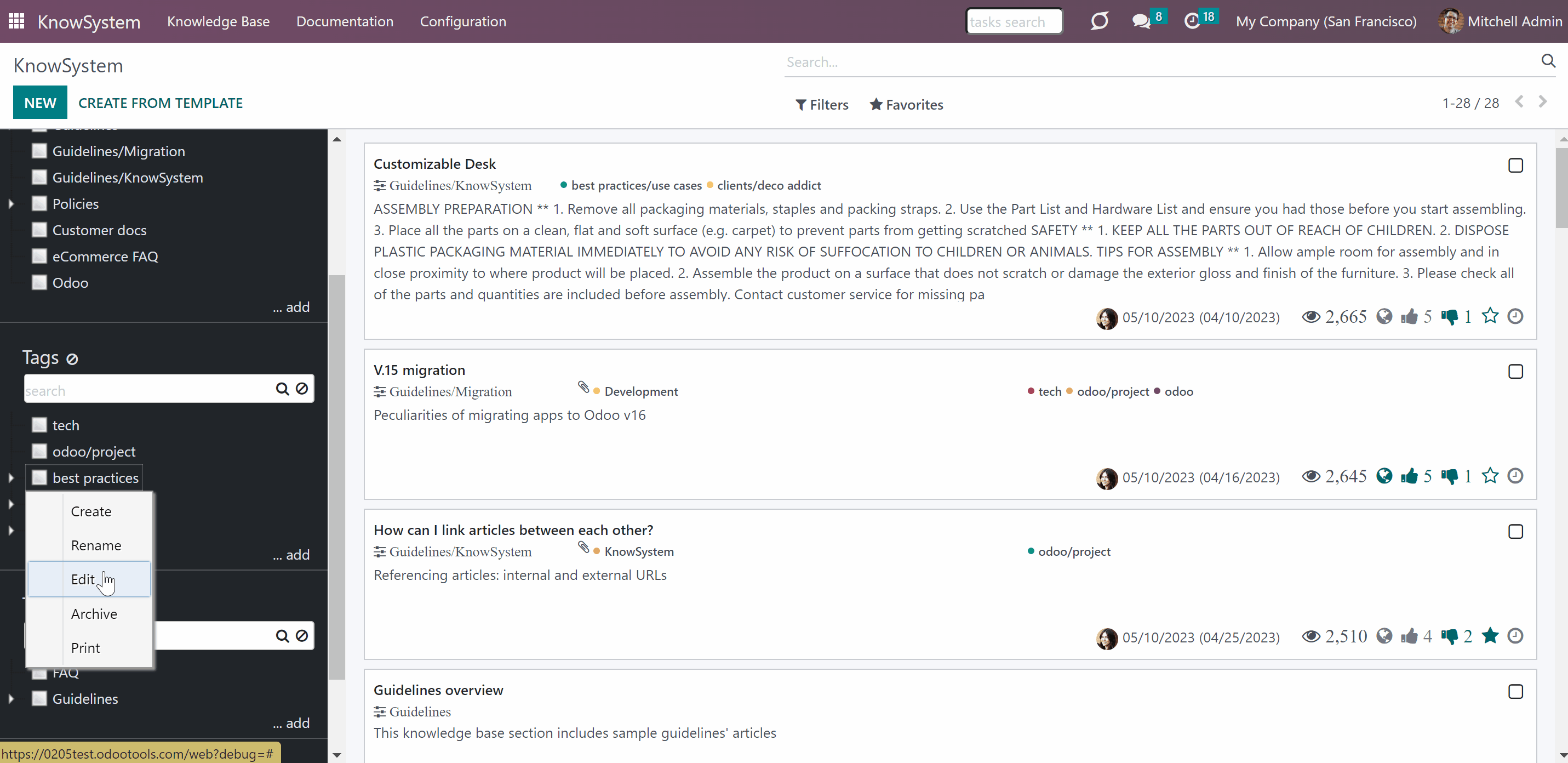

You can create and edit tags right from the single view interface and the separate menu Configuration > Tags.
To add a tag through the single-view interface just click '...add' and write the title. Click on a tag with the right button of your mouse to see all available actions:
1. Create (click to start creating a new tag)
2. Rename (click to change tag's name)
3. Edit (click to edit a tag)
4. Print (click to print all articles in a tag and its subtags if any)
5. Archive (click to archive a tag; its articles will remain active)

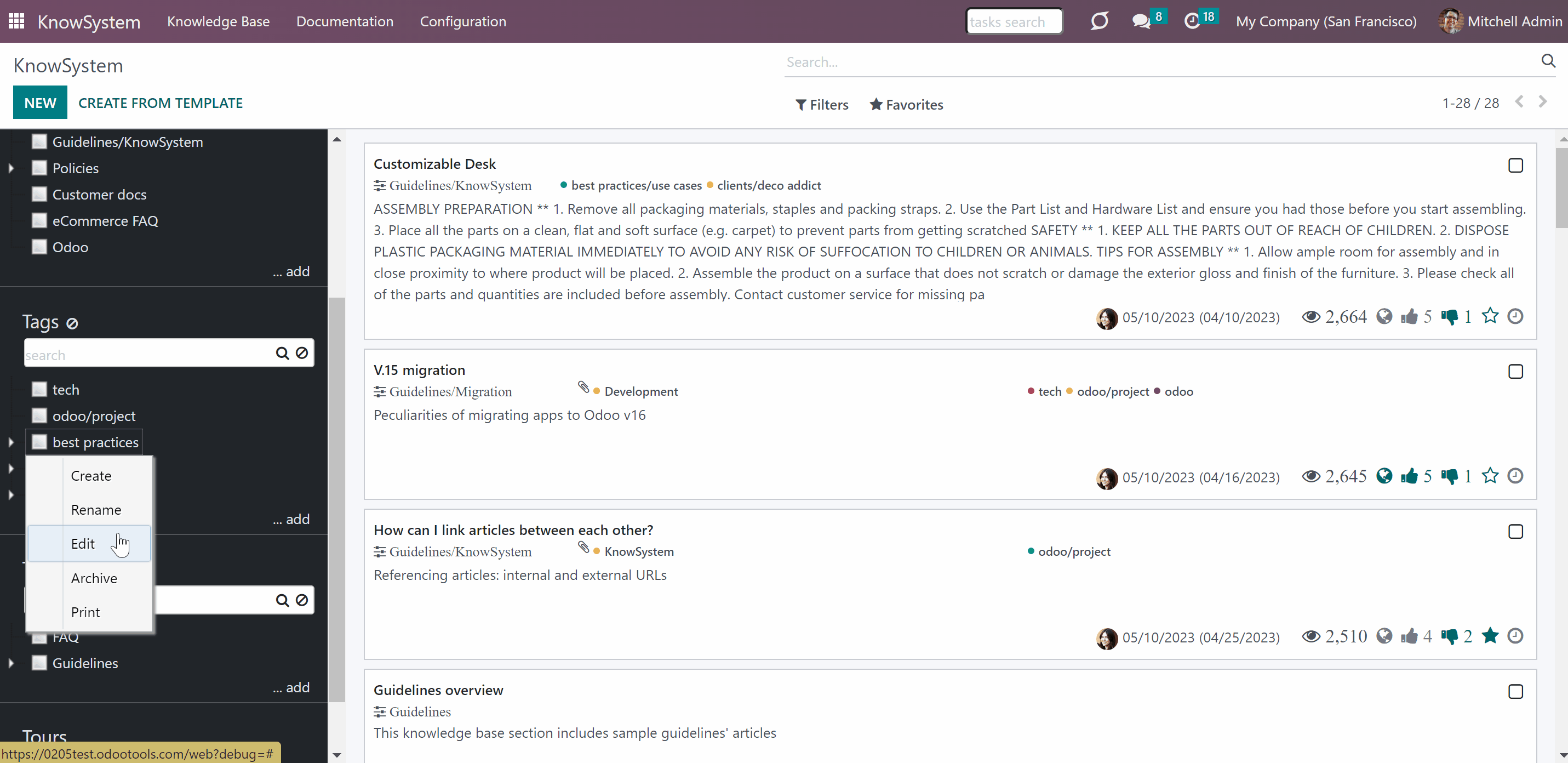

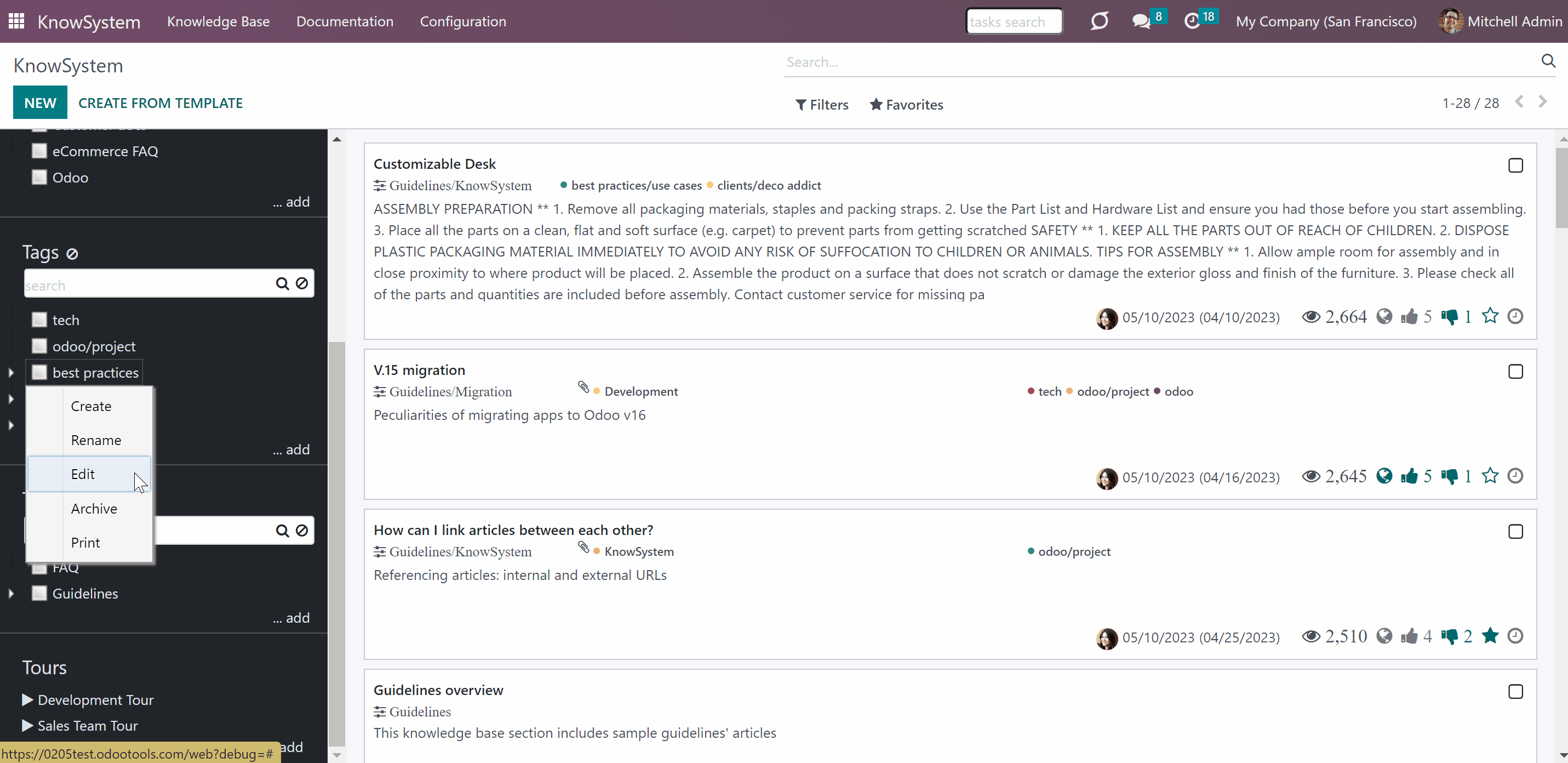

How to edit tags:
1. In the KnowSystem menu right click on a tag, then choose 'Edit' or go to Configurations > Tags, choose a required record and click 'Edit'.
2. Set the hierarchy by choosing a parent tag
3. In the tag 'Applied to', you can put a tick in the box 'Apply to all documents', then your tag would appear in all documents: sales orders, contacts, etc. Click 'Add a line' to add filters, to show the tag only to documents that match all the criteria.
4. Click 'Save&New' to add more filters to another model, otherwise 'Save&Close'
5. In the tab 'Website and Portal' (), put a tick in the box 'Show on Website' (), if you want to have these tags on the website. Choose allowed partners that will be able to see articles with these tags. Access to the parent tag allows reading all articles with it and with its' sub-tags (see. Access rights)
6. Optionally, choose the website () to show your tags on, if you don't choose any and you have a tick 'Show tag on Website', it will be shown on all your sites
7. Optionally, add the description to the tag
8. Click 'Save&Close'.
To grant access to articles by tags for particular Odoo and portal users:
1. Start creating or editing a tag, choose a particular contact or contacts in the field 'Allowed partners' in the tab 'Website and Portal', and click 'Save'
2. Open contacts, click on any profile card, and start editing it, in the field 'KnowSystem tags' choose the tags and click 'Save'.
You can assign KnowSystem tags to partners, so they will see the articles under this tags, right as you edit a contacts card. To that goal use the field 'KnowSystem tags'.
You can choose 'Apply to all documents' if you want to be able to reach articles with this tag through the KnowSystem icon in the forms of other documents from anywhere in the Odoo. Or you can add filters to tags, to find suitable articles very fast. The articles will be accessible only if the document matches any of the set to the tag filters (see. KnowSystem in use).
Article types
Article types is an organizing instrument introduced by an optional add-on KnowSystem: Custom fields (). Types serve to fulfill the following tasks:
1. To show properties only for suitable types. Thus, the set of attributes for 'user guidelines' and 'technical specifications' might be different (see. KnowSystem: Custom fields)
2. To organize articles and navigate through articles (an article may have only one type)
Types also support hierarchy. You can set parent types and subtypes while editing or creating a section or by Drag&Drop.
If you have a lot of types and sub-types, then you may find it difficult to navigate through them and select the ones you need quickly. Thus, for extra convenience, the special search bar above the types list was introduced. Just start typing the word and click 'Enter' or the search button and the matching results will be shown and marked red. Click the button 'Reset' on the right side of the search bar to empty the search.
If a child type is selected (both in the backend and on the website ()), its parents will be hierarchically highlighted by the border of dots around the name of the element. Such selection is shown only if the type itself is not selected. Thus, it is always clear that some choice has been made somewhere (even if the structure itself is closed).

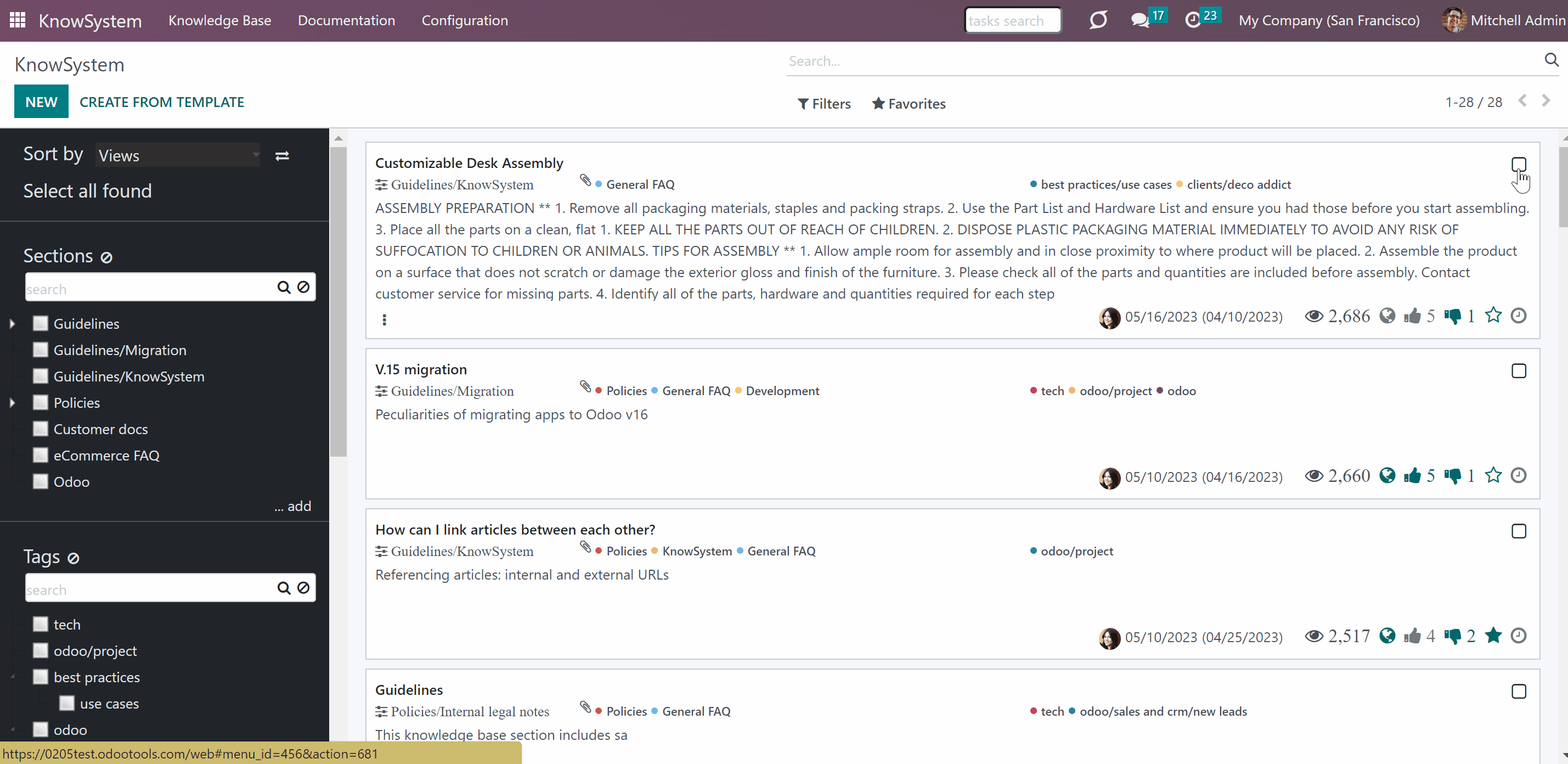

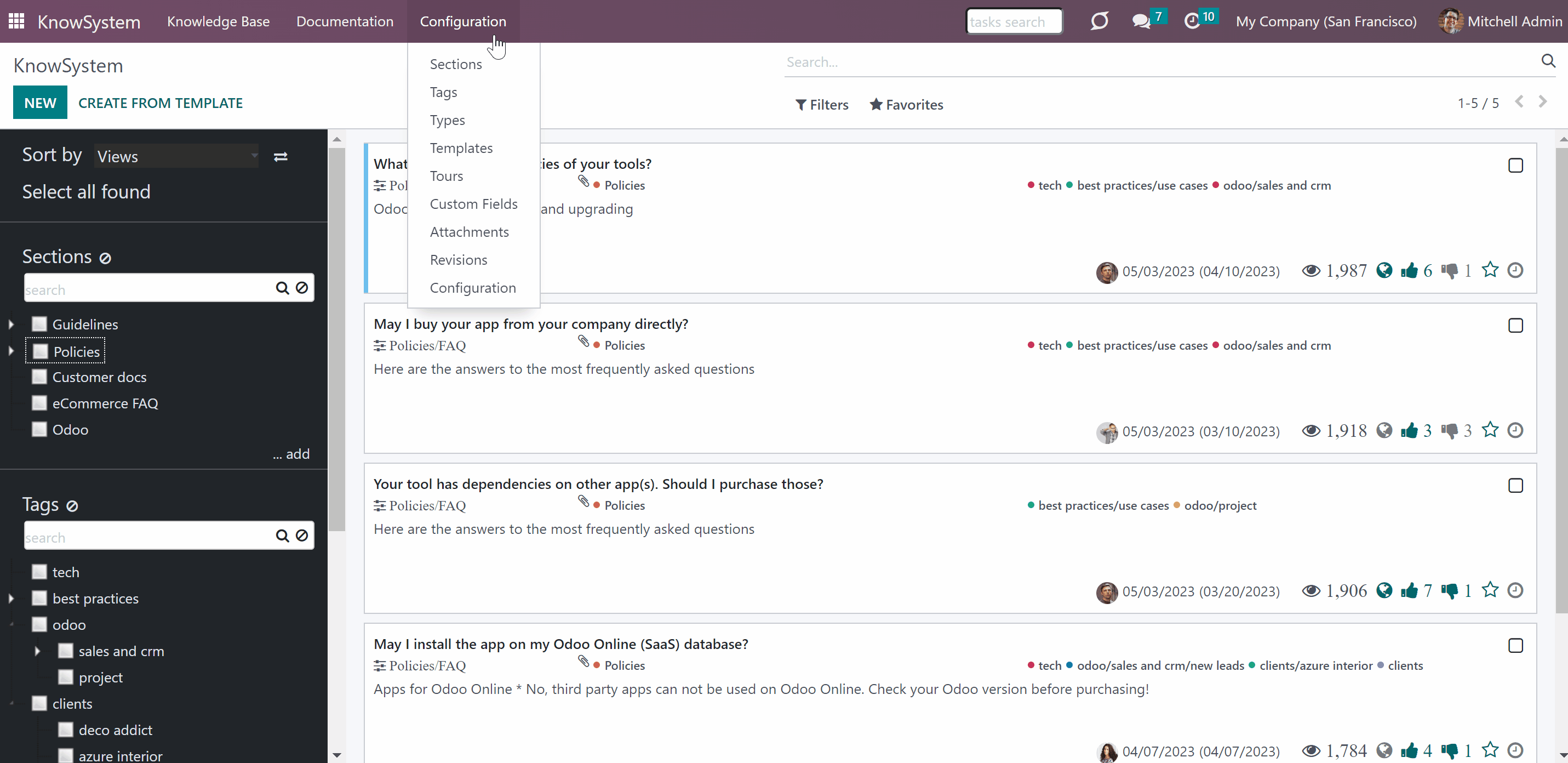

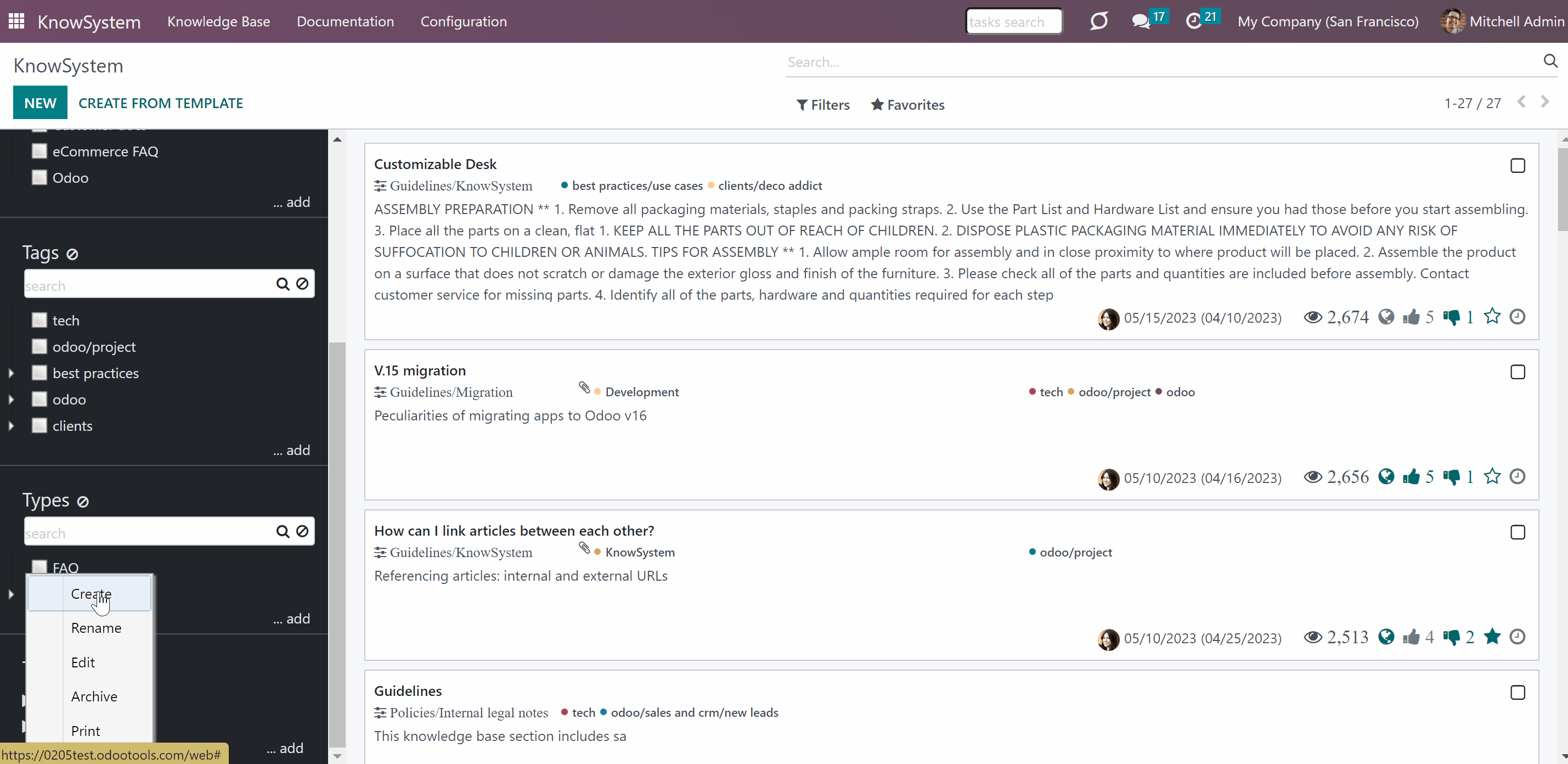

Create and edit types right from the single view interface or from the separate menu in Configuration > Types.

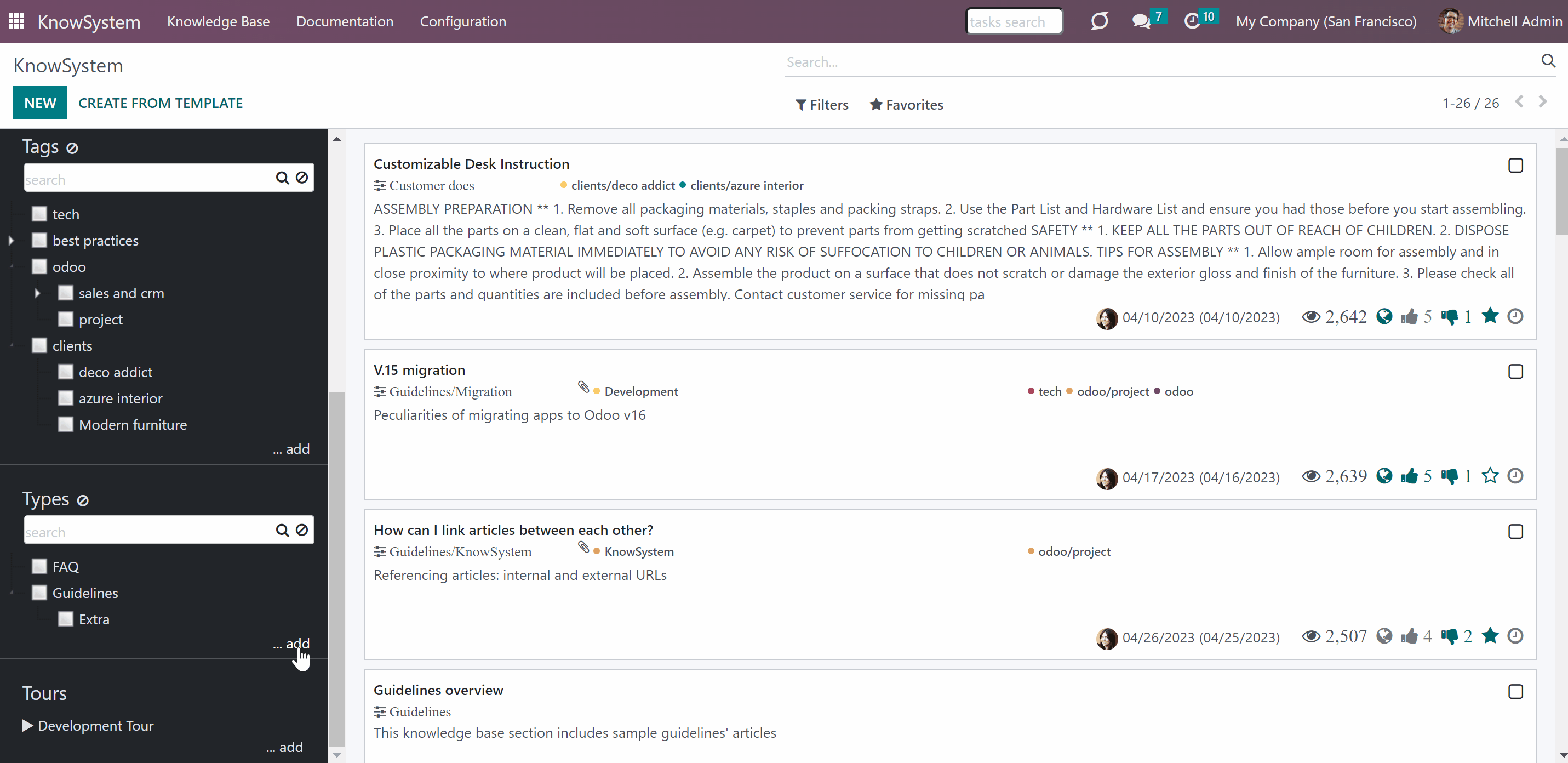

To add a type through the single-view interface just click '...add' and write the title or click on a type with the right side of the mouse to see all available actions:
1. Create (click to start creating a new type)
2. Rename (click to change type's name)
3. Edit (click to edit a type)
4. Archive (click to archive a type, its articles will remain active)
5. Print (click to generate a pdf file with all articles in a type and its subtypes)
To edit types:
1. In the KnowSystem menu click on a type with the right side of the mouse, then choose 'Edit', or go to Configurations > Article types, choose the section, and click 'Edit'.
2. Optionally, change the title
3. Choose a parent type
4. If you want the type to be visible on your site, tick the box 'Show on Website' ()
5. If you have several sites, you can choose one to show the type, or leave the field 'Website' () empty to show on all sites
6. Click 'Save&Close'.
Learning tours
Organizing a tour is a good way to combine all articles that a person needs in order to reach something. For example, you can organize a tour for newcomers, so they could learn all the nuances of working in your company. Learning tours allow you to:
1. Combine articles in a particular order with the possibility to move through them with the help of extra buttons '<Back' and '>Forward'
2. Restrict access to tours to particular user groups
3. Track users' progress and invite particular users to complete a tour
4. Add a description page before the articles.
You can manage learning tours in two interfaces: in the single view interface and in the separate menu Configuration > Tours.
Creating a tour

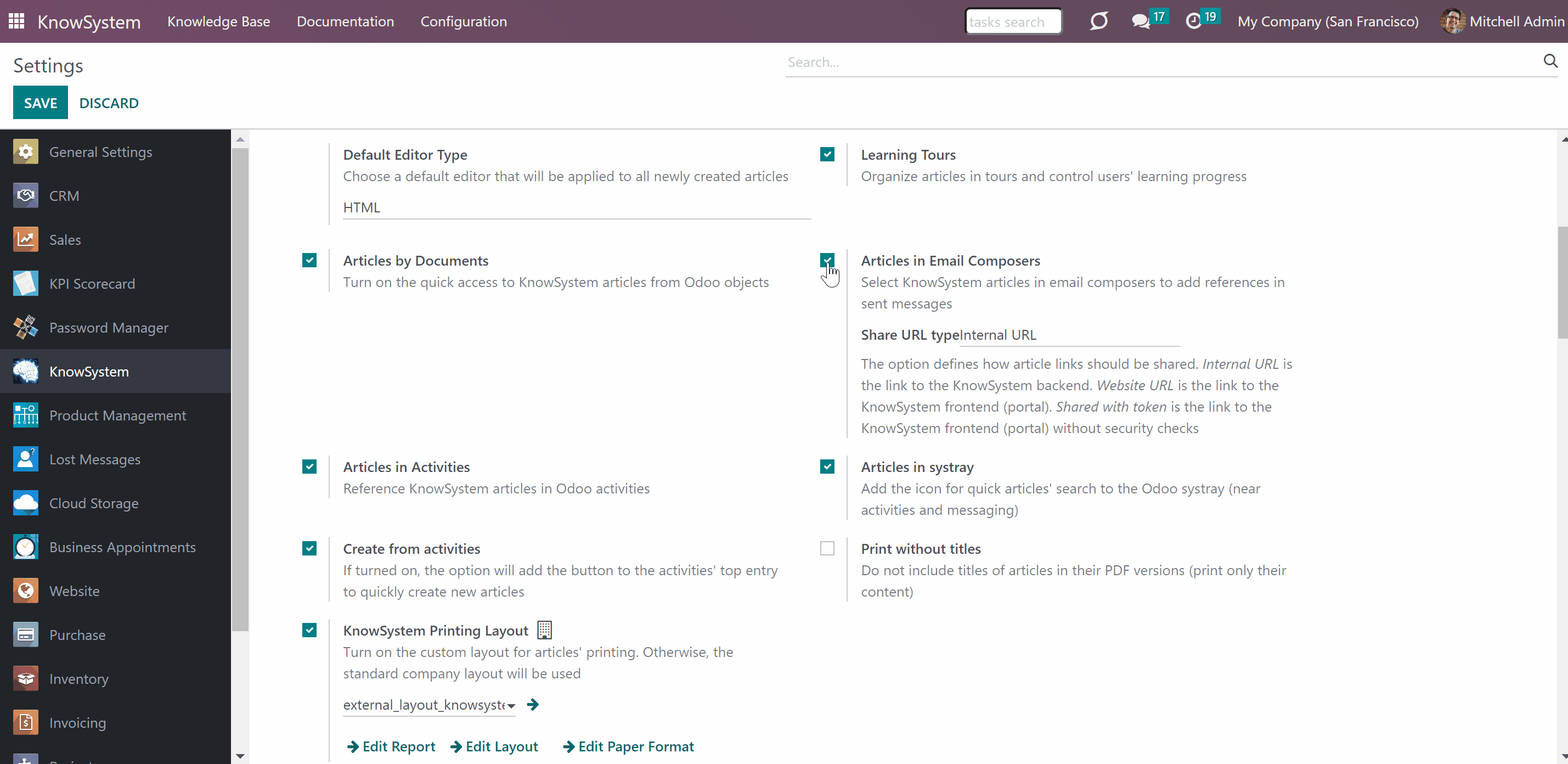

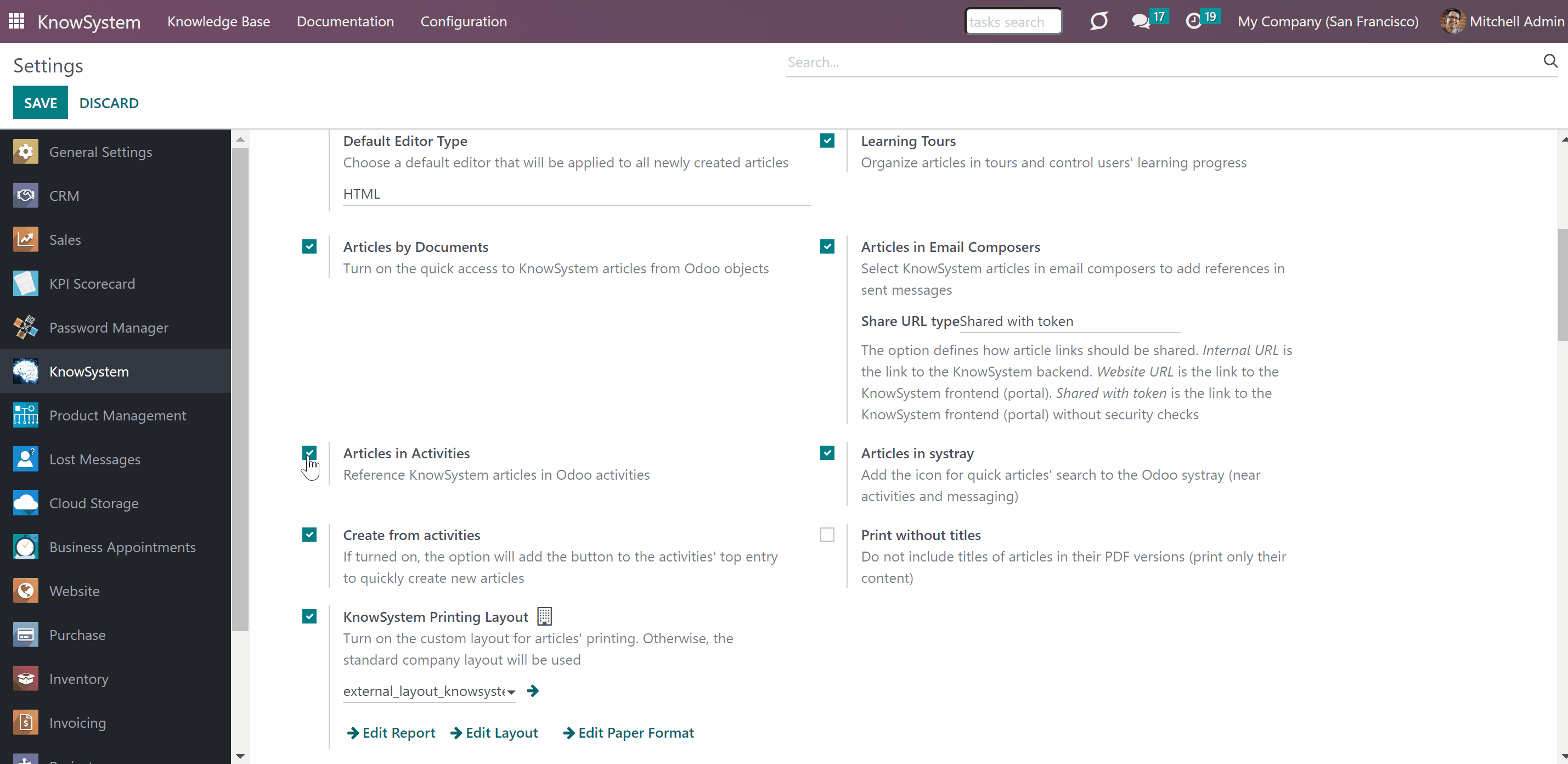

In order to organize articles in learning tours, make sure, that the option 'Learning tours' is enabled in KnowSystem configurations.
How to add a learning tour:

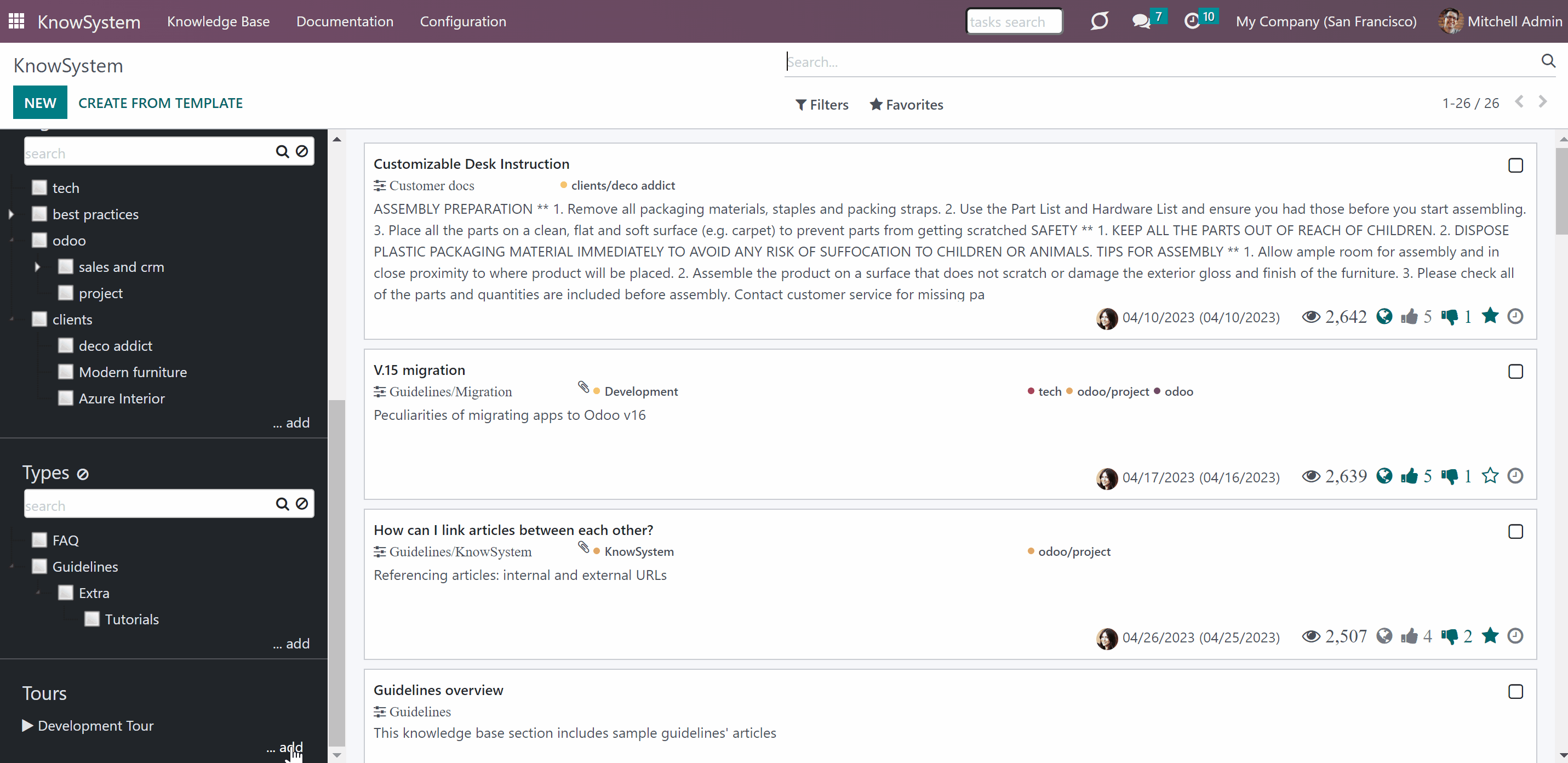

1. Start creating a tour through a single view interface by clicking on '...add', or by going to Configuration > Tours and clicking 'New'
2. In the single-view interface choose all the articles that you need by ticking the box in the top right corner of an article. In the left navigation panel choose the mass actions 'Add to tour'
3. Choose an existing tour and click 'Save&Close'
4. Click 'Add a line' to add some more articles to your tour. Choose an article and click 'Save&New' to add one more, or 'Save&Close' if you have already added the ones you need
5. Click on the tab 'Restrict access' to choose groups of users that will have access to the tour, if you leave the field empty, all internal users would see the tour. If you choose one group, then only this group will be able to start the tour
6. Click on the tab 'Description' to add some words about the tour. The page with this description would be the first one your users see as they open the tour
7. Drag&drop to change the sequence of the articles, and press the bin on the right side of an article to delete it from this tour.
It is also possible to add articles to the tour manually one by one by clicking on the button 'Add a line' as you create or edit a tour.
You can always edit your tours, either by clicking on them with the right side of the mouse or by going to Configuration > Tours.
In the editing mode you can also see the user's progress, just click on the tab 'Users Progress'. Here you can also invite separate users to complete the tour by clicking 'Add a line' and choosing a user.
Completing a tour

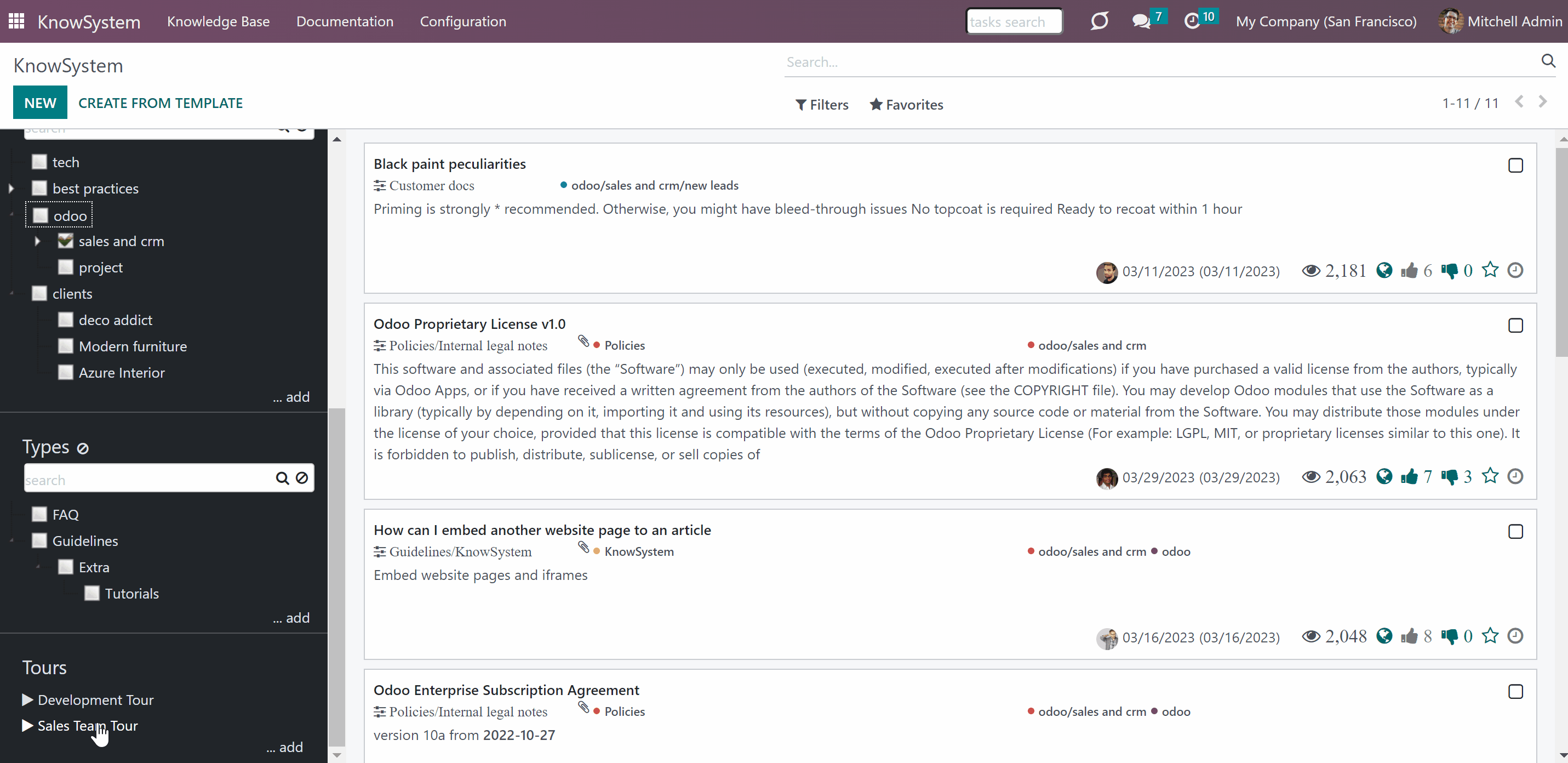

To begin a tour. Open the KnowSystem single view interface, find tours in the left navigation panel of it, and click on a required one.
If a user doesn't have access rights to one or several articles in the tour, then he or she will not see those articles in the tour. Thus the same tour may look different for different users.
To start a learning tour:
1. Open a tour from the KnowSystem app
2. Click 'Start a tour'
3. Move through the articles. When you return to the previous article you do not lose your progress. You can close a tour and continue it again later. Then, you will start from the same place, where you stopped
4. At the end of a tour, you see a congratulatory alert 'Good job! The tour is over.'
How to create an article
There are two user groups that can create an article. Those are KnowSystem Admin and KnowSystem Editor.

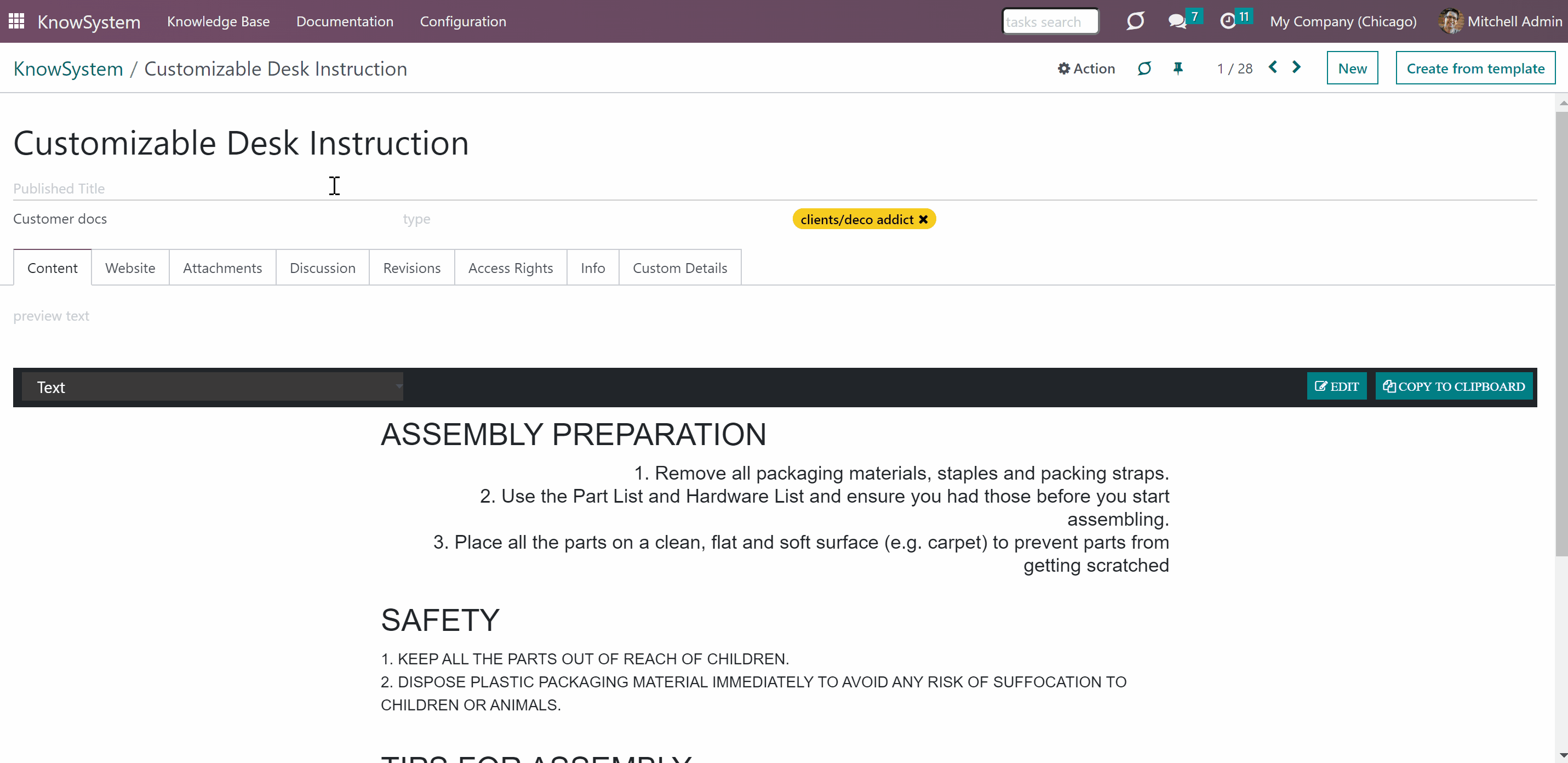

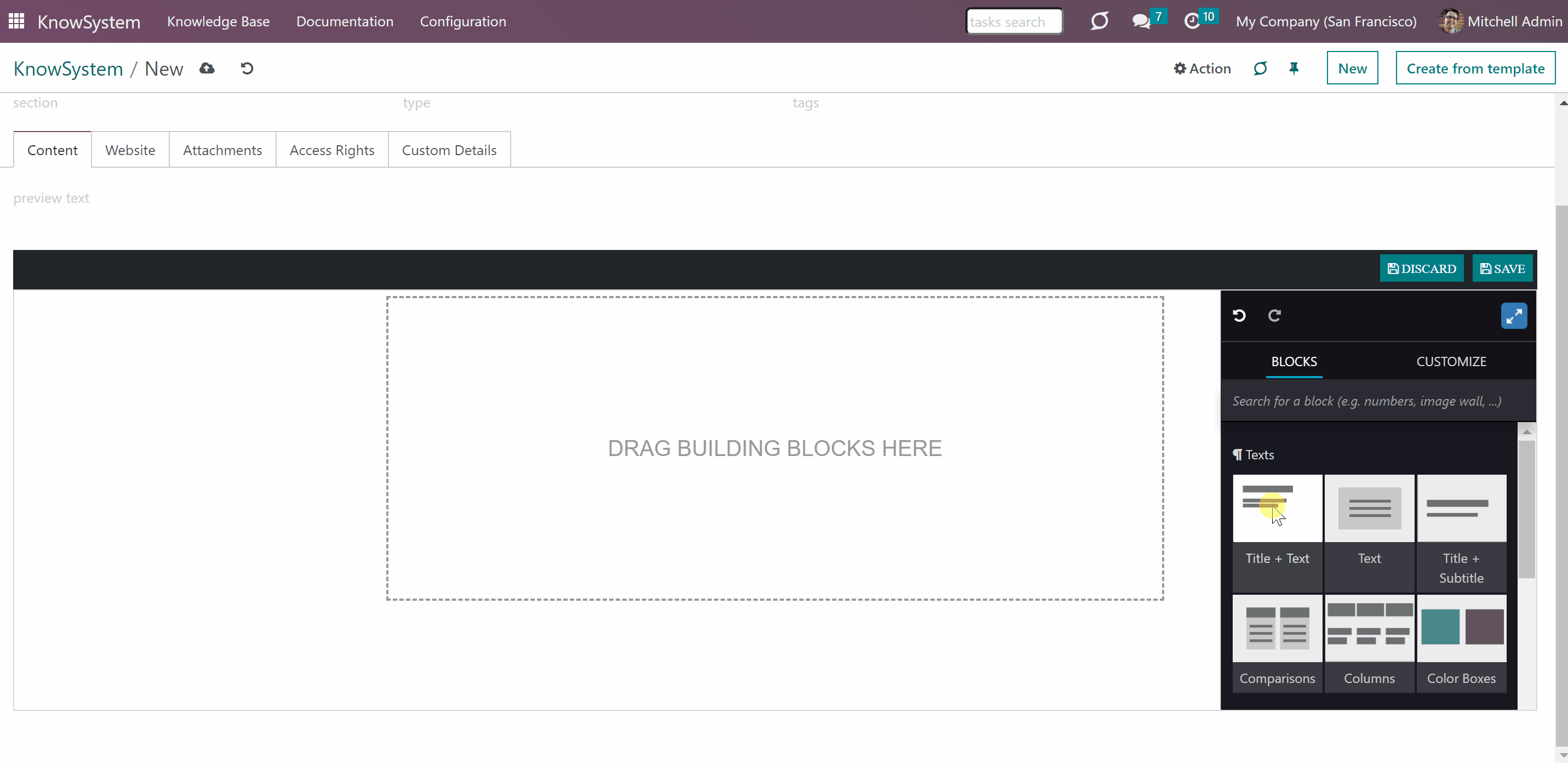

To create an article:
1. Open the KnowSystem app
2. Click 'New'
3. Introduce the title and preview text
4. Optionally add the published title ( the title, that will be visible on the website)
5. Add tags, sections, type ()
6. In the tab 'Website', tick the box 'Show on Website' and choose the website to show the article on ( the article will not be visible on the site until you publish it. If you leave the field empty, then the article will be seen on all your websites after publishing)
7. Optionally, tick the box 'Website Pinned', to pin the article at the top of the articles list on the website ().
6. Optionally, attach files in the tab 'Attachments'
7. Optionally, set the access rights in the tab 'Access Rights'
8. Now you can fill the body of the article, for that in the tab 'Content' choose one of the editors, then click 'Edit'
9. When you are ready, click 'Save'.
After choosing a certain editor and writing an article, the same editor should be chosen to edit it. This way, you will be able to avoid any inconsistencies or data loss, while some editors may adapt the styles/blocks of the articles.
An article may have two titles, an article's title, and a published title. If an article has a published title, then it will be used in:
1. Pdf's name. If you download a single article, which has a published title, the title will be used as the file's name.
2. Article name in pdfs. If an article has a published title, then it will be used in generated pdf instead of the article's title.
3. Article title on portal/website (). If an article has a published title, then this title will be shown on the portal/website both in the list of articles and as you open a particular article instead of the article's title.
4. Article header in documentation navigation + content (). If an article has a published title, then it will be used as the article's headers and in the navigation list instead of the article's title.
The article's title is the title, which is used in the backend. If an article doesn't have a published title, then the article's title will be used in all the cases.
You can also create an article from a template, to avoid losing time on adjusting blocks and styles (see Creating an article from a template).

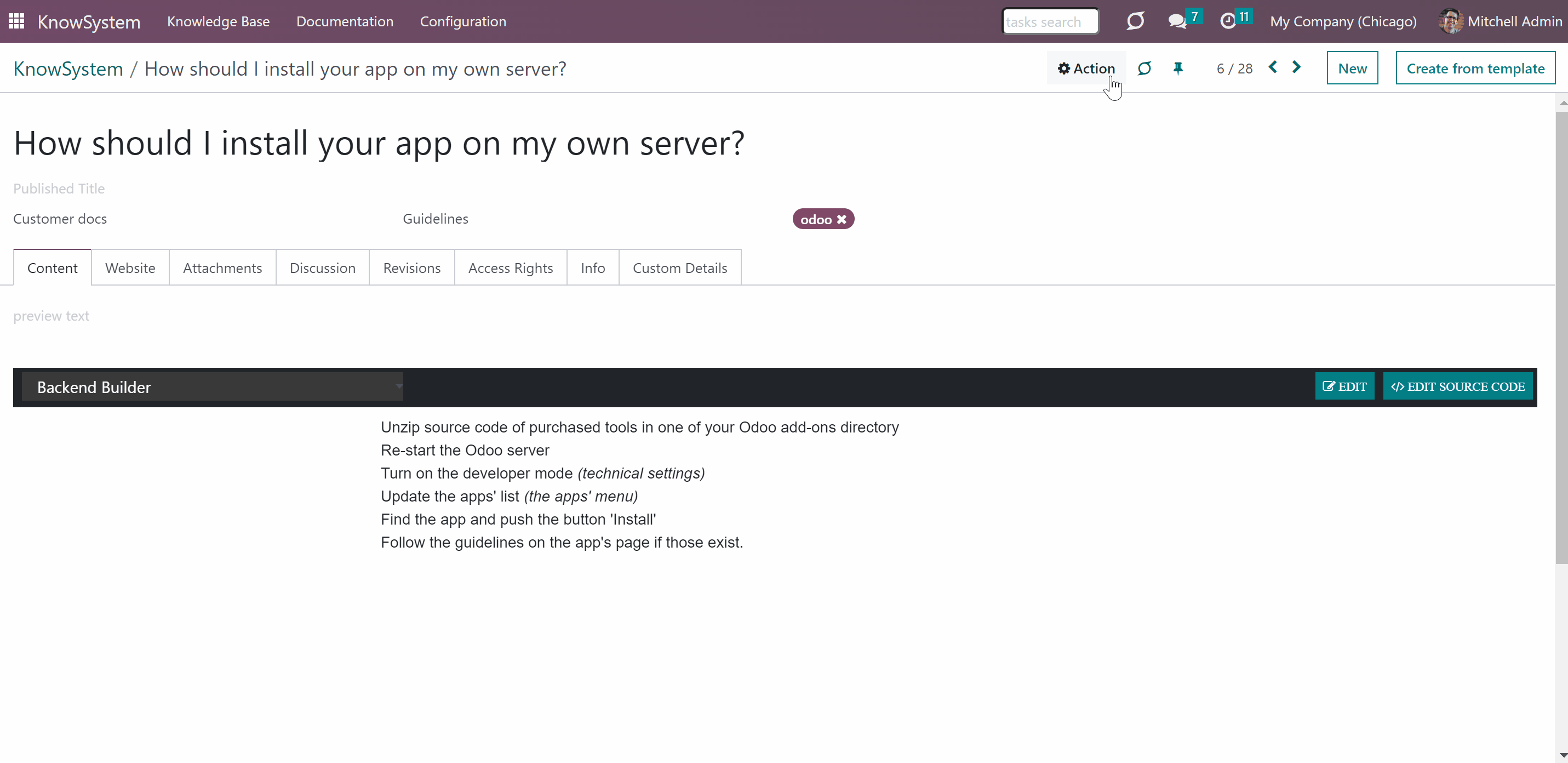

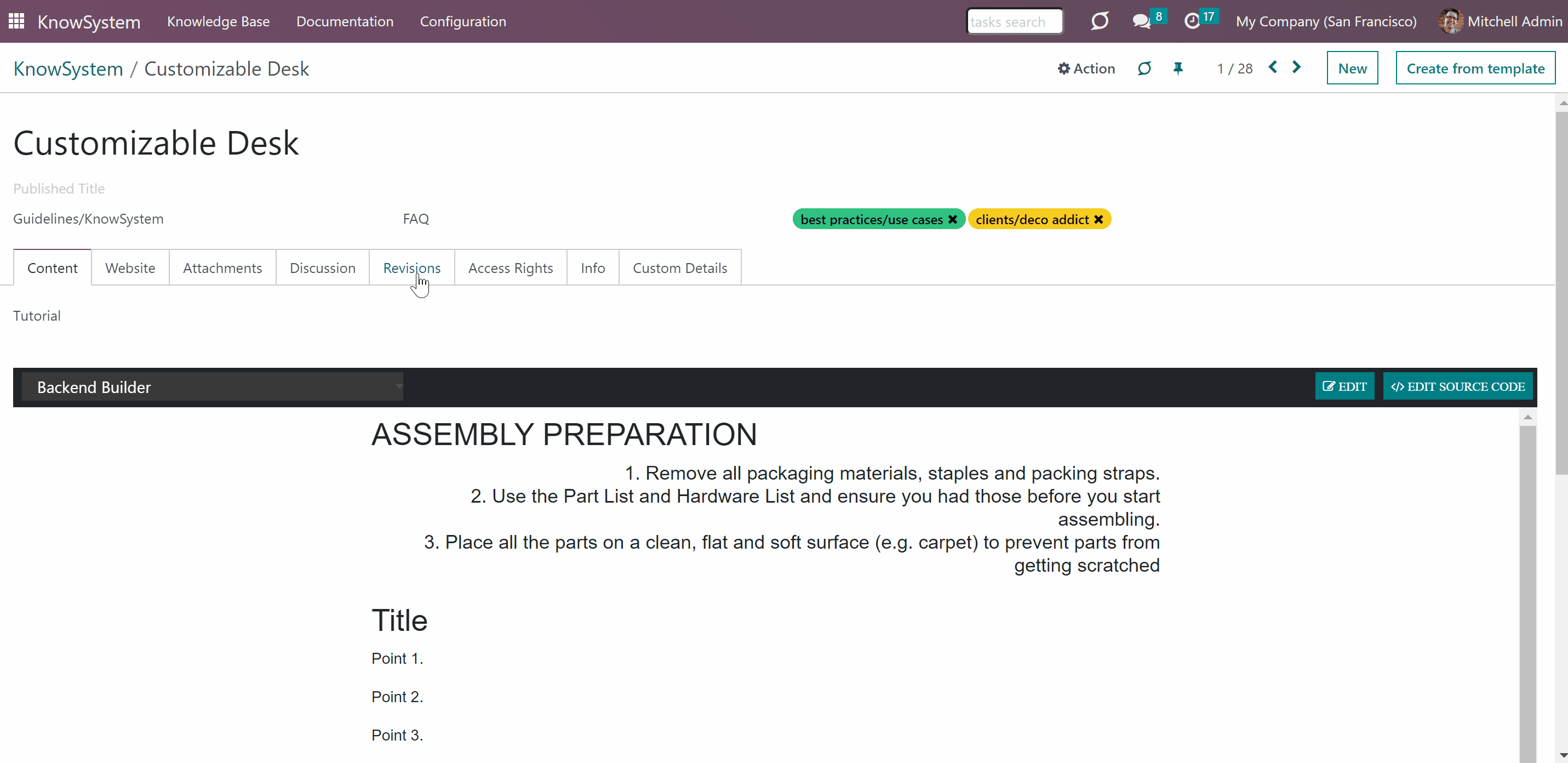

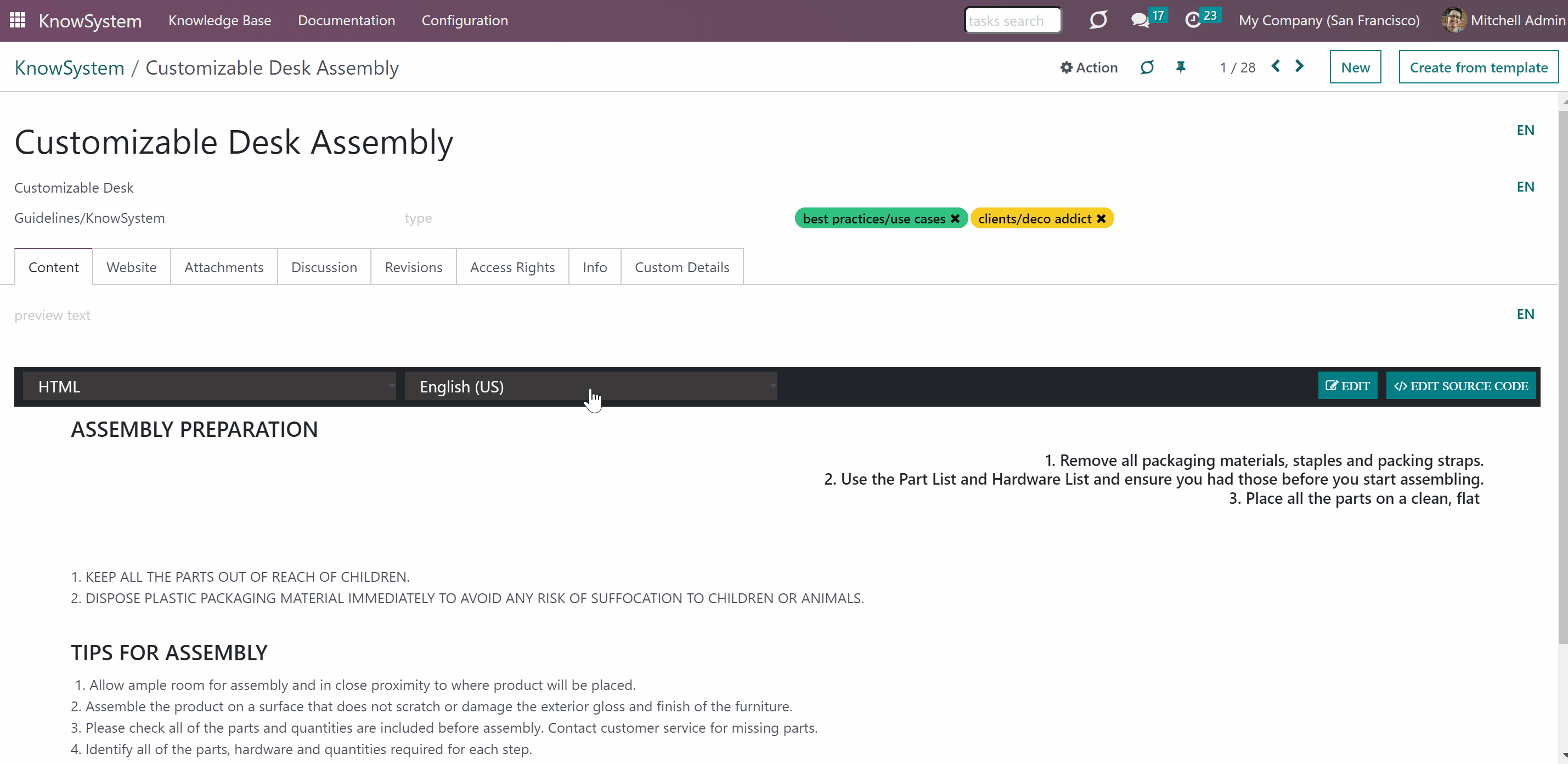

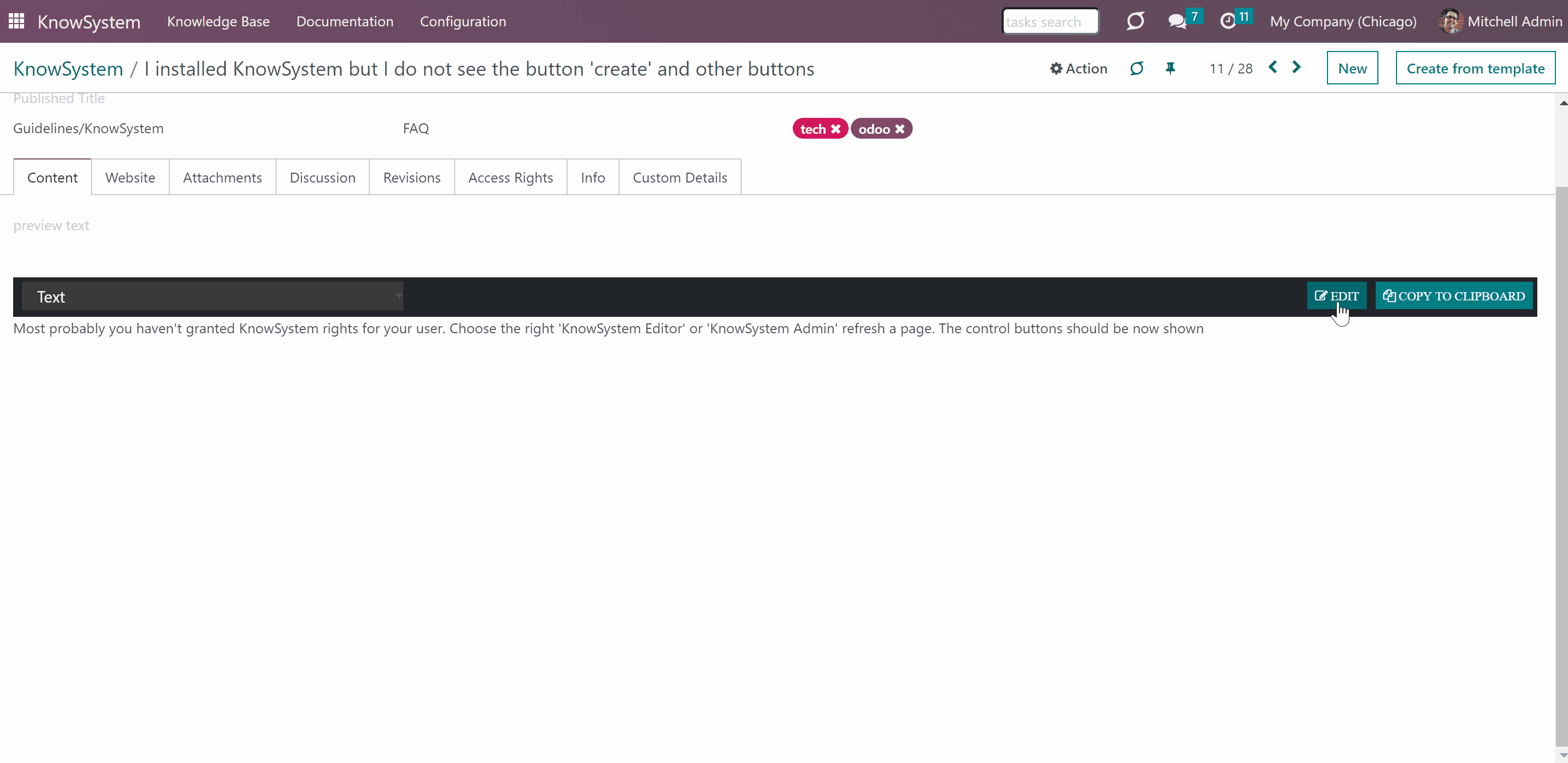

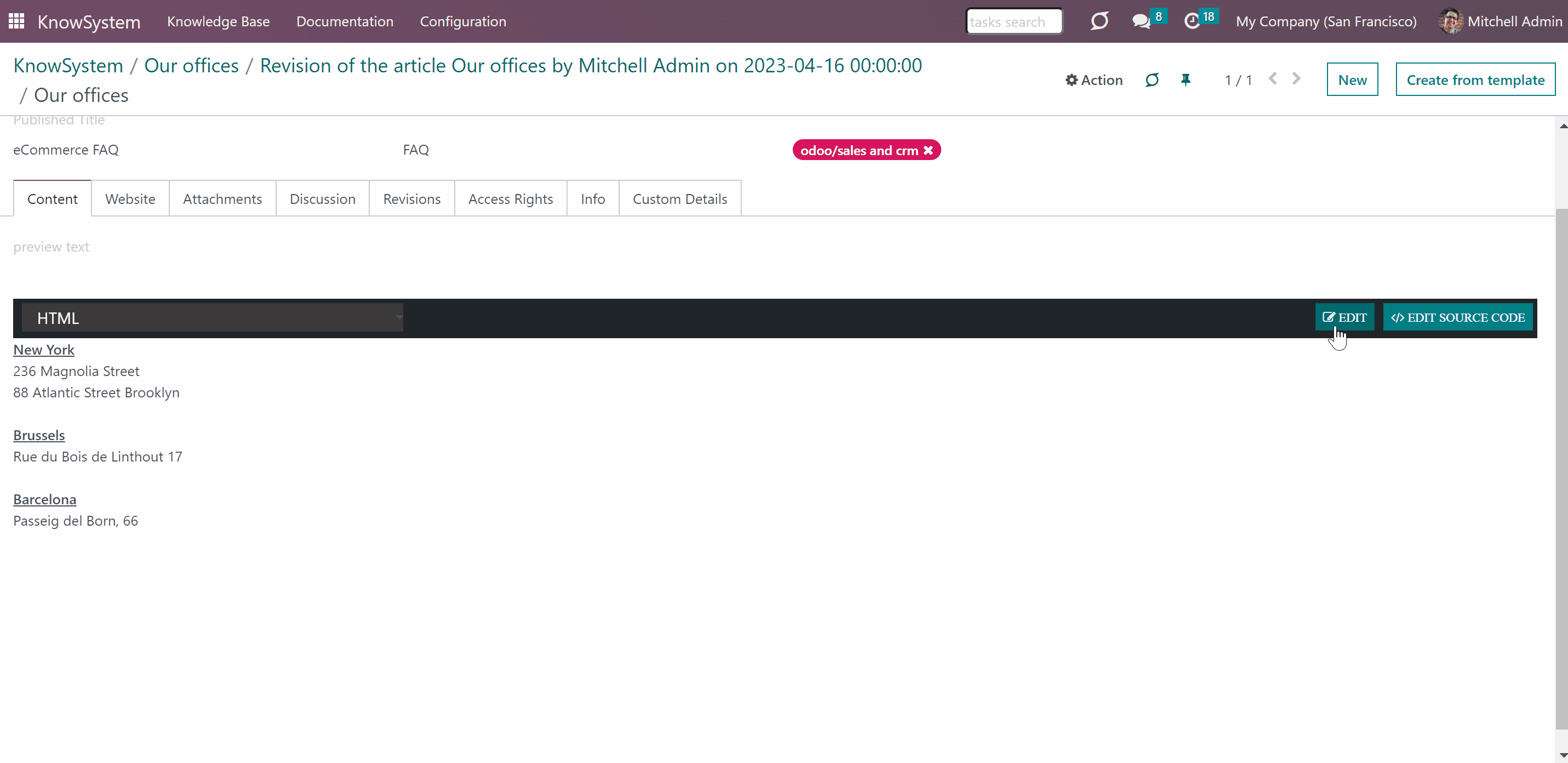

There are several ways to edit an article. You can do that in the Backend builder, Website builder (), HTML editor, Text Editor and Raw Code Editor. It is up to you which one to choose, according to your needs and preferences.
Backend builder
- Basic styles
- Safe for printing and email referencing
- Looks less attractive on the site
- Easy to use

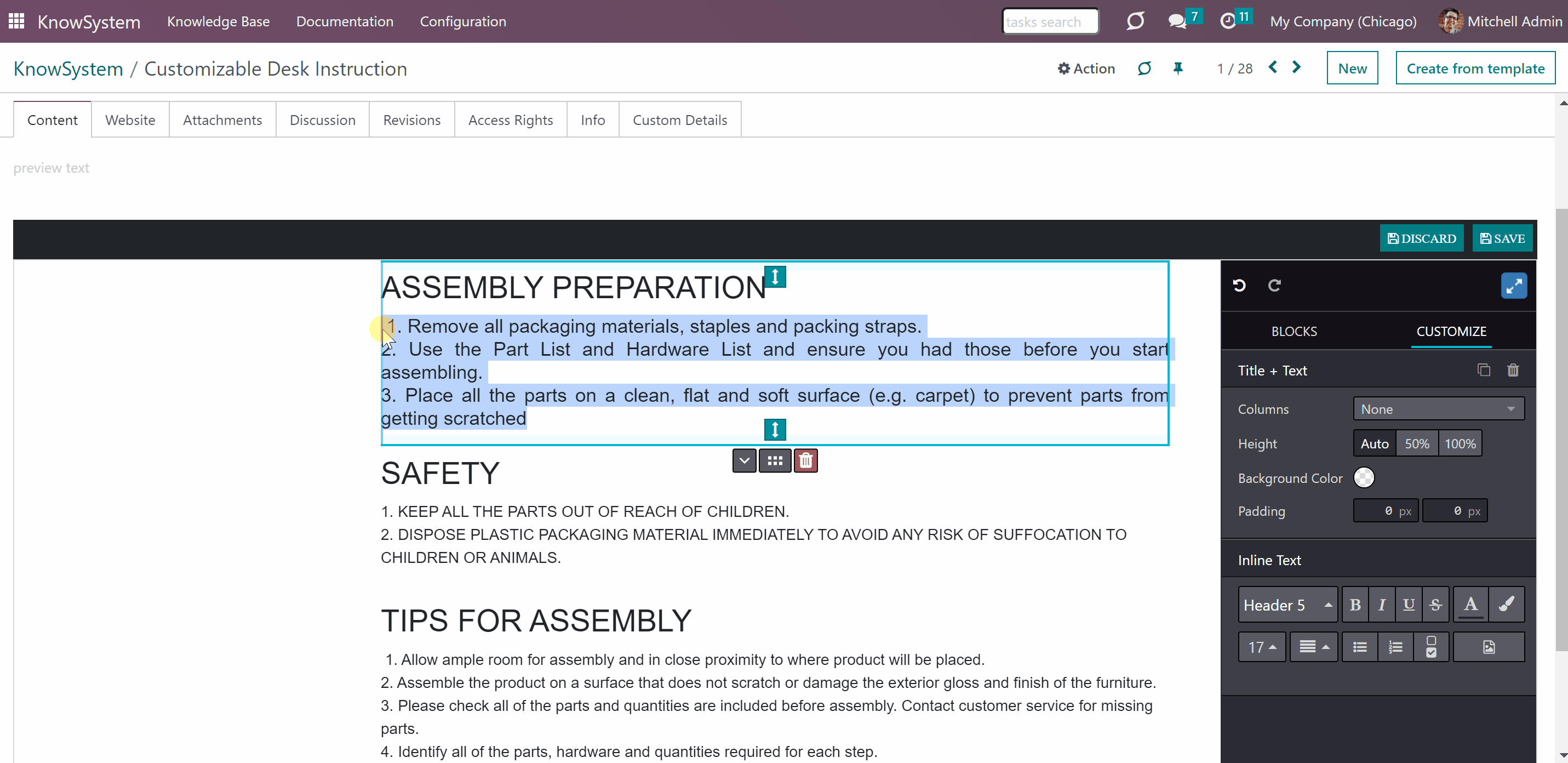

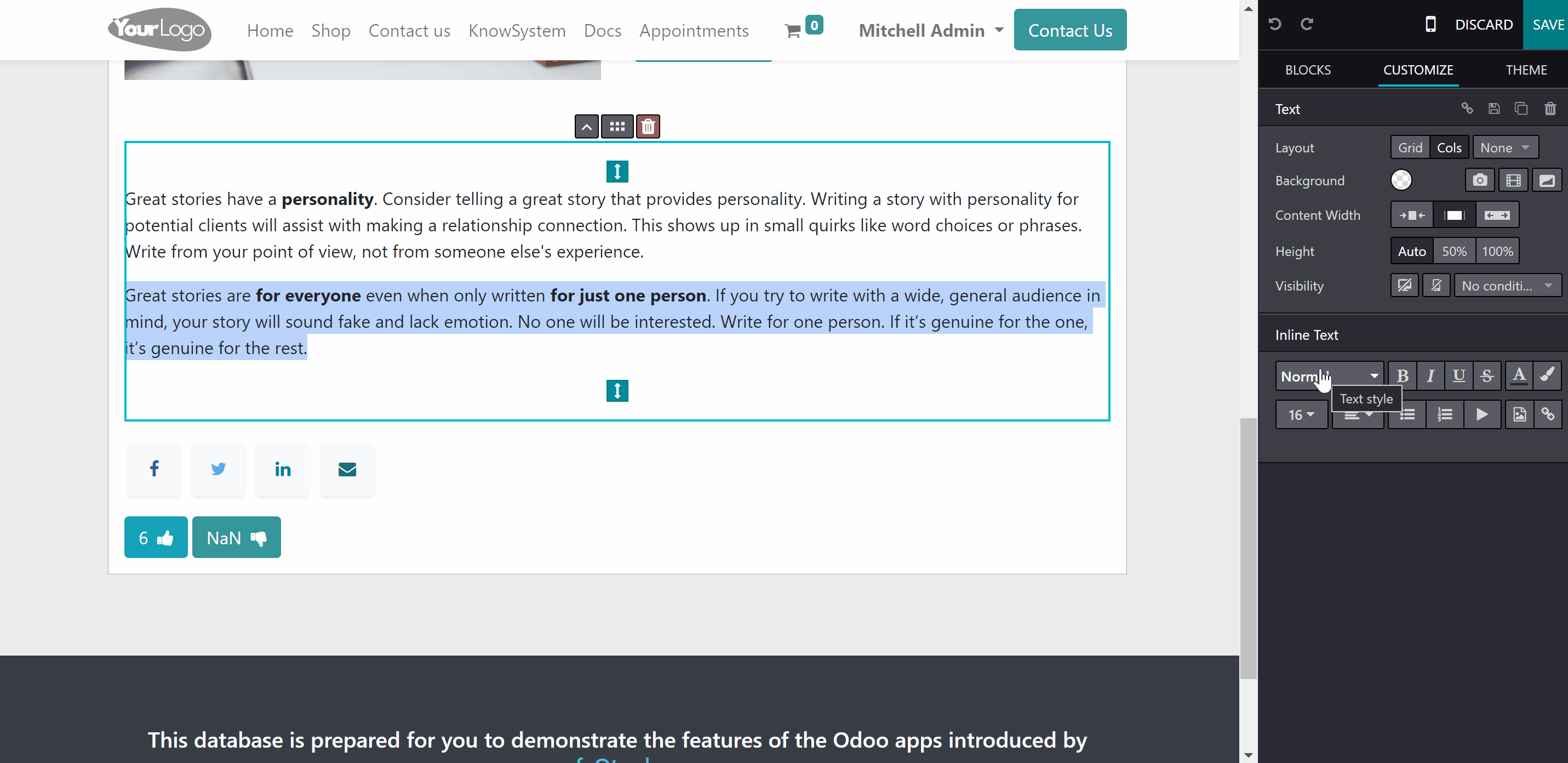

Website builder
- Advanced styles
- May display incorrectly when added to emails
- Perfect for site
- Easy to use
HTML Editor
- Odoo editor's built-in commands
- May display incorrectly when added to emails, if complex styles are used
- Looks less attractive on the site
- Easy to use
Text Editor
- Simple text
- Unlimited compatibility with printings and emails, copying to clipboard
- Looks less attractive on the site and in backend
- Easy to use
Raw Code Editor

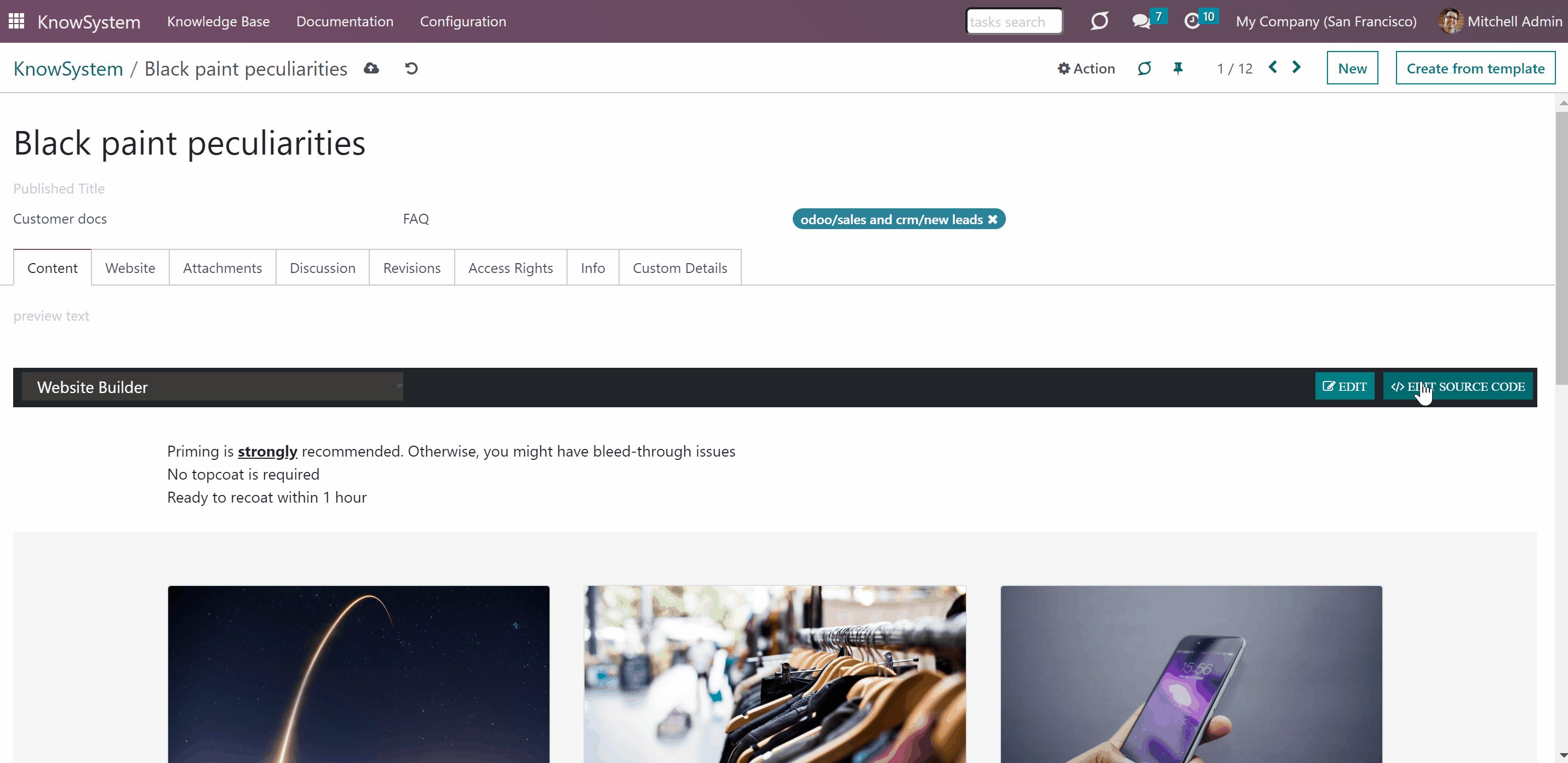

- Click 'Edit source code' from any editor to switch to the code editor.
- Any simple and advanced HTML tags and styles including Bootstrap-ready elements and iframes
- Can add article's text to emails, when only simple styles are used
- Difficult to use

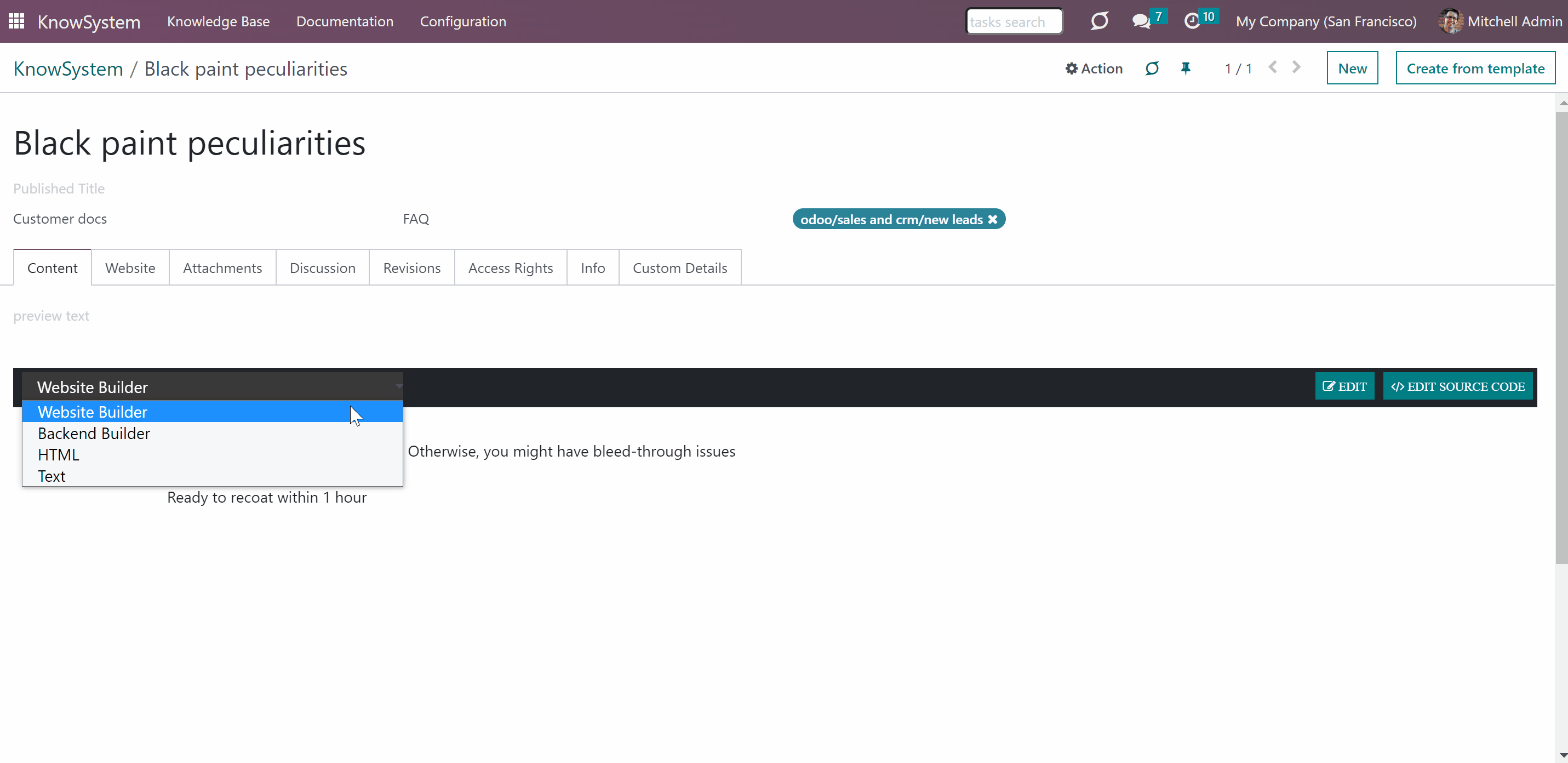

After choosing one of the editors, it is highly recommended to use the same one to edit an article.
As you start creating or editing an article, by default, the backend builder is applied. It is also possible to change the default editor, which will be applied to all newly created articles. However, you still will be able to choose another editor, while creating or editing an article.

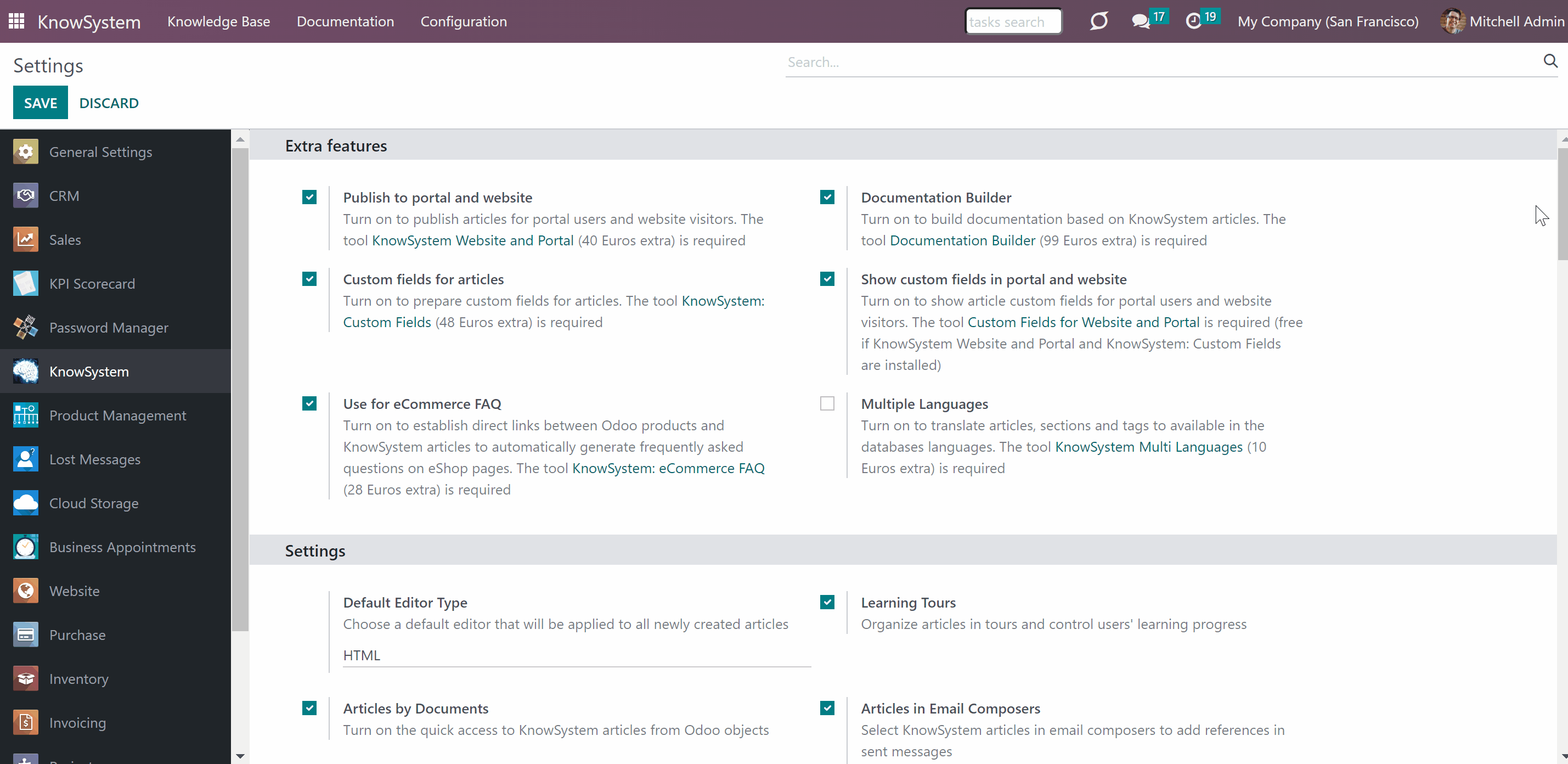

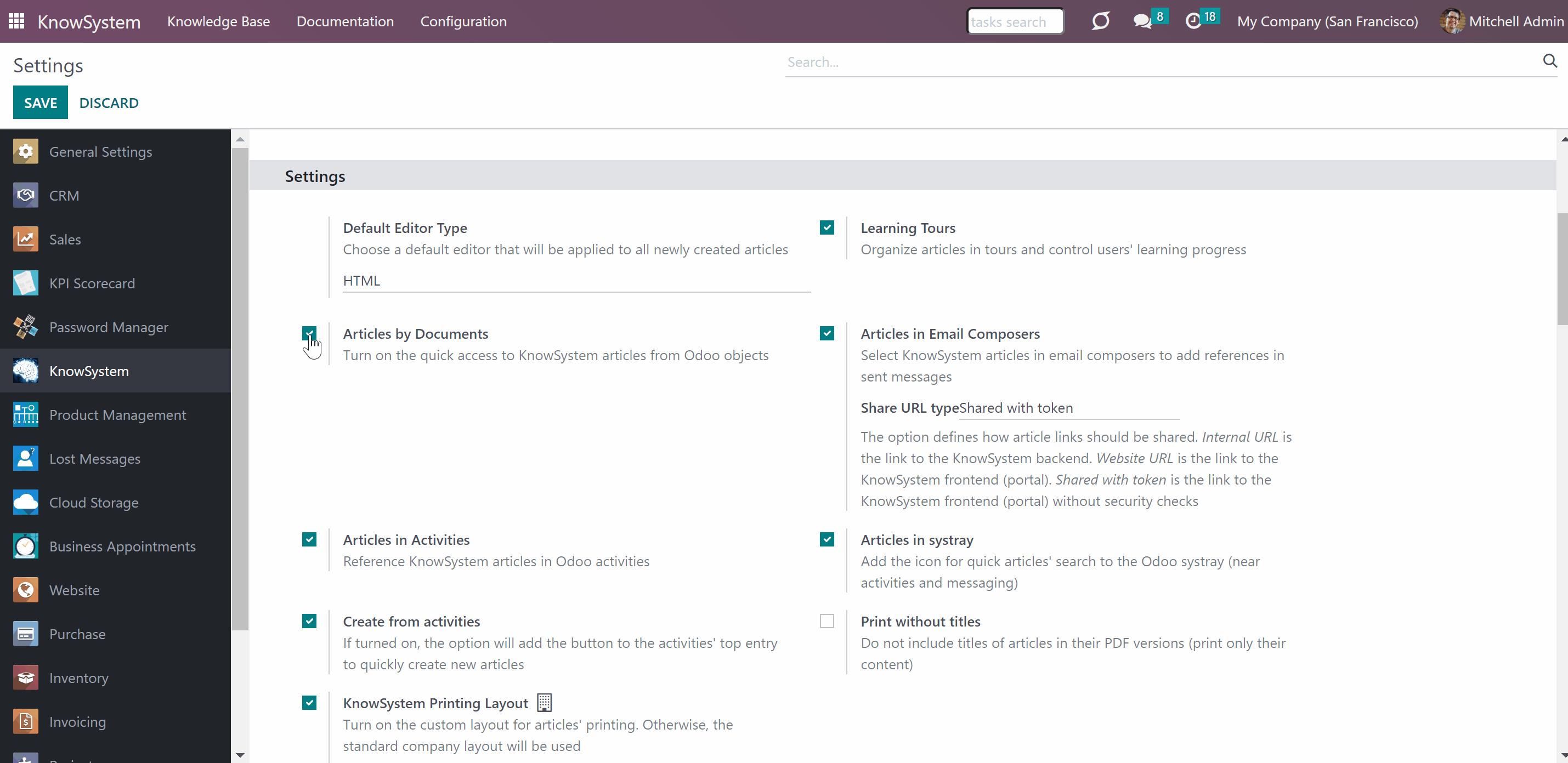

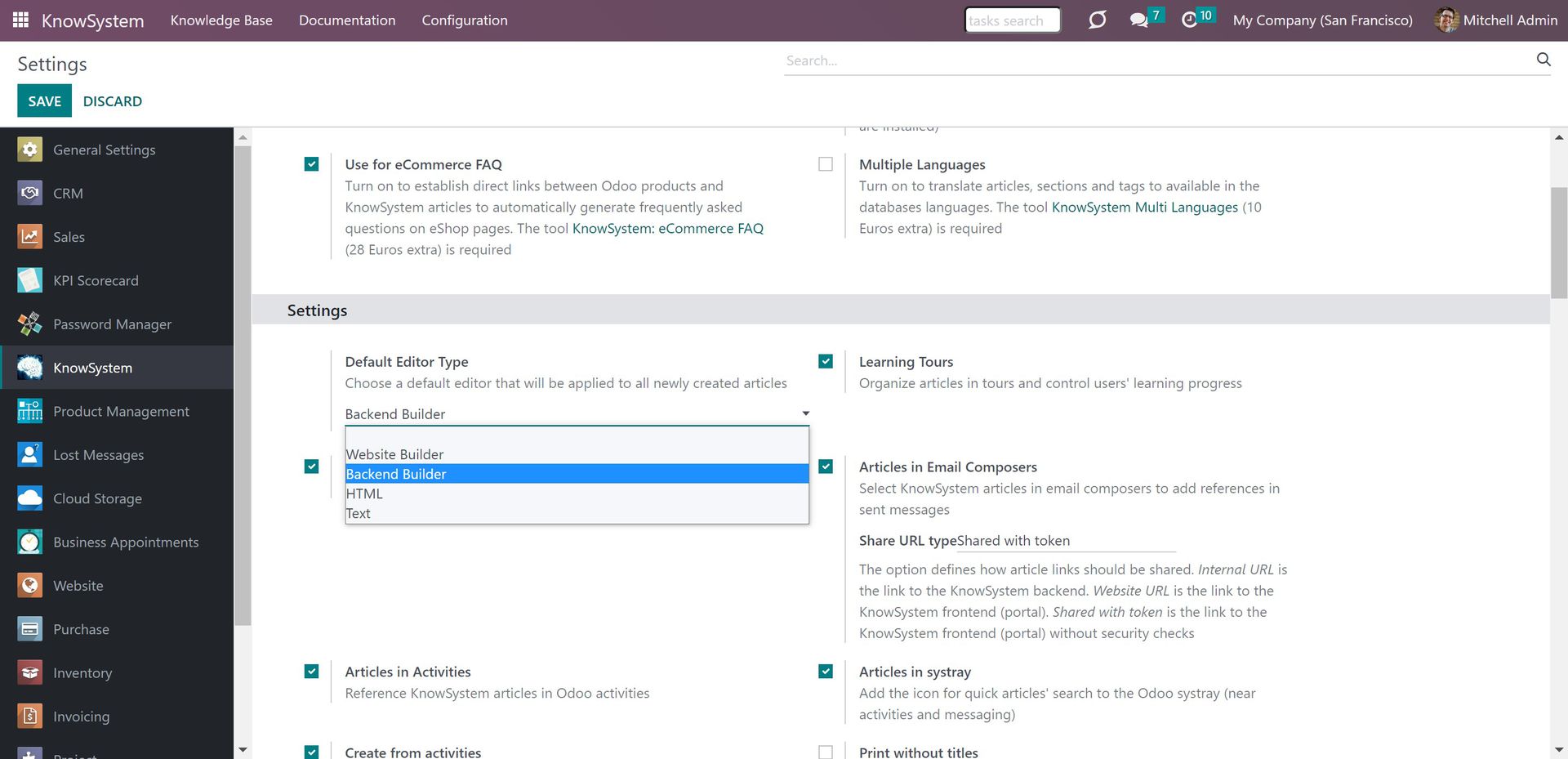

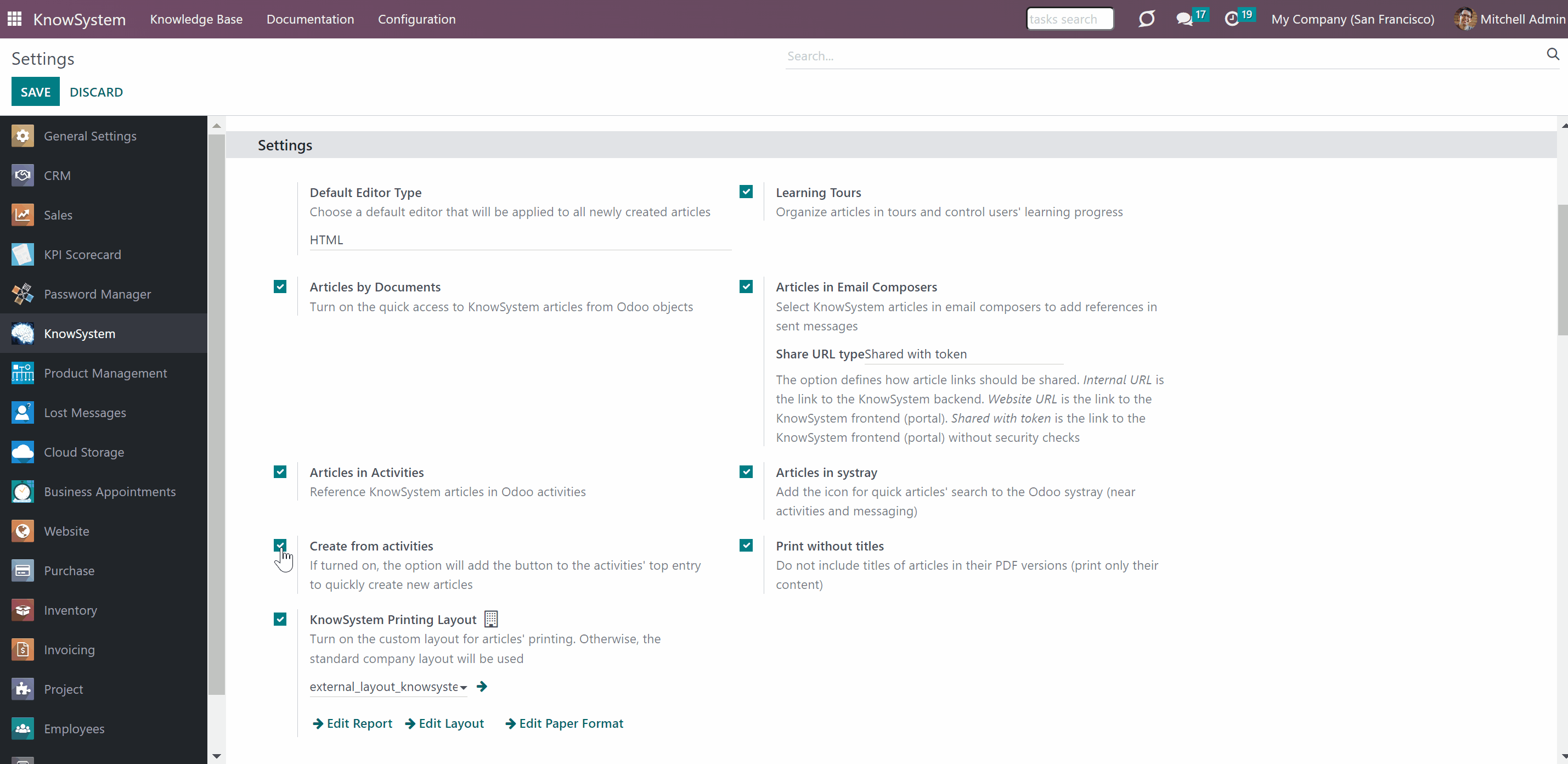

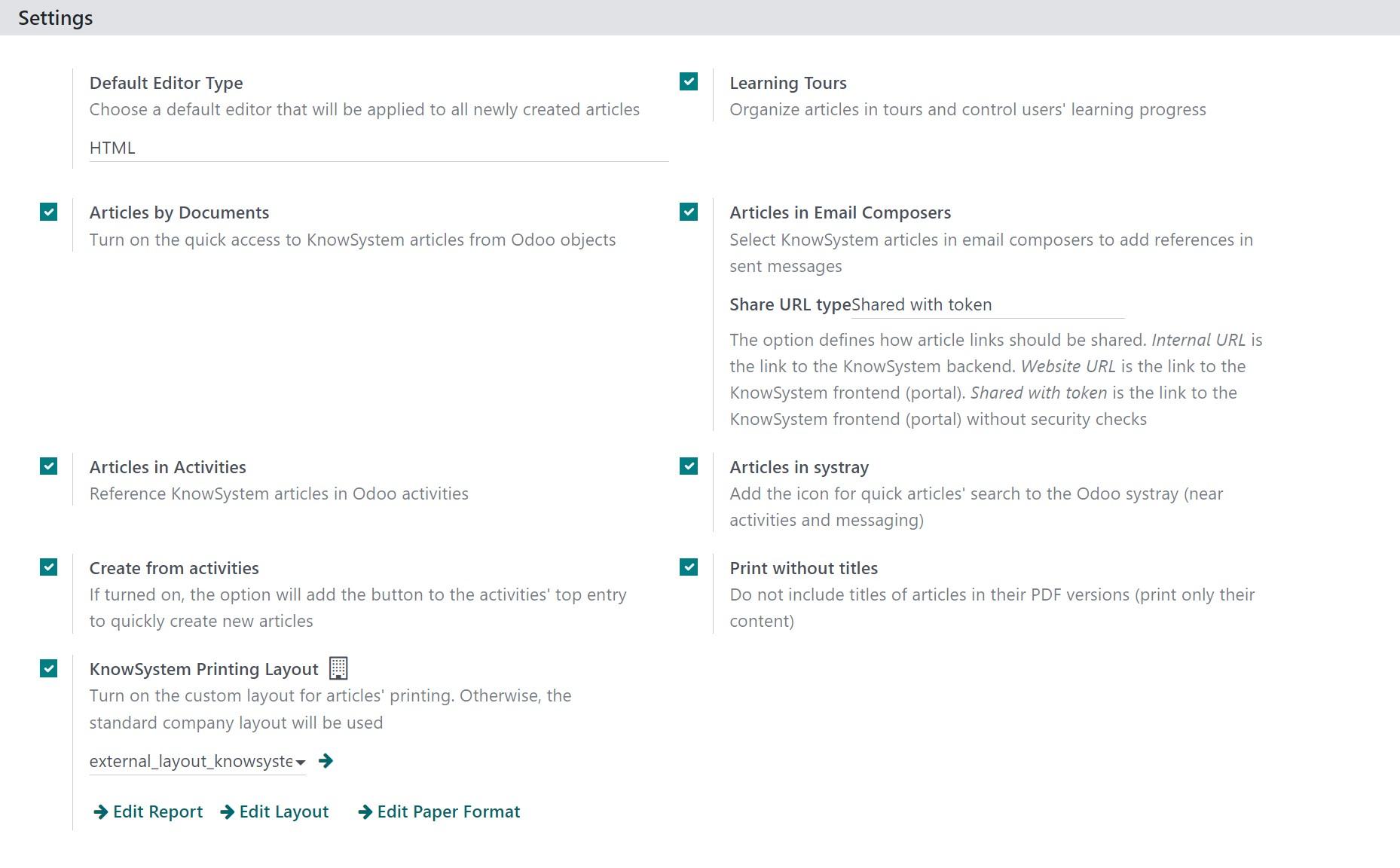

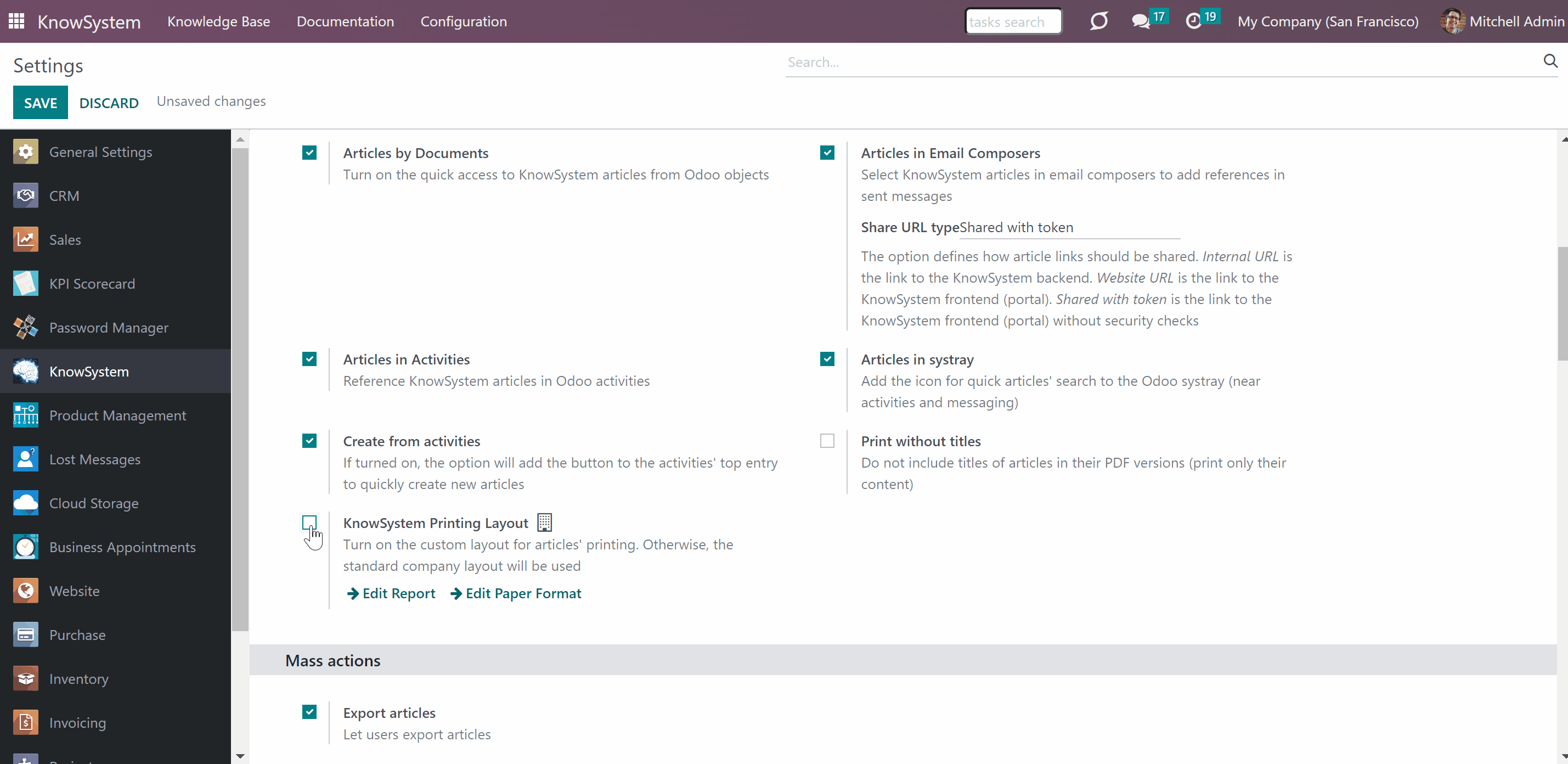

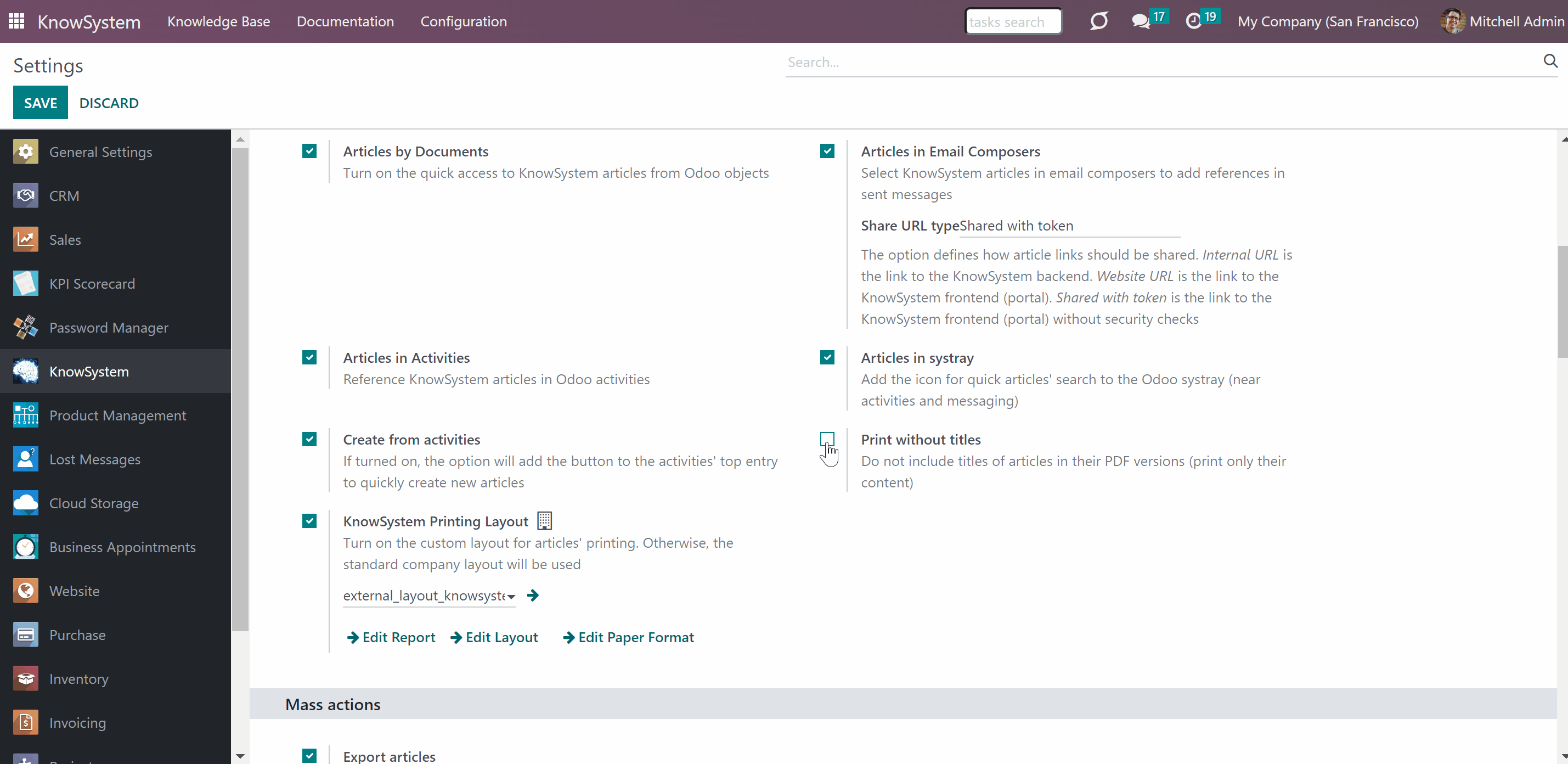

To set a default editor:

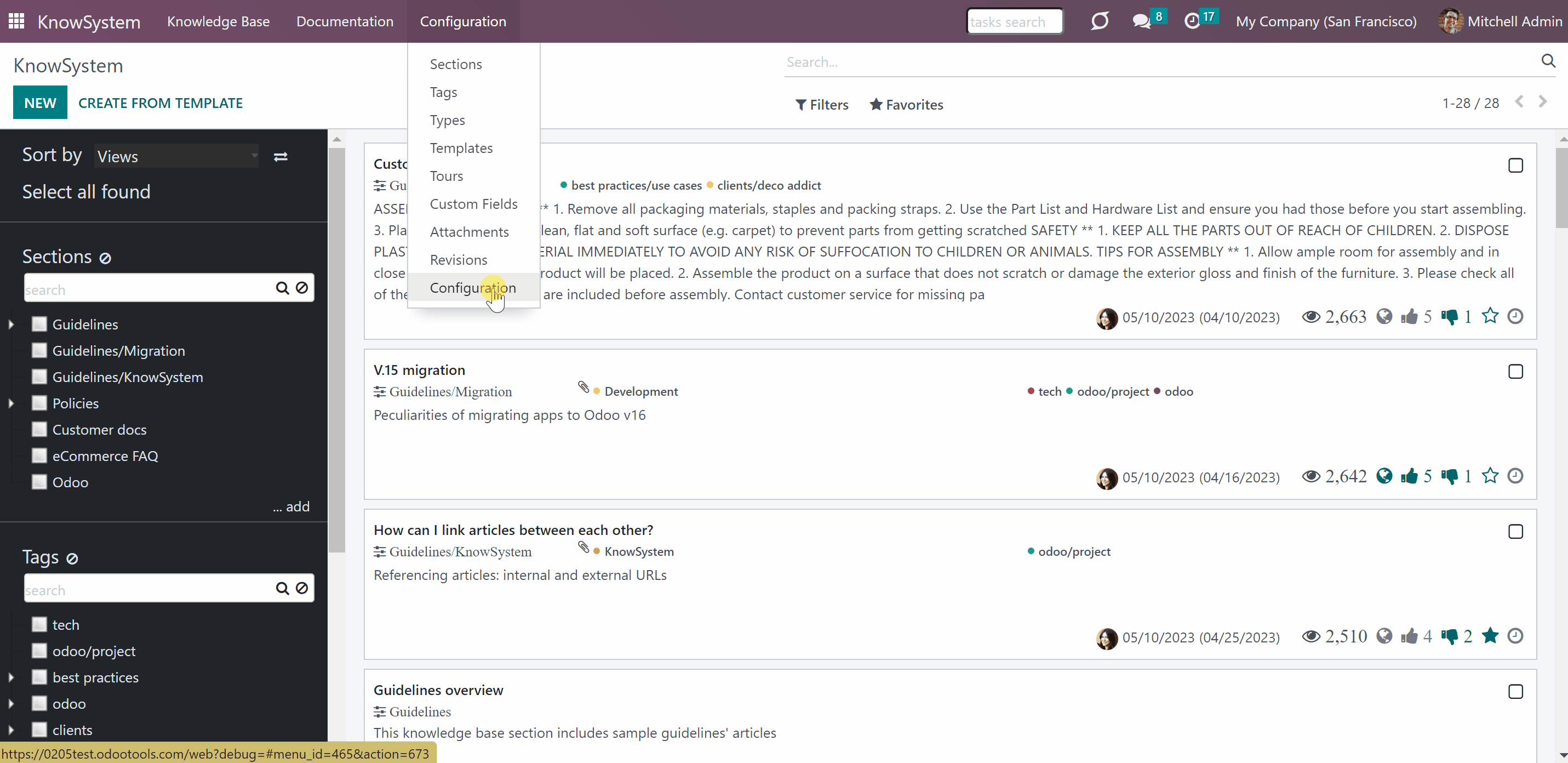

1. Go to KnowSystem Configurations
2. Find the section 'Settings' and choose the editor in the field 'Default Editor Type'
3. Click 'Save'.
Backend builder
Backend builder is an editor that you see when you create or edit an article internally. It provides you with a set of simple and safe-for-the-backend blocks, which are compatible with printing and messaging layouts. There are three types of blocks: text blocks, special blocks, and image blocks. Each block has a grey intro box, where you see what it looks like.
The available text blocks are:
1. Title + text
2. Text
3. Title + Subtitle
4. Comparisons
5. Columns
6. Color Boxes
The available special blocks are:
1. Card
2. Alert
3. Code
4. Tagline
5. References
6. Separator
The available picture blocks are:
1. Image + Text
2. Text + Image
3. Image
4. Banner
5. Columns
6. Images List
Drag and drop building blocks to update an article's body. As you save the article the styles change to the ones that are safe for reading in the backend, printing, and adding to messages.
In the backend builder, you can choose text styles, make text bold, italic, or underlined, change font size, remove font style, add ordered and unordered lists, add checklists, align paragraphs, add tables, links, pictures, switch to the code view, and undo and redo actions.
You can also switch to the raw code view to update articles' HTML, by clicking on the button 'Edit source code' as you open an article.
To make sure the sub-titles look good while printing, avoid using the style 'Header 1' in the article's body.
Website builder

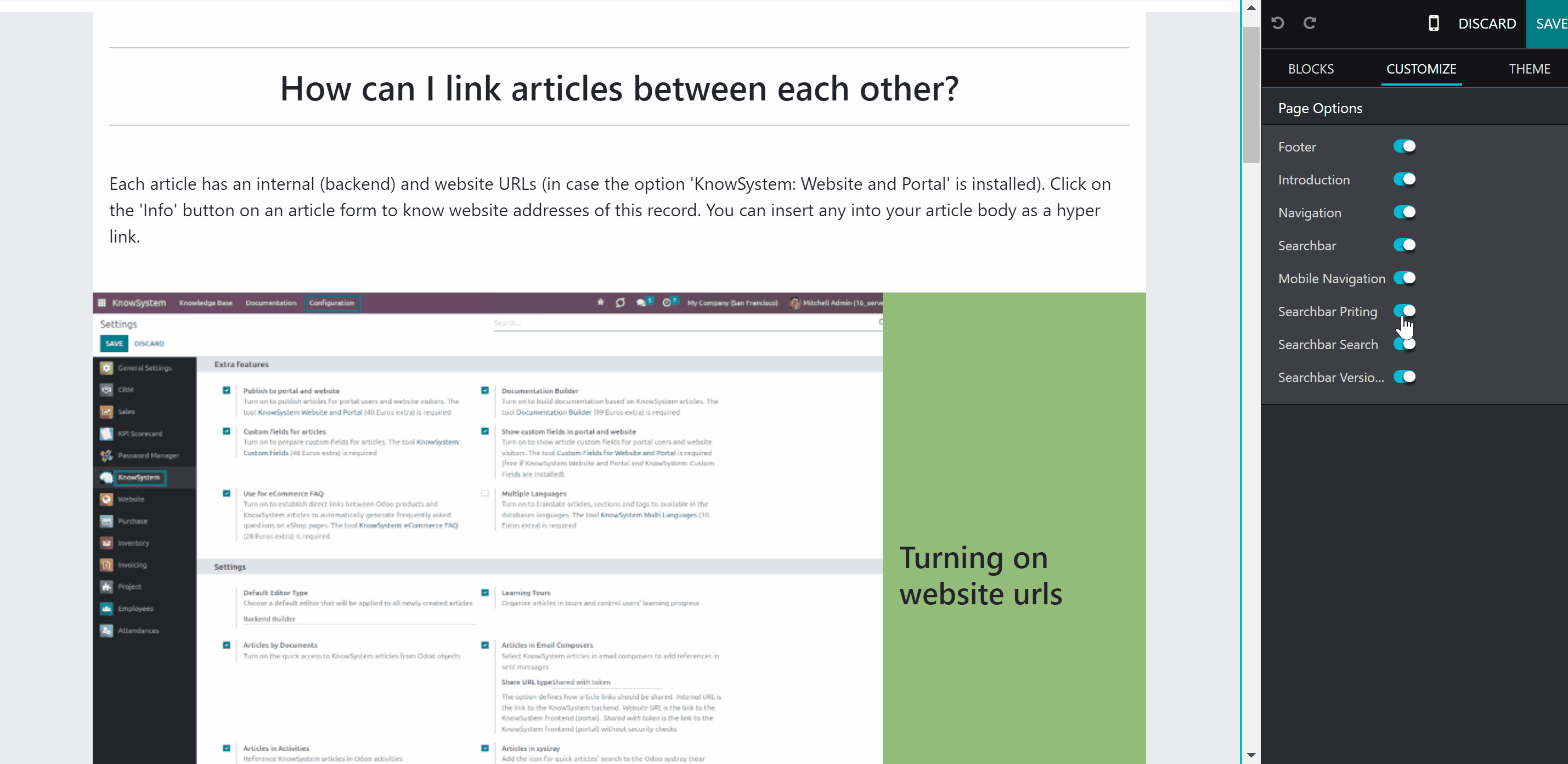

The website builder is introduced by an optional KnowSystem add-on KnowSystem: Website and Portal (). It allows you to apply advanced styles and complex widgets by using Odoo's built-in website editor to make website-friendly articles. Numerous snippets, animations, style templates, and options will help you to prepare nice-looking portal knowledge pages. Avoid using that for internal or printing purposes: advanced styles often contradict printing and composer layouts.
How to edit an article in the website builder:
1. Open the article you want to edit
2. Choose the website builder, or set it as a default one and click 'Edit', then you will be redirected to the website page in the editing mode
3. Add blocks, choose various styles, and write an article
4. Click 'Save'
Another way to edit an article with the help of the website builder is to open the article on the website and click 'Edit' in the top right corner.
You can also start creating an article, write the title, text, add tags, a section, a type (), and choose the website to show the article on, click 'Save', and fill the article's body in the website builder, the same way as in 'How to create an article'. If you entered the published title in the backend builder, then, as you open the article through the website builder – you will see the published title. Even if the article is not published.

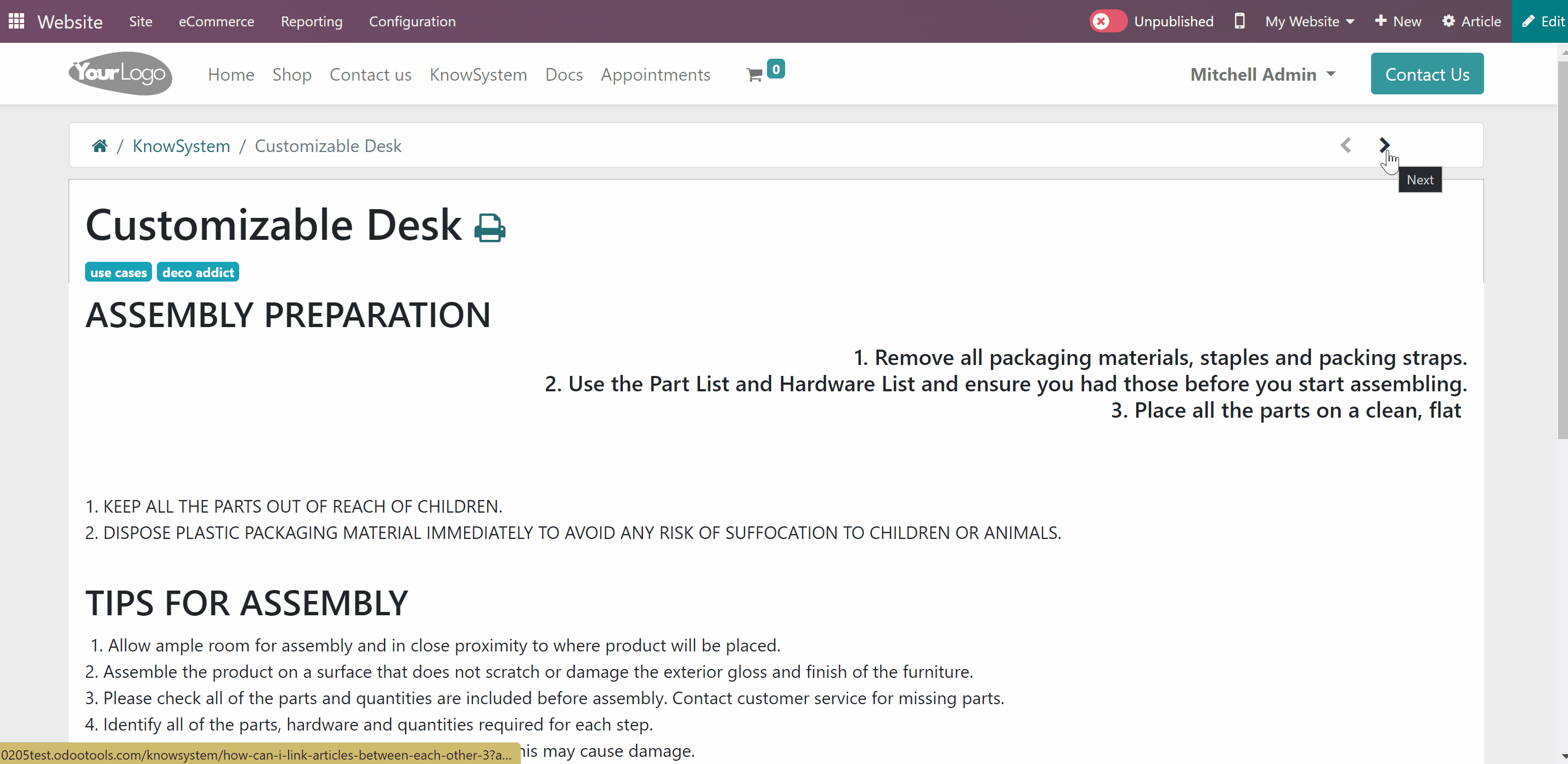

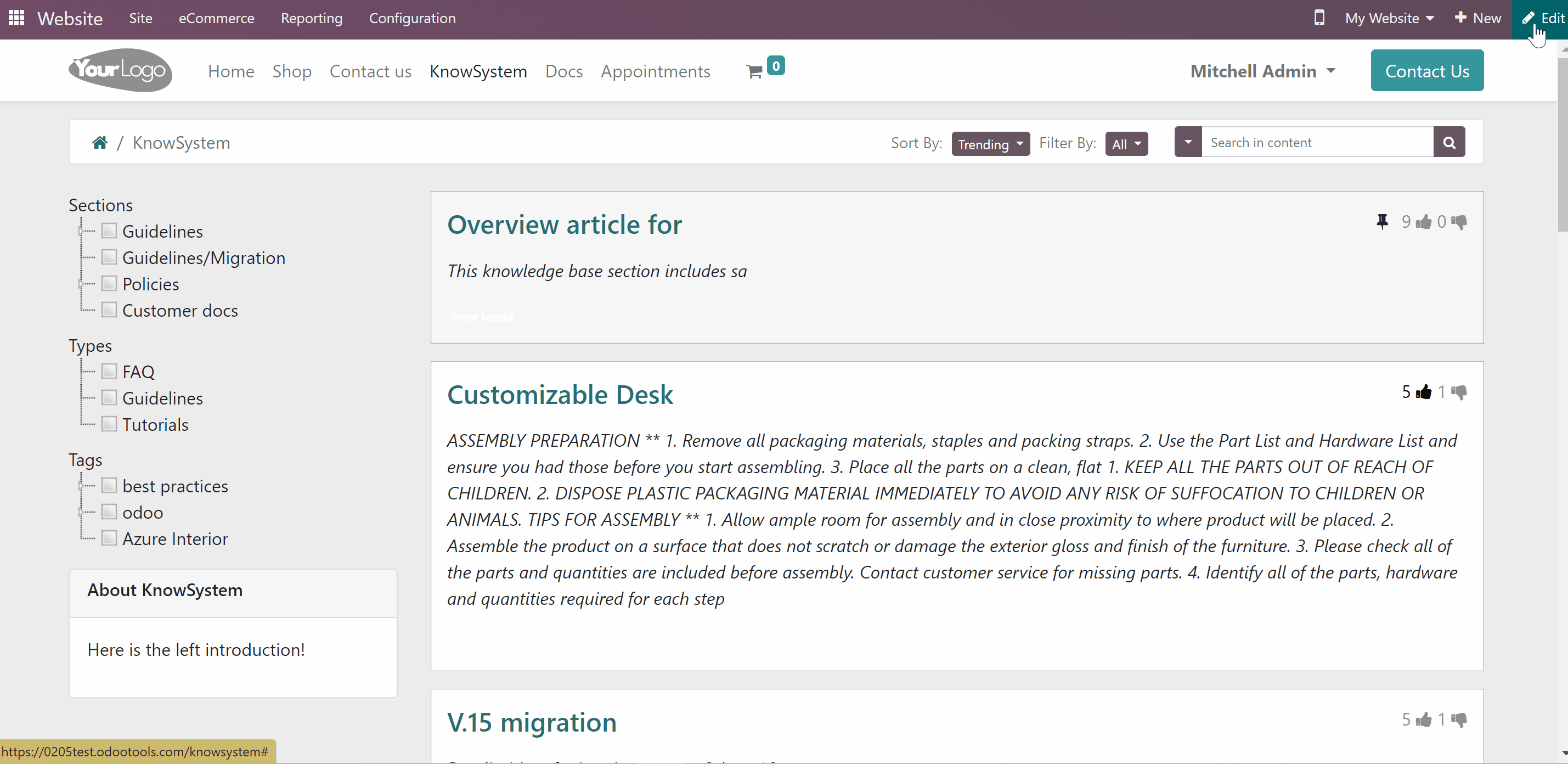

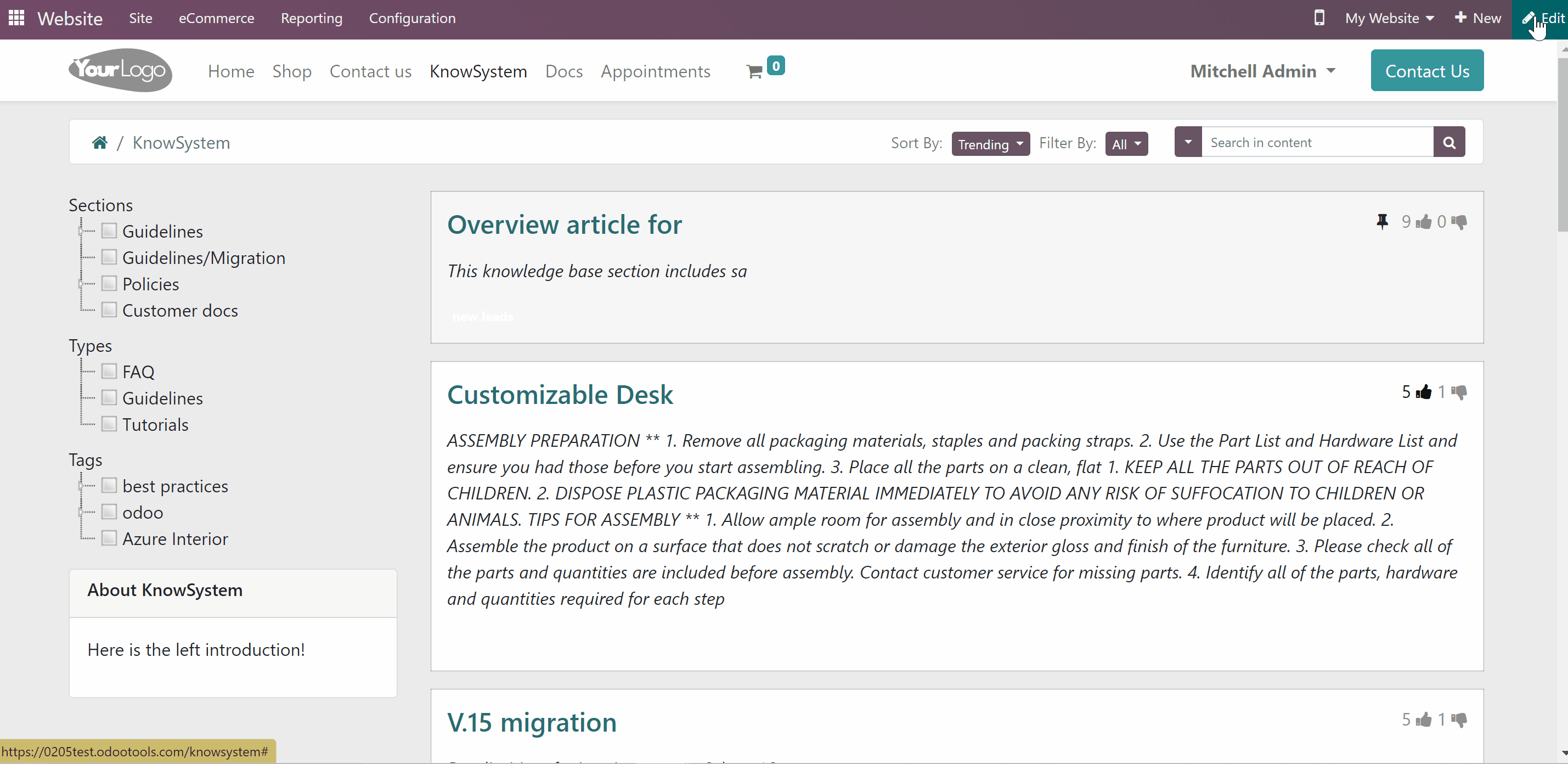

It is also possible, to create an article right from the website. For that, open the KnowSystem page in the editing mode, click the button 'New' in the top right corner, and choose the option 'Article'. In the pop-up window, you will be able to specify the details of the article: its backend and published title, section, tags, and preview summary. As you click 'Save', you will be redirected to the article's website page in the editing mode and will be able to add blocks, choose various styles, and write an article.
The backend builder and website builder have different purposes. Choose the backend builder, if you want to create articles for internal use, that you will be able to print and refer to when sending an email or a message. Choose the website builder, if you want to publish your articles on a website, share, or give access to some partners. In the website builder, the choice of blocks and styles is wider. You can also animate icons and some boxes to catch the reader's attention. It is possible to change the font's color and its background color.
The set of available blocks depends on the modules and themes installed in your Odoo system. For writing articles available all the same blocks are as when you create a website. For example, Title, Text, Numbers, Picture, Text - Image, Image - Text, Columns, Accordion, Alert, etc.
There are a lot of tools to make your articles stand out by customizing building blocks. Try various styles, fonts, and font colors. Use the command '/' to call the additional instruments panel.
HTML Editor
HTML editor is a standard Odoo editor, which supports the standard HTML styles and allows you to use the Odoo built-in commands. This way, you can create articles in a convenient and familiar manner. The editor doesn't have building blocks. In case, only simple styles are used, the editor may be compatible with printing and messaging layouts.
Use the standard Odoo styles. For that, write a line and highlight it. In the appearing panel, you can choose the text style, make it bold, italic, underline, or strike it through, choose the font/background color, change the text's size, turn the text into a list, and/or add a link.
Type '/' to call out the built-in commands, scroll down the list, and choose a command to apply to the article. For example, insert a table, or a link. You can apply commands related to various spheres: structure, text format, media, navigation, widgets, and basic blocks.
Text Editor
Text editor allows you to create simple articles without styles. Articles that are written with the help of simple text have unlimited compatibility with printing and messaging layouts.
The editor is the best choice if you need to have the possibility to share information quickly. For that, you don't need to start editing an article or select the whole article's body. Simply, click on the button 'Copy to clipboard' and your text is ready to be shared.
Raw Code editor
Code editor allows you to apply any simple and advanced HTML styles but requires certain technical knowledge. Articles that are written with the help of simple HTML might be compatible with printing and messaging layouts. Switch to raw code from the backend builder from time to time by clicking on the button 'Edit Source Code'.
You can switch to the raw code view to update articles' HTML regardless of the editor in which the article was written. The exception is the Text Editor, while the articles written in it represent simple text and have no code, that could be edited.
The editing of the raw code is done in the backend, even if the article was written in the Website Editor.
Creating an article from a template
Creating an article from a template is a fast and convenient way to create new articles while keeping uniform styles. You can prepare new knowledge templates or save any existing article as a template.
You can use any article as a template and use it for further articles. For that, open any article, in the head menu of it find the 'Actions' button, choose 'Make template', write the reference, and change it the way you want.

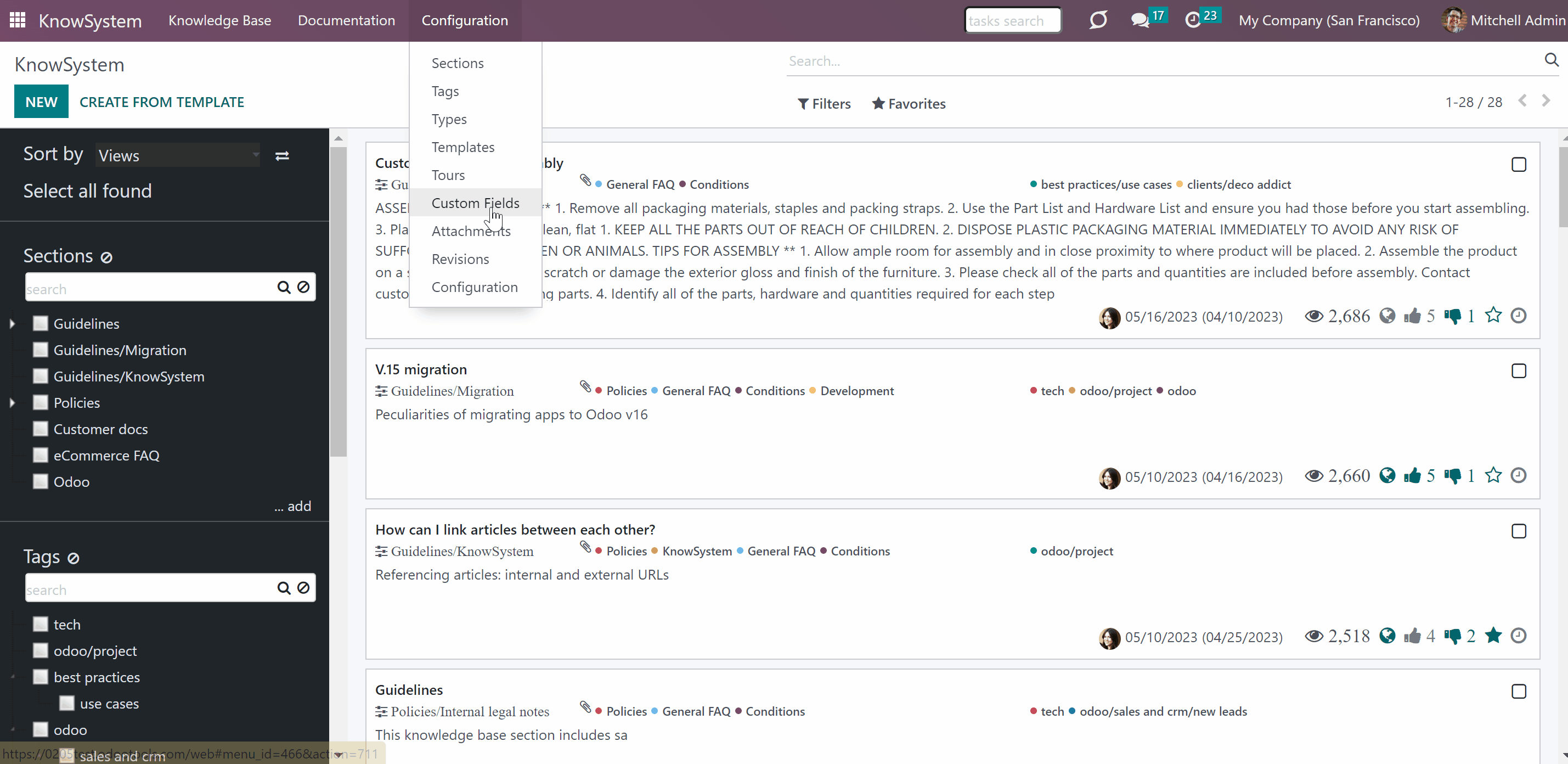

You can also create a template in the configuration menu. To create a template, open the KnowSystem app, go to Configuration > Templates, click 'Create', write a reference title, fill in the main body, and click 'Save'.
Use backend articles' templates only for articles in backend to make sure styles are displayed correctly.
To create an article from a template:

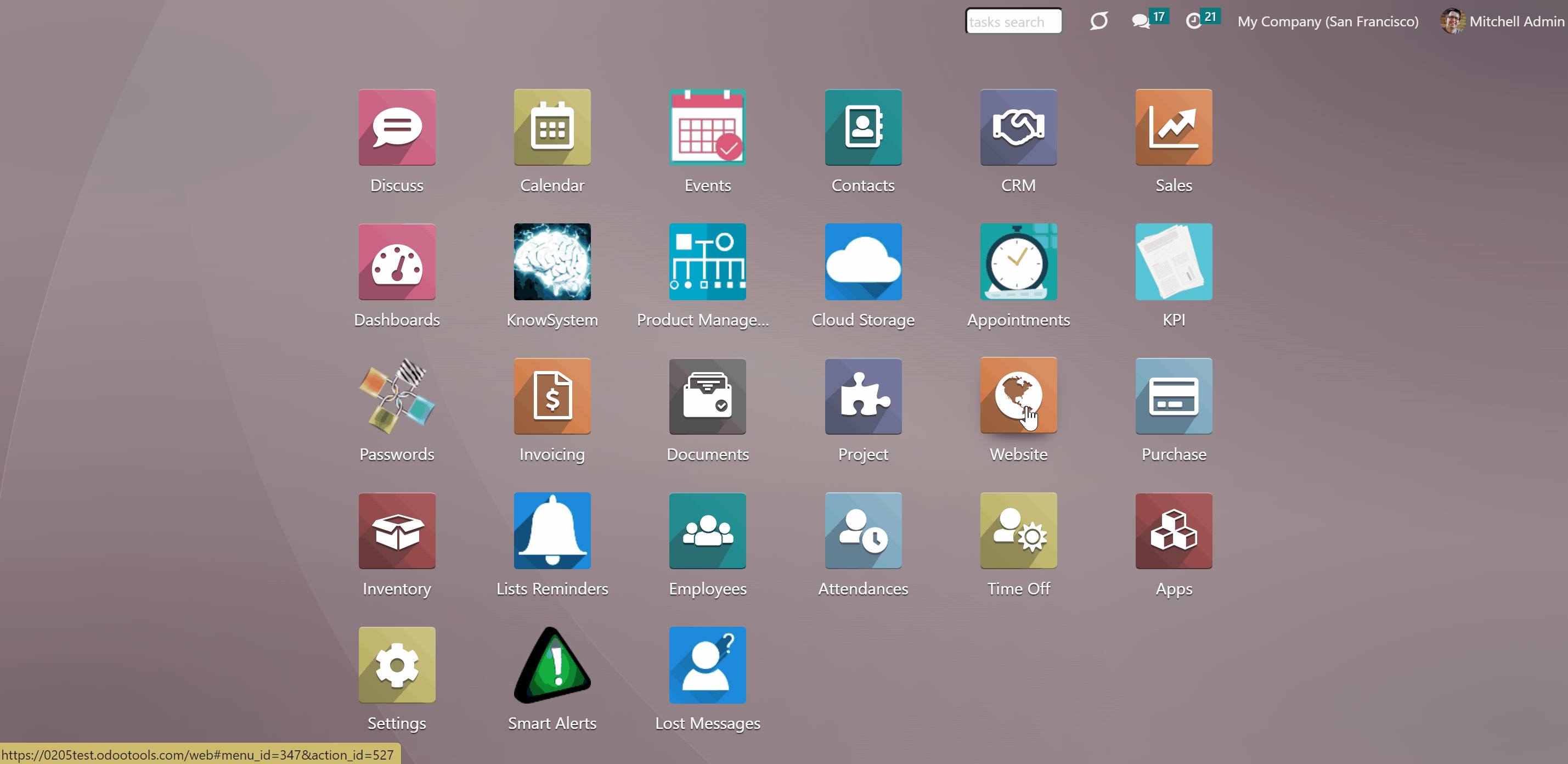

1. Open the KnowSystem app
2. Click 'Create from template'
3. Choose a template
4. Click 'Create'
5. After that, the body of an article will be filled with the values of a template
6. Continue creating an article (see How to create an article).
Interaction with an article
As you open an article, you see the fields with the details of the article, various tabs, and the article body. You can change the details of the article, such as the title or preview text, right away. To change the article's body, click the 'Edit' button by the related editor. Here, from the article's page, as in the KnowSystem menu, you can create a new article from scratch and from a template using the buttons in the top right corner.
You can interact with an article through the tabs above its' body. As you save an article for the first time three more tabs are added. Those are 'Discussion', 'Revisions', and 'Info' tabs.
As you open the 'Discussion' tab, you see the article's message thread. Any internal user that has access to the article can take part in discussing it. Here you can see, the notifications stating that the article was revised and other people's comments. Click 'Send message' to open the message typing field, add smiles, attach files, or open the message wizard to change the text style.
You can also add a Log note or schedule an activity connected with an article, e.g. to revise it. All followers might receive notifications about revisions of an article (see Article revision and history of changes). Click 'Follow' to become a follower of the article, or unfollow, if it is not relevant. You can add followers, by clicking on a 'Person' icon, and selecting the recipients of the invitation.
Above the messages thread, you will find the links to share an article with internal or public/portal users. Keep in mind, that a user should have access to the article to see it, or it should be published.
Simultaneously, it is possible to share an article with any user neglecting access rights. For that, click on the button 'Share with Token'. The link with a special token would be generated. Copy the link and send it to a user. Anyone with the link will be able to see the article even if it is not published ().
Between the links and the messages thread, you will find three icons. Click on the 'Star' sign, to add the article to your favorites, and put a like or dislike to the article. You can always change your mind and put a like instead of dislike or vice versa. The chosen icon will be grey, to change the answer click on the one that is green.
Click 'Actions' to make a template, save it as PDF, duplicate, archive, or delete the article.
As you open the 'Revisions' tab, you see the list of editions with information about the date and the person who changed the article. You can click on any revision in the list, to see how the article used to look. If you like another variant more or the article was spoiled, you can click 'Restore this revision' and confirm your choice in the pop-up window to back up an article. Keep in mind, that this action will be written as a new revision and you still will be able to return to any previous state of the article (see Article revision and history of changes).
As you click on the 'Info' button, you see all the available information about the article, including:
1. The list of contributors that took part in creating and revising the article
2. The field 'Active till', where you can set the date after which an article will be auto-archived. With the help of the field, you can archive no longer relevant articles automatically. The articles are archived with the help of the scheduled job '[KnowSystem] Automatically archive articles'
3. The time of publishing and last revision
4. Article's statistics, such as views and the number of times the article was referred to in emails and was viewed by each person

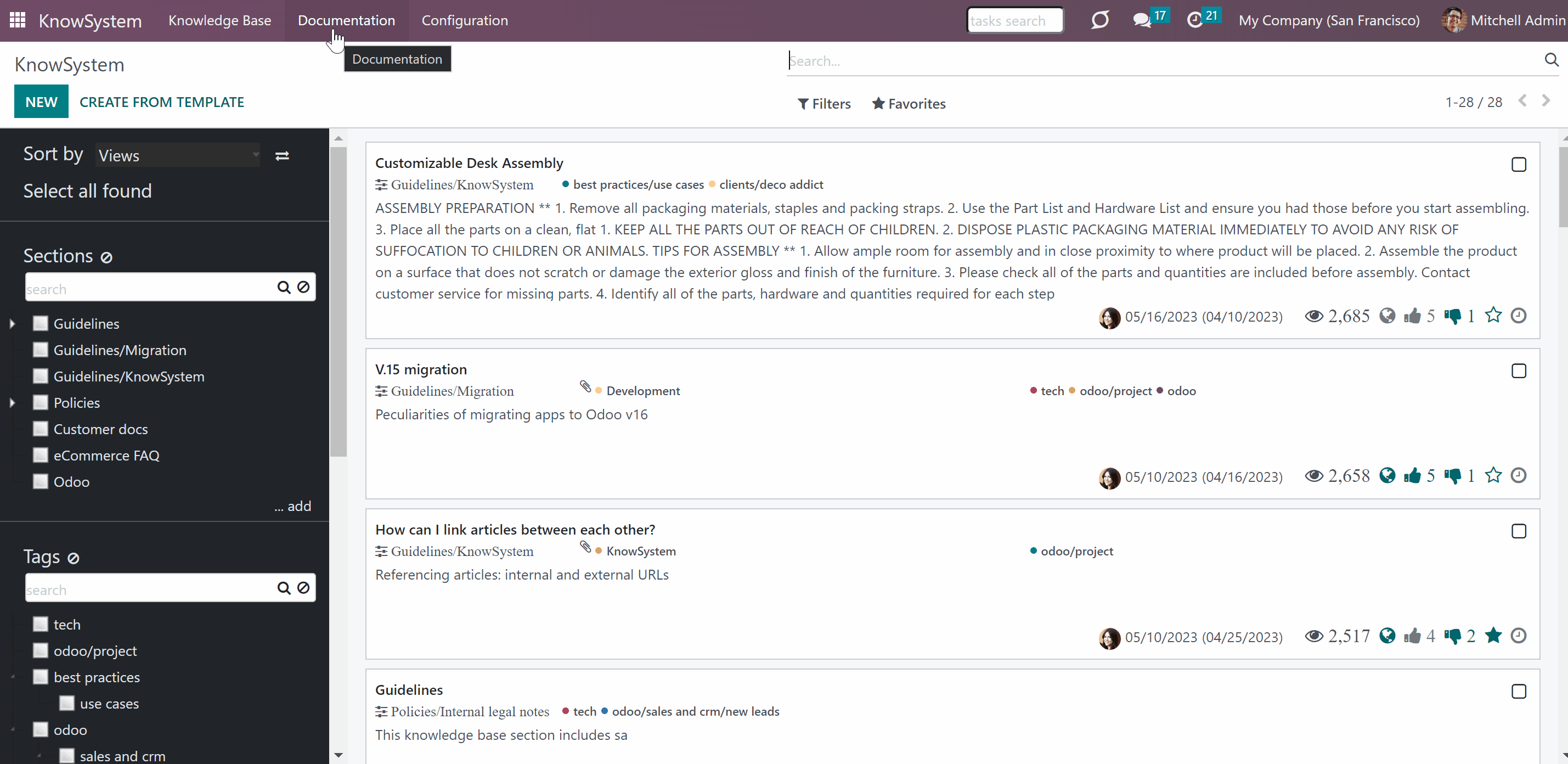

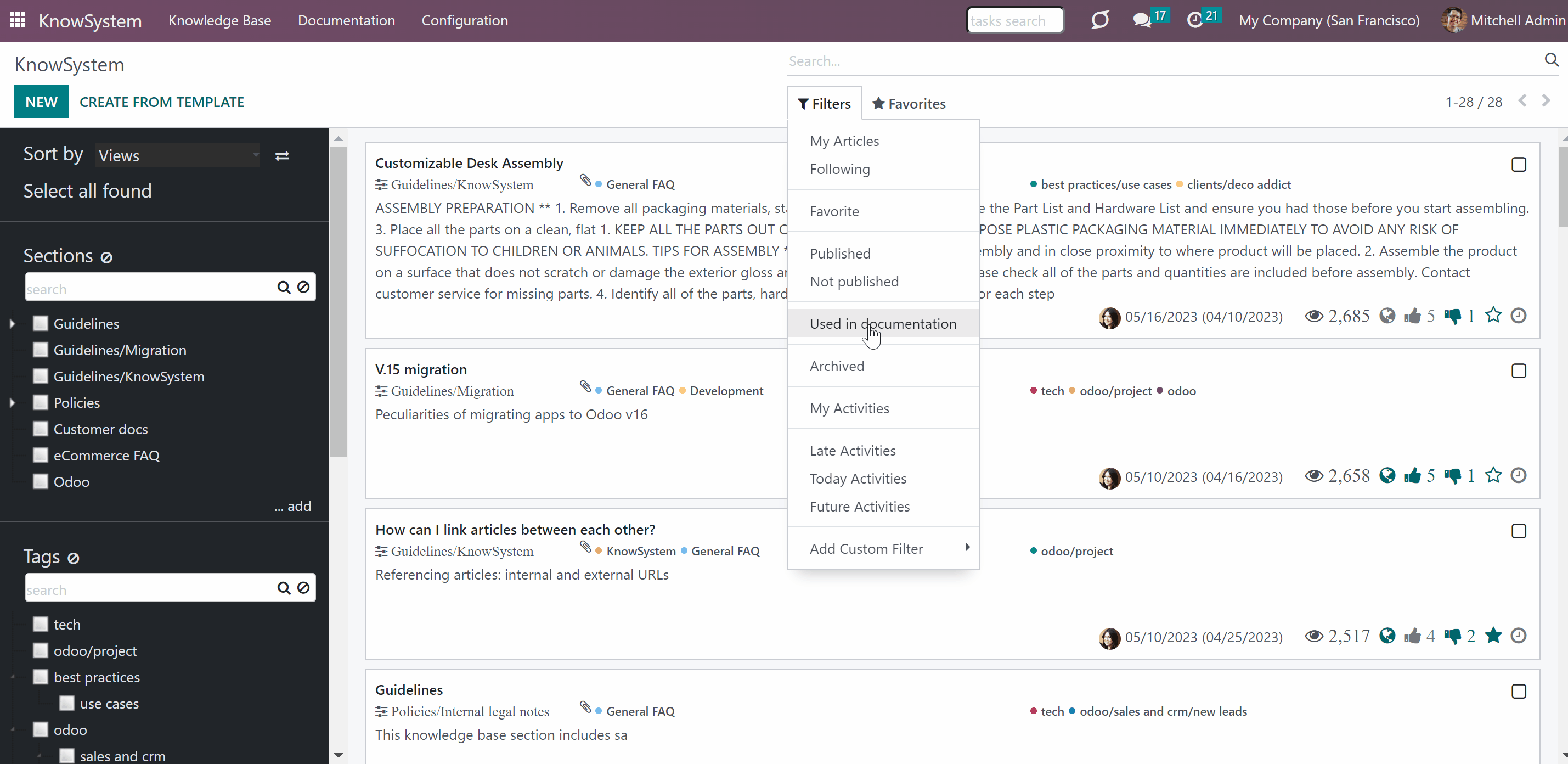

5. Documentation sections (), where the article is used
6. People who liked, disliked, or added the article to their favorites.
KnowSystem import and export
If you already have articles in some KMS systems you can add them to KnowSystem. Use the 'Import' tool above the articles view to import an electronic table with such articles. Take into account that the body of an article should be pure HTML.
To import your articles to KnowSystem:
1. Click 'Favourites' at the top of the page, the above articles list
2. Choose 'Import records'
3. Click 'Upload file' and choose a file with articles
4. Choose the columns for import
5. Click 'Import'
6. Upon finishing you will see a message stating that a certain number of records is imported.
If you create articles in KnowSystem and want to move to some other app or just to have an extra file with articles for extra security, use the mass actions button 'Export'. It would generate a table which might be also used for import. You can choose various fields for export, and save files in .xlsx or .csv format.
To export articles:
1. Make sure that the mass action 'Export' is turned on in the configurations of the module
2. Choose the articles for export, by ticking the box in the article's right top corner or clicking 'Select all found'
3. Click 'Export' in the right navigation panel mass actions
4. Choose the article's fields for export (by default there are: article title, article, preview summary, section, and tags)
5. Tick the box 'I want to update data' if you want the file to be import-compatible.
Article revisions and history of changes
The history of article revisions is kept in Odoo in a similar way it's done in Wikipedia. If one of the users breaks something, it takes 2 clicks to recover a proper knowledge version. A revision is created when an article or an important detail (title, content, preview, section, tags, attachments) is changed. No significant modifications do not lead to creating a new revision. Revisions help to restore only important details.

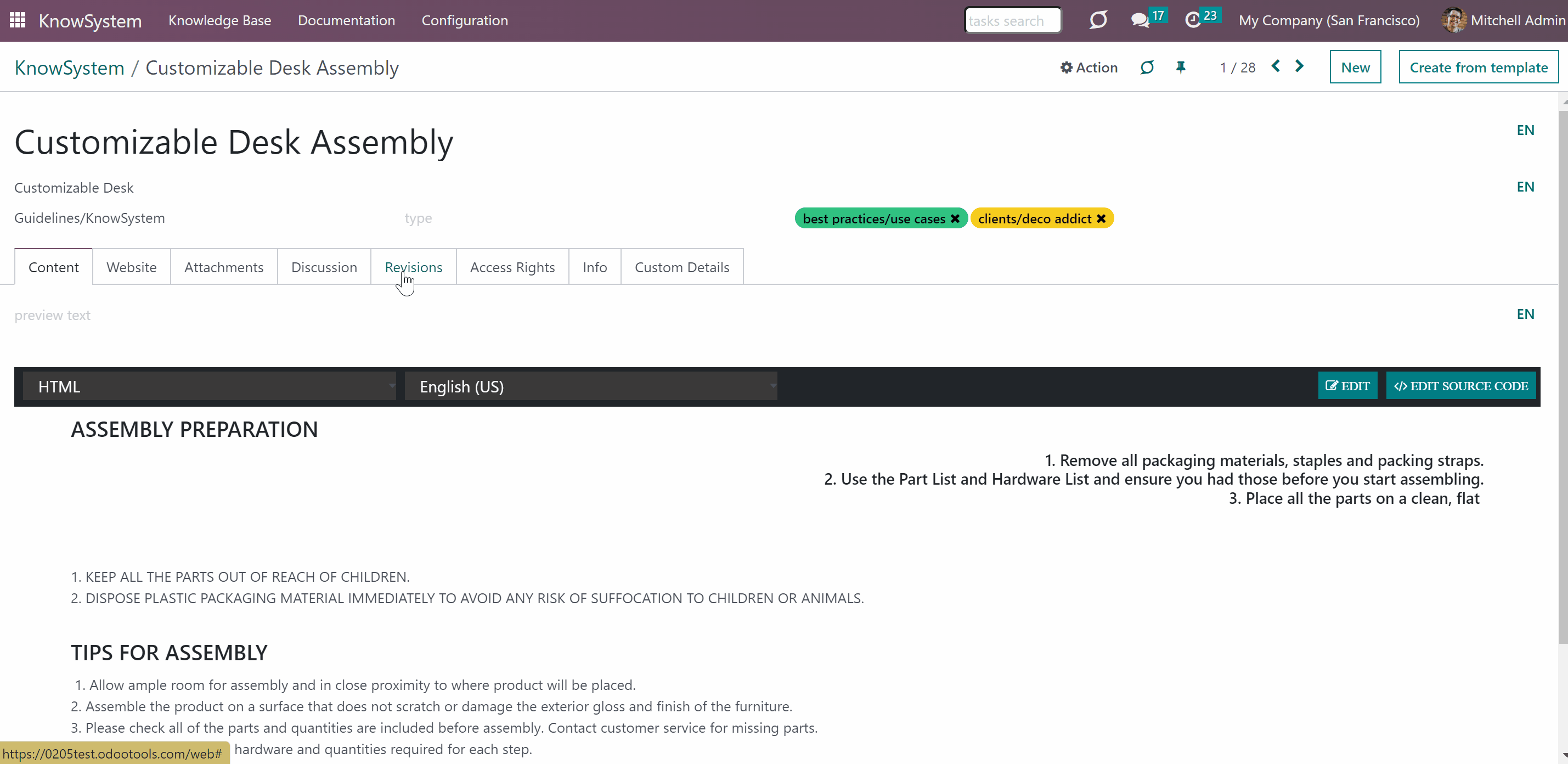

As you open the Revisions tab, you see all the revisions of the article. You can find out who and when changed something in an article. There are 5 columns, where changes are stated - in contents, you see how many signs were added if they are green or deleted if they are red, and with a minus; the other columns show the previous state, for example, the previous title, or a deleted tag.
To restore a revision of an article:
1. Open an article
2. Open the tab 'Revisions'
3. You see all the revisions of this article
4. Click on the revision that should be restored
5. Click 'Restore this revision'.
After restoring, you can always return back to the previous variant of an article, as a new revision is created.
Only KnowSystem Admin can restore and delete revisions.
You can translate your articles into various languages(). Then you will see the sign of the language, for example, 'EN', in the title and preview text of an article while editing. Click on the icon to manually translate it. Odoo users, who have a different platform language will see the manual translation of the title and the preview text. You can edit the article in your default language and the changes will be applied only to the article in this language. The same article in other languages will remain the same. Revisions of the same article in different languages are kept in one list, but it is impossible to restore an article to one of the versions of the article in another language.
There is a separate menu, where you can see and manage all revisions. For that, go to Configuration > Revisions. There you can see the list of revisions, group them (for example by an article), search, restore a revision, and delete the ones you don't need.
To restore a revision, just open it, click the button 'Restore the revision', and confirm your decision.
To delete one or several revisions, you need to select them by ticking the box on the left side, then click on the gear icon 'Action' and choose the option 'Delete'. After that, the deleted revisions will be deleted permanently.
For security purposes, in order to access the menu 'Revisions', a user should be a 'KnowSystem Administrator'.
KnowSystem in use
Observe article content right from any Odoo object: there is no need to always switch to the KnowSystem advanced interface. All articles are available in a pop-up window with convenient navigation. Click on the KnowSystem icon above a document form or in the systray to access the articles. Send KnowSystem articles in messages by updating a message body or attaching a pdf file. Print all articles in a tag or section.
Set tags for the KnowSystem quick access. You can choose 'Apply to all documents' in the tag's settings if you want to be able to reach articles with this tag throughout the KnowSystem icon in the forms of other documents from anywhere in the Odoo. Or you can add filters to tags, to find suitable articles very fast. The articles will be accessible only if the document matches any of the set to the tag filters. Add filters to tags, to show particular articles only when they match ALL or ANY of them.
Get redirected to start creating an article right from the systray or articles by documents wizards, or from activities.
Documents by tags
Link knowledge tags to Odoo document types in order to simplify the search of articles. You can either choose to apply a tag to all available documents or choose a particular model and add filters.
As you apply a tag to all documents, the tag will be added by default to all quick search forms regardless of the interface and document type the user is working with. To apply a tag to all documents:
1. Start editing or creating a tag
2. Find the tab 'Applied to' and tick the box 'Apply to all documents'
3. Click 'Save&Close'.
As you apply a tag to one or several documents' modules, the tag will be added by default to the quick search forms according to the document type the user is working with. To apply a tag only to a particular document's models:
1. Start editing or creating a tag
2. Find the tab 'Applied to' and click 'Add a line'
3. In the pop-up window choose a model and click 'Save&New' to add one more, otherwise 'Save&Close'
4. Click 'Save&Close'.
You can also add filters to each chosen model. So, the order of the articles with this tag will also depend on particular documents' objects. For example, assign helpdesk tickets to the tag 'odoo/helpdesk': the latter would be entered by default for support request objects.
How to add some filters to a document's model:
1. Start creating or editing a tag
2. Find the tab 'Applied to'
3. Click 'Add a line'
4. Choose a model
5. Click 'Add filter'
6. Choose filter options, by scrolling or typing the beginning in the search field and choose the filter options
7. Click on '+' on the right side of the rule you wrote to add one more filter, otherwise click 'Save&Close'
8. If you have more than one rule you can choose ANY or ALL button above, so only documents that match ANY of the rules or ALL rules will be shown
10. Click on '...' button, on the right side near '+' to add an even more complex rule
11. Here you can also choose to filter documents that match ALL or ANY rules
12. If you choose ALL or ANY both times, your rules will stand in one line and only one button will remain
Push the button 'Records' to see Odoo documents that match the rule terms.
Here are some examples of useful simple filters:
Total > = 1000 (Will show articles with this tag, if the order total is more than 1000 to understand how to work with such orders)
Product type = Storable product (Will show articles with this tag, if a product is storable to show articles about this kind of products and what to do with them)
Country > Country name = United States (Will show articles with this tag, if the contact's card states that he is from United States to keep articles and company policy about working with US companies)
Billing Status = Waiting Bills (Will show articles with this tag, if there are some pending bills)
Is Won = Won (Will show articles with this tag, if the opened opportunity has a status won)
Quick search from any interface
You can easily access KnowSystem from anywhere in Odoo. Quickly observe articles related to a current document discussion. Instantly reference one or a few. To add the quick entry for the Knowledge base from any Odoo form view, go to Configuration > Configuration, find KnowSystem options, put a tick in the box 'Articles by Documents', and click 'Save'.
To see the KnowSystem icon () in the Odoo systray near activities and messages, go to Configuration > Configuration, find KnowSystem options, and put a tick in the box 'KnowSystem in systray' and click 'Save'.
As you click on the KnowSystem icon in the systray or above the document form you see a pop-up window with articles. Search articles by tags, sections, or content in a few clicks for a quick overview. Click on an article to read it.
As you see your documents in the tree view and want to open quick access to KnowSystem, which will show you only filtered to chosen objects articles, click on the KnowSystem article icon that is located above the view. If you click on the KnowSystem icon in systray, it would show all tags that are applied to the particular model regardless of the chosen records.
As you call out the articles by documents or the articles in the systray wizard, you can not only see and search articles but also get redirected to the article creation wizard. This way, you can get straight to writing an article, whenever you are inspired or see that a certain article is missing, from any document object in Odoo. For that, just click the button 'Create New' at the bottom of the wizard.
Knowledge for messaging
To let users reference/cite Knowledge records in Odoo messages, go to configurations, and turn on the option 'Articles in Email Composers'. Click 'Send message' and open the full composer. Use the command '/' to call the additional instruments panel and scroll down to find the button 'KNOWSYSTEM'.
In the pop-up window, you can search articles by tags, sections, and contents. Here tags are always applied to the particular object, from which you compose a message.
Click on an article to read it, and click 'Close' to return to the message composer. Click '+' at the right top corner of an article to choose an article. Open the tab 'Chosen articles' to remove some articles or to read them. There are three types of citing an article. You can:
1. Update the message body with knowledge content (it is added to the end of a current message)
2. Attach a PDF version of the referenced article
3. Share a public knowledge link with your colleagues or partners (the link is added as a clickable title of an article).
The type of link that is added to the message can be chosen in the KnowSystem Configurations, in the field 'Share URL type'. It is possible to share an internal link (the link to the article in the backend, accessible only for the internal users), website link (the link to the article in the frontend (portal), available only for the users with the related access rights), and link with a token (the link to the KnowSystem frontend (portal) without security checks).
The best printing/messaging compatibility can be reached through the use of backend builder or text editor.
Knowledge in activities
In the same way, as in the case of messaging, the tool may be used to let users reference/cite Knowledge records in Odoo activities. To allow referencing articles in activities, go to KnowSystem configurations and turn on the option 'Articles in Activities'. Start scheduling an activity and in the composer, use the command '/' to call the additional instruments panel and scroll down to find the button 'KNOWSYSTEM'.
In the pop-up window, you can search articles by tags, sections, and contents. Here tags are always applied to the particular object, from which you compose a message.
Click on an article to read it, and click 'Close' to return to the activity composer. Click '+' at the right top corner of an article to choose an article. Open the tab 'Chosen articles' to remove some articles or to read them. There are three types of citing an article. You can:
1. Update the activity body with knowledge content (it is added to the end of the current activity)
2. Add a knowledge link to the activity (the link is added as a clickable title of an article). The type of link that is added to the message can be chosen in the KnowSystem Configurations, in the field 'Share URL type'. It is possible to share an internal link (the link to the article in the backend, accessible only for the internal users), website link (the link to the article in the frontend (portal), available only for the users with related access rights), and link with a token (the link to the KnowSystem frontend (portal) without security checks).
The best printing/messaging compatibility can be reached through the use of backend builder or text editor.
As you access the activities in the systray, through the related button, it is possible to add a link at the end of the list, that would redirect to the article creation wizard. This way, you can get straight to writing an article, whenever you are inspired by any document object in Odoo. To add the feature, go to KnowSystem Configurations and turn on the option 'Create from activities'. After that, the button 'Create new article' will be added to the activities' top entry to quickly create new articles. The button is visible only to those users, who have a right to create articles.
Knowledge for printing

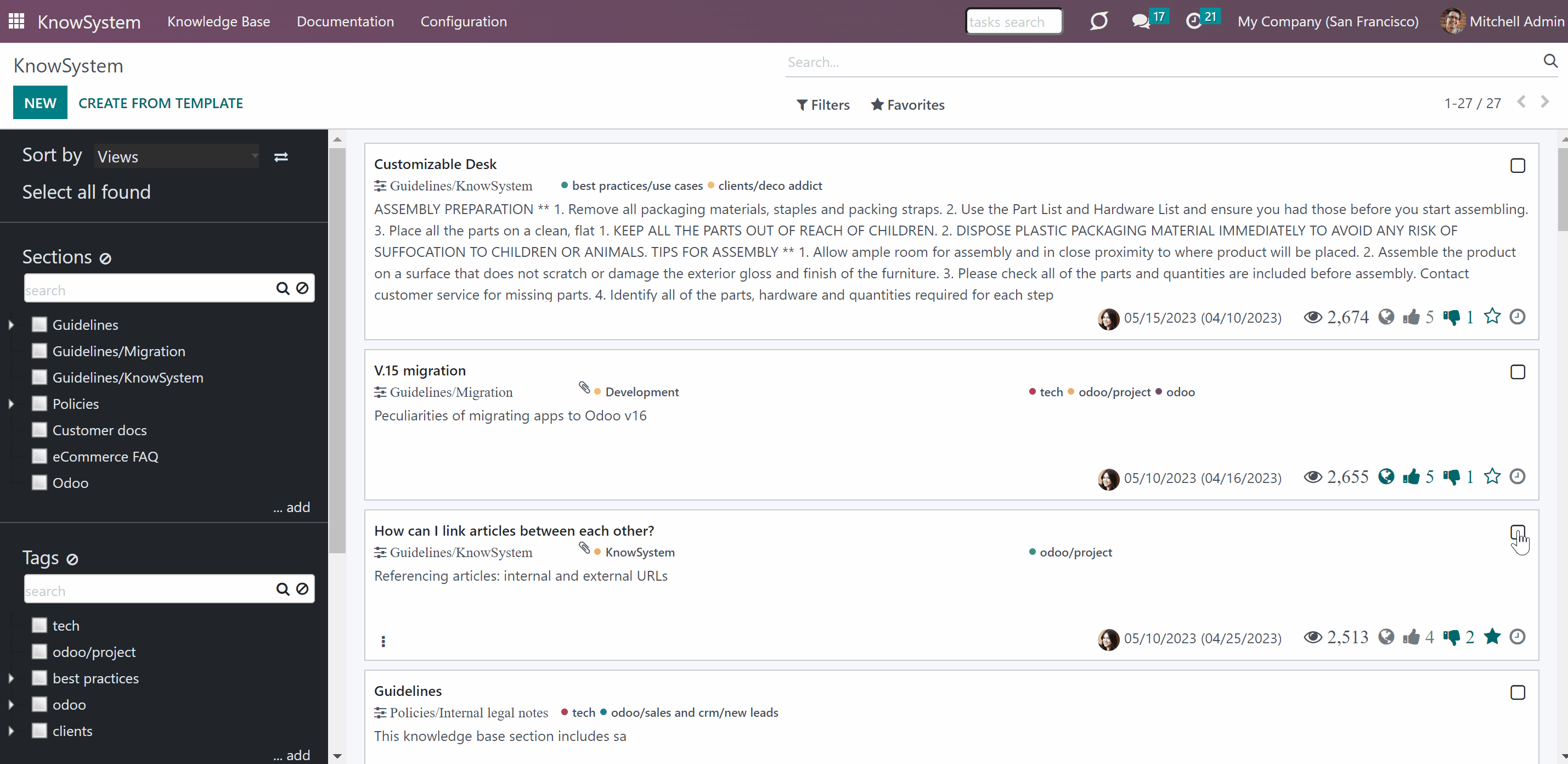

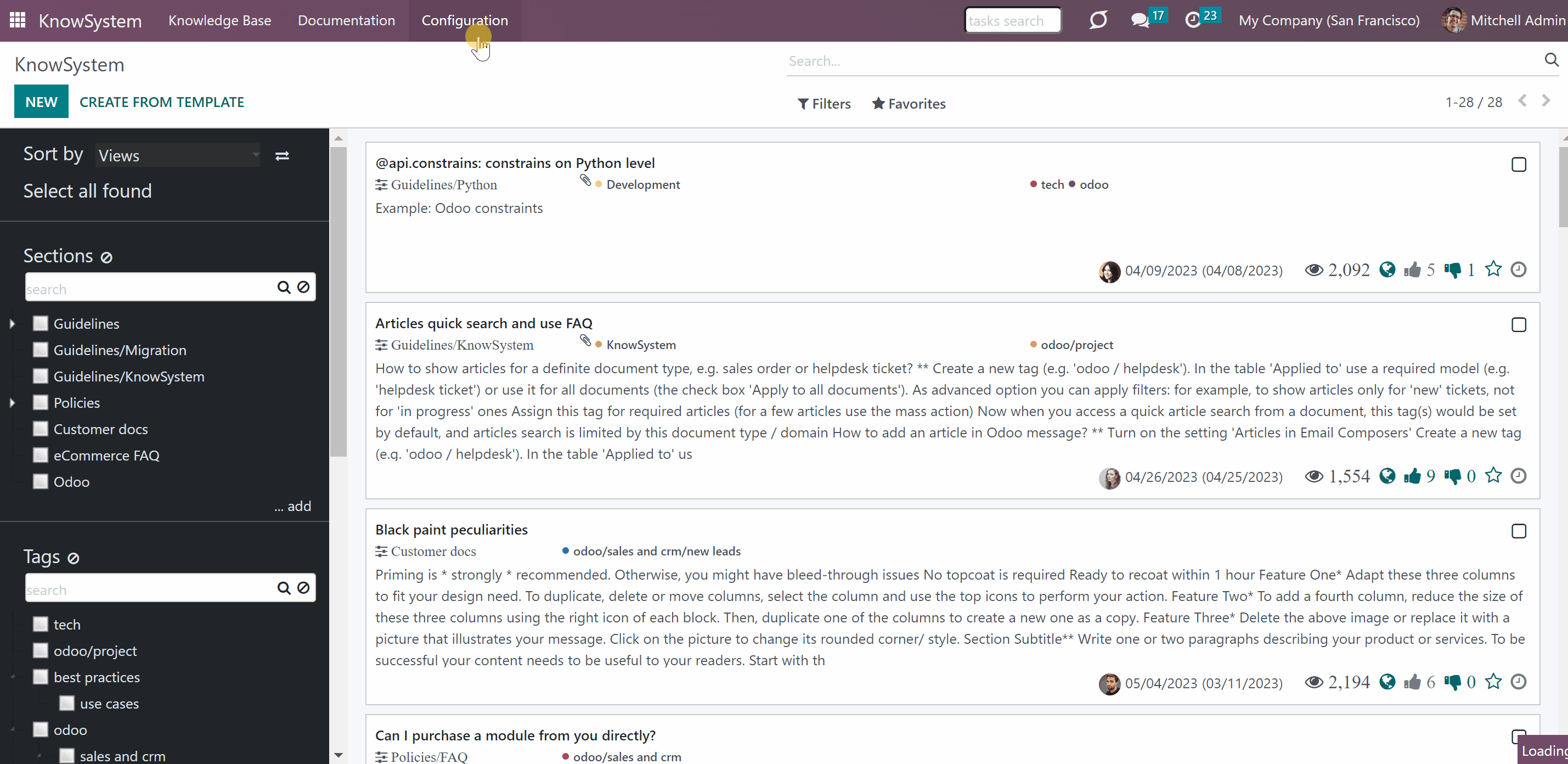

In KnowSystem you can print one article or several articles at once. To print a single article just open an article and click 'Save as PDF'.
To print articles from the single view interface:
1. Choose one or several articles by putting a tick in the box in the top right corner of an article
2. In the right navigation panel, mass actions choose 'Save as PDF', and the downloading will start automatically
3. You can also 'Select all found' articles and print them all at once in the same way.
It is also possible to print all articles of a specific tag, section, or type (). To print all articles in a tag, section, or type () click on it with the right side of the mouse and choose 'Print'. If a tag, a section, or a type has subtags, subsections, or subtypes, the articles from there will also be printed.
Attach your articles to emails and messages as pdf, so the recipient will be able to print them.
For the correct mass print use Backend builder styles and avoid using Headline 1 in the body of an article.

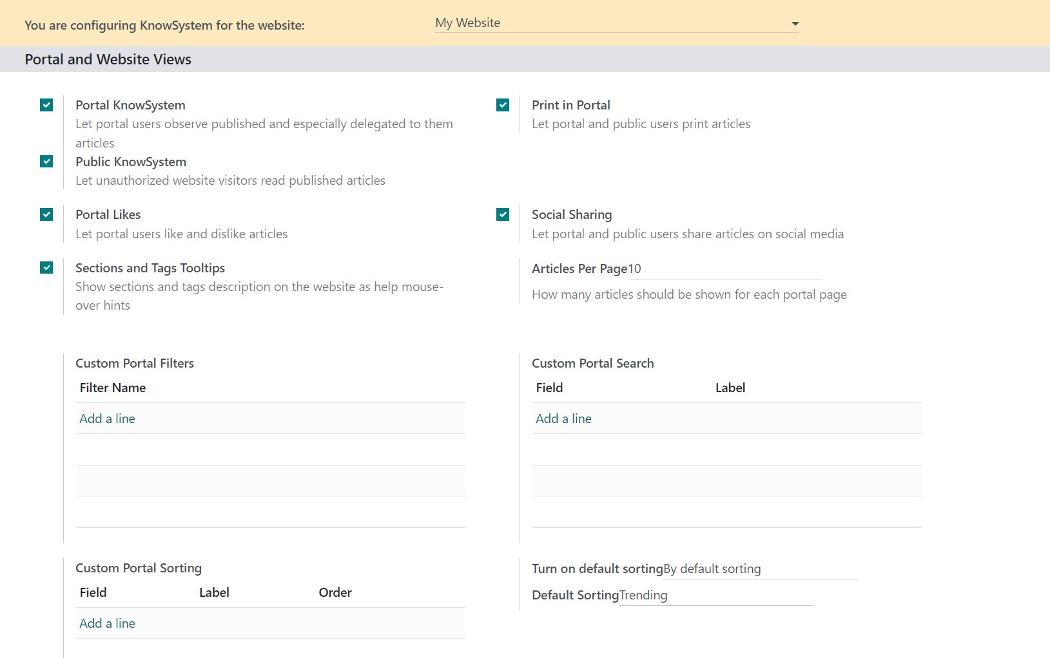

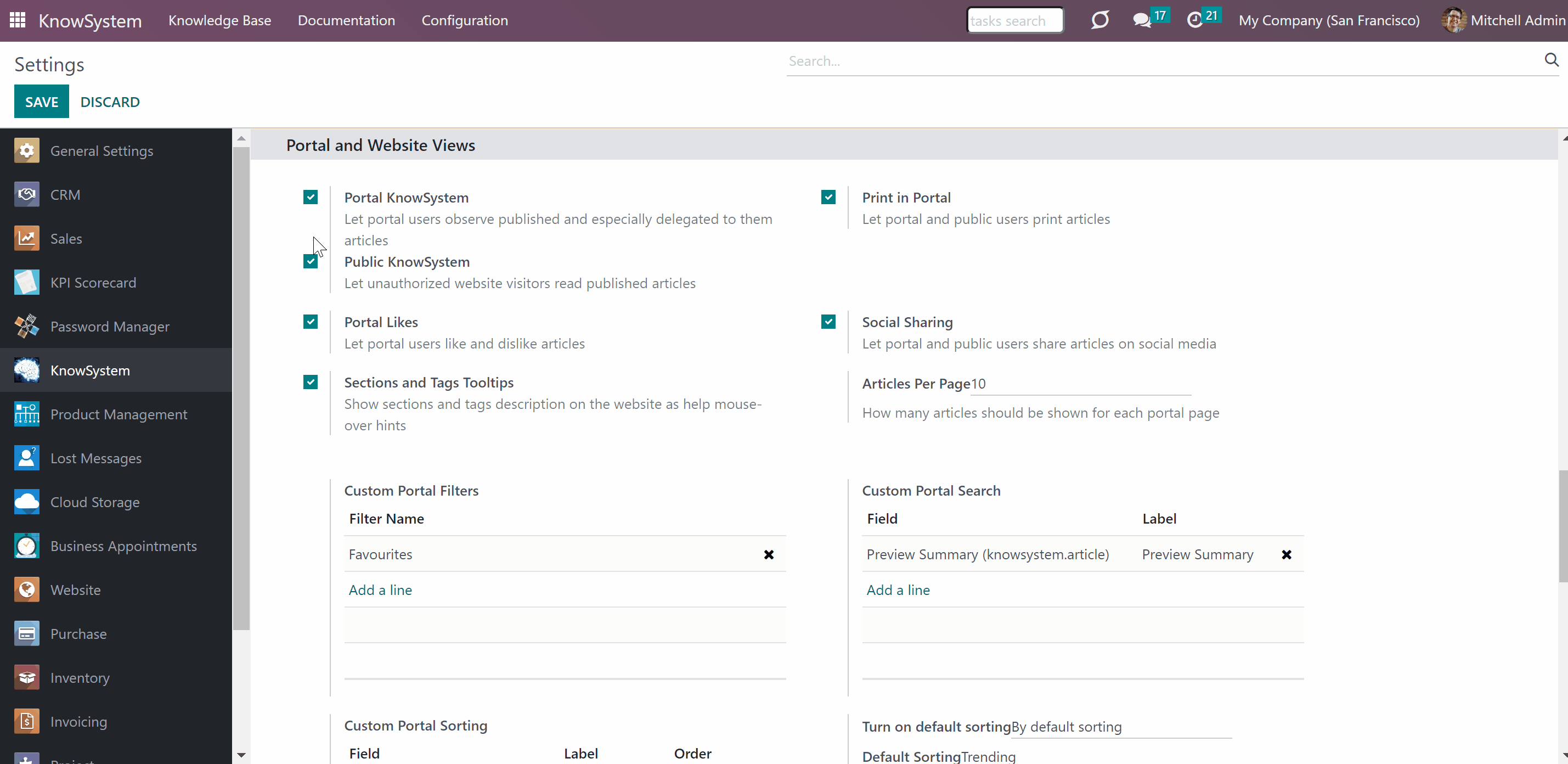

You can allow portal and public users to print published articles (). For that go to Configuration > Configuration, find section 'Portal and Website Views', and tick 'Print in Portal' (). After that, as a user opens an article there will be the printer icon near the article's title, that will redirect straight to the printing wizard.
The styles for printing by default are applied from settings as for other Odoo printings. But, you can turn on the custom article's printing layout instead. For that, go to KnowSystem Configurations and tick the option 'KnowSystem Printing Layout'.
As you enable the option, below, you will be able to choose the printing layout or create your own layout. By default, the special KnowSystem layout is applied.
Below the field with the printing layout, you will find three buttons, to edit the report itself, the report's layout, and the paper format. This way, the module provides a set of features to flexibly adjust and personalize the report's view according to the company's needs.
The button 'Edit report' opens a form, where you can inherit the printing form itself and apply the changes. For example, stylize the title or add a static part that will be located after the title.
The button 'Edit Layout' opens a form, where you can change the view name, view type, visibility, and architecture of the layout.
The button 'Edit Paper Format' opens a form, where you can change the page size (A4 > A3), and page orientation (landscape/portrait, margins, and so on).
Even if the custom article's printing layout is disabled, you will see the buttons to edit the report itself and the report's paper format.
Optionally, you can turn on the option to print articles without titles for the best printing layout. For example, it is useful, to avoid situations, when the article's title is printed on one page and the body of the article on the other one. For that go to Configuration > Configuration, find the section 'KnowSystem Options', and tick 'Print without titles'. After that only articles' content will be printed.
KnowSystem access rights
Access to articles is managed in a different way for different types of users. There are 3 types of users:
1. Odoo user or internal user
2. Portal user or registered user ()
3. Public user ()
By default, all articles are available to any internal user, if you don't restrict access only to particular user groups. You can restrict access either to particular sections, including subsections, or to particular articles.
There are two types of access rights: read rights and update rights. Read rights are set in the field 'Read access groups'. Update rights are set in the field 'Update access groups'.
Specify user groups in the field 'Read access groups' to close sections or specific articles for certain user groups. Users outside these groups will not see the articles. An exception is the users within the group KnowSystem Admin and the users, who are specified in the second field 'Update Access Group'. In the second case, the user will have the right to read articles /sections, even if its group is not explicitly specified in the 'Read access groups' field of those articles/sections. This applies to both ordinary users (although they still will not be able to edit articles) and KnowSystem: Editor.
The field 'Update access groups' affects the rights to edit and delete sections/articles, as well as create articles inside sections. In particular, it:
1. Prohibits editing and deleting sections in which the user is not specified in Update Access Groups
2. Prohibits editing and deleting articles in which the user is not listed in "Update Access Groups", as well as the one that does not have the right to edit sections
3. Prohibits the creation of articles inside sections for which the user does not have the right to edit.
On the website (), public users see only published articles. Portal users can also see the articles they have access to. To give access to a particular user add this user or several users to the field 'Allowed partners' as you edit a tag and add this tag to articles that you want to allow the user to see.
Rights to administrate the Odoo knowledge management system belong to 2 user roles: KnowSystem Editor and KnowSystem Administrator. If you want a user to be able to create articles, he or she should belong to one of those groups.
Sections, tags, types, and tours access for internal users
Different users may see different sets of navigation menus: sections, tags, types(), and tours.
KnowSystem considers user groups that are defined per section. If the user groups are not defined, a section is considered 'global' and each internal user may read articles in it.
To grant access to a section for the whole user group:
1. Start creating or editing a section
2. Open the tab 'Restrict access'
3. Choose user groups that will have read/update access to all articles in this section and its' sub-sections.
Rights for a knowledge section are defined not only according to this section but also according to all its parents. For example, if a user can't access 'Sales', he/she would not be able to access 'Sales / CRM disregarding whether 'CRM' is available for his/her user group.
Internal users can see sections, even those that are empty if they have access to them.
Tags and types () are visible for all internal users disregarding their settings.
KnowSystem considers user groups that are defined per tour. If the user groups are not defined, a tour is considered 'global' and each internal user may read articles in it.
To grant access to a tour for the whole user group:
1. Start creating or editing a tour
2. Open the tab 'Restrict access'
3. Choose user groups that will have the access to the tour.
Only KnowSystem Administrators can edit or create a tour.
Internal access to articles
In KnowSystem articles' access for internal users is defined on 2 levels: per section and per article. In order to be able to read an article, a user should have both: access to an article and its' section.
To manage user groups for an article:
1. Open an article and go to the 'Access Rights' tab
2. Specify the user groups that should be able to read the article in the field 'Read access group'
3. Specify the user groups that should be able to manage the article in the field 'Update access group'
If the user groups are not defined, an article is considered 'global' and each internal user may read it (if he/she has access to its section).
Access to edit articles
Rights to administrate the Odoo knowledge management system belong to 2 user roles: KnowSystem Editor and KnowSystem Administrator. If you want a user to be able to create articles, he or she should belong to one of those groups. If an internal user has access to see an article and belongs to one of the stated groups, then he can also edit it.
To assign one of these groups to an internal user:
1. Go to General Settings
2. Click 'Manage users' and choose a user
3. Scroll down to the section productivity
4. In the field 'KnowSystem' choose one of the groups.
All article versions are stored in revision, so there is always a way to return to one of the previous ones. Only KnowSystem Admin can restore and delete revisions (see. Article revision and history of changes). Thus, it helps to make the editing process more secure.
Public users access
Public users () - website visitors - may access KMS interfaces only if you explicitly allowed that. Thus, you can switch off the option 'Public KnowSystem' () to fully disable the knowledge base for such users.
Public users () would see only those KMS objects, which are published and available for a website they are visiting.
An article would be available for a public user if its section and itself are published.
To publish () an article:
1. Chose one or several articles and choose 'Publish' in mass actions in the right navigation panel of the interface
2. Open an article, go to the tab 'Website', and tick the option 'Visible on current website'.
You can share the link to an article with any user neglecting the access rights (). For that, go to the 'Discussion' tab and click the button 'Share with Token'. The link with a special token will be generated. Copy the link and send it to a user. Anyone with the link will be able to see the article even if it is not published.
To make a section visible on a website ():
1. Start creating or editing a section
2. Go to the tab 'Website and Portal' and tick the box 'Show on Website'
3. If you leave the field 'Website' empty, then the section will be seen on all available websites.
To make a tag visible on a website ():
1. Start creating or editing a tag
2. Go to the tab 'Website and Portal' and tick the box 'Show on Website'
3. If you leave the field 'Website' empty, then the tag will be seen on all available websites.
To make a type () visible on a website ():
1. Start creating or editing article type
2. Go to the tab 'Website and Portal' and tick the box 'Show on Website'
3. If you leave the field 'Website' empty, then this type would be seen on all available websites.
Portal users access
Portal users () have the same access rights as public users (), but you can also grant extra rights to particular partners. To that goal, knowledge tags are used. You can assign those tags in two ways:
1. Start creating or editing a tag, choose particular contacts in the field 'Allowed partners' in the tab 'Website and Portal'
2. Open contacts, find a particular user, and start editing the profile card, in the field 'KnowSystem' tags choose the tag.
Thus, a portal user would have access to all published articles (see above) and all articles which have partner-related tags.
For example, create tags 'premium', 'standard', and 'free' to manage knowledge base tariffs and assign the tags to corresponding articles. Or create a tag with a country to assign it to all articles available to the partners from it.
User rights comparison
KnowSystem Admin
Can read, create, edit, and delete any articles, sections, tags, article types (), and tours. May configure Misc options.
KnowSystem Editor
Can read, create, edit, and archive related to him/her articles, sections, and any tags. Can also see related to him/her tours. Can read any article type ().
Odoo user
Can read related to his/her user groups articles, sections, and tours. Can read any tags and article types (). May like/dislike, add to favorites, and take part in discussions.
Portal user ()
Can read published and partner-related-by-tags articles. Can also read published sections, tags, and article types (). May like/dislike articles.
Public user ()
Can read published articles, sections, tags, and article types ().
Configuration page
KnowSystem has a configuration page, where you can turn on and off some add-ons' features and make necessary changes to make your work convenient.
Default Editor Type: allows choosing the editor, that will be applied by default to all newly created articles. Still, you will be able to switch to another editor for certain articles (see How to create an article).
Learning Tours: it allows you to organize learning tours, combining the articles of your choice. You can easily set the order of articles by drag&drop. Write notes to learners, that they will see on the first page of the tour. Track learners' progress (see. Managing learning tours).
Articles in Email Composers: it adds a KnowSystem icon in the email composers, so you can choose articles to add to emails. You can either update the email body or attach an article as a pdf (see. Quick access to KnowSystem).
Articles by Documents: it adds a KnowSystem icon above all documents' forms, so you can read an article without opening the KnowSystem app. You can also set different filters to documents' tags to see them in the first place when you access the KnowSystem from the matching documents (see. Quick access to KnowSystem).
Articles in Activities: it adds a KnowSystem icon to the activities composers, so you can choose articles to add to the body of the activity. You can either update the activity body with an article or share a link to the article (see. Knowledge in activities).
Create from activities: adds a button to the activities' top entry, that allows quickly get redirected to the article creation wizard (see. Knowledge in activities).
Share URL type: allows choosing the type of generated link. Can be either 'Internal URL' (link to the article in the backend available only for internal users), 'Website URL' (link to the article in the portal available for internal and portal users), or 'Shared with token' (a link to the article in portal available for anyone) (see Knowledge for messaging, Knowledge in activities).
Articles in systray: adds a KnowSystem icon in the backend header, so you will be able to see it from any place and easily access articles (see. Quick access to KnowSystem).
Custom Layout: turns on the custom layout for article printing. Otherwise, the standard company layout is used. As you enable the option, the "Edit layout" button becomes visible (see Knowledge for printing).
Print without titles: allows printing only content of the articles, without titles, for a better printing layout (see Knowledge for printing).
In the Extra features section, you can see all the available add-ons and their pages. From here you can turn them on and off.
In the Mass actions section, it is possible to add/remove the mass action 'Export'. Just tick the option 'Export articles'.
Also, in this section, you can manage other mass actions. To add mass actions, click 'Add a line' and choose the action. Change the order of mass actions by drag&drop. To delete an action click on the cross by the mass action (see Mass actions on selected articles).
The add-on Portal and Website Views () has its' own configuration section. The extension supports multi-websites, and it is required to apply them for each of your sites separately. To switch between sites' settings, select the website to configure in 'You are configuring KnowSystem for the website'.
Portal KnowSystem (): allows you to show the articles to portal users. You can give access to some articles, by assigning tags and stating the 'Allowed partners', or adding KnowSystem tags to partners on the contact card (see. Managing tags).
Public KnowSystem (): allows you to publish your articles for all website visitors to see (see. Access Rights).
Custom Portal Filters (): allows you to set options to filter articles on the portal. You can add portal filters to various models, set actions, and choose a person for which the filter will be available. You can also add automatic rules to filter objects.
Custom Portal Search (): allows you to set search options to find articles on the portal. You can add a field and name it, so it will be possible to search for the keywords in it on the portal.
Custom Portal Sorting (): allows you to add custom sorting criteria for the portal/website KnowSystem. You can add sorting criteria based on a particular field, name them, and set either ascending or descending order.
Turn on default sorting (): allows applying one of the sorting options by default as a user opens the KnowSystem page on the website.
Default Sorting/Custom Default Sorting (): allows choosing a particular sorting option either default or a custom one as a user opens the KnowSystem page on the website.
Print in Portal (): adds a possibility for portal and public users with access to the article to print it.
Portal Likes (): gives portal users an opportunity to like and dislike articles.
Social Sharing (): adds a social share bar, for quick sharing through various social media.
Sections and Tags Tooltips (): shows sections and tags descriptions on the website as a user hovers over any of those.
Articles Per Page (): choose the number of articles that are shown per page.

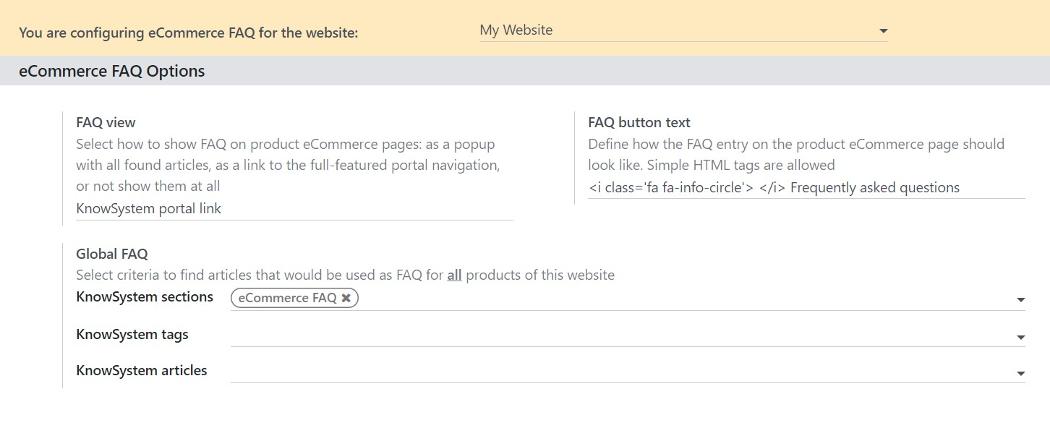

The add-on KnowSystem: eCommerce () has its' own configuration section. The extension supports multi-websites, and it is required to apply them for each of your sites separately. To switch between sites' settings, select the website to configure in 'You are configuring eCommerce FAQ for the website'.

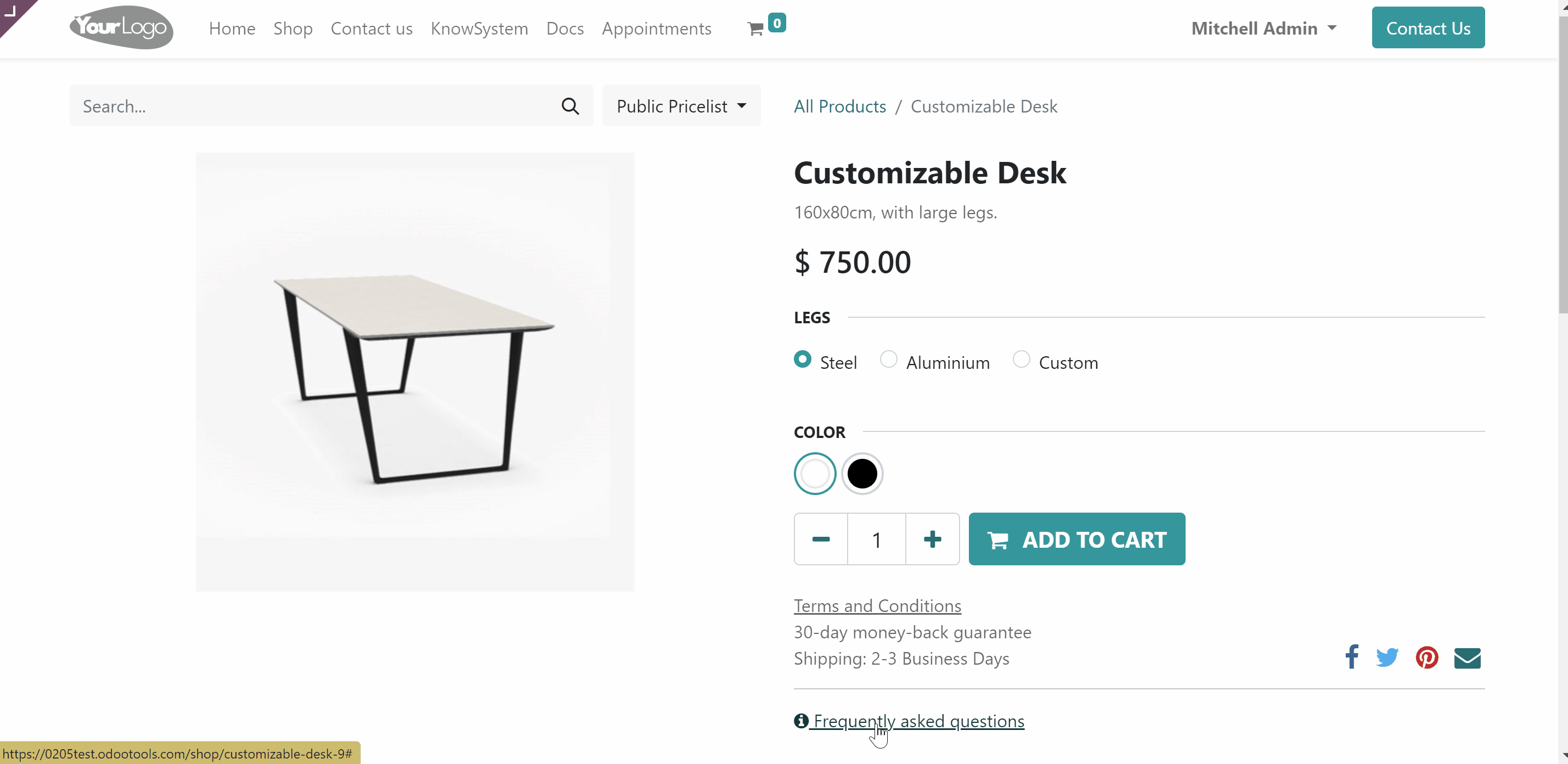

FAQ view (): choose the way the FAQ will be shown: as a popup with all found articles, as a link to the full-featured portal navigation, or do not show it at all (see eCommerce Product FAQ).
FAQ button text (): write your own text, which will be used as the button's text. By default, the button's name is 'Frequently asked questions'. You can use simple HTML (see eCommerce Product FAQ).
Global FAQ(): select criteria to find articles that would be used as FAQ for all products of this website (see eCommerce Product FAQ).
KnowSystem sections (): choose the sections, to add all the related articles to the global FAQ. The articles from the sub-sections will be also shown in FAQ.
KnowSystem tags (): choose the tags, to add all the related articles to the global FAQ. The articles from the sub-tags will be also shown in FAQ.
KnowSystem articles (): choose the articles for the global FAQ.

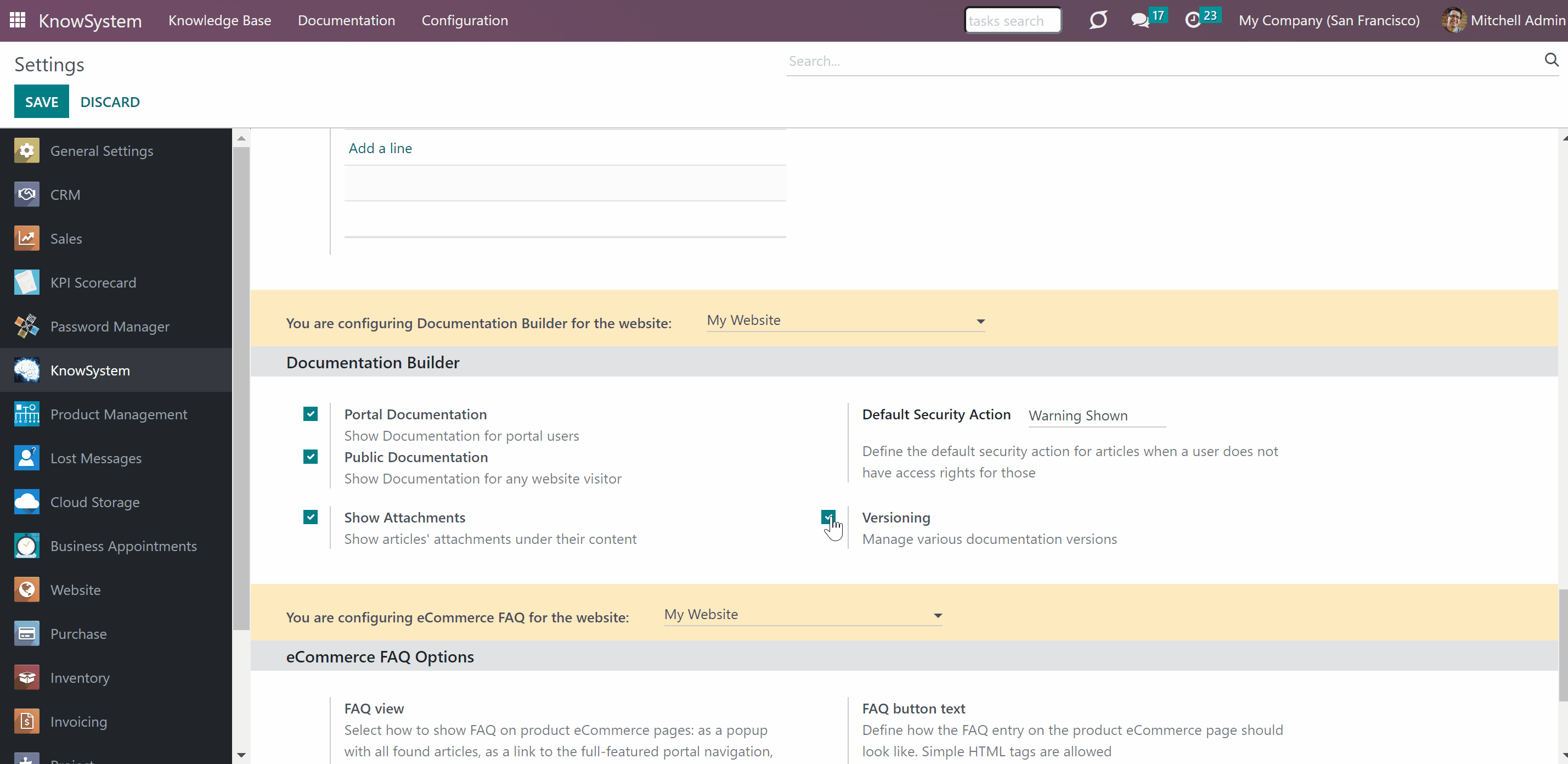

The add-on Odoo Documentation Builder () has its' own configuration section. The extension supports multi-websites, and it is required to apply them for each of your sites separately. To switch between sites' settings, select the website to configure in 'You are configuring Documentation Builder for the website'.
Portal Documentation (): turns on portal documentation.
Public Documentation (): turns on public documentation.
Default Security Action (): in the case when a user doesn't have access to only one or several articles of documentation, you can choose to either hide it, show a warning, that the user has no access to it, or neglect access rights and show it anyway if a user has the access to the documentation itself (see. Odoo Documentation Builder: access rights).
Show Attachments (): includes article attachments to a documentation page. Otherwise, only the articles' content will be shown.
Versioning (): allows you to introduce some changes in documentation for particular versions and leave the rest that refers to all versions to avoid double work. It adds a field, to state to which version an article refers (see. Odoo Documentation Builder: versioning).
KnowSystem: Website and Portal
KnowSystem: Website and Portal is an optional add-on () that allows you to add your articles to the portal and on your websites. The extension allows you to use the standard Odoo Website builder that provides a wide variety of templates and tools for editing articles, making them presentable and user friendly, and customize your articles in the same way as website pages.
The main features of the app are:
Publish articles on your website
Edit your articles in Website builder
Give access to articles to portal users by tags
Print, like, or share articles
Turn on/off KnowSystem for portal users to let them observe published and especially delegated to them articles. Go to Configuration > Configuration, find section 'Portal and Website Views' and tick the box 'Portal KnowSystem'.
Turn on/off KnowSystem for public users to let unauthorized website visitors read published articles. Go to Configuration > Configuration, find section 'Portal and Website Views' and tick the box 'Public KnowSystem'.
Website and Portal: navigation & settings
Website and portal: article page & website builder
All features described in this article are related to the add-on KnowSystem: Website and Portal ().
If the article is created with the help of the website builder, it will be possible to edit it right from its website page, just click 'Edit' in the top right corner, to open the website builder. Or, you can return to editing in the backend, by clicking on a 'Gear' icon.
Also, you can start creating or editing an article, choose the website builder, and click 'Edit'. Then you will be redirected to the website page in the editing mode (see Website Builder).
See a mobile preview by clicking on the phone icon in systray, to make sure an article looks good. From the systray, you can also publish and unpublish articles.
Optionally, you can:
1. Allow partners to print knowledge pieces, like, or share articles. Go to Configuration > Configuration find the 'Portal and Website Views' section and put a tick by 'Print in Portal'. Then, by the article's headline, a printing icon will appear.
2. Allow partners to share articles. Go to Configuration > Configuration find the Portal and Website Views section and put a tick by 'Social sharing'. Then at the bottom, you will see social media icons.
3. Allow partners to like and dislike articles. Go to Configuration > Configuration find the Portal and Website Views section and put a tick by 'Portal likes'. Then at the bottom, you will see icons like and dislike.
From an article's view, you can also switch back and forth between articles. Click on the arrows in the top right corner of an article.
To return back to the main articles' menu without losing the searching criteria, use the tool breadcrumbs on the left top corner of an article. For example, click on the previous step 'KnowSystem' to return to the main articles menu.
It is also possible, to create an article right from the website. For that, open the KnowSystem page in the editing mode, click the button 'New' in the top right corner, and choose the option 'Article'. In the pop-up window, you will be able to specify the details of the article: its backend and published title, section, tags, and preview summary. As you click 'Save', you will be redirected to the article's website page in the editing mode and will be able to add blocks, choose various styles, and write an article.
Website and Portal: public & portal users
All features described in this article are related to the add-on KnowSystem: Website and Portal ().
KnowSystem for public and for portal users can be turned on or off, depending on your goals.
Turn on/off KnowSystem for portal users to let portal users observe published and especially delegated-to-them articles. Go to Configuration > Configuration, find the section Portal and Website Views, and tick the box 'Portal KnowSystem'. After that, portal users will be able to read published and partner-related-by-tags articles and related-to-those sections, read published tags and article types (). They may also like/dislike articles.
Turn on/off KnowSystem for public users to let unauthorized website visitors read published articles. Go to Configuration > Configuration, find the section Portal and Website Views, and tick the box 'Public KnowSystem'. After that public users will be able to read published articles, sections, tags, and article types ().
The app supports multi websites, and therefore it is required to set the configuration for each available site separately. For example, you can turn on the KnowSystem Portal, KnowSystem Public, and allow printing on one website, but turn on only KnowSystem Portal on the other, or make it unavailable at all.
Here are all the options, that can be configured for each website (see Configuration page):
1. Turn on/off Portal KnowSystem: allows you to show the articles to portal users.
2. Turn on/off Public KnowSystem: allows you to publish your articles for all website visitors to see.
3. Add Custom Portal Filters: allows you to set options to filter articles on the portal.
4. Add Custom Portal Search: allows you to set search options to find articles on the portal.
5. Add Custom Portal Sorting: allows you to add custom sorting criteria for the portal/website KnowSystem.
6. Turn on/off default sorting: allows applying one of the sorting options by default as a user opens the KnowSystem page on the website.
7. Turn on/off Print in Portal: adds a possibility for portal and public users with access to the article to print it.
8. Turn on/off Portal Likes: gives portal users an opportunity to like and dislike articles.
9. Turn on/off Social Sharing: adds a social share bar, for quick sharing through various social media.
10. Turn on/off Section and Tags Tooltips: shows sections and tags descriptions on the website as a user hovers over any of those.
11. Set the number of articles per page: choose the number of articles that are shown per page.
Odoo Documentation Builder
Odoo Documentation Builder is an add-on () to KnowSystem, that allows combining articles in advanced documentation to cover certain aspects of organizational or functional knowledge. The extension also depends on the add-on KnowSystem: Website and Portal ().
Each KMS article might be used several times for different documentation. You can add an unlimited number of documentation pages structured by categories. The idea is to have a single documentation website page that fully covers a definite issue or aspect. You can also modify the appearance of pages: show or hide introductions and footers, turn on/off the search bar and table of contents, and add or remove preview images and texts.
You can turn on the option 'Portal Documentation' and 'Public Documentation' to make the documentation available for portal and public users respectively. The app generates website pages automatically. To update this documentation set you should only add or remove a required knowledge article.
Indicate to which version an article relates. Share documentation categories and sections. Publish required documents to make them available for everybody, and assign KnowSystem tags - to grant access to chosen Odoo partners. Define what to do if a documentation user does not have access to included articles: to neglect restrictions, not to show that knowledge pieces, or to show a security warning. The app fully supports standard Odoo features including multi websites.
Combine articles
Modify documentation pages
Publish and share documentation
Introduce versioning
Documentation Builder: managing documentation
All features described in this article are related to the add-on Odoo Documentation Builder ().
A documentation category is a tool, that helps you to structure your documentation. A category unites documentation sections. There are two ways to create a new category:
1. Go to Documentation > Documentations Categories and click 'New'
2. Go to Documentation > Documentation Sections and click on '+ Category'.
Drag&drop categories to change their sequence.
A Documentation section is a set of articles that together create documentation on a particular topic or for a particular object. There are two ways of creating a documentation section. You can go to Documentation > Documentations Sections, click 'New', and add articles one by one, or you can add all required articles at once from the single view interface.
To add articles to a documentation section:
1. Go to Documentation > Documentations Sections and click create
2. Write a title of the section and manually translate it into other installed languages (), if you want
3. Choose a category and versions (see Documentation Builder: versioning)
4. Open KnowSystem and choose the articles by putting a tick in the top right corner of the articles
5. In the right navigation panel choose the mass action 'Add to documentation'
6. In the pop-up window choose the documentation section, to which you want to add articles
7. Choose a security action that will apply to all chosen articles (see Documentation Builder: access rights)
8. Click 'Save&Close'
9. Go to the documentation section card, and click 'Edit'
10. Click 'Add a line' to add one more article, that you can choose in the pop-up window.
11. Choose a security action for it
12. Click on the tab 'Settings' to add preview text and tags. From here you can also choose 'Header level for navigation', which is the number of headers that will be shown in the navigation panel, as a person reads a documentation section
13. Click 'Save'.
The tags that you add to a documentation section, are the same tags that are applied to articles. Add a tag for quick search and easy navigation or to share a knowledge piece with the assigned-to-the-tag partners (see Managing tags).
You can publish the document section as you open it, by clicking on the button 'Publish/Unpublish' in the top right corner. It is possible to share document sections with any users, even when it hasn't been published yet.
Click on the button 'Go to Website' and you will be redirected to the documentation page on the website. In case, a user has the right to edit the documentation, it will be opened in the editing mode.
Click on the 'Share' button in the top right corner of a document section and a link with a special token will be created (see Documentation Builder: access rights).
Drag&drop documentation sections to change the category.
From the backend, you can track, what articles are used in documentation. Such articles are marked by a paperclip icon on the kanban card. To find out in what documentation sections the article is used, go to the 'Info' tab as you open an article and find the field 'Documentation sections'.
You can also filter the articles, that are used in documentation by applying the filter 'Used in documentation'.
To find all articles of a particular section, type the section's name and choose the searching criterion 'Documentation sections'.
Documentation Builder: customization
All features described in this article are related to the add-on Odoo Documentation Builder ().

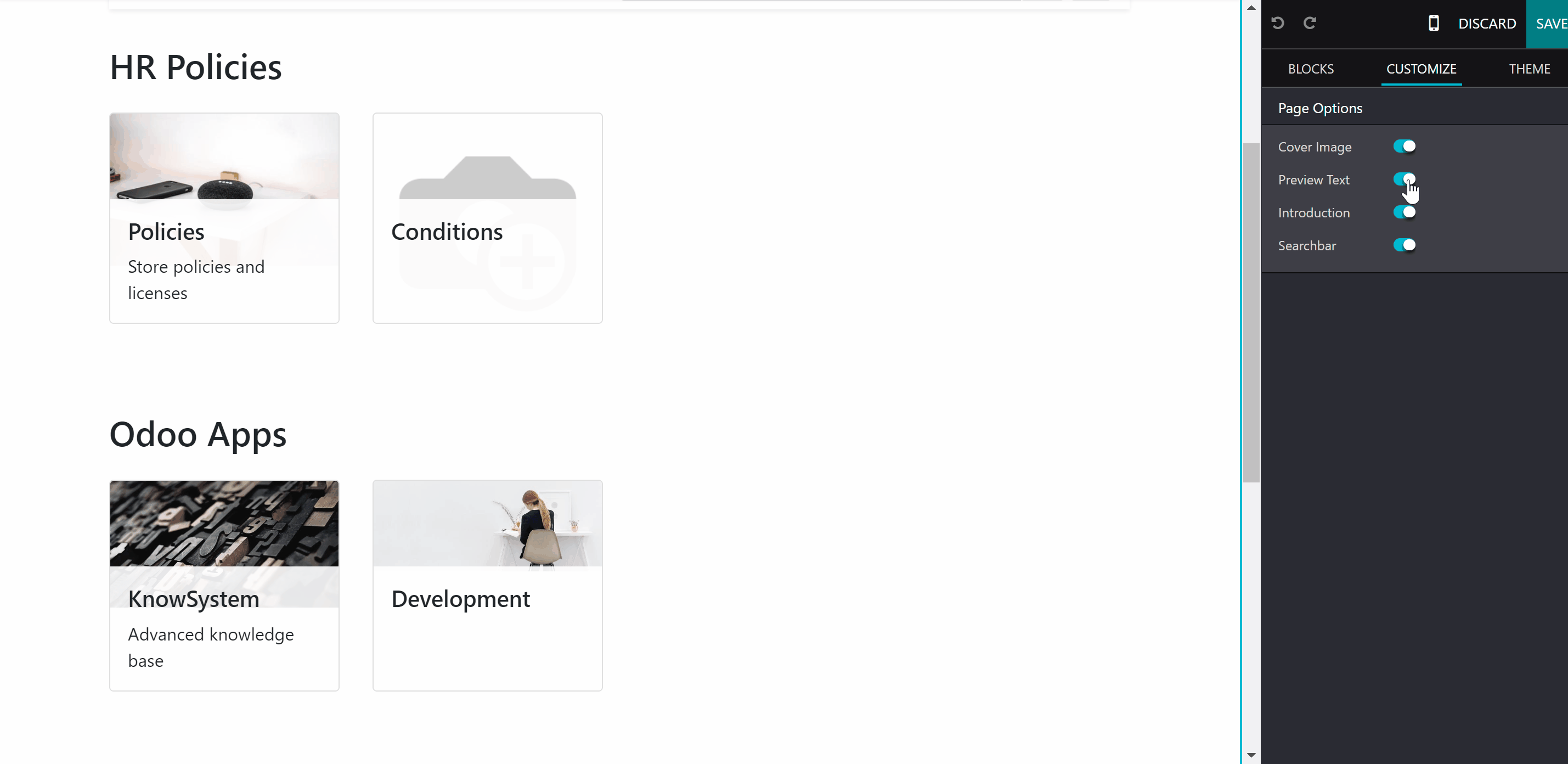

As you turn on the 'Public Documentation' (in Configuration>Configuration> Documentation Builder), the page 'Docs' appears on the website and the tab Docs appears in the portal if the option 'Portal Documentation' is turned on. Both entries lead to the same page '/docs'. There you can see all published documentation categories and documentation sections.
Portal users, if allowed, see a new tab 'Documentation' which redirects them to the page with documentation (see Documentation Builder: Access rights).
If an article has a published title, then it will be used as the article's headers and in the navigation list instead of the article's title (see How to create an article).
Categories
On a website, the documentation is kept under the menu 'Docs'. Here you see documentation sections divided by categories. In the top right corner of the systray click 'Edit', go to the tab 'Customize', and click on the slider button to change the page's look.
The customization options are:
1. Cover Image
2. Preview Text
3. Introduction
4. Search bar
Turn on the Introduction, to add an introductory block above the documentation. In this block, you can write some information about the page, so the visitors could understand what it is for. Go to the 'Blocks' tab to add and edit some building blocks and make the page more appealing.
Turn on the search bar for documentation. With the help of the search bar, you can search documentation sections by the matches in the title. The found documentation sections are shown together with their category. If there are no matches found, you see the alert 'No documentation found. You can click 'Edit' to change the alert text and customize it. To reset the search click on the cross on the right side of the search bar.
Turn on the documentation preview text to show the text on the document section's card. You can add a preview text in two ways:
1. In the backend as you create or edit a documentation section in the tab 'Settings'
2. In the frontend, by clicking on the 'Edit' button in the top right corner and clicking on a documentation section at the place where the preview text should be.
Turn on the cover image to see pictures on a document section's card. You can add pictures in two ways:
1. In the backend as you create or edit a documentation section, click on the 'Pen' icon in the photo section
2. In the frontend, by clicking on the 'Edit' button in the top right corner and clicking twice above the title on a documentation section card.
There are various types of cover images that you can add to a documentation section. It can be .jpeg, .png and even .gif.
Sections
Click on any documentation section on a website to open it. In the top right corner of the systray click 'Edit', go the the 'Customize' tab, and click on the slider button to change the page's look.
The available customization options are:
1. Footer
2. Introduction
3. Navigation
4. Searchbar, including Mobile navigation, Searchbar printing, Searchbar search, and Searchbar versioning (see Documentation Builder: versioning).
Adding the Introduction and Footer allows you to add some building blocks before the documentation section and after it. You can add as many building blocks as you want and edit them the same way you edit the documentation section.
Don't add blocks with pictures (apart from background) in the Introduction or Footer of a documentation section, as it might affect the location of search bar and table of contents.
Add Navigation (Table of contents) to move between the documentation section's articles conveniently. As you scroll down the page, the Navigation panel follows you and marks bold the content that you are at. To hide the Navigation panel click on the icon ''. Click '' to show it.
The table of contents consists of various Header levels. The article's title is marked as Header 1. To see other Header levels in the Navigation panel click on the 'Arrow' icon that appears near contents that have other Header levels.
It is up to you to decide how many Header levels you want to see in the Navigation panel. To set the number of shown headers:
1. In the backend start creating or editing a documentation section
2. Open the tab 'Settings'
3. In the line 'Header Level for Navigation' put a number from 0 - 6.
To assign a header to a title or subtitle:
1. Choose the text line
2. Click on the 'Style' icon on the editing tools panel
3. Assign a Header level
4. Click 'Save'.
In case the documentation consists of many articles with plenty of media content it may take some time to fully load the page. The table of content is loaded in the first place, so a person can start reading and browsing through the articles even before the loading is complete.
You can also turn on/off the mobile navigation if the Searchbar option is enabled. If turned on, then, in the mobile version of the documentation, in the searchbar there is a button to call the table of contents. The articles in the list are presented as clickable titles, so, as the user clicks on a title, the table of content gets hidden and the user is moved closer to the related article of the documentation.
Another customization option is a Searchbar. As you turn on the Searchbar four other options, that you can turn on/off, appear. Those are Mobile navigation, Searchbar printing, Searchbar search, and Searchbar versioning (see Documentation Builder: versioning).
The Searchbar search helps to conveniently search through a documentation section. There are three search options:
1. Default Search (case insensitive, searches both in the documentation section's body and headers)
2. Case Sensitive Search (minds the letter case, for example, 'A' does not equal 'a')
3. Search in Headers only (only in lines with applied Header level style).
As you apply search parameters, all matches will be counted and you can browse through them using the back-and-forth arrow icons in the search form. The search form will follow you as you look through the matching results. Click on the cross icon to reset the search.
To be able to print the documentation with all the included articles, turn on the option 'Searchbar printing'. After that, the button 'Save as PDF' will appear on the left side of the search bar. Click on it to start downloading.
Keep in mind, that the website styles may not be parsed correctly for printing, so, for the best printing layout, it is better to use the backend styles.
To be able to switch between versions, first of all, you need to turn on the feature. From the KnowSystem app, go to Configuration > Configuration, scroll down to the section 'Documentation Builder', and tick the box 'Versioning'. Then, create some versions and apply them to some articles in a documentation section (see Documentation Builder: versioning). After that, you will be able to switch between versions and therefore will have a different set of articles in one documentation section.
To switch between versions click on the version on the left side of the search panel and choose the other one. As you choose one of the versions of a documentation section, only the articles for this version and the ones that go to any version are displayed.
All articles in a documentation section go one by one and are divided by the eye-catching Header 1. A person can see an article in a documentation section only if he/she has access to it. There are three options for how to deal with access rights of the documentation section's articles: to skip an article, to show a warning instead, or to neglect access rights (see Documentation Builder: access rights).
If you want to make articles' attachments visible under their content, you can turn on the option 'Show Attachments' in the KnowSystem Configuration, the section Documentation Builder.
The documentation section's body can be edited right from the frontend. It might be convenient to edit the whole documentation section instead of editing all articles separately. To edit a documentation section, just open one and click on the 'Edit' button in the top right corner. Edit the documentation section in the same way as you edit separate articles with the help of the website builder (see Website builder).
Documentation Builder: versioning
All features described in this article are related to the add-on Odoo Documentation Builder ().
Apply versioning for documentation to avoid double work in preparing specifications, user manuals, or software guidelines. As you create a document section you will be able to choose the versions to which it might refer and state the versions for each article. For example, the whole documentation sections might be applicable to v.14 and v.15 and some articles only to v.15.
Make sure, that the option 'Versioning' is enabled in Configurations > Documentation Builder.
To create a new version:
1. Go to Documentation > Documentation Versioning
2. Click 'Create'
3. Write a title.
Documentation may look differently depending on the version. Apply versions to a documentation section. For that start creating or editing a section and in the field 'versions' choose available ones or create a new one and click save. In the editing mode, you can assign versions to particular articles. Click on an article and choose one or several versions. You can choose only among those versions, which you applied to the documentation section of the article. If you won't assign any versions to an article, then it will be shown on all versions that are applied to its documentation section.
You can switch between the documentation section's versions, as you click on the version title in the left top corner. After that, the list of articles will change and you will see only the ones that are assigned to the version you chose.
Documentation Builder: access rights
All features described in this article are related to the add-on Odoo Documentation Builder ().
The app lets flexibly share documentation categories and sections. Public users can see only published documentation categories and sections. Portal users have the same access rights as public users, but you can also grant extra rights to particular partners. Assign KnowSystem tags for documentation sections to grant access to chosen Odoo partners (see Managing tags).
To turn on/off Documentation Builder for portal users go to Configuration > Configuration, find the section 'Documentation Builder' and tick the box 'Portal Documentation'.
To turn on/off Documentation Builder for public users go to Configuration > Configuration, find the section 'Documentation Builder' and tick the box 'Public Documentation'.
To publish a documentation category go to Documentation > Documentation Categories, open any category, and click 'Publish' or 'Unpublish' in the top right corner of the category's form.
To publish or unpublish a documentation section just open any section and click 'Publish' or 'Unpublish' in the top right corner of the section's form.
To assign a tag to a documentation section start creating or editing it, click on the tab 'Settings', find the field 'Tags', and add some.
Depending on user rights documentation section might look different. Define what to do if a documentation user does not have access to included articles: to neglect restrictions, not to show that knowledge pieces (omit them), or show a security warning.
To choose the security action for an article in a documentation section:
1. Go to Documentation > Sections
2. Open a section
3. Click on an article
4. Choose the security action
5. Click 'Save'.
To choose a security action for all included in a documentation section articles:
1. In the single view interface start choosing articles by ticking the box in the top right corner
2. In the right navigation panel choose the mass action 'Add to documentation'
3. Choose the documentation section or start typing a new title to create a new one
4. Choose a security action, that will be applied to all selected articles.
To choose the default security action for all articles in all documentation sections:
1. Go to Configuration > Configuration
2. Find the section 'Documentation Builder'
3. Find the field 'Default security action' and choose the action
4. Click 'Save'.
KnowSystem: Custom Fields
KnowSystem: Custom Fields is an add-on () to KnowSystem that allows you to add custom fields to articles. The add-on doesn't work without the core module: Custom Fields: Core. You can place your custom fields in the backend article's form, or on the website if you have: KnowSystem: Website and Portal (), and KnowSystem: Custom Fields for Website and Portal (see. KnowSystem: Custom Fields for Website and Portal).
In order to show a new property for knowledge base articles, go to Configuration > Custom article fields, click 'Create' to add a new field, and enter details. It is possible to add custom fields of the following types:
1. Single-line text (char)
2. Simple text without formatting (text)
3. Rich text (HTML-formatted text)
4. Integer or float numbers
5. Drop-down choice with your own options (selection)
6. Checkbox (boolean)
7. Date or date and time
8. Binary (a file to upload)
9. Reference to another Odoo document (e.g. for sale order, contact; many2one)
The tool lets you comfortably select an interface position of a custom field from a closed list of options. In the backend form of view, you can place your custom fields: after article, to the left column, to the right column, or to the custom tab.
Distinguish knowledge articles by type in order to show properties only for suitable ones. Thus, the set of attributes for 'user guidelines' and 'technical specifications' might be different.
Mark a custom field required to force users to enter values. In this case, a user will not be able to save an article, if the field is left empty. For that, tick the box 'Required to enter a value' as you create or edit a custom field.
Custom knowledge system fields might be imported and exported (see KnowSystem import and export).
The rights to create custom fields belong only to KnowSystem administrators.
Extra fields for article forms
Require to enter a value
Various form placements
Import and export custom fields
KnowSystem: Custom Fields for Website and Portal
KnowSystem: Custom fields for Website and Portal is a free KnowSystem add-on () that lets you show custom fields on the website. The add-on doesn't work without the core modules: KnowSystem: Website and Portal (), KnowSystem: Custom fields (), and Custom Fields: Core. The available field types for your website articles are the same as in the backend (see KnowSystem: Custom fields).
To set a custom field, go to Configuration > Custom article fields and click 'Create'. To make a custom field visible on the website, choose its 'Portal Page Placement': at the end, left column, or right column. You can also leave the field empty if you want to have a custom field only in the backend.
KnowSystem: eCommerce
KnowSystem: eCommerce is a KnowSystem add-on () that allows adding the product FAQ or documentation entry to all eCommerce product pages. The add-on also requires the extension KnowSystem: Website and Portal ().
Add a clickable button to the product's pages. The text of the button can be customized. You can change it in any way, including applying HTML tags. By default, it is 'Frequently asked questions'.
The button can either redirect users to the KMS portal interface or call the pop-up accordion. In the first case, the related article filters and tags will be applied. However, the user still can remove the choice and see all available articles. In the second case, the user sees the list of clickable article titles in the pop-up accordion. This way, the user can read articles, without leaving the page.
It is possible to select some global articles and they will be added to all available products sold in the e-shop. To select articles in a batch, you can choose the related section or tag and all included articles will be considered as FAQ. The articles from the sub-sections/sub-tags will also be shown.
Add some more articles/sections/tags to particular products. Optionally, show articles for specific sets of attribute values and hide them for others. For example, to have different FAQs for steel and aluminum tables.
Define its own knowledge for Odoo attributes or attribute values disregarding selected products. For instance, introduce additional documentation for all variants that have 'legs' or 'custom legs'.
Different users may see different sets of articles in the FAQ. Articles are shown on Odoo product pages only if a user can access those articles. Thus, website visitors would see only published ones.
Optionally, hide the FAQ for specific products or for a particular website. For that, tick the box 'Do not show eCommerce FAQ'.
Add a customizable button to redirect to/show FAQ
Hide the button for particular products/websites
Select the articles to show per product/attribute value/website
Articles are shown according to the access rights
In case, you have an e-shop, it might be a good idea to show articles with the answers to frequently asked questions, so the clients could get the information he/she needs without contacting the company. With the help of the add-on, you can add a link (button) to the product's page. The button either redirects the clients to the related articles on the KnowSystem page or shows the list of articles in a pop-up accordion. The button is added on the products page to the right side below the description (see eCommerce Product FAQ).
The text of the button may be customized. For that, it is also possible to use simple HTML tags. Just write the text in the field 'FAQ button text'. By default, the button's title is 'Frequently Asked Questions'. If you work in a multi-language environment, you can also add the translation to the button's text. So, when a user opens the website in a different language, he/she would see the button's name in that language, if it is supported.
The set of articles can be configured on three levels: per website, per separate product, and per product attributes. To add articles to a particular website, choose some sections, tags, or articles in the section 'Global FAQ' on the KnowSystem configuration page. This way, any product on the website will contain those articles. In case some sections or tags are chosen, the articles from their children will also be shown in the FAQ.
Global FAQ is particularly useful if you have some articles, that relate to all of the products. For example, you can add the company policy, delivery information, and purchase/refund instructions to the global FAQ.
You can also add certain sections, tags, and articles to the separate product templates. This way, certain articles will be shown, only if you click on the FAQ button from that product's page.
You can also select the articles that will be shown, only if a particular product's value is selected. For that, in the field 'Applied only if the product has all the values' choose the product's value/values. This way you create a rule to show the chosen-in-the-line articles only if this value is applied.
It is possible to add several rules, i.e. several groups of sections, tags, and articles. As a result, all articles found according to any of the rules will be shown on the page of this particular product. For example, we have a product 'Table' with attribute values of black, white, steel, and wood. The assembly instruction is different for the steel and wood kind of tables, so we create two lines - one with the article related to value steel and one related to article wood.
The application of each of the rules can be limited by several attribute values. Only products having all the specified values will have articles on the subject. i.e. the user must first select the correct value on the page of the online store. For example, there are also some important peculiarities of coloring the steel table in white, so we created another line and chose two values (white, steel), so the article will be seen only if both values will be selected.
All items found by any criteria as well as the items found by global criteria would be linked to the template. For example, from the product 'Table' with the selected values black, wood will be seen in the global articles related to the company's policy, and the assembly-instruction-wooden-table article.

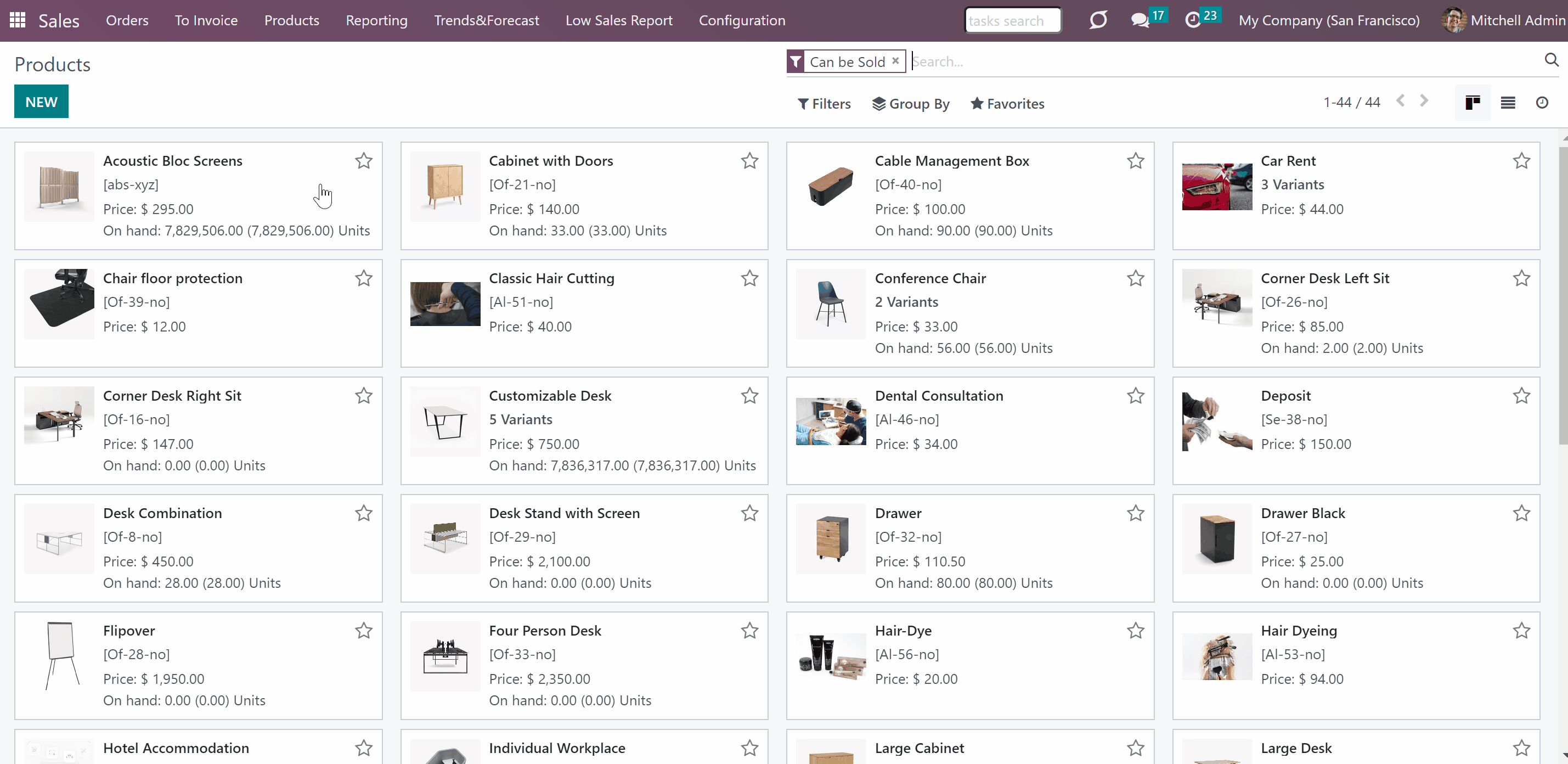

For a specific product, the FAQ button can be hidden from the store. For that, tick the box 'Do not show eCommerce FAQ' from the tab KnowSystem on the product cart.

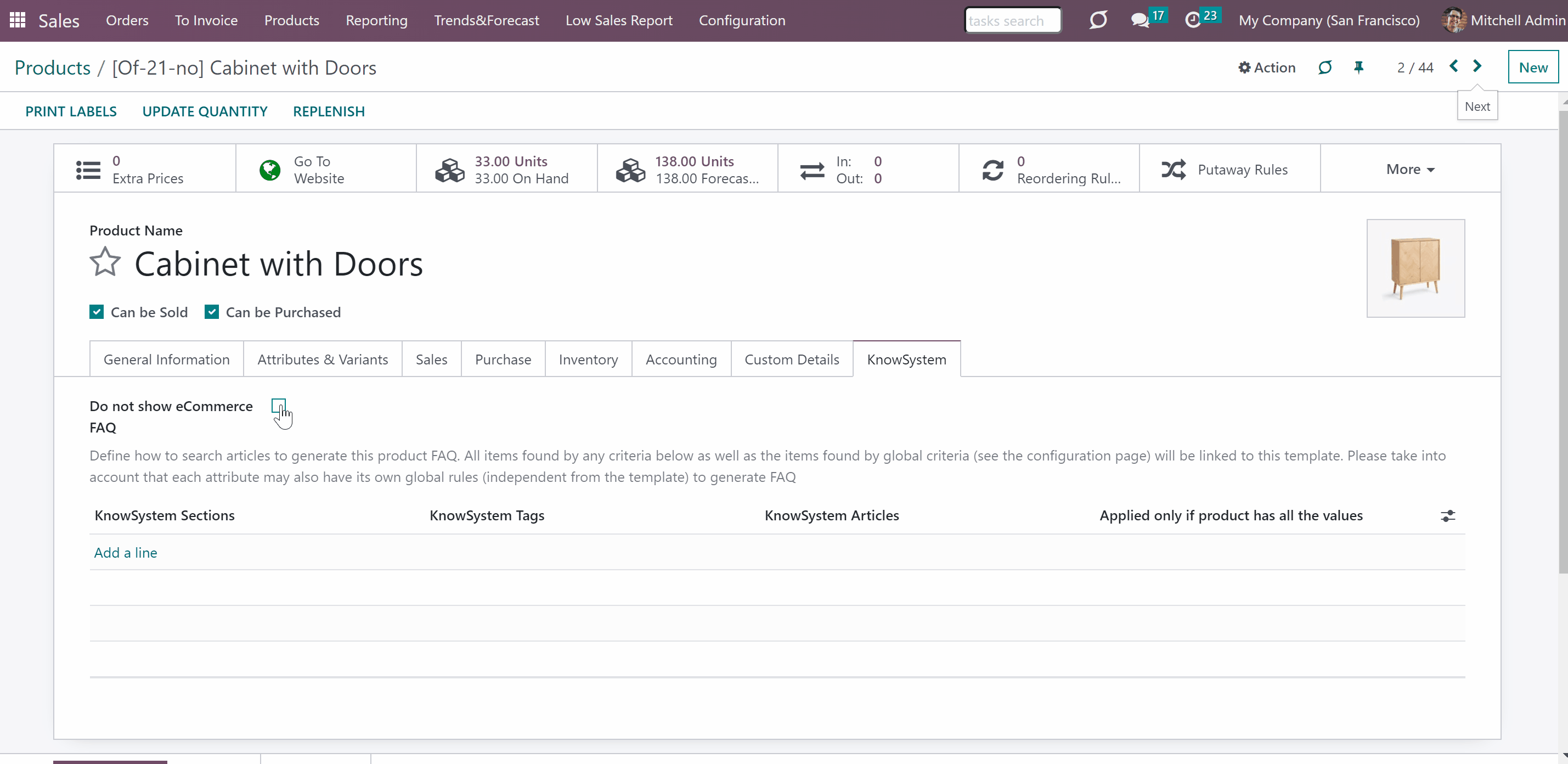

To fully hide the FAQ button, choose the option 'Do not show' as the FAQ view on the configuration page.
You can define its own sections, tags, and articles for a specific attribute. For example, show additional articles for all products with the attribute 'Legs'. It is possible to add several rules, i.e. several groups of sections, tags, and articles. As a result, on the page of each product from which you can select this attribute, all articles found by any of the rules will be displayed.
Attribute rules can be limited by the selected value on the product page, i.e., the user must first select these values on the product page in order for FAQs to be recalculated. For example, we have an attribute value 'Custom legs', for which two more articles are required 'Custom order guidelines: legs' and 'Custom order prices: legs'.
To add its own section, tag, and articles to the attribute value, as you add FAQ rules to the attribute, in the field 'Applied only if the product has all the values' choose the product's value/values. The chosen-in-the-line articles will be shown only if this value is applied.
This way, in order to generate FAQ for a particular product, the module will take into consideration the sections, tags, and articles from three levels.
Different users may see different sets of articles in the FAQ. Articles are shown only if a user can access those articles. Thus, in order to make articles available for website users, it is necessary to publish them.
KnowSystem: Multi Languages
KnowSystem: Multi Languages is a KnowSystem add-on () that lets you translate articles into installed Odoo languages. In such a way users might read and edit articles in a language from their preferences. The language switch sign is added to such fields as title, and preview text as you edit an article. Click on the language icon to manually translate to another language. You can also translate sections', tags' and tours' titles. The fields will be shown in the preferred user's language.
The work with articles in multi-language is not easy as it implies preparing an own body for each article for each language, what almost equals writing a brand new article.
Manually translate articles, titles, and preview text
Copy from another translation
Add translation for sections', tags', and learning tours' titles
See revisions independently for different languages
If you want to have only the title and preview text translated, there is no need to copy-paste the body as it will be in the default language if no other changes are made.
Click on the language icon to manually translate the field to another language. The language switch sign is added to such fields as:
1. Title and preview text as you edit an article
2. Sections', tags', types' (), and tours' titles.
In order to see the fields translated, you need to switch to the preferred language.
To update knowledge body translation you should choose the required language in the tab 'Content', and then click the button 'Edit'. Then, introduce changes the same way as when you just editing an article. All changes performed with an article will be applied to the version only in the currently chosen language. The article in the other languages will not be changed.
Multi-language regime implies that all articles should be kept updated in all Odoo languages.
Article content also might be copied from another language.
To copy the content of an article of one language to the article in another language:
1. Open an article, choose the language, and click 'Edit'
2. Click 'Copy translation'
3. In the pop-up window choose the language
4. Click 'Save&Close'.
After that, the body of the currently edited language will be replaced by the article in the selected language.
The revisions of translated articles are kept separately depending on the article's language. You can't switch between revisions of the same article in different languages and, for example, restore a revision of an article in French to the article in German (see Article revision and history of changes).
About KnowSystem: Knowledge Base System
KnowSystem is a universal knowledge management tool that might be configured to any business goal and any set of Odoo apps: helpdesk, marketing, IT, HR, project management, and so on and so on. Typical use cases are:
Helpdesk - once faced a challenge, its solution might be recorded in KnowSystem for repeated usage by co-workers and for self-service by clients
Sales and CRM - salesperson helper to find information about products, offers, frequently asked customer questions
Project management - to keep and easily retrieve knowledge of existing solutions, tools, hints, and experiments
HR - to prepare instructions, guidelines, learning tours and training, and any codified knowledge of routine in your company
Marketing - to organize Odoo online library of product use cases, expert knowledge, and well-structured documentation
Legal issues - systematize your policies, contract, and approval management, keep the full classifier of trademarks, licenses Informational technologies - share easy-reached manuals and configuration guidelines.
The app provides:
Single-view KMS navigation
Wiki-like revisions
Applied in any functional area
Reference of articles in messages
View statistics
Documentation builder, Website and portal, Custom fields, E-commerce, and multilanguage support
Concepts and terms
Here you can find all terms and add-ons icons that were used throughout all documentation.
Article - a piece of text, that contains some sort of knowledge, has a title and preview text.
Article template - a ready sample of an article, that you can edit to create a new one preserving formatting.
Article revision - a version of an article, kept in history and can be restored.
KnowSystem section - articles' storage, that provides an opportunity to give access to user groups for all contained articles. Supports hierarchy and therefore can have a parent section and subsections.
KnowSystem tag - is a mark on an article, that helps to navigate and give access to articles to particular portal users.
Learning tour - a set of articles united by a common topic, with the learning purpose.
Documentation category - a combination of documentation sections, that are similar in a way, for a structured layout.
Documentation section - a set of articles, referring to the same topic and giving a full perspective of it.
Documentation version - a product version, that documentation describes.
Mass action - an action that can be applied to several articles at once.
Article type () - an organizing KMS instrument.
Article custom field - an extra field, that you can add to an article, that may contain different types of information of your choice.
Article attachment - a document that is assigned to an article.
Backend editor - an editor that supports simple templates and basic editing options to make it possible to update an email or a message body with an article's text.
Website editor - an editor, with various advanced templates, perfect for displaying on a website.
HTML editor - a standard Odoo editor that supports standard styles and built-in commands.
Text editor - an editor that allows the creation of texts without styles.
Code editor - an HTML editor, for advanced users, who prefer to write code. An article, written in any editor (except for the Text editor), can be seen and edited in the code editor.
Internal user - employee.
Portal user - partner.
Public user - website visitor.
Single View Interface & Article interaction for internal users - the functional interface that internal users see, from which you can add and edit sections, tags, types (), tours, and apply mass actions to one or several articles at once.
KMS (Knowledge Base System) navigation for portal/public users () - the interface on a website, that portal and public users see, can look differently for different portal users based on the articles, sections, tags, and types that they have access to.
Documentation categories & documentation navigation for all users () - the documentation interface, that you see on a website, can look different for various users. If a person doesn't have rights to one or several articles of the documentation you can choose: not to show this article, show a warning that there is an article that you don't have access to or neglect access rights, and show the article anyway.
Add-ons signs
Features introduced by add-ons are marked with these signs.
KnowSystem: Website and Portal
The module lets you publish articles on the website, share them with portal users, and use the website builder to update articles.
Odoo Documentation Builder
The module lets you design website documentation pages based on knowledge base articles.
KnowSystem: Custom Fields
The module lets you add and show custom fields for articles (backend).
KnowSystem: Custom Fields for Website and Portal
The module shows custom fields on the website and portal pages (frontend). Free, but requires KnowSystem: Custom Fields.
KnowSystem: Multi-Language
The module lets you translate articles, sections, and tags to install in Odoo languages.
Single-view knowledge navigation
The innovative single-view interface is implemented in the knowledge base system. This allows you to manage articles, and see the preview from the same interface, without opening the article. When you open the app and click on an article, you see that your interface is divided into three parts: the main part with articles in the middle and two functional parts with sets of control elements on the sides of it.
Navigation and Sorting
The left navigation panel provides you with the opportunity to sort articles according to various criteria, select all found articles, and manage sections, tags, types (), and learning tours.
You can sort articles by views, likes(difference between likes and dislikes), title, create date, write date, section, and author. If you click on the 'Arrow' icon on the right side of the sorting criteria, then the sorting will be reversed.
To sort articles:
1. Open KnowSystem
2. Choose the sorting criterion
3. Click on the 'Arrows' sign to see the reversed sorting
You can search articles with the help of the search bar at the right top of the page. There are various search options:
1. By contents (in headline and articles' body)
2. By type ()
3. By author
4. By section
5. By tag
6. Documentation sections ()
You can filter articles by sections, tags, and types (). Find a particular section, tag, or type () quickly with the help of the section, tag, and type () search bars. To see all articles of one or several sections put a tick in the box by it. As sections and tags have a hierarchy: if you choose a parent section or a parent tag, you will see its subsections and subtags as well. You can do the same with tags and types () and choose different variations of them. You can edit sections, tags, and types (), and work with tours or launch them right from the same interface, by clicking on them with the right side of your mouse. Read more in 'Managing sections', 'Managing tags', 'Managing types' 'Learning tours'.
Click on a checkbox in the top right corner of an article to choose it. If you click on the 'Select all found' button, you will see the short auto preview of all these articles and possible Mass actions in the right navigation panel of the interface.
Articles Preview
The main part shows the articles list, where you can see their titles, tags, date of creation, last edit, author's photo, and preview text. If an article has no preview text, it will be generated automatically as the plain text extracted from the beginning of an article. It might contain special symbols since the preview would represent an abstract of pure HTML.
To write its own preview text:
1. Start creating or editing an article
2. Find the field preview text (first field in the tab 'Content') and write your preview
For preview text, you can use pure HTML tags. In particular, you can add pictures (however, be cautious: advanced HTML might spoil the preview appearance).
Add an article to favorites or remove it from favorites by clicking on a star in the right bottom corner. Put a like or a dislike to an article - you can always change it later by clicking on the green button.
Manage activities right from an article's card, for example, plan a revision of an article.
If an article is used in a documentation section (), then it is marked by a paperclip icon on the kanban card.
Select articles by ticking a box on the top right corner (you can also add all found articles by applying 'Select all' in the left navigation panel). When you switch between filters or apply a new search, the selection will not be cleared and that is very convenient when you want to open, print, or do another action on various articles at once.
The right navigation panel, the one to the right side, appears as you add any article to the selection.
Mass actions on selected articles
As you choose articles by clicking on the box in the top right corner of an article, the right navigation panel appears. There you will see the list of all chosen articles. Click on an article's title to remove it from the list. Remove all articles by clicking on the icon () on the right side of 'Selected articles'.
On the right navigation panel, you can update selected articles in a batch with the help of available mass actions. You can select the mass actions to show only the ones that you really need. To add a mass action:
1. Open the Knowsystem app and go to Configuration
2. Find the section 'Mass actions'
3. Click 'Add a line'
4. Choose mass actions by ticking the box by the action
5. Click 'Select'
6. Optionally, change the order of mass actions by drag&drop (this order will be preserved)
7. Click 'Save'
After saving the changes in settings, the list of mass actions in the right navigation panel will be updated.
To add the mass action 'Export', in Configuration, in the section Mass Actions, tick the option 'Export'. Keep in mind, that the additional global export right is required for a user to be able to export articles.
The available mass actions include:
Update section of all chosen articles.
Update tags of all chosen articles.
Update type () of all chosen articles.
Update access groups of all chosen articles.
Click to add to learning tour all chosen articles. You will be redirected to tours settings, to manage the order of articles.
Click to save all chosen articles in one pdf file. To make sure your file looks good for printing, avoid using style 'Header 1' throughout the article.
Click to duplicate all chosen articles.
Click to follow all chosen articles.
Add to favorites all chosen articles.
Click to archive all chosen articles. You can always restore them, to see all archived articles choose the filter 'Archived'.
Click to restore all chosen articles. To see the archived articles choose the filter 'Archived'.
On the form of each mass action, both newly added and existing ones, it is possible to choose the security groups that will be able to see and perform it. For that, just click on the mass action in the list of mass actions in configurations, then, go to the tab 'Security', click 'Add a line' and choose the group names.
Keep in mind, that some mass actions have preset security groups. So, make sure, that the users that should see those mass actions are included in those groups, or change the mass actions security settings.
In addition to the available actions, you can also prepare your own mass actions. Batch actions for articles are based on Odoo Server Actions. It means that you may add custom mass editing operations.
To create a new mass action:
1. Go to configuration and find the section 'Mass Actions'
2. Click 'Add a line'
3. Click 'New'
4. Type the name of the action
5. Choose the model 'Article'
6. Choose an action to do (according to the action, the list of further configurations will change)
7. Create an action by clicking 'Add a line' in the tab 'Data to write' and choose the related details
8. Optionally, in the tab 'Security' choose the security groups that will be able to see and apply the mass action
9. Click 'Save&Close'
10. Click 'Save'
After that, it will appear in the list of available mass actions, from where it can be added to the right navigation panel. Just choose the articles and click on the action, to update them.
For example, let's create a mass action 'Preview Summary'. As a model, we should choose 'Article', as an action to do 'Update the Record'. After that, click 'Add a line' and choose the field, which will be updated - 'Preview Summary'. As the 'Evaluation type' let's choose 'Value', and in the line 'Value' write what you would like to use as a preview text, in our case 'Here are the answers to the most frequently asked questions'. Then, save the action.
As we open the single view interface, in the right navigation panel we can find the new action 'Preview Summary'. Choose articles to apply the action. After that, on each selected article the value of the 'Preview text' field will be updated to the chosen user.
Managing KnowSystem sections
KnowSystem section is a supreme KMS object, an articles' storage, which is used for convenient navigation over articles and managing access to internal user groups. Each article should have a single linked section. Sections serve to fulfill the following tasks:
1. To unite articles (you can add only one section to an article)
2. To restrict rights to articles (see. Access rights)
3. To navigate through articles and find them quickly, by putting a tick for the required section
Sections have a hierarchy. You can set a parent section and some subsections while editing or creating a section. You can also change the hierarchy by Drag&Drop. If a user group has access to the parent section, it would have access to all included sections (see. Access rights). It is also possible to print all available articles by a section (see KnowSystem in use).
If you have a lot of sections and sub-sections, then you may find it difficult to navigate through them and select the ones you need quickly. Thus, for extra convenience, the special search bar above the sections list was introduced. Just start typing the word and click 'Enter' or the search button and the matching results will be shown and marked red. Click the button 'Reset' on the right side of the search bar to empty the search.
If a child section is selected (both in the backend and on the website ()), its parents will be hierarchically highlighted by the border of dots around the name of the element. Such selection is shown only if the section itself is not selected. Thus, it is always clear that some choice has been made somewhere (even if the structure itself is closed).
You can create and edit sections right from the single view interface and from the separate menu Configuration > Sections.
To add a new section through the single-view interface just click '...add' and write the title. Right-click on a section to see all available actions:
1. Create (click to start creating a new section)
2. Rename (click to change the section's name)
3. Edit (click to edit a section)
4. Print (click to print all articles in a section and its subsections if any)
5. Archive (click to archive a section, its articles will remain active)
How to edit sections:
1. In the KnowSystem menu right click on a section, then choose 'Edit', or go to Configurations > Sections, choose the section, and click 'Edit'.
2. Set the hierarchy by choosing the parent and sub-sections
3. Click the tab 'Restrict access' to set the groups of people that will be able to see the section and articles in it. Access to the parent section allows reading all articles in it and in its' sub-sections (see. Access rights)
4. In the tab 'Website and Portal' (), tick the option 'Show on Website' and choose the website, where the section should be published. This way public and portal users will be able to see and select the section on the left side from the articles list
5. Optionally, choose the website () to show your section on, if you don't choose any and you have a tick 'Show tag on Website', it will be shown on all your sites
6. Optionally, add the description to the section
7. Click 'Save&Close'.
Managing tags
KnowSystem tag is a critical KMS tool. A tag is a colorful mark on an article, that attracts attention. One article can have multiple tags. Tags serve for:
1. Quick search and easy navigation
2. Attaching tags to partners, to give access to articles with a certain tag (see. Access rights)
3. Creating a clear, understandable knowledge base
4. Filter articles, for quick access all over Odoo
Tags also have a hierarchy. If you'll put a tick for the parent tag, you will see the articles from all tags that it includes. You can also print all available articles by tag.
If you have a lot of tags and sub-tags, then you may find it difficult to navigate through them and select the ones you need quickly. Thus, for extra convenience, the special search bar above the tags list was introduced. Just start typing the word and click 'Enter' or the search button and the matching results will be shown and marked red. Click the button 'Reset' on the right side of the search bar to empty the search.
If a child tag is selected (both in backend and on the website ()), its parents will be hierarchically highlighted by the border of dots around the name of the element. Such selection is shown only if the tag itself is not selected. Thus, it is always clear that some choice has been made somewhere (even if the structure itself is closed).
You can create and edit tags right from the single view interface and the separate menu Configuration > Tags.
To add a tag through the single-view interface just click '...add' and write the title. Click on a tag with the right button of your mouse to see all available actions:
1. Create (click to start creating a new tag)
2. Rename (click to change tag's name)
3. Edit (click to edit a tag)
4. Print (click to print all articles in a tag and its subtags if any)
5. Archive (click to archive a tag; its articles will remain active)
How to edit tags:
1. In the KnowSystem menu right click on a tag, then choose 'Edit' or go to Configurations > Tags, choose a required record and click 'Edit'.
2. Set the hierarchy by choosing a parent tag
3. In the tag 'Applied to', you can put a tick in the box 'Apply to all documents', then your tag would appear in all documents: sales orders, contacts, etc. Click 'Add a line' to add filters, to show the tag only to documents that match all the criteria.
4. Click 'Save&New' to add more filters to another model, otherwise 'Save&Close'
5. In the tab 'Website and Portal' (), put a tick in the box 'Show on Website' (), if you want to have these tags on the website. Choose allowed partners that will be able to see articles with these tags. Access to the parent tag allows reading all articles with it and with its' sub-tags (see. Access rights)
6. Optionally, choose the website () to show your tags on, if you don't choose any and you have a tick 'Show tag on Website', it will be shown on all your sites
7. Optionally, add the description to the tag
8. Click 'Save&Close'.
To grant access to articles by tags for particular Odoo and portal users:
1. Start creating or editing a tag, choose a particular contact or contacts in the field 'Allowed partners' in the tab 'Website and Portal', and click 'Save'
2. Open contacts, click on any profile card, and start editing it, in the field 'KnowSystem tags' choose the tags and click 'Save'.
You can assign KnowSystem tags to partners, so they will see the articles under this tags, right as you edit a contacts card. To that goal use the field 'KnowSystem tags'.
You can choose 'Apply to all documents' if you want to be able to reach articles with this tag through the KnowSystem icon in the forms of other documents from anywhere in the Odoo. Or you can add filters to tags, to find suitable articles very fast. The articles will be accessible only if the document matches any of the set to the tag filters (see. KnowSystem in use).
Article types
Article types is an organizing instrument introduced by an optional add-on KnowSystem: Custom fields (). Types serve to fulfill the following tasks:
1. To show properties only for suitable types. Thus, the set of attributes for 'user guidelines' and 'technical specifications' might be different (see. KnowSystem: Custom fields)
2. To organize articles and navigate through articles (an article may have only one type)
Types also support hierarchy. You can set parent types and subtypes while editing or creating a section or by Drag&Drop.
If you have a lot of types and sub-types, then you may find it difficult to navigate through them and select the ones you need quickly. Thus, for extra convenience, the special search bar above the types list was introduced. Just start typing the word and click 'Enter' or the search button and the matching results will be shown and marked red. Click the button 'Reset' on the right side of the search bar to empty the search.
If a child type is selected (both in the backend and on the website ()), its parents will be hierarchically highlighted by the border of dots around the name of the element. Such selection is shown only if the type itself is not selected. Thus, it is always clear that some choice has been made somewhere (even if the structure itself is closed).
Create and edit types right from the single view interface or from the separate menu in Configuration > Types.
To add a type through the single-view interface just click '...add' and write the title or click on a type with the right side of the mouse to see all available actions:
1. Create (click to start creating a new type)
2. Rename (click to change type's name)
3. Edit (click to edit a type)
4. Archive (click to archive a type, its articles will remain active)
5. Print (click to generate a pdf file with all articles in a type and its subtypes)
To edit types:
1. In the KnowSystem menu click on a type with the right side of the mouse, then choose 'Edit', or go to Configurations > Article types, choose the section, and click 'Edit'.
2. Optionally, change the title
3. Choose a parent type
4. If you want the type to be visible on your site, tick the box 'Show on Website' ()
5. If you have several sites, you can choose one to show the type, or leave the field 'Website' () empty to show on all sites
6. Click 'Save&Close'.
Learning tours
Organizing a tour is a good way to combine all articles that a person needs in order to reach something. For example, you can organize a tour for newcomers, so they could learn all the nuances of working in your company. Learning tours allow you to:
1. Combine articles in a particular order with the possibility to move through them with the help of extra buttons '<Back' and '>Forward'
2. Restrict access to tours to particular user groups
3. Track users' progress and invite particular users to complete a tour
4. Add a description page before the articles.
You can manage learning tours in two interfaces: in the single view interface and in the separate menu Configuration > Tours.
Creating a tour
In order to organize articles in learning tours, make sure, that the option 'Learning tours' is enabled in KnowSystem configurations.
How to add a learning tour:
1. Start creating a tour through a single view interface by clicking on '...add', or by going to Configuration > Tours and clicking 'New'
2. In the single-view interface choose all the articles that you need by ticking the box in the top right corner of an article. In the left navigation panel choose the mass actions 'Add to tour'
3. Choose an existing tour and click 'Save&Close'
4. Click 'Add a line' to add some more articles to your tour. Choose an article and click 'Save&New' to add one more, or 'Save&Close' if you have already added the ones you need
5. Click on the tab 'Restrict access' to choose groups of users that will have access to the tour, if you leave the field empty, all internal users would see the tour. If you choose one group, then only this group will be able to start the tour
6. Click on the tab 'Description' to add some words about the tour. The page with this description would be the first one your users see as they open the tour
7. Drag&drop to change the sequence of the articles, and press the bin on the right side of an article to delete it from this tour.
It is also possible to add articles to the tour manually one by one by clicking on the button 'Add a line' as you create or edit a tour.
You can always edit your tours, either by clicking on them with the right side of the mouse or by going to Configuration > Tours.
In the editing mode you can also see the user's progress, just click on the tab 'Users Progress'. Here you can also invite separate users to complete the tour by clicking 'Add a line' and choosing a user.
Completing a tour
To begin a tour. Open the KnowSystem single view interface, find tours in the left navigation panel of it, and click on a required one.
If a user doesn't have access rights to one or several articles in the tour, then he or she will not see those articles in the tour. Thus the same tour may look different for different users.
To start a learning tour:
1. Open a tour from the KnowSystem app
2. Click 'Start a tour'
3. Move through the articles. When you return to the previous article you do not lose your progress. You can close a tour and continue it again later. Then, you will start from the same place, where you stopped
4. At the end of a tour, you see a congratulatory alert 'Good job! The tour is over.'
How to create an article
There are two user groups that can create an article. Those are KnowSystem Admin and KnowSystem Editor.
To create an article:
1. Open the KnowSystem app
2. Click 'New'
3. Introduce the title and preview text
4. Optionally add the published title ( the title, that will be visible on the website)
5. Add tags, sections, type ()
6. In the tab 'Website', tick the box 'Show on Website' and choose the website to show the article on ( the article will not be visible on the site until you publish it. If you leave the field empty, then the article will be seen on all your websites after publishing)
7. Optionally, tick the box 'Website Pinned', to pin the article at the top of the articles list on the website ().
6. Optionally, attach files in the tab 'Attachments'
7. Optionally, set the access rights in the tab 'Access Rights'
8. Now you can fill the body of the article, for that in the tab 'Content' choose one of the editors, then click 'Edit'
9. When you are ready, click 'Save'.
After choosing a certain editor and writing an article, the same editor should be chosen to edit it. This way, you will be able to avoid any inconsistencies or data loss, while some editors may adapt the styles/blocks of the articles.
An article may have two titles, an article's title, and a published title. If an article has a published title, then it will be used in:
1. Pdf's name. If you download a single article, which has a published title, the title will be used as the file's name.
2. Article name in pdfs. If an article has a published title, then it will be used in generated pdf instead of the article's title.
3. Article title on portal/website (). If an article has a published title, then this title will be shown on the portal/website both in the list of articles and as you open a particular article instead of the article's title.
4. Article header in documentation navigation + content (). If an article has a published title, then it will be used as the article's headers and in the navigation list instead of the article's title.
The article's title is the title, which is used in the backend. If an article doesn't have a published title, then the article's title will be used in all the cases.
You can also create an article from a template, to avoid losing time on adjusting blocks and styles (see Creating an article from a template).
There are several ways to edit an article. You can do that in the Backend builder, Website builder (), HTML editor, Text Editor and Raw Code Editor. It is up to you which one to choose, according to your needs and preferences.
Backend builder
- Basic styles
- Safe for printing and email referencing
- Looks less attractive on the site
- Easy to use
Website builder
- Advanced styles
- May display incorrectly when added to emails
- Perfect for site
- Easy to use
HTML Editor
- Odoo editor's built-in commands
- May display incorrectly when added to emails, if complex styles are used
- Looks less attractive on the site
- Easy to use
Text Editor
- Simple text
- Unlimited compatibility with printings and emails, copying to clipboard
- Looks less attractive on the site and in backend
- Easy to use
Raw Code Editor
- Click 'Edit source code' from any editor to switch to the code editor.
- Any simple and advanced HTML tags and styles including Bootstrap-ready elements and iframes
- Can add article's text to emails, when only simple styles are used
- Difficult to use
After choosing one of the editors, it is highly recommended to use the same one to edit an article.
As you start creating or editing an article, by default, the backend builder is applied. It is also possible to change the default editor, which will be applied to all newly created articles. However, you still will be able to choose another editor, while creating or editing an article.
To set a default editor:
1. Go to KnowSystem Configurations
2. Find the section 'Settings' and choose the editor in the field 'Default Editor Type'
3. Click 'Save'.
Backend builder
Backend builder is an editor that you see when you create or edit an article internally. It provides you with a set of simple and safe-for-the-backend blocks, which are compatible with printing and messaging layouts. There are three types of blocks: text blocks, special blocks, and image blocks. Each block has a grey intro box, where you see what it looks like.
The available text blocks are:
1. Title + text
2. Text
3. Title + Subtitle
4. Comparisons
5. Columns
6. Color Boxes
The available special blocks are:
1. Card
2. Alert
3. Code
4. Tagline
5. References
6. Separator
The available picture blocks are:
1. Image + Text
2. Text + Image
3. Image
4. Banner
5. Columns
6. Images List
Drag and drop building blocks to update an article's body. As you save the article the styles change to the ones that are safe for reading in the backend, printing, and adding to messages.
In the backend builder, you can choose text styles, make text bold, italic, or underlined, change font size, remove font style, add ordered and unordered lists, add checklists, align paragraphs, add tables, links, pictures, switch to the code view, and undo and redo actions.
You can also switch to the raw code view to update articles' HTML, by clicking on the button 'Edit source code' as you open an article.
To make sure the sub-titles look good while printing, avoid using the style 'Header 1' in the article's body.
Website builder
The website builder is introduced by an optional KnowSystem add-on KnowSystem: Website and Portal (). It allows you to apply advanced styles and complex widgets by using Odoo's built-in website editor to make website-friendly articles. Numerous snippets, animations, style templates, and options will help you to prepare nice-looking portal knowledge pages. Avoid using that for internal or printing purposes: advanced styles often contradict printing and composer layouts.
How to edit an article in the website builder:
1. Open the article you want to edit
2. Choose the website builder, or set it as a default one and click 'Edit', then you will be redirected to the website page in the editing mode
3. Add blocks, choose various styles, and write an article
4. Click 'Save'
Another way to edit an article with the help of the website builder is to open the article on the website and click 'Edit' in the top right corner.
You can also start creating an article, write the title, text, add tags, a section, a type (), and choose the website to show the article on, click 'Save', and fill the article's body in the website builder, the same way as in 'How to create an article'. If you entered the published title in the backend builder, then, as you open the article through the website builder – you will see the published title. Even if the article is not published.
It is also possible, to create an article right from the website. For that, open the KnowSystem page in the editing mode, click the button 'New' in the top right corner, and choose the option 'Article'. In the pop-up window, you will be able to specify the details of the article: its backend and published title, section, tags, and preview summary. As you click 'Save', you will be redirected to the article's website page in the editing mode and will be able to add blocks, choose various styles, and write an article.
The backend builder and website builder have different purposes. Choose the backend builder, if you want to create articles for internal use, that you will be able to print and refer to when sending an email or a message. Choose the website builder, if you want to publish your articles on a website, share, or give access to some partners. In the website builder, the choice of blocks and styles is wider. You can also animate icons and some boxes to catch the reader's attention. It is possible to change the font's color and its background color.
The set of available blocks depends on the modules and themes installed in your Odoo system. For writing articles available all the same blocks are as when you create a website. For example, Title, Text, Numbers, Picture, Text - Image, Image - Text, Columns, Accordion, Alert, etc.
There are a lot of tools to make your articles stand out by customizing building blocks. Try various styles, fonts, and font colors. Use the command '/' to call the additional instruments panel.
HTML Editor
HTML editor is a standard Odoo editor, which supports the standard HTML styles and allows you to use the Odoo built-in commands. This way, you can create articles in a convenient and familiar manner. The editor doesn't have building blocks. In case, only simple styles are used, the editor may be compatible with printing and messaging layouts.
Use the standard Odoo styles. For that, write a line and highlight it. In the appearing panel, you can choose the text style, make it bold, italic, underline, or strike it through, choose the font/background color, change the text's size, turn the text into a list, and/or add a link.
Type '/' to call out the built-in commands, scroll down the list, and choose a command to apply to the article. For example, insert a table, or a link. You can apply commands related to various spheres: structure, text format, media, navigation, widgets, and basic blocks.
Text Editor
Text editor allows you to create simple articles without styles. Articles that are written with the help of simple text have unlimited compatibility with printing and messaging layouts.
The editor is the best choice if you need to have the possibility to share information quickly. For that, you don't need to start editing an article or select the whole article's body. Simply, click on the button 'Copy to clipboard' and your text is ready to be shared.
Raw Code editor
Code editor allows you to apply any simple and advanced HTML styles but requires certain technical knowledge. Articles that are written with the help of simple HTML might be compatible with printing and messaging layouts. Switch to raw code from the backend builder from time to time by clicking on the button 'Edit Source Code'.
You can switch to the raw code view to update articles' HTML regardless of the editor in which the article was written. The exception is the Text Editor, while the articles written in it represent simple text and have no code, that could be edited.
The editing of the raw code is done in the backend, even if the article was written in the Website Editor.
Creating an article from a template
Creating an article from a template is a fast and convenient way to create new articles while keeping uniform styles. You can prepare new knowledge templates or save any existing article as a template.
You can use any article as a template and use it for further articles. For that, open any article, in the head menu of it find the 'Actions' button, choose 'Make template', write the reference, and change it the way you want.
You can also create a template in the configuration menu. To create a template, open the KnowSystem app, go to Configuration > Templates, click 'Create', write a reference title, fill in the main body, and click 'Save'.
Use backend articles' templates only for articles in backend to make sure styles are displayed correctly.
To create an article from a template:
1. Open the KnowSystem app
2. Click 'Create from template'
3. Choose a template
4. Click 'Create'
5. After that, the body of an article will be filled with the values of a template
6. Continue creating an article (see How to create an article).
Interaction with an article
As you open an article, you see the fields with the details of the article, various tabs, and the article body. You can change the details of the article, such as the title or preview text, right away. To change the article's body, click the 'Edit' button by the related editor. Here, from the article's page, as in the KnowSystem menu, you can create a new article from scratch and from a template using the buttons in the top right corner.
You can interact with an article through the tabs above its' body. As you save an article for the first time three more tabs are added. Those are 'Discussion', 'Revisions', and 'Info' tabs.
As you open the 'Discussion' tab, you see the article's message thread. Any internal user that has access to the article can take part in discussing it. Here you can see, the notifications stating that the article was revised and other people's comments. Click 'Send message' to open the message typing field, add smiles, attach files, or open the message wizard to change the text style.
You can also add a Log note or schedule an activity connected with an article, e.g. to revise it. All followers might receive notifications about revisions of an article (see Article revision and history of changes). Click 'Follow' to become a follower of the article, or unfollow, if it is not relevant. You can add followers, by clicking on a 'Person' icon, and selecting the recipients of the invitation.
Above the messages thread, you will find the links to share an article with internal or public/portal users. Keep in mind, that a user should have access to the article to see it, or it should be published.
Simultaneously, it is possible to share an article with any user neglecting access rights. For that, click on the button 'Share with Token'. The link with a special token would be generated. Copy the link and send it to a user. Anyone with the link will be able to see the article even if it is not published ().
Between the links and the messages thread, you will find three icons. Click on the 'Star' sign, to add the article to your favorites, and put a like or dislike to the article. You can always change your mind and put a like instead of dislike or vice versa. The chosen icon will be grey, to change the answer click on the one that is green.
Click 'Actions' to make a template, save it as PDF, duplicate, archive, or delete the article.
As you open the 'Revisions' tab, you see the list of editions with information about the date and the person who changed the article. You can click on any revision in the list, to see how the article used to look. If you like another variant more or the article was spoiled, you can click 'Restore this revision' and confirm your choice in the pop-up window to back up an article. Keep in mind, that this action will be written as a new revision and you still will be able to return to any previous state of the article (see Article revision and history of changes).
As you click on the 'Info' button, you see all the available information about the article, including:
1. The list of contributors that took part in creating and revising the article
2. The field 'Active till', where you can set the date after which an article will be auto-archived. With the help of the field, you can archive no longer relevant articles automatically. The articles are archived with the help of the scheduled job '[KnowSystem] Automatically archive articles'
3. The time of publishing and last revision
4. Article's statistics, such as views and the number of times the article was referred to in emails and was viewed by each person
5. Documentation sections (), where the article is used
6. People who liked, disliked, or added the article to their favorites.
KnowSystem import and export
If you already have articles in some KMS systems you can add them to KnowSystem. Use the 'Import' tool above the articles view to import an electronic table with such articles. Take into account that the body of an article should be pure HTML.
To import your articles to KnowSystem:
1. Click 'Favourites' at the top of the page, the above articles list
2. Choose 'Import records'
3. Click 'Upload file' and choose a file with articles
4. Choose the columns for import
5. Click 'Import'
6. Upon finishing you will see a message stating that a certain number of records is imported.
If you create articles in KnowSystem and want to move to some other app or just to have an extra file with articles for extra security, use the mass actions button 'Export'. It would generate a table which might be also used for import. You can choose various fields for export, and save files in .xlsx or .csv format.
To export articles:
1. Make sure that the mass action 'Export' is turned on in the configurations of the module
2. Choose the articles for export, by ticking the box in the article's right top corner or clicking 'Select all found'
3. Click 'Export' in the right navigation panel mass actions
4. Choose the article's fields for export (by default there are: article title, article, preview summary, section, and tags)
5. Tick the box 'I want to update data' if you want the file to be import-compatible.
Article revisions and history of changes
The history of article revisions is kept in Odoo in a similar way it's done in Wikipedia. If one of the users breaks something, it takes 2 clicks to recover a proper knowledge version. A revision is created when an article or an important detail (title, content, preview, section, tags, attachments) is changed. No significant modifications do not lead to creating a new revision. Revisions help to restore only important details.
As you open the Revisions tab, you see all the revisions of the article. You can find out who and when changed something in an article. There are 5 columns, where changes are stated - in contents, you see how many signs were added if they are green or deleted if they are red, and with a minus; the other columns show the previous state, for example, the previous title, or a deleted tag.
To restore a revision of an article:
1. Open an article
2. Open the tab 'Revisions'
3. You see all the revisions of this article
4. Click on the revision that should be restored
5. Click 'Restore this revision'.
After restoring, you can always return back to the previous variant of an article, as a new revision is created.
Only KnowSystem Admin can restore and delete revisions.
You can translate your articles into various languages(). Then you will see the sign of the language, for example, 'EN', in the title and preview text of an article while editing. Click on the icon to manually translate it. Odoo users, who have a different platform language will see the manual translation of the title and the preview text. You can edit the article in your default language and the changes will be applied only to the article in this language. The same article in other languages will remain the same. Revisions of the same article in different languages are kept in one list, but it is impossible to restore an article to one of the versions of the article in another language.
There is a separate menu, where you can see and manage all revisions. For that, go to Configuration > Revisions. There you can see the list of revisions, group them (for example by an article), search, restore a revision, and delete the ones you don't need.
To restore a revision, just open it, click the button 'Restore the revision', and confirm your decision.
To delete one or several revisions, you need to select them by ticking the box on the left side, then click on the gear icon 'Action' and choose the option 'Delete'. After that, the deleted revisions will be deleted permanently.
For security purposes, in order to access the menu 'Revisions', a user should be a 'KnowSystem Administrator'.
KnowSystem in use
Observe article content right from any Odoo object: there is no need to always switch to the KnowSystem advanced interface. All articles are available in a pop-up window with convenient navigation. Click on the KnowSystem icon above a document form or in the systray to access the articles. Send KnowSystem articles in messages by updating a message body or attaching a pdf file. Print all articles in a tag or section.
Set tags for the KnowSystem quick access. You can choose 'Apply to all documents' in the tag's settings if you want to be able to reach articles with this tag throughout the KnowSystem icon in the forms of other documents from anywhere in the Odoo. Or you can add filters to tags, to find suitable articles very fast. The articles will be accessible only if the document matches any of the set to the tag filters. Add filters to tags, to show particular articles only when they match ALL or ANY of them.
Get redirected to start creating an article right from the systray or articles by documents wizards, or from activities.
Documents by tags
Link knowledge tags to Odoo document types in order to simplify the search of articles. You can either choose to apply a tag to all available documents or choose a particular model and add filters.
As you apply a tag to all documents, the tag will be added by default to all quick search forms regardless of the interface and document type the user is working with. To apply a tag to all documents:
1. Start editing or creating a tag
2. Find the tab 'Applied to' and tick the box 'Apply to all documents'
3. Click 'Save&Close'.
As you apply a tag to one or several documents' modules, the tag will be added by default to the quick search forms according to the document type the user is working with. To apply a tag only to a particular document's models:
1. Start editing or creating a tag
2. Find the tab 'Applied to' and click 'Add a line'
3. In the pop-up window choose a model and click 'Save&New' to add one more, otherwise 'Save&Close'
4. Click 'Save&Close'.
You can also add filters to each chosen model. So, the order of the articles with this tag will also depend on particular documents' objects. For example, assign helpdesk tickets to the tag 'odoo/helpdesk': the latter would be entered by default for support request objects.
How to add some filters to a document's model:
1. Start creating or editing a tag
2. Find the tab 'Applied to'
3. Click 'Add a line'
4. Choose a model
5. Click 'Add filter'
6. Choose filter options, by scrolling or typing the beginning in the search field and choose the filter options
7. Click on '+' on the right side of the rule you wrote to add one more filter, otherwise click 'Save&Close'
8. If you have more than one rule you can choose ANY or ALL button above, so only documents that match ANY of the rules or ALL rules will be shown
10. Click on '...' button, on the right side near '+' to add an even more complex rule
11. Here you can also choose to filter documents that match ALL or ANY rules
12. If you choose ALL or ANY both times, your rules will stand in one line and only one button will remain
Push the button 'Records' to see Odoo documents that match the rule terms.
Here are some examples of useful simple filters:
Total > = 1000 (Will show articles with this tag, if the order total is more than 1000 to understand how to work with such orders)
Product type = Storable product (Will show articles with this tag, if a product is storable to show articles about this kind of products and what to do with them)
Country > Country name = United States (Will show articles with this tag, if the contact's card states that he is from United States to keep articles and company policy about working with US companies)
Billing Status = Waiting Bills (Will show articles with this tag, if there are some pending bills)
Is Won = Won (Will show articles with this tag, if the opened opportunity has a status won)
Quick search from any interface
You can easily access KnowSystem from anywhere in Odoo. Quickly observe articles related to a current document discussion. Instantly reference one or a few. To add the quick entry for the Knowledge base from any Odoo form view, go to Configuration > Configuration, find KnowSystem options, put a tick in the box 'Articles by Documents', and click 'Save'.
To see the KnowSystem icon () in the Odoo systray near activities and messages, go to Configuration > Configuration, find KnowSystem options, and put a tick in the box 'KnowSystem in systray' and click 'Save'.
As you click on the KnowSystem icon in the systray or above the document form you see a pop-up window with articles. Search articles by tags, sections, or content in a few clicks for a quick overview. Click on an article to read it.
As you see your documents in the tree view and want to open quick access to KnowSystem, which will show you only filtered to chosen objects articles, click on the KnowSystem article icon that is located above the view. If you click on the KnowSystem icon in systray, it would show all tags that are applied to the particular model regardless of the chosen records.
As you call out the articles by documents or the articles in the systray wizard, you can not only see and search articles but also get redirected to the article creation wizard. This way, you can get straight to writing an article, whenever you are inspired or see that a certain article is missing, from any document object in Odoo. For that, just click the button 'Create New' at the bottom of the wizard.
Knowledge for messaging
To let users reference/cite Knowledge records in Odoo messages, go to configurations, and turn on the option 'Articles in Email Composers'. Click 'Send message' and open the full composer. Use the command '/' to call the additional instruments panel and scroll down to find the button 'KNOWSYSTEM'.
In the pop-up window, you can search articles by tags, sections, and contents. Here tags are always applied to the particular object, from which you compose a message.
Click on an article to read it, and click 'Close' to return to the message composer. Click '+' at the right top corner of an article to choose an article. Open the tab 'Chosen articles' to remove some articles or to read them. There are three types of citing an article. You can:
1. Update the message body with knowledge content (it is added to the end of a current message)
2. Attach a PDF version of the referenced article
3. Share a public knowledge link with your colleagues or partners (the link is added as a clickable title of an article).
The type of link that is added to the message can be chosen in the KnowSystem Configurations, in the field 'Share URL type'. It is possible to share an internal link (the link to the article in the backend, accessible only for the internal users), website link (the link to the article in the frontend (portal), available only for the users with the related access rights), and link with a token (the link to the KnowSystem frontend (portal) without security checks).
The best printing/messaging compatibility can be reached through the use of backend builder or text editor.
Knowledge in activities
In the same way, as in the case of messaging, the tool may be used to let users reference/cite Knowledge records in Odoo activities. To allow referencing articles in activities, go to KnowSystem configurations and turn on the option 'Articles in Activities'. Start scheduling an activity and in the composer, use the command '/' to call the additional instruments panel and scroll down to find the button 'KNOWSYSTEM'.
In the pop-up window, you can search articles by tags, sections, and contents. Here tags are always applied to the particular object, from which you compose a message.
Click on an article to read it, and click 'Close' to return to the activity composer. Click '+' at the right top corner of an article to choose an article. Open the tab 'Chosen articles' to remove some articles or to read them. There are three types of citing an article. You can:
1. Update the activity body with knowledge content (it is added to the end of the current activity)
2. Add a knowledge link to the activity (the link is added as a clickable title of an article). The type of link that is added to the message can be chosen in the KnowSystem Configurations, in the field 'Share URL type'. It is possible to share an internal link (the link to the article in the backend, accessible only for the internal users), website link (the link to the article in the frontend (portal), available only for the users with related access rights), and link with a token (the link to the KnowSystem frontend (portal) without security checks).
The best printing/messaging compatibility can be reached through the use of backend builder or text editor.
As you access the activities in the systray, through the related button, it is possible to add a link at the end of the list, that would redirect to the article creation wizard. This way, you can get straight to writing an article, whenever you are inspired by any document object in Odoo. To add the feature, go to KnowSystem Configurations and turn on the option 'Create from activities'. After that, the button 'Create new article' will be added to the activities' top entry to quickly create new articles. The button is visible only to those users, who have a right to create articles.
Knowledge for printing
In KnowSystem you can print one article or several articles at once. To print a single article just open an article and click 'Save as PDF'.
To print articles from the single view interface:
1. Choose one or several articles by putting a tick in the box in the top right corner of an article
2. In the right navigation panel, mass actions choose 'Save as PDF', and the downloading will start automatically
3. You can also 'Select all found' articles and print them all at once in the same way.
It is also possible to print all articles of a specific tag, section, or type (). To print all articles in a tag, section, or type () click on it with the right side of the mouse and choose 'Print'. If a tag, a section, or a type has subtags, subsections, or subtypes, the articles from there will also be printed.
Attach your articles to emails and messages as pdf, so the recipient will be able to print them.
For the correct mass print use Backend builder styles and avoid using Headline 1 in the body of an article.
You can allow portal and public users to print published articles (). For that go to Configuration > Configuration, find section 'Portal and Website Views', and tick 'Print in Portal' (). After that, as a user opens an article there will be the printer icon near the article's title, that will redirect straight to the printing wizard.
The styles for printing by default are applied from settings as for other Odoo printings. But, you can turn on the custom article's printing layout instead. For that, go to KnowSystem Configurations and tick the option 'KnowSystem Printing Layout'.
As you enable the option, below, you will be able to choose the printing layout or create your own layout. By default, the special KnowSystem layout is applied.
Below the field with the printing layout, you will find three buttons, to edit the report itself, the report's layout, and the paper format. This way, the module provides a set of features to flexibly adjust and personalize the report's view according to the company's needs.
The button 'Edit report' opens a form, where you can inherit the printing form itself and apply the changes. For example, stylize the title or add a static part that will be located after the title.
The button 'Edit Layout' opens a form, where you can change the view name, view type, visibility, and architecture of the layout.
The button 'Edit Paper Format' opens a form, where you can change the page size (A4 > A3), and page orientation (landscape/portrait, margins, and so on).
Even if the custom article's printing layout is disabled, you will see the buttons to edit the report itself and the report's paper format.
Optionally, you can turn on the option to print articles without titles for the best printing layout. For example, it is useful, to avoid situations, when the article's title is printed on one page and the body of the article on the other one. For that go to Configuration > Configuration, find the section 'KnowSystem Options', and tick 'Print without titles'. After that only articles' content will be printed.
KnowSystem access rights
Access to articles is managed in a different way for different types of users. There are 3 types of users:
1. Odoo user or internal user
2. Portal user or registered user ()
3. Public user ()
By default, all articles are available to any internal user, if you don't restrict access only to particular user groups. You can restrict access either to particular sections, including subsections, or to particular articles.
There are two types of access rights: read rights and update rights. Read rights are set in the field 'Read access groups'. Update rights are set in the field 'Update access groups'.
Specify user groups in the field 'Read access groups' to close sections or specific articles for certain user groups. Users outside these groups will not see the articles. An exception is the users within the group KnowSystem Admin and the users, who are specified in the second field 'Update Access Group'. In the second case, the user will have the right to read articles /sections, even if its group is not explicitly specified in the 'Read access groups' field of those articles/sections. This applies to both ordinary users (although they still will not be able to edit articles) and KnowSystem: Editor.
The field 'Update access groups' affects the rights to edit and delete sections/articles, as well as create articles inside sections. In particular, it:
1. Prohibits editing and deleting sections in which the user is not specified in Update Access Groups
2. Prohibits editing and deleting articles in which the user is not listed in "Update Access Groups", as well as the one that does not have the right to edit sections
3. Prohibits the creation of articles inside sections for which the user does not have the right to edit.
On the website (), public users see only published articles. Portal users can also see the articles they have access to. To give access to a particular user add this user or several users to the field 'Allowed partners' as you edit a tag and add this tag to articles that you want to allow the user to see.
Rights to administrate the Odoo knowledge management system belong to 2 user roles: KnowSystem Editor and KnowSystem Administrator. If you want a user to be able to create articles, he or she should belong to one of those groups.
Sections, tags, types, and tours access for internal users
Different users may see different sets of navigation menus: sections, tags, types(), and tours.
KnowSystem considers user groups that are defined per section. If the user groups are not defined, a section is considered 'global' and each internal user may read articles in it.
To grant access to a section for the whole user group:
1. Start creating or editing a section
2. Open the tab 'Restrict access'
3. Choose user groups that will have read/update access to all articles in this section and its' sub-sections.
Rights for a knowledge section are defined not only according to this section but also according to all its parents. For example, if a user can't access 'Sales', he/she would not be able to access 'Sales / CRM disregarding whether 'CRM' is available for his/her user group.
Internal users can see sections, even those that are empty if they have access to them.
Tags and types () are visible for all internal users disregarding their settings.
KnowSystem considers user groups that are defined per tour. If the user groups are not defined, a tour is considered 'global' and each internal user may read articles in it.
To grant access to a tour for the whole user group:
1. Start creating or editing a tour
2. Open the tab 'Restrict access'
3. Choose user groups that will have the access to the tour.
Only KnowSystem Administrators can edit or create a tour.
Internal access to articles
In KnowSystem articles' access for internal users is defined on 2 levels: per section and per article. In order to be able to read an article, a user should have both: access to an article and its' section.
To manage user groups for an article:
1. Open an article and go to the 'Access Rights' tab
2. Specify the user groups that should be able to read the article in the field 'Read access group'
3. Specify the user groups that should be able to manage the article in the field 'Update access group'
If the user groups are not defined, an article is considered 'global' and each internal user may read it (if he/she has access to its section).
Access to edit articles
Rights to administrate the Odoo knowledge management system belong to 2 user roles: KnowSystem Editor and KnowSystem Administrator. If you want a user to be able to create articles, he or she should belong to one of those groups. If an internal user has access to see an article and belongs to one of the stated groups, then he can also edit it.
To assign one of these groups to an internal user:
1. Go to General Settings
2. Click 'Manage users' and choose a user
3. Scroll down to the section productivity
4. In the field 'KnowSystem' choose one of the groups.
All article versions are stored in revision, so there is always a way to return to one of the previous ones. Only KnowSystem Admin can restore and delete revisions (see. Article revision and history of changes). Thus, it helps to make the editing process more secure.
Public users access
Public users () - website visitors - may access KMS interfaces only if you explicitly allowed that. Thus, you can switch off the option 'Public KnowSystem' () to fully disable the knowledge base for such users.
Public users () would see only those KMS objects, which are published and available for a website they are visiting.
An article would be available for a public user if its section and itself are published.
To publish () an article:
1. Chose one or several articles and choose 'Publish' in mass actions in the right navigation panel of the interface
2. Open an article, go to the tab 'Website', and tick the option 'Visible on current website'.
You can share the link to an article with any user neglecting the access rights (). For that, go to the 'Discussion' tab and click the button 'Share with Token'. The link with a special token will be generated. Copy the link and send it to a user. Anyone with the link will be able to see the article even if it is not published.
To make a section visible on a website ():
1. Start creating or editing a section
2. Go to the tab 'Website and Portal' and tick the box 'Show on Website'
3. If you leave the field 'Website' empty, then the section will be seen on all available websites.
To make a tag visible on a website ():
1. Start creating or editing a tag
2. Go to the tab 'Website and Portal' and tick the box 'Show on Website'
3. If you leave the field 'Website' empty, then the tag will be seen on all available websites.
To make a type () visible on a website ():
1. Start creating or editing article type
2. Go to the tab 'Website and Portal' and tick the box 'Show on Website'
3. If you leave the field 'Website' empty, then this type would be seen on all available websites.
Portal users access
Portal users () have the same access rights as public users (), but you can also grant extra rights to particular partners. To that goal, knowledge tags are used. You can assign those tags in two ways:
1. Start creating or editing a tag, choose particular contacts in the field 'Allowed partners' in the tab 'Website and Portal'
2. Open contacts, find a particular user, and start editing the profile card, in the field 'KnowSystem' tags choose the tag.
Thus, a portal user would have access to all published articles (see above) and all articles which have partner-related tags.
For example, create tags 'premium', 'standard', and 'free' to manage knowledge base tariffs and assign the tags to corresponding articles. Or create a tag with a country to assign it to all articles available to the partners from it.
User rights comparison
KnowSystem Admin
Can read, create, edit, and delete any articles, sections, tags, article types (), and tours. May configure Misc options.
KnowSystem Editor
Can read, create, edit, and archive related to him/her articles, sections, and any tags. Can also see related to him/her tours. Can read any article type ().
Odoo user
Can read related to his/her user groups articles, sections, and tours. Can read any tags and article types (). May like/dislike, add to favorites, and take part in discussions.
Portal user ()
Can read published and partner-related-by-tags articles. Can also read published sections, tags, and article types (). May like/dislike articles.
Public user ()
Can read published articles, sections, tags, and article types ().
Configuration page
KnowSystem has a configuration page, where you can turn on and off some add-ons' features and make necessary changes to make your work convenient.
Default Editor Type: allows choosing the editor, that will be applied by default to all newly created articles. Still, you will be able to switch to another editor for certain articles (see How to create an article).
Learning Tours: it allows you to organize learning tours, combining the articles of your choice. You can easily set the order of articles by drag&drop. Write notes to learners, that they will see on the first page of the tour. Track learners' progress (see. Managing learning tours).
Articles in Email Composers: it adds a KnowSystem icon in the email composers, so you can choose articles to add to emails. You can either update the email body or attach an article as a pdf (see. Quick access to KnowSystem).
Articles by Documents: it adds a KnowSystem icon above all documents' forms, so you can read an article without opening the KnowSystem app. You can also set different filters to documents' tags to see them in the first place when you access the KnowSystem from the matching documents (see. Quick access to KnowSystem).
Articles in Activities: it adds a KnowSystem icon to the activities composers, so you can choose articles to add to the body of the activity. You can either update the activity body with an article or share a link to the article (see. Knowledge in activities).
Create from activities: adds a button to the activities' top entry, that allows quickly get redirected to the article creation wizard (see. Knowledge in activities).
Share URL type: allows choosing the type of generated link. Can be either 'Internal URL' (link to the article in the backend available only for internal users), 'Website URL' (link to the article in the portal available for internal and portal users), or 'Shared with token' (a link to the article in portal available for anyone) (see Knowledge for messaging, Knowledge in activities).
Articles in systray: adds a KnowSystem icon in the backend header, so you will be able to see it from any place and easily access articles (see. Quick access to KnowSystem).
Custom Layout: turns on the custom layout for article printing. Otherwise, the standard company layout is used. As you enable the option, the "Edit layout" button becomes visible (see Knowledge for printing).
Print without titles: allows printing only content of the articles, without titles, for a better printing layout (see Knowledge for printing).
In the Extra features section, you can see all the available add-ons and their pages. From here you can turn them on and off.
In the Mass actions section, it is possible to add/remove the mass action 'Export'. Just tick the option 'Export articles'.
Also, in this section, you can manage other mass actions. To add mass actions, click 'Add a line' and choose the action. Change the order of mass actions by drag&drop. To delete an action click on the cross by the mass action (see Mass actions on selected articles).
The add-on Portal and Website Views () has its' own configuration section. The extension supports multi-websites, and it is required to apply them for each of your sites separately. To switch between sites' settings, select the website to configure in 'You are configuring KnowSystem for the website'.
Portal KnowSystem (): allows you to show the articles to portal users. You can give access to some articles, by assigning tags and stating the 'Allowed partners', or adding KnowSystem tags to partners on the contact card (see. Managing tags).
Public KnowSystem (): allows you to publish your articles for all website visitors to see (see. Access Rights).
Custom Portal Filters (): allows you to set options to filter articles on the portal. You can add portal filters to various models, set actions, and choose a person for which the filter will be available. You can also add automatic rules to filter objects.
Custom Portal Search (): allows you to set search options to find articles on the portal. You can add a field and name it, so it will be possible to search for the keywords in it on the portal.
Custom Portal Sorting (): allows you to add custom sorting criteria for the portal/website KnowSystem. You can add sorting criteria based on a particular field, name them, and set either ascending or descending order.
Turn on default sorting (): allows applying one of the sorting options by default as a user opens the KnowSystem page on the website.
Default Sorting/Custom Default Sorting (): allows choosing a particular sorting option either default or a custom one as a user opens the KnowSystem page on the website.
Print in Portal (): adds a possibility for portal and public users with access to the article to print it.
Portal Likes (): gives portal users an opportunity to like and dislike articles.
Social Sharing (): adds a social share bar, for quick sharing through various social media.
Sections and Tags Tooltips (): shows sections and tags descriptions on the website as a user hovers over any of those.
Articles Per Page (): choose the number of articles that are shown per page.
The add-on KnowSystem: eCommerce () has its' own configuration section. The extension supports multi-websites, and it is required to apply them for each of your sites separately. To switch between sites' settings, select the website to configure in 'You are configuring eCommerce FAQ for the website'.
FAQ view (): choose the way the FAQ will be shown: as a popup with all found articles, as a link to the full-featured portal navigation, or do not show it at all (see eCommerce Product FAQ).
FAQ button text (): write your own text, which will be used as the button's text. By default, the button's name is 'Frequently asked questions'. You can use simple HTML (see eCommerce Product FAQ).
Global FAQ(): select criteria to find articles that would be used as FAQ for all products of this website (see eCommerce Product FAQ).
KnowSystem sections (): choose the sections, to add all the related articles to the global FAQ. The articles from the sub-sections will be also shown in FAQ.
KnowSystem tags (): choose the tags, to add all the related articles to the global FAQ. The articles from the sub-tags will be also shown in FAQ.
KnowSystem articles (): choose the articles for the global FAQ.
The add-on Odoo Documentation Builder () has its' own configuration section. The extension supports multi-websites, and it is required to apply them for each of your sites separately. To switch between sites' settings, select the website to configure in 'You are configuring Documentation Builder for the website'.
Portal Documentation (): turns on portal documentation.
Public Documentation (): turns on public documentation.
Default Security Action (): in the case when a user doesn't have access to only one or several articles of documentation, you can choose to either hide it, show a warning, that the user has no access to it, or neglect access rights and show it anyway if a user has the access to the documentation itself (see. Odoo Documentation Builder: access rights).
Show Attachments (): includes article attachments to a documentation page. Otherwise, only the articles' content will be shown.
Versioning (): allows you to introduce some changes in documentation for particular versions and leave the rest that refers to all versions to avoid double work. It adds a field, to state to which version an article refers (see. Odoo Documentation Builder: versioning).
KnowSystem: Website and Portal
KnowSystem: Website and Portal is an optional add-on () that allows you to add your articles to the portal and on your websites. The extension allows you to use the standard Odoo Website builder that provides a wide variety of templates and tools for editing articles, making them presentable and user friendly, and customize your articles in the same way as website pages.
The main features of the app are:
Publish articles on your website
Edit your articles in Website builder
Give access to articles to portal users by tags
Print, like, or share articles
Turn on/off KnowSystem for portal users to let them observe published and especially delegated to them articles. Go to Configuration > Configuration, find section 'Portal and Website Views' and tick the box 'Portal KnowSystem'.
Turn on/off KnowSystem for public users to let unauthorized website visitors read published articles. Go to Configuration > Configuration, find section 'Portal and Website Views' and tick the box 'Public KnowSystem'.
Website and Portal: navigation & settings
All features described in this article are related to the add-on KnowSystem: Website and Portal ().
To open the KnowSystem website interface in the frontend:
1. Open the app Website
2. Open the top menu KnowSystem
Portal users might also access the knowledge base through the tab 'Knowsystem' in their account, which redirects portal users to the page with articles (see Website and Portal: public & portal users).
All entries would lead to the same page '/knowsystem'.
The website KnowSystem interface consists of KnowSystem Navigator, Search Panel, and Articles list. The mandatory elements are the search panel and article list.
Optional elements that you can turn on/ off to customize the page:
1. KnowSystem Navigator
2. Custom Types Navigator ()
3. KnowSystem Center Introduction
4. KnowSystem Left Introduction
5. KnowSystem Tags.
To turn on/off optional elements:
1. Click on the 'Edit' button in the top right corner of the page and open the tab 'Customize'
2. Click on the slider button
Turn on the central or left introduction, to write some information about the page. The content of the introduction can be edited, click 'Edit' at the right top corner of the page and add some building blocks. The available blocks are the same as in the website editor (see 'Website editor'). The introduction and article cards also support building blocks, including ones with pictures.
The KnowSystem Navigator (left navigation panel) can be fully turned off, in this case, all other optional elements will be turned off too. The KnowSystem Navigator allows you to see articles by sections, by tags (KnowSystem Tags), and by Types ( Custom Types Navigator). Put a tick in the section, tag, or type () box to see its articles.
A section is seen on a website, only when it is published. To make a section visible on a website:
1. Start creating or editing a section
2. Open the tab 'Website and Portal' and tick the box 'Show on Website'
3. If you leave the field 'Website' empty, then the tag will be seen on all available websites.
A tag is seen on a website, only when it is published and the optional element 'KnowSystem Tags' is turned on. To make a tag visible on a website:
1. Start creating or editing a tag
2. Open the tab 'Website and Portal' and tick the box 'Show on Website'
3. If you leave the field 'Website' empty, then the tag will be seen on all available websites.
A type () is seen on a website, only when it is published and the optional element 'Custom Types Navigator' is turned on. To make a type () visible on a website:
1. Start creating or editing a type
2. Open the tab 'Website and Portal' and tick the box 'Show on Website'
3. If you leave the field 'Website' empty, then the type will be seen on all available websites.
If a child section, tag, or type is selected, its parents will be hierarchically highlighted by the border of dots around the name of the element. Such selection is shown only if the parent itself is not selected. Thus, it is always clear that some choice has been made somewhere (even if the structure itself is closed).
Also, in case, you have added a description to a certain section, tag, or type, it will be visible on the website as you hover over the element.
It is possible to Filter articles by various criteria. By default, there is only one filter option 'All', but you can add custom filters that you want. To add custom filters:
1. In the KnowSystem app, go to Configuration > Configuration
2. Scroll to the section 'Portal and Website Views'
3. Find 'Custom Portal Filters'
4. Click 'Add a line'
5. Click 'New'
6. Add the Filter name and click '+Add Filter'
7. Click 'Save&Close'
For example, create a filter 'Favourite', to filter articles by likes - e.g. when it has more than 8 likes.
Navigate through articles with the help of the search panel. There are various search options available. Click on an arrow near the search field, to change the search option. You can search:
1. In content
2. In titles only
3. By section
You can also add custom search options that you want. To add custom search options:
1. In the KnowSystem app, go to Configuration > Configuration
2. Scroll to the section 'Portal and Website Views'
3. Find 'Custom Portal Search'
4. Click 'Add a line'
5. Click 'New'
6. Choose the field, which will be checked for matches, while searching
7. The field 'Label' (the search title, which will be shown in the search options) will be generated automatically, but you can change it
7. Click 'Save&Close'.
For example, add a search option 'Preview Summary' to search for matches in articles' previews only.
In case, the searching or filtering result has no matches you see the warning 'There are no articles found. Clear search'. If you click 'Edit' in the top right corner from here, then you will be able to customize the warning. The phrase 'Clear search' contains a link, that redirects to the KnowSystem page and therefore clears the searching parameters.
It is possible to sort articles by various criteria. By default, the available options are:
1. Trending (by the views)
2. Title (by the alphabet)
3. Section (by the sections order)
4. Likes (by the difference between likes and dislikes).
Simultaneously, you can add custom sorting options that you need. To add custom sorting options:
1. In the KnowSystem app, go to Configuration > Configuration
2. Scroll to the section 'Portal and Website Views'
3. Find 'Custom Portal Sorting'
4. Click 'Add a line'
5. Click 'New'
6. Choose the field, that will be considered for sorting
7. Type the sorting name
8. Choose the sorting order (ascending or descending)
9. Click 'Save&Close'.
In the configuration, you can also turn on the default sorting, i.e. the one that will be applied as a user opens KnowSystem on the website. You can choose from the default options or the custom ones that you have created. For that, the fields 'Turn on default sorting', 'Default Sorting', or 'Custom Default Sorting' were introduced.
Keep in mind, that if some sorting criterion is not available for a user (e.g. likes, when the setting 'Portal Likes' is turned off or when custom default sorting is not present in the table 'Custom Portal Sorting'), then the standard sorting criterion 'Trending' will be applied.
One of the main parts of the interface alongside the navigation and search panel is the articles list itself. Here you can see all the available article cards. An article's card shows:
1. Title
2. Preview text
3. Likes and dislikes (if not turned off through the configuration)
4. Tags
If an article has a published title, then this title will be shown on the portal/website both in the list of articles and as you open a particular article instead of the article's title (see How to create an article).
The article's preview text on the site is the same as on the backend. To edit preview text from the frontend click on the button 'Edit' in the top right corner of the page with the articles list and click on the preview text to edit it. Here you can also add various building blocks, right to the article's card.
To open an article click on the article's title.
Also, in the top right corner of an article's card, you can see an article's likes and dislikes, if you turned them on on the configuration page. Only registered and internal users can like or dislike an article. Public users can only see the number of likes and dislikes. To like or dislike an article:
1. Open an article
2. Scroll down till the end of the article and find the 'Like' and 'Dislike' icons
3. Click on any, and it will be recorded
4. You can always change your decision and put, for example, like instead of dislike, by clicking on a related icon.
To move through pages with article cards use the pages list at the bottom. You can set the number of articles per page:
1. Open the KnowSystem app, go to Configuration > Configuration
2. Scroll down to the section Portal and Website Views
3. Find the line 'Articles per page' and type the number of articles, that you want to show on a single page.
It is also possible to pin an article If you want some articles to be shown in the first place, no matter what page a person is at.
To pin an article:
1. Open the KnowSystem app in the backend
2. Open an article
3. Go to the tab 'Website'
4. Tick the box 'Visible on current website'.
Website and portal: article page & website builder
All features described in this article are related to the add-on KnowSystem: Website and Portal ().
If the article is created with the help of the website builder, it will be possible to edit it right from its website page, just click 'Edit' in the top right corner, to open the website builder. Or, you can return to editing in the backend, by clicking on a 'Gear' icon.
Also, you can start creating or editing an article, choose the website builder, and click 'Edit'. Then you will be redirected to the website page in the editing mode (see Website Builder).
See a mobile preview by clicking on the phone icon in systray, to make sure an article looks good. From the systray, you can also publish and unpublish articles.
Optionally, you can:
1. Allow partners to print knowledge pieces, like, or share articles. Go to Configuration > Configuration find the 'Portal and Website Views' section and put a tick by 'Print in Portal'. Then, by the article's headline, a printing icon will appear.
2. Allow partners to share articles. Go to Configuration > Configuration find the Portal and Website Views section and put a tick by 'Social sharing'. Then at the bottom, you will see social media icons.
3. Allow partners to like and dislike articles. Go to Configuration > Configuration find the Portal and Website Views section and put a tick by 'Portal likes'. Then at the bottom, you will see icons like and dislike.
From an article's view, you can also switch back and forth between articles. Click on the arrows in the top right corner of an article.
To return back to the main articles' menu without losing the searching criteria, use the tool breadcrumbs on the left top corner of an article. For example, click on the previous step 'KnowSystem' to return to the main articles menu.
It is also possible, to create an article right from the website. For that, open the KnowSystem page in the editing mode, click the button 'New' in the top right corner, and choose the option 'Article'. In the pop-up window, you will be able to specify the details of the article: its backend and published title, section, tags, and preview summary. As you click 'Save', you will be redirected to the article's website page in the editing mode and will be able to add blocks, choose various styles, and write an article.
Website and Portal: public & portal users
All features described in this article are related to the add-on KnowSystem: Website and Portal ().
KnowSystem for public and for portal users can be turned on or off, depending on your goals.
Turn on/off KnowSystem for portal users to let portal users observe published and especially delegated-to-them articles. Go to Configuration > Configuration, find the section Portal and Website Views, and tick the box 'Portal KnowSystem'. After that, portal users will be able to read published and partner-related-by-tags articles and related-to-those sections, read published tags and article types (). They may also like/dislike articles.
Turn on/off KnowSystem for public users to let unauthorized website visitors read published articles. Go to Configuration > Configuration, find the section Portal and Website Views, and tick the box 'Public KnowSystem'. After that public users will be able to read published articles, sections, tags, and article types ().
The app supports multi websites, and therefore it is required to set the configuration for each available site separately. For example, you can turn on the KnowSystem Portal, KnowSystem Public, and allow printing on one website, but turn on only KnowSystem Portal on the other, or make it unavailable at all.
Here are all the options, that can be configured for each website (see Configuration page):
1. Turn on/off Portal KnowSystem: allows you to show the articles to portal users.
2. Turn on/off Public KnowSystem: allows you to publish your articles for all website visitors to see.
3. Add Custom Portal Filters: allows you to set options to filter articles on the portal.
4. Add Custom Portal Search: allows you to set search options to find articles on the portal.
5. Add Custom Portal Sorting: allows you to add custom sorting criteria for the portal/website KnowSystem.
6. Turn on/off default sorting: allows applying one of the sorting options by default as a user opens the KnowSystem page on the website.
7. Turn on/off Print in Portal: adds a possibility for portal and public users with access to the article to print it.
8. Turn on/off Portal Likes: gives portal users an opportunity to like and dislike articles.
9. Turn on/off Social Sharing: adds a social share bar, for quick sharing through various social media.
10. Turn on/off Section and Tags Tooltips: shows sections and tags descriptions on the website as a user hovers over any of those.
11. Set the number of articles per page: choose the number of articles that are shown per page.
Odoo Documentation Builder
Odoo Documentation Builder is an add-on () to KnowSystem, that allows combining articles in advanced documentation to cover certain aspects of organizational or functional knowledge. The extension also depends on the add-on KnowSystem: Website and Portal ().
Each KMS article might be used several times for different documentation. You can add an unlimited number of documentation pages structured by categories. The idea is to have a single documentation website page that fully covers a definite issue or aspect. You can also modify the appearance of pages: show or hide introductions and footers, turn on/off the search bar and table of contents, and add or remove preview images and texts.
You can turn on the option 'Portal Documentation' and 'Public Documentation' to make the documentation available for portal and public users respectively. The app generates website pages automatically. To update this documentation set you should only add or remove a required knowledge article.
Indicate to which version an article relates. Share documentation categories and sections. Publish required documents to make them available for everybody, and assign KnowSystem tags - to grant access to chosen Odoo partners. Define what to do if a documentation user does not have access to included articles: to neglect restrictions, not to show that knowledge pieces, or to show a security warning. The app fully supports standard Odoo features including multi websites.
Combine articles
Modify documentation pages
Publish and share documentation
Introduce versioning
Documentation Builder: managing documentation
All features described in this article are related to the add-on Odoo Documentation Builder ().
A documentation category is a tool, that helps you to structure your documentation. A category unites documentation sections. There are two ways to create a new category:
1. Go to Documentation > Documentations Categories and click 'New'
2. Go to Documentation > Documentation Sections and click on '+ Category'.
Drag&drop categories to change their sequence.
A Documentation section is a set of articles that together create documentation on a particular topic or for a particular object. There are two ways of creating a documentation section. You can go to Documentation > Documentations Sections, click 'New', and add articles one by one, or you can add all required articles at once from the single view interface.
To add articles to a documentation section:
1. Go to Documentation > Documentations Sections and click create
2. Write a title of the section and manually translate it into other installed languages (), if you want
3. Choose a category and versions (see Documentation Builder: versioning)
4. Open KnowSystem and choose the articles by putting a tick in the top right corner of the articles
5. In the right navigation panel choose the mass action 'Add to documentation'
6. In the pop-up window choose the documentation section, to which you want to add articles
7. Choose a security action that will apply to all chosen articles (see Documentation Builder: access rights)
8. Click 'Save&Close'
9. Go to the documentation section card, and click 'Edit'
10. Click 'Add a line' to add one more article, that you can choose in the pop-up window.
11. Choose a security action for it
12. Click on the tab 'Settings' to add preview text and tags. From here you can also choose 'Header level for navigation', which is the number of headers that will be shown in the navigation panel, as a person reads a documentation section
13. Click 'Save'.
The tags that you add to a documentation section, are the same tags that are applied to articles. Add a tag for quick search and easy navigation or to share a knowledge piece with the assigned-to-the-tag partners (see Managing tags).
You can publish the document section as you open it, by clicking on the button 'Publish/Unpublish' in the top right corner. It is possible to share document sections with any users, even when it hasn't been published yet.
Click on the button 'Go to Website' and you will be redirected to the documentation page on the website. In case, a user has the right to edit the documentation, it will be opened in the editing mode.
Click on the 'Share' button in the top right corner of a document section and a link with a special token will be created (see Documentation Builder: access rights).
Drag&drop documentation sections to change the category.
From the backend, you can track, what articles are used in documentation. Such articles are marked by a paperclip icon on the kanban card. To find out in what documentation sections the article is used, go to the 'Info' tab as you open an article and find the field 'Documentation sections'.
You can also filter the articles, that are used in documentation by applying the filter 'Used in documentation'.
To find all articles of a particular section, type the section's name and choose the searching criterion 'Documentation sections'.
Documentation Builder: customization
All features described in this article are related to the add-on Odoo Documentation Builder ().
As you turn on the 'Public Documentation' (in Configuration>Configuration> Documentation Builder), the page 'Docs' appears on the website and the tab Docs appears in the portal if the option 'Portal Documentation' is turned on. Both entries lead to the same page '/docs'. There you can see all published documentation categories and documentation sections.
Portal users, if allowed, see a new tab 'Documentation' which redirects them to the page with documentation (see Documentation Builder: Access rights).
If an article has a published title, then it will be used as the article's headers and in the navigation list instead of the article's title (see How to create an article).
Categories
On a website, the documentation is kept under the menu 'Docs'. Here you see documentation sections divided by categories. In the top right corner of the systray click 'Edit', go to the tab 'Customize', and click on the slider button to change the page's look.
The customization options are:
1. Cover Image
2. Preview Text
3. Introduction
4. Search bar
Turn on the Introduction, to add an introductory block above the documentation. In this block, you can write some information about the page, so the visitors could understand what it is for. Go to the 'Blocks' tab to add and edit some building blocks and make the page more appealing.
Turn on the search bar for documentation. With the help of the search bar, you can search documentation sections by the matches in the title. The found documentation sections are shown together with their category. If there are no matches found, you see the alert 'No documentation found. You can click 'Edit' to change the alert text and customize it. To reset the search click on the cross on the right side of the search bar.
Turn on the documentation preview text to show the text on the document section's card. You can add a preview text in two ways:
1. In the backend as you create or edit a documentation section in the tab 'Settings'
2. In the frontend, by clicking on the 'Edit' button in the top right corner and clicking on a documentation section at the place where the preview text should be.
Turn on the cover image to see pictures on a document section's card. You can add pictures in two ways:
1. In the backend as you create or edit a documentation section, click on the 'Pen' icon in the photo section
2. In the frontend, by clicking on the 'Edit' button in the top right corner and clicking twice above the title on a documentation section card.
There are various types of cover images that you can add to a documentation section. It can be .jpeg, .png and even .gif.
Sections
Click on any documentation section on a website to open it. In the top right corner of the systray click 'Edit', go the the 'Customize' tab, and click on the slider button to change the page's look.
The available customization options are:
1. Footer
2. Introduction
3. Navigation
4. Searchbar, including Mobile navigation, Searchbar printing, Searchbar search, and Searchbar versioning (see Documentation Builder: versioning).
Adding the Introduction and Footer allows you to add some building blocks before the documentation section and after it. You can add as many building blocks as you want and edit them the same way you edit the documentation section.
Don't add blocks with pictures (apart from background) in the Introduction or Footer of a documentation section, as it might affect the location of search bar and table of contents.
Add Navigation (Table of contents) to move between the documentation section's articles conveniently. As you scroll down the page, the Navigation panel follows you and marks bold the content that you are at. To hide the Navigation panel click on the icon ''. Click '' to show it.
The table of contents consists of various Header levels. The article's title is marked as Header 1. To see other Header levels in the Navigation panel click on the 'Arrow' icon that appears near contents that have other Header levels.
It is up to you to decide how many Header levels you want to see in the Navigation panel. To set the number of shown headers:
1. In the backend start creating or editing a documentation section
2. Open the tab 'Settings'
3. In the line 'Header Level for Navigation' put a number from 0 - 6.
To assign a header to a title or subtitle:
1. Choose the text line
2. Click on the 'Style' icon on the editing tools panel
3. Assign a Header level
4. Click 'Save'.
In case the documentation consists of many articles with plenty of media content it may take some time to fully load the page. The table of content is loaded in the first place, so a person can start reading and browsing through the articles even before the loading is complete.
You can also turn on/off the mobile navigation if the Searchbar option is enabled. If turned on, then, in the mobile version of the documentation, in the searchbar there is a button to call the table of contents. The articles in the list are presented as clickable titles, so, as the user clicks on a title, the table of content gets hidden and the user is moved closer to the related article of the documentation.
Another customization option is a Searchbar. As you turn on the Searchbar four other options, that you can turn on/off, appear. Those are Mobile navigation, Searchbar printing, Searchbar search, and Searchbar versioning (see Documentation Builder: versioning).
The Searchbar search helps to conveniently search through a documentation section. There are three search options:
1. Default Search (case insensitive, searches both in the documentation section's body and headers)
2. Case Sensitive Search (minds the letter case, for example, 'A' does not equal 'a')
3. Search in Headers only (only in lines with applied Header level style).
As you apply search parameters, all matches will be counted and you can browse through them using the back-and-forth arrow icons in the search form. The search form will follow you as you look through the matching results. Click on the cross icon to reset the search.
To be able to print the documentation with all the included articles, turn on the option 'Searchbar printing'. After that, the button 'Save as PDF' will appear on the left side of the search bar. Click on it to start downloading.
Keep in mind, that the website styles may not be parsed correctly for printing, so, for the best printing layout, it is better to use the backend styles.
To be able to switch between versions, first of all, you need to turn on the feature. From the KnowSystem app, go to Configuration > Configuration, scroll down to the section 'Documentation Builder', and tick the box 'Versioning'. Then, create some versions and apply them to some articles in a documentation section (see Documentation Builder: versioning). After that, you will be able to switch between versions and therefore will have a different set of articles in one documentation section.
To switch between versions click on the version on the left side of the search panel and choose the other one. As you choose one of the versions of a documentation section, only the articles for this version and the ones that go to any version are displayed.
All articles in a documentation section go one by one and are divided by the eye-catching Header 1. A person can see an article in a documentation section only if he/she has access to it. There are three options for how to deal with access rights of the documentation section's articles: to skip an article, to show a warning instead, or to neglect access rights (see Documentation Builder: access rights).
If you want to make articles' attachments visible under their content, you can turn on the option 'Show Attachments' in the KnowSystem Configuration, the section Documentation Builder.
The documentation section's body can be edited right from the frontend. It might be convenient to edit the whole documentation section instead of editing all articles separately. To edit a documentation section, just open one and click on the 'Edit' button in the top right corner. Edit the documentation section in the same way as you edit separate articles with the help of the website builder (see Website builder).
Documentation Builder: versioning
All features described in this article are related to the add-on Odoo Documentation Builder ().
Apply versioning for documentation to avoid double work in preparing specifications, user manuals, or software guidelines. As you create a document section you will be able to choose the versions to which it might refer and state the versions for each article. For example, the whole documentation sections might be applicable to v.14 and v.15 and some articles only to v.15.
Make sure, that the option 'Versioning' is enabled in Configurations > Documentation Builder.
To create a new version:
1. Go to Documentation > Documentation Versioning
2. Click 'Create'
3. Write a title.
Documentation may look differently depending on the version. Apply versions to a documentation section. For that start creating or editing a section and in the field 'versions' choose available ones or create a new one and click save. In the editing mode, you can assign versions to particular articles. Click on an article and choose one or several versions. You can choose only among those versions, which you applied to the documentation section of the article. If you won't assign any versions to an article, then it will be shown on all versions that are applied to its documentation section.
You can switch between the documentation section's versions, as you click on the version title in the left top corner. After that, the list of articles will change and you will see only the ones that are assigned to the version you chose.
Documentation Builder: access rights
All features described in this article are related to the add-on Odoo Documentation Builder ().
The app lets flexibly share documentation categories and sections. Public users can see only published documentation categories and sections. Portal users have the same access rights as public users, but you can also grant extra rights to particular partners. Assign KnowSystem tags for documentation sections to grant access to chosen Odoo partners (see Managing tags).
To turn on/off Documentation Builder for portal users go to Configuration > Configuration, find the section 'Documentation Builder' and tick the box 'Portal Documentation'.
To turn on/off Documentation Builder for public users go to Configuration > Configuration, find the section 'Documentation Builder' and tick the box 'Public Documentation'.
To publish a documentation category go to Documentation > Documentation Categories, open any category, and click 'Publish' or 'Unpublish' in the top right corner of the category's form.
To publish or unpublish a documentation section just open any section and click 'Publish' or 'Unpublish' in the top right corner of the section's form.
To assign a tag to a documentation section start creating or editing it, click on the tab 'Settings', find the field 'Tags', and add some.
Depending on user rights documentation section might look different. Define what to do if a documentation user does not have access to included articles: to neglect restrictions, not to show that knowledge pieces (omit them), or show a security warning.
To choose the security action for an article in a documentation section:
1. Go to Documentation > Sections
2. Open a section
3. Click on an article
4. Choose the security action
5. Click 'Save'.
To choose a security action for all included in a documentation section articles:
1. In the single view interface start choosing articles by ticking the box in the top right corner
2. In the right navigation panel choose the mass action 'Add to documentation'
3. Choose the documentation section or start typing a new title to create a new one
4. Choose a security action, that will be applied to all selected articles.
To choose the default security action for all articles in all documentation sections:
1. Go to Configuration > Configuration
2. Find the section 'Documentation Builder'
3. Find the field 'Default security action' and choose the action
4. Click 'Save'.
KnowSystem: Custom Fields
KnowSystem: Custom Fields is an add-on () to KnowSystem that allows you to add custom fields to articles. The add-on doesn't work without the core module: Custom Fields: Core. You can place your custom fields in the backend article's form, or on the website if you have: KnowSystem: Website and Portal (), and KnowSystem: Custom Fields for Website and Portal (see. KnowSystem: Custom Fields for Website and Portal).
In order to show a new property for knowledge base articles, go to Configuration > Custom article fields, click 'Create' to add a new field, and enter details. It is possible to add custom fields of the following types:
1. Single-line text (char)
2. Simple text without formatting (text)
3. Rich text (HTML-formatted text)
4. Integer or float numbers
5. Drop-down choice with your own options (selection)
6. Checkbox (boolean)
7. Date or date and time
8. Binary (a file to upload)
9. Reference to another Odoo document (e.g. for sale order, contact; many2one)
The tool lets you comfortably select an interface position of a custom field from a closed list of options. In the backend form of view, you can place your custom fields: after article, to the left column, to the right column, or to the custom tab.
Distinguish knowledge articles by type in order to show properties only for suitable ones. Thus, the set of attributes for 'user guidelines' and 'technical specifications' might be different.
Mark a custom field required to force users to enter values. In this case, a user will not be able to save an article, if the field is left empty. For that, tick the box 'Required to enter a value' as you create or edit a custom field.
Custom knowledge system fields might be imported and exported (see KnowSystem import and export).
The rights to create custom fields belong only to KnowSystem administrators.
Extra fields for article forms
Require to enter a value
Various form placements
Import and export custom fields
KnowSystem: Custom Fields for Website and Portal
KnowSystem: Custom fields for Website and Portal is a free KnowSystem add-on () that lets you show custom fields on the website. The add-on doesn't work without the core modules: KnowSystem: Website and Portal (), KnowSystem: Custom fields (), and Custom Fields: Core. The available field types for your website articles are the same as in the backend (see KnowSystem: Custom fields).
To set a custom field, go to Configuration > Custom article fields and click 'Create'. To make a custom field visible on the website, choose its 'Portal Page Placement': at the end, left column, or right column. You can also leave the field empty if you want to have a custom field only in the backend.
KnowSystem: eCommerce
KnowSystem: eCommerce is a KnowSystem add-on () that allows adding the product FAQ or documentation entry to all eCommerce product pages. The add-on also requires the extension KnowSystem: Website and Portal ().
Add a clickable button to the product's pages. The text of the button can be customized. You can change it in any way, including applying HTML tags. By default, it is 'Frequently asked questions'.
The button can either redirect users to the KMS portal interface or call the pop-up accordion. In the first case, the related article filters and tags will be applied. However, the user still can remove the choice and see all available articles. In the second case, the user sees the list of clickable article titles in the pop-up accordion. This way, the user can read articles, without leaving the page.
It is possible to select some global articles and they will be added to all available products sold in the e-shop. To select articles in a batch, you can choose the related section or tag and all included articles will be considered as FAQ. The articles from the sub-sections/sub-tags will also be shown.
Add some more articles/sections/tags to particular products. Optionally, show articles for specific sets of attribute values and hide them for others. For example, to have different FAQs for steel and aluminum tables.
Define its own knowledge for Odoo attributes or attribute values disregarding selected products. For instance, introduce additional documentation for all variants that have 'legs' or 'custom legs'.
Different users may see different sets of articles in the FAQ. Articles are shown on Odoo product pages only if a user can access those articles. Thus, website visitors would see only published ones.
Optionally, hide the FAQ for specific products or for a particular website. For that, tick the box 'Do not show eCommerce FAQ'.
Add a customizable button to redirect to/show FAQ
Hide the button for particular products/websites
Select the articles to show per product/attribute value/website
Articles are shown according to the access rights
In case, you have an e-shop, it might be a good idea to show articles with the answers to frequently asked questions, so the clients could get the information he/she needs without contacting the company. With the help of the add-on, you can add a link (button) to the product's page. The button either redirects the clients to the related articles on the KnowSystem page or shows the list of articles in a pop-up accordion. The button is added on the products page to the right side below the description (see eCommerce Product FAQ).
The text of the button may be customized. For that, it is also possible to use simple HTML tags. Just write the text in the field 'FAQ button text'. By default, the button's title is 'Frequently Asked Questions'. If you work in a multi-language environment, you can also add the translation to the button's text. So, when a user opens the website in a different language, he/she would see the button's name in that language, if it is supported.
The set of articles can be configured on three levels: per website, per separate product, and per product attributes. To add articles to a particular website, choose some sections, tags, or articles in the section 'Global FAQ' on the KnowSystem configuration page. This way, any product on the website will contain those articles. In case some sections or tags are chosen, the articles from their children will also be shown in the FAQ.
Global FAQ is particularly useful if you have some articles, that relate to all of the products. For example, you can add the company policy, delivery information, and purchase/refund instructions to the global FAQ.
You can also add certain sections, tags, and articles to the separate product templates. This way, certain articles will be shown, only if you click on the FAQ button from that product's page.
You can also select the articles that will be shown, only if a particular product's value is selected. For that, in the field 'Applied only if the product has all the values' choose the product's value/values. This way you create a rule to show the chosen-in-the-line articles only if this value is applied.
It is possible to add several rules, i.e. several groups of sections, tags, and articles. As a result, all articles found according to any of the rules will be shown on the page of this particular product. For example, we have a product 'Table' with attribute values of black, white, steel, and wood. The assembly instruction is different for the steel and wood kind of tables, so we create two lines - one with the article related to value steel and one related to article wood.
The application of each of the rules can be limited by several attribute values. Only products having all the specified values will have articles on the subject. i.e. the user must first select the correct value on the page of the online store. For example, there are also some important peculiarities of coloring the steel table in white, so we created another line and chose two values (white, steel), so the article will be seen only if both values will be selected.
All items found by any criteria as well as the items found by global criteria would be linked to the template. For example, from the product 'Table' with the selected values black, wood will be seen in the global articles related to the company's policy, and the assembly-instruction-wooden-table article.
For a specific product, the FAQ button can be hidden from the store. For that, tick the box 'Do not show eCommerce FAQ' from the tab KnowSystem on the product cart.
To fully hide the FAQ button, choose the option 'Do not show' as the FAQ view on the configuration page.
You can define its own sections, tags, and articles for a specific attribute. For example, show additional articles for all products with the attribute 'Legs'. It is possible to add several rules, i.e. several groups of sections, tags, and articles. As a result, on the page of each product from which you can select this attribute, all articles found by any of the rules will be displayed.
Attribute rules can be limited by the selected value on the product page, i.e., the user must first select these values on the product page in order for FAQs to be recalculated. For example, we have an attribute value 'Custom legs', for which two more articles are required 'Custom order guidelines: legs' and 'Custom order prices: legs'.
To add its own section, tag, and articles to the attribute value, as you add FAQ rules to the attribute, in the field 'Applied only if the product has all the values' choose the product's value/values. The chosen-in-the-line articles will be shown only if this value is applied.
This way, in order to generate FAQ for a particular product, the module will take into consideration the sections, tags, and articles from three levels.
Different users may see different sets of articles in the FAQ. Articles are shown only if a user can access those articles. Thus, in order to make articles available for website users, it is necessary to publish them.
KnowSystem: Multi Languages
KnowSystem: Multi Languages is a KnowSystem add-on () that lets you translate articles into installed Odoo languages. In such a way users might read and edit articles in a language from their preferences. The language switch sign is added to such fields as title, and preview text as you edit an article. Click on the language icon to manually translate to another language. You can also translate sections', tags' and tours' titles. The fields will be shown in the preferred user's language.
The work with articles in multi-language is not easy as it implies preparing an own body for each article for each language, what almost equals writing a brand new article.
Manually translate articles, titles, and preview text
Copy from another translation
Add translation for sections', tags', and learning tours' titles
See revisions independently for different languages
If you want to have only the title and preview text translated, there is no need to copy-paste the body as it will be in the default language if no other changes are made.
Click on the language icon to manually translate the field to another language. The language switch sign is added to such fields as:
1. Title and preview text as you edit an article
2. Sections', tags', types' (), and tours' titles.
In order to see the fields translated, you need to switch to the preferred language.
To update knowledge body translation you should choose the required language in the tab 'Content', and then click the button 'Edit'. Then, introduce changes the same way as when you just editing an article. All changes performed with an article will be applied to the version only in the currently chosen language. The article in the other languages will not be changed.
Multi-language regime implies that all articles should be kept updated in all Odoo languages.
Article content also might be copied from another language.
To copy the content of an article of one language to the article in another language:
1. Open an article, choose the language, and click 'Edit'
2. Click 'Copy translation'
3. In the pop-up window choose the language
4. Click 'Save&Close'.
After that, the body of the currently edited language will be replaced by the article in the selected language.
The revisions of translated articles are kept separately depending on the article's language. You can't switch between revisions of the same article in different languages and, for example, restore a revision of an article in French to the article in German (see Article revision and history of changes).
